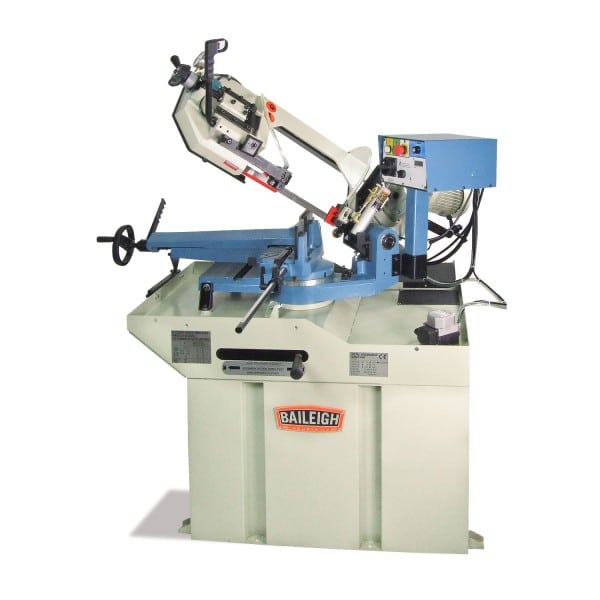

Baileigh BS-260M Dual Mitering Bandsaw

  • 227mm round capacity
  • 0°-45°mitre l, 0°-60°mitre r
  • Hydraulic descent

SKU 2003636 Category Tag Brand:

Description

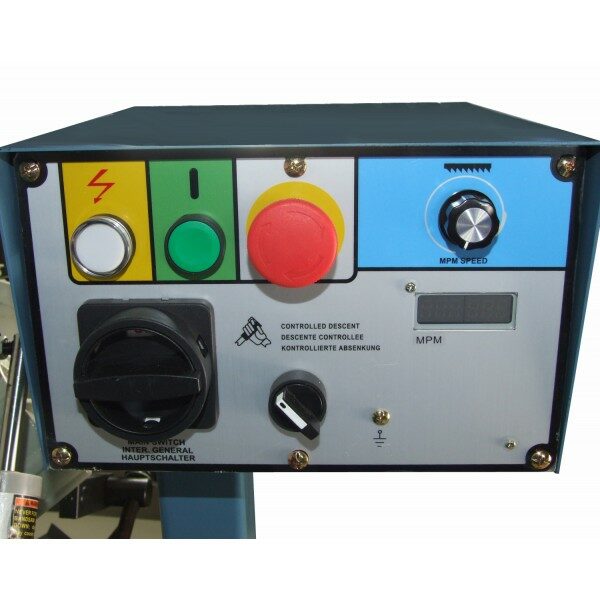

Over the years the BS-260M dual mitering band saw has gone through a number of changes. Once again we have improved it and made it even better. Gone is the day of the DC driver board to adjust the blade speed, now the BS-260M has an AC inverter for even better control and reliability, the best part is that it still is powered by only 220V, 50Hz, 1-phase single phase so it can be used just about anywhere.

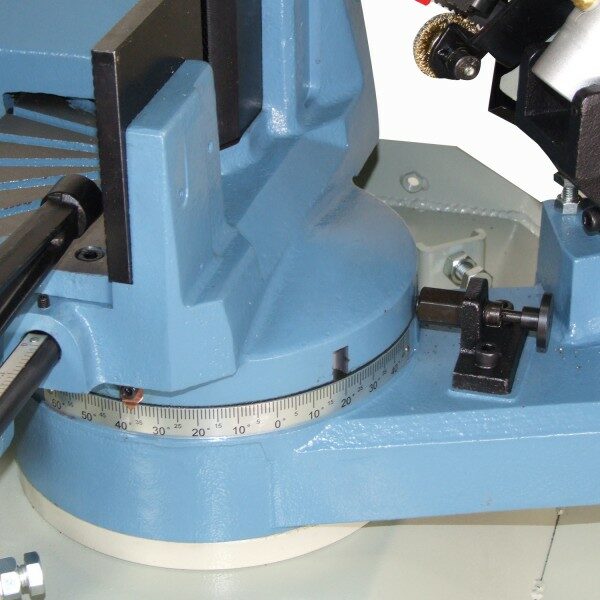

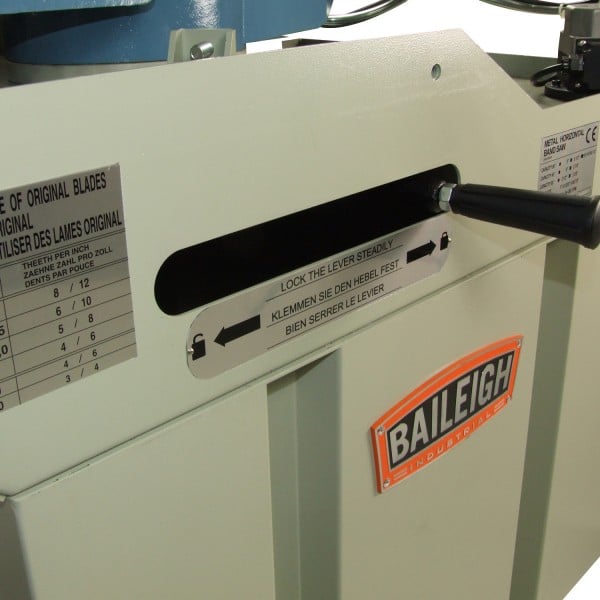

The gear driven BS-260M is a 9″ (229 mm) Band Saw is the perfect saw for cutting at 90 degrees or miter angles. This saw has a dual angle head capable of cutting 0-60 degrees (R) and 0-45 (L), making it one of the most versatile saws on the market. Quick releases head lock allows the operator to change the miter angle in seconds.

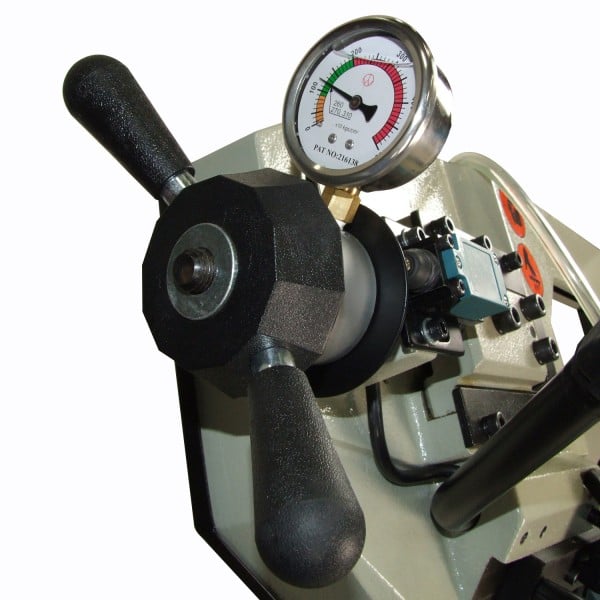

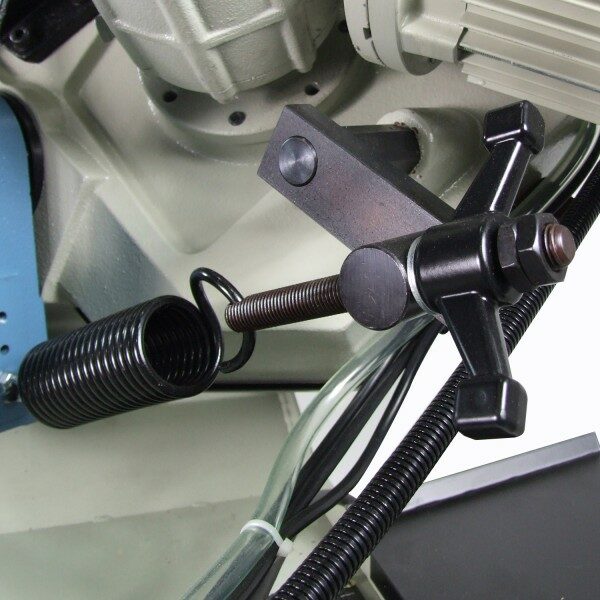

The BS-260M band saw is made form only the best materials for long production life. The saw bow and pivot is made from solid cast iron to ensure the straightest of cuts with little to no vibration. A total of eight precision ball bearings are provided to keep the blade in line as well. The BS-260M also has a powerful coolant system and a broken blade tensioning device that shuts down the machine if the blade breaks for safety.

Operation of the BS-260M is easy as well; there are two mode of operation depending on you preference. 1- Manual descent for small production runs. The operator simply turns on the machine via a trigger switch in the descent handle, and manually guides the band saw blade through the material this mode is perfect for the small or medium sized fabricators needs. 2- Hydraulic descent for larger production runs increases blade life and reduces operator fatigue. The hydraulic descent has a down feed adjustment for feed pressure.

Specifications

Item Number BS-260M
Country of Manufacture Taiwan
Return Manual
Miter Adjustment Dual Swivel Head
Miter Angle 1 – 60°
Motor High Torque 1.5Kw (AC)
Capacity Square 90 x 45 x 60 x 45L 220 mm x 144 mm x 84 mm x 110 mm
Capacity Round 90 x 45 x 60 x 45L 227 mm x 150 mm x 90 mm x 110 mm
Capacity Rectangular 90 x 45 x 45L 269 x 110 x 200 x 125 x 160 x 110 mm
Table Height 889 mm
Blade Guide Carbide x Roller
Blade Speed 20 – 85 mpm
Descent Control Hydraulic
Drive Gear
Power 220V, 50Hz, 1-Phase
Shipping Weight 431 kgs.
Shipping Dimensions (Inches) 1524 x 1118 x 1219 mm

* specifications subject to change without notice.
