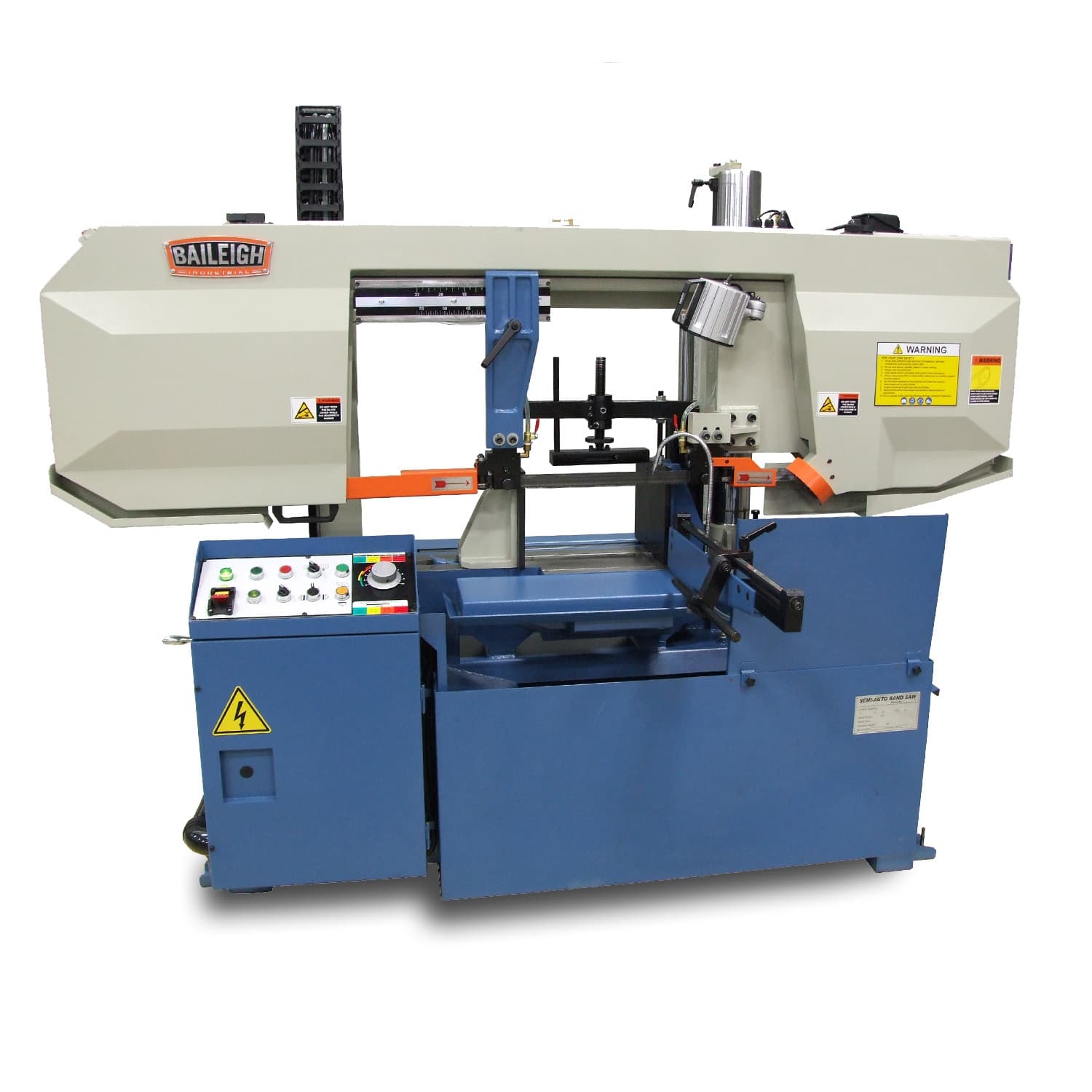

Baileigh BS-360SA Semi-Automatic Bandsaw

  • 360mm round capacity
  • Pressure assist hydraulic descent

£16,286.00Excl. VAT + Delivery

SKU bed63838b854 Category Tag Brand:

Description

Need to cut steel all day, every day? This semi-automatic horizontal band saw will save you time with its efficient hydraulic system. The cast iron bow and steel frame maintain accuracy.

Huge capacity of 14” round and 14” x 22” rectangle.
77 to 252 fpm variable blade speed.
Accepts a standard 1.25” blade (included) to make straight, accurate cuts.
Robust 5 hp motor runs on 400v 3-phase power.

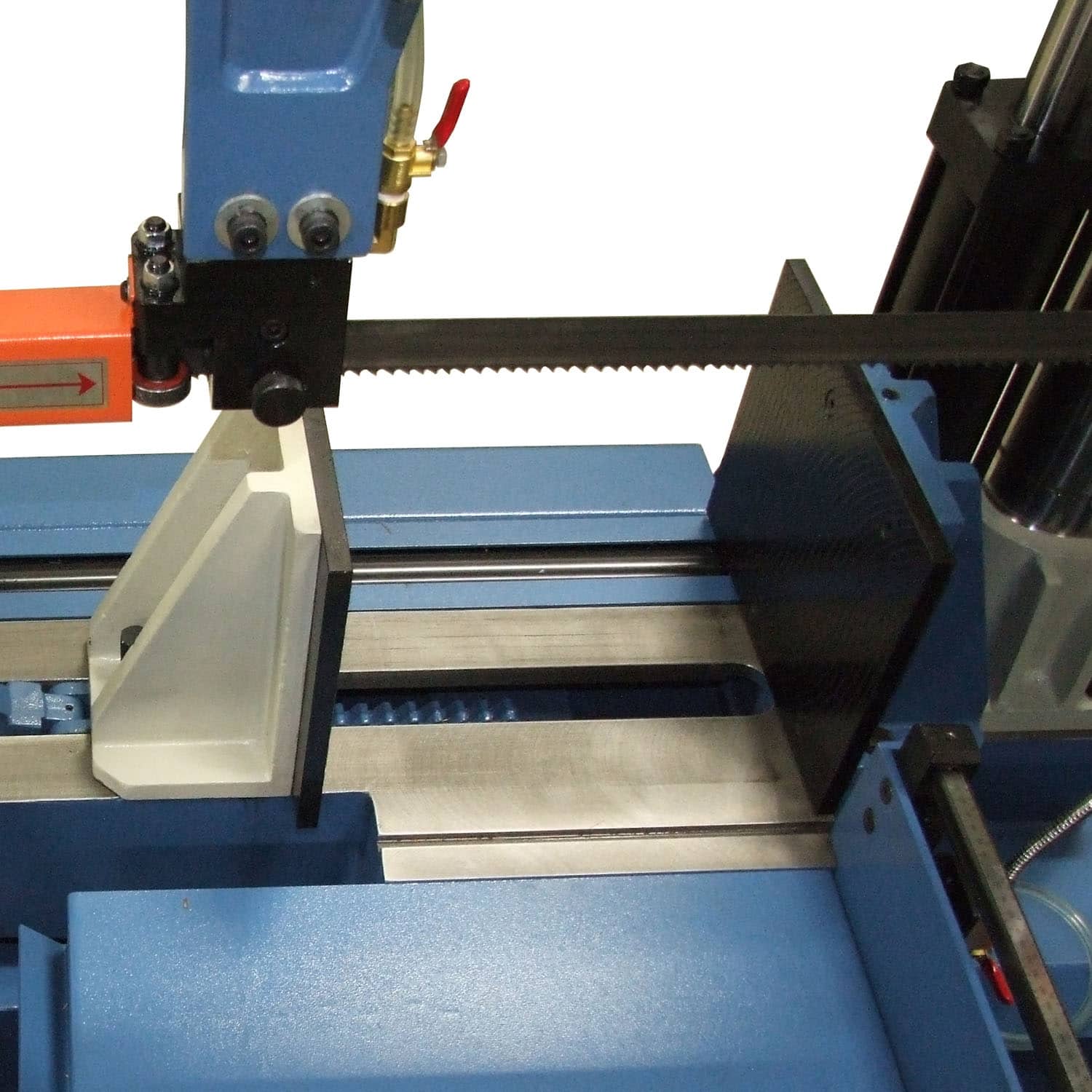

Cast iron vise and bow, machined to exacting tolerances, ensure that cuts are as precise as possible.
Industrial-grade hydraulic system controls the vise and the bow height.
Fully-sealed ball bearings used as blade guides track the blade smoothly and properly.

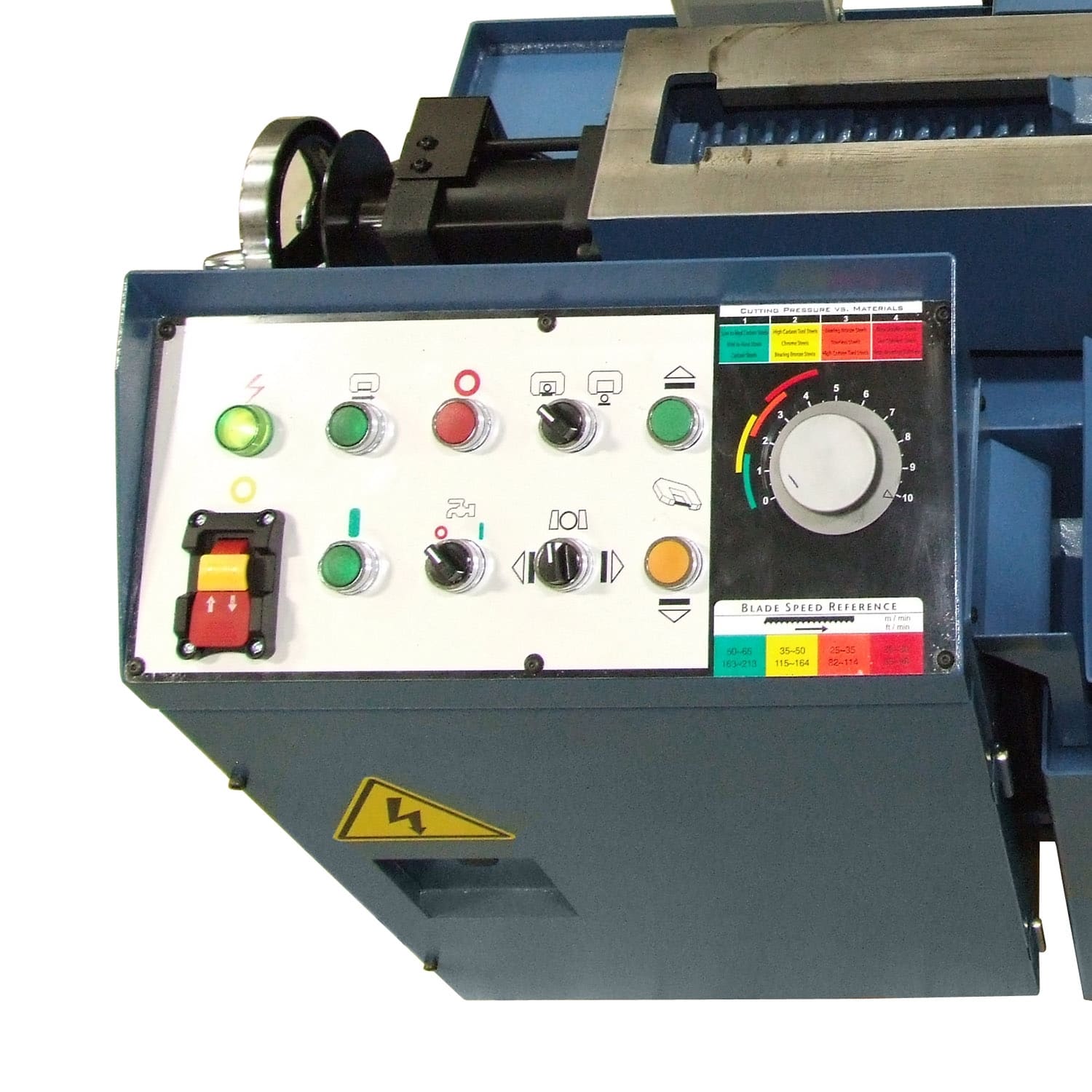

Easy-to-use control panel—with labeled buttons and dials for locking the vice, starting the blade, and more—lets you get up and running quickly.

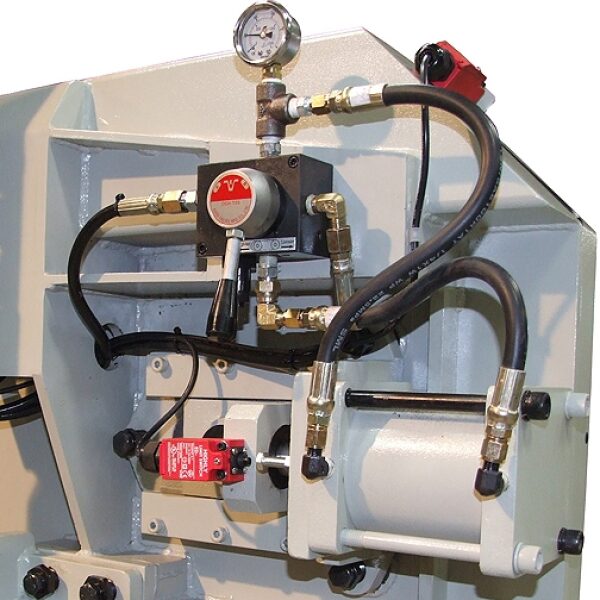

Patented hydraulic blade tension device makes it easy to get the right settings. Just line up the arrow with the green fluid-filled gauge.
Electro-welded steel frame reduces vibrations and keeps cuts accurate over many years of production.
Includes blade brake switch for safety.
Flood coolant system washes away chips after cutting and helps blades last longer.

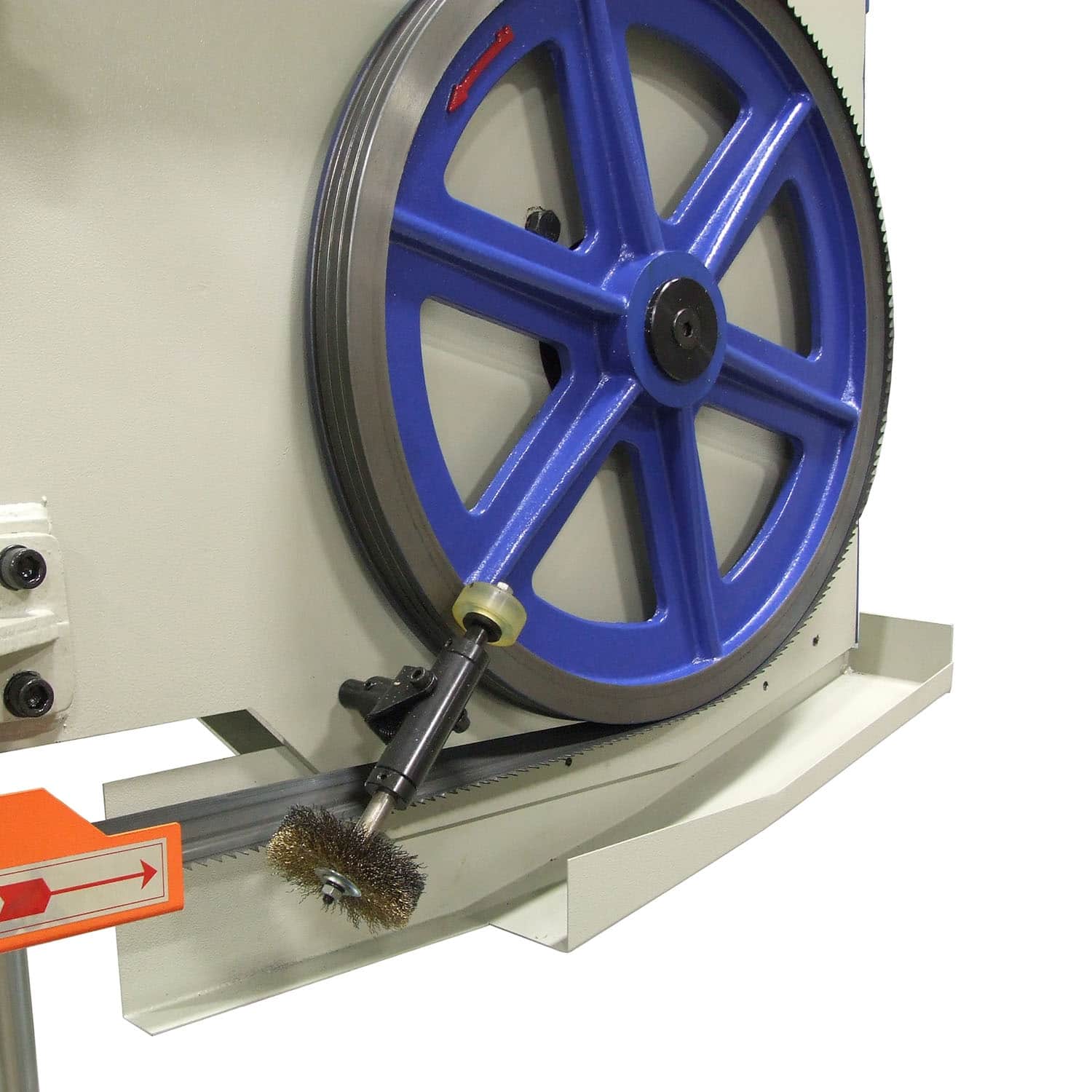

Comes with a chip removal blade brush.
Bright halogen work light gives you a clear view of what you’re cutting.
Most replacement parts are in stock for fast shipping.
This horizontal band saw is covered by a 2-year parts warranty.
Our team of experienced reps provides lifetime technical support by phone. Call us whenever you need machine help or advice on an application.

Specifications

Item Number BS-360SA
Capacity Square 14.17″
Return Hydraulic
Miter Angle N x A
Motor 5 hp
Capacity Round 14.17″
Capacity Rectangular 14.17″ x 22″
Table Height 29.21″
Blade Guide Carbide x Roller
Blade Size 1.3″ x .04″ x 192.13″
Blade Speed (fpm) 77 to 252 (Variable Speed)
Descent Control Pressure Assist Hydraulic
Drive Belt x Pulley
Power 400v 3 phase
Shipping Weight 2600lbs
Shipping Dimensions (Inches) 98x31x74

* specifications subject to change without notice.
