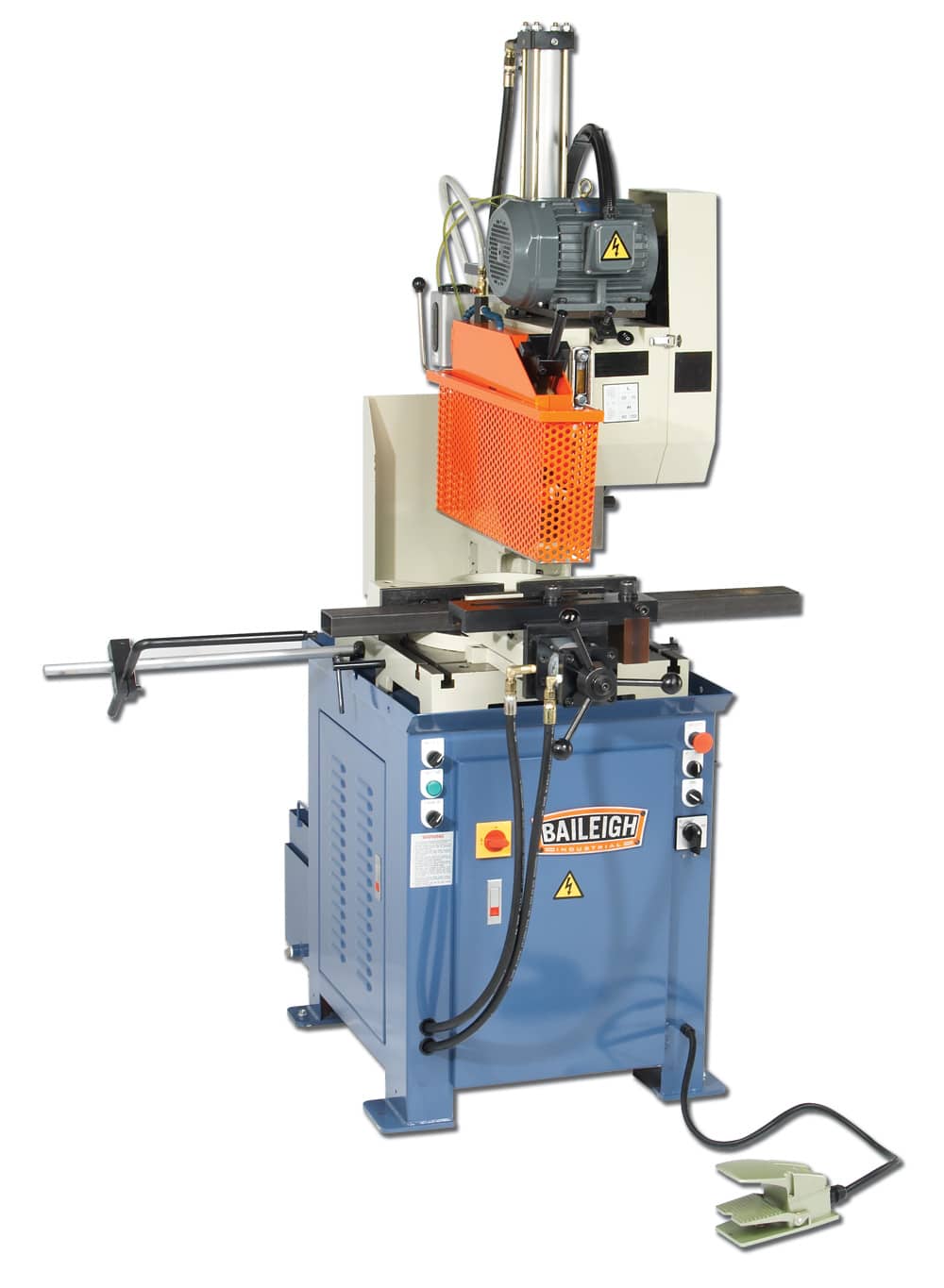

Baileigh CS-C425SA Semi-Automatic Column Type Coldsaw

  • 125mm round capacity
  • 70mm solid capacity
  • 0°-45° mitre l, 0°-45° mitre r

SKU 2001949 Categories , , Tag Brand:


This is a very rigidly built vertical column cold saw that has been constructed to last for decades in the most gruelling fabrication environments.

This 16.5″ bladed machine uses an industrial-grade gearbox, drive motor, and hydraulics. The cutting head rides up and down a heavy way track that has been hardened and ground to offer the most accurate cuts in the industry.

The column of the CS-C425SA is very stable and allows for larger cutting capacities. The cutting head is hydraulically fed offering a precise cutting pressure through the cycle which extends blade life.

The CS-C425SA vertical column coldsaw can mitre left 45° and 60° right, making it a perfect saw for angle iron and channel.

An industrial-grade coolant pump ensures the blade is cooled and that the chips are washed away from the material being cut.

To cycle the machine simply put the material against the provided material stop and press the foot pedal to engage the machine. At this point the material is hydraulically clamped and the saw starts its cycle before returning to the home position.

The vice clamps both sides of the material to save blade life. This Baileigh column coldsaw comes standard with 4 cutting speeds, metered material stop, industrial coolant system, and a tool box filled with items for general maintenance and blade changeovers.


Item Number CS-C425SA
Country of Manufacture Taiwan
Max. Blade Diameter 425 mm – 350 mm
Operation Semi-Automatic
Head Miter 17209
Round Solid at 45° 60 mm
Square Tube at 45° 100 mm x 100 mm
Round Tube at 45° 114 mm
Rectangle Tube at 45° 100 mm x 49 mm
Round Solid at 90° 70 mm
Rectangle Tube at 90° 120 mm x 49 mm
Square Tube at 90° 110 mm x 110 mm
Round Tube at 90° 125 mm
Coolant System 17202
Vice Style Single Action
Max. Vice Opening 153 mm
Head Style 17208
Arbor Size 17166
Motor 5.0 / 3.0 hp
Blade Speed Four-Speeds, 35 / 70 & 60 / 120 (rpm)
Power 220V / 3-phase
Shipping Weight 850 kgs.
Shipping Dimensions (Inches) 1473 x 838 x 2134 mm

* specifications subject to change without notice.
