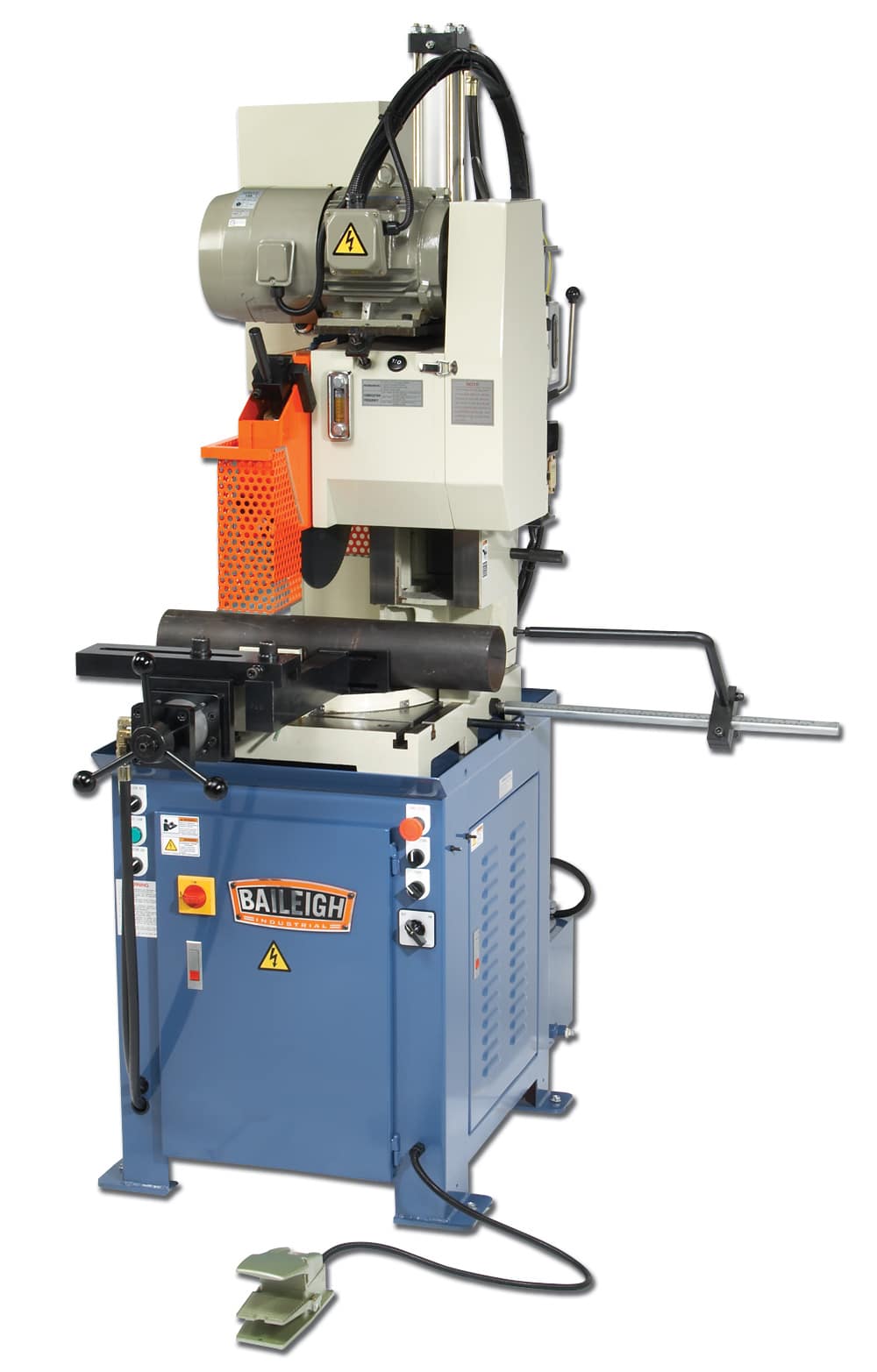

Baileigh CS-C485SA Semi-Automatic Column Type Coldsaw

  • 125mm round capacity
  • 70mm solid capacity
  • 0°-45° mitre l, 0°-30° mitre r

Description

The CS-C485SA is a 16.5″ vertical column coldsaw and is a semi-automatic machine that uses a Yaskawa® inverter drive to control the saw blade speed up to 120rpm.

This coldsaw comes with an industrial-grade coolant system, drive motor and hydraulic feeding system that will provide decades of profitable use to any demanding fabrication or machine shop.

Like the rest of our semi-automatic column style coldsaws, this one can mitre left 45° and right 60°, making it the perfect machine for mitre applications in tubing, angle iron, and channel.

The Yaskawa® drive allows the operator to run the machine using a variable speed pot in two rpm ranges: 20rpm to 70rpm and 35rpm to 120rpm.

The CS-C485SA coldsaw is our top of the line semi-automati coldsaw, and weighs in at an impressive 1898lbs of pure steel construction. The heart of the coldsaw is the heavy and rigid hardened and ground ways that are attached to the solid column. This kind of construction allows for heavier cuts, with more accuracy.

A properly built vertical column coldsaw produces a machined-like surface that doesn’t require any clean up or facing. This semi-automatic machine is perfect for high production applications and uses a hydraulic downfeed and upfeed system. The upward stroke or travel can be limited to increase cycle rates. The hydraulic industrial vice has jaws on both sides of the material to increase blade life.

Baileigh coldsaws offer more value for the investment.

Specifications
