Baileigh EW-37HD Heavy-Duty English Wheel

  • 1.6mm mild steel capacity
  • 3mm (soft) aluminium capacity
  • 711mm throat depth

SKU 2001296 Category Tag Brand:

Description

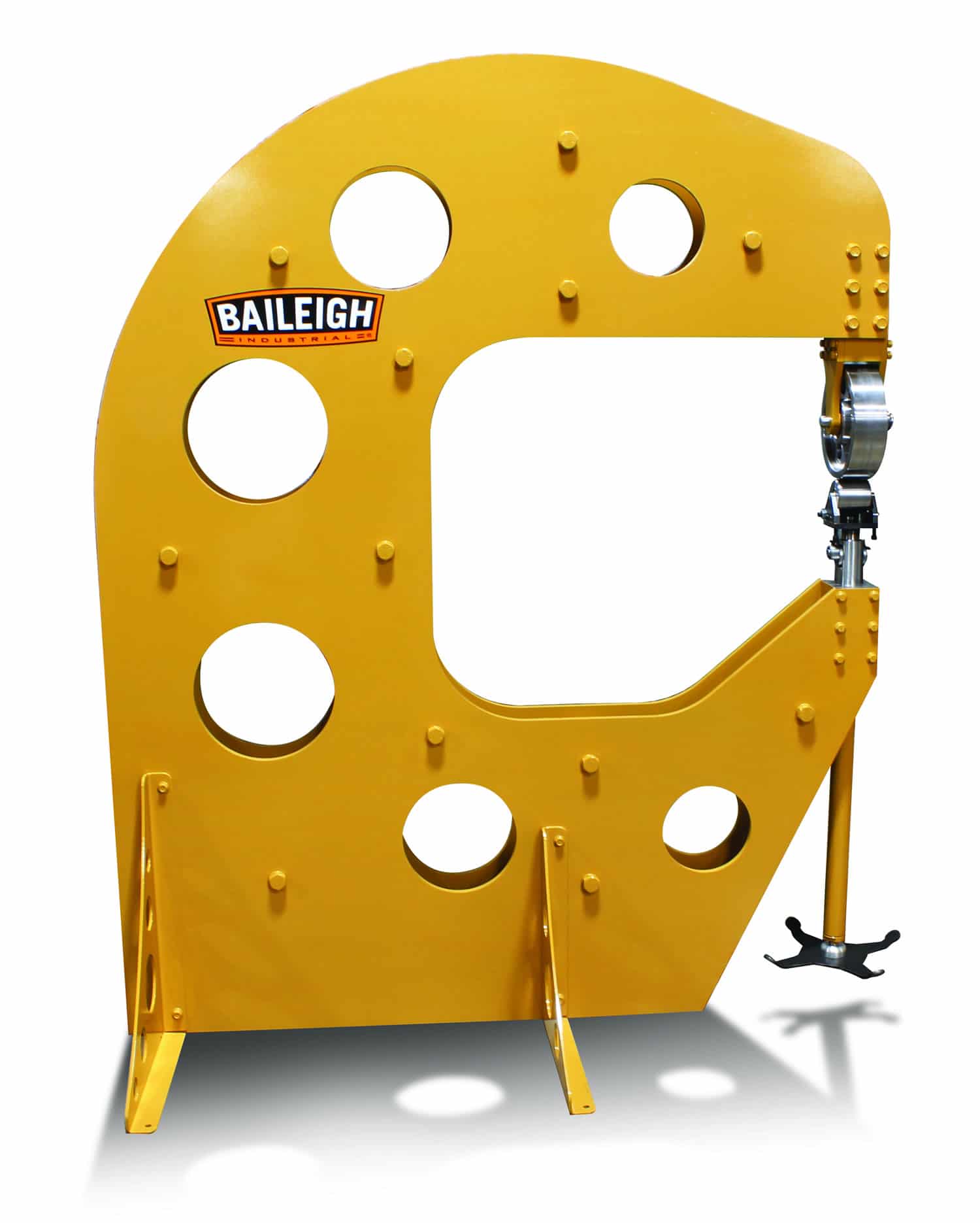

If professional metal shaping is what you do, then you know the importance of a good quality english wheel. Baileigh industrial has come up with what we feel is the best wheel on the market, the EW-37HD. It has a massive 37” throat depth and a super large opening for even the most extreme curved panels. Made from twin 5/8” thick steel plates, the EW-37HD is one of the most rigid english wheels on the market not to mention one of the heaviest. The EW-37HD weighs in at just less than 1600 pounds

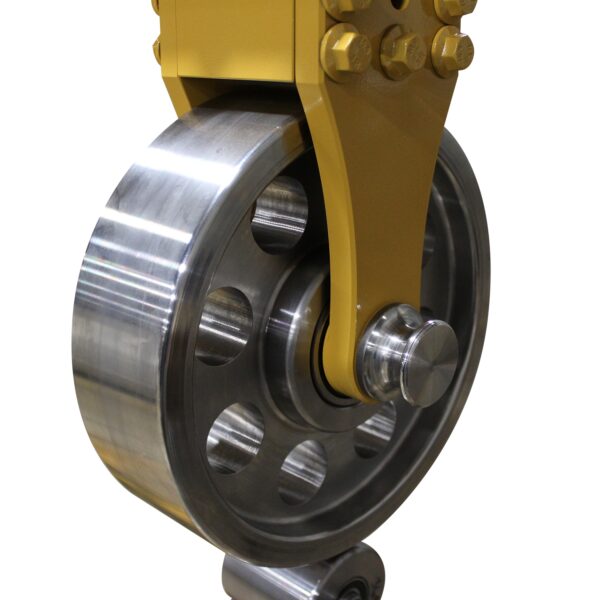

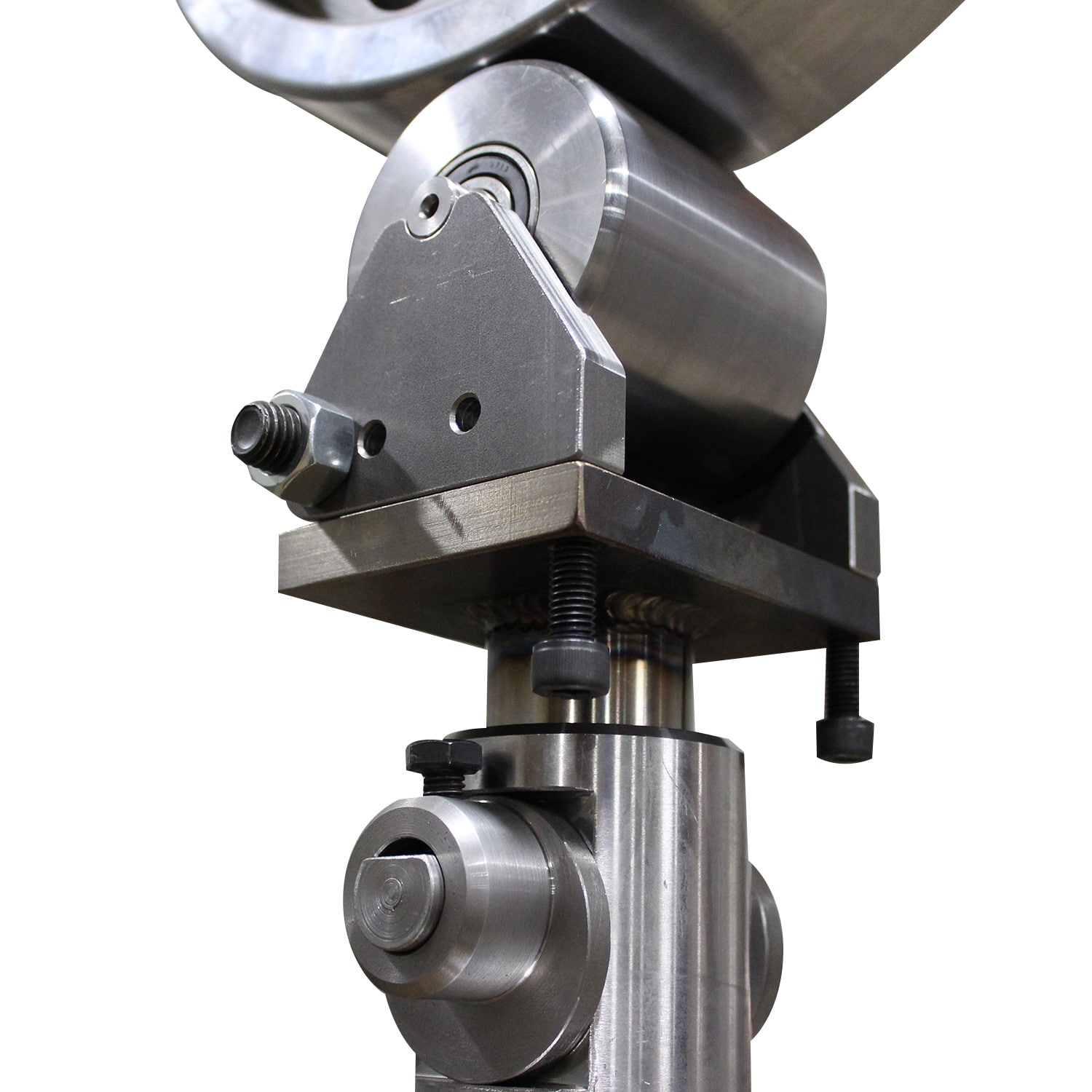

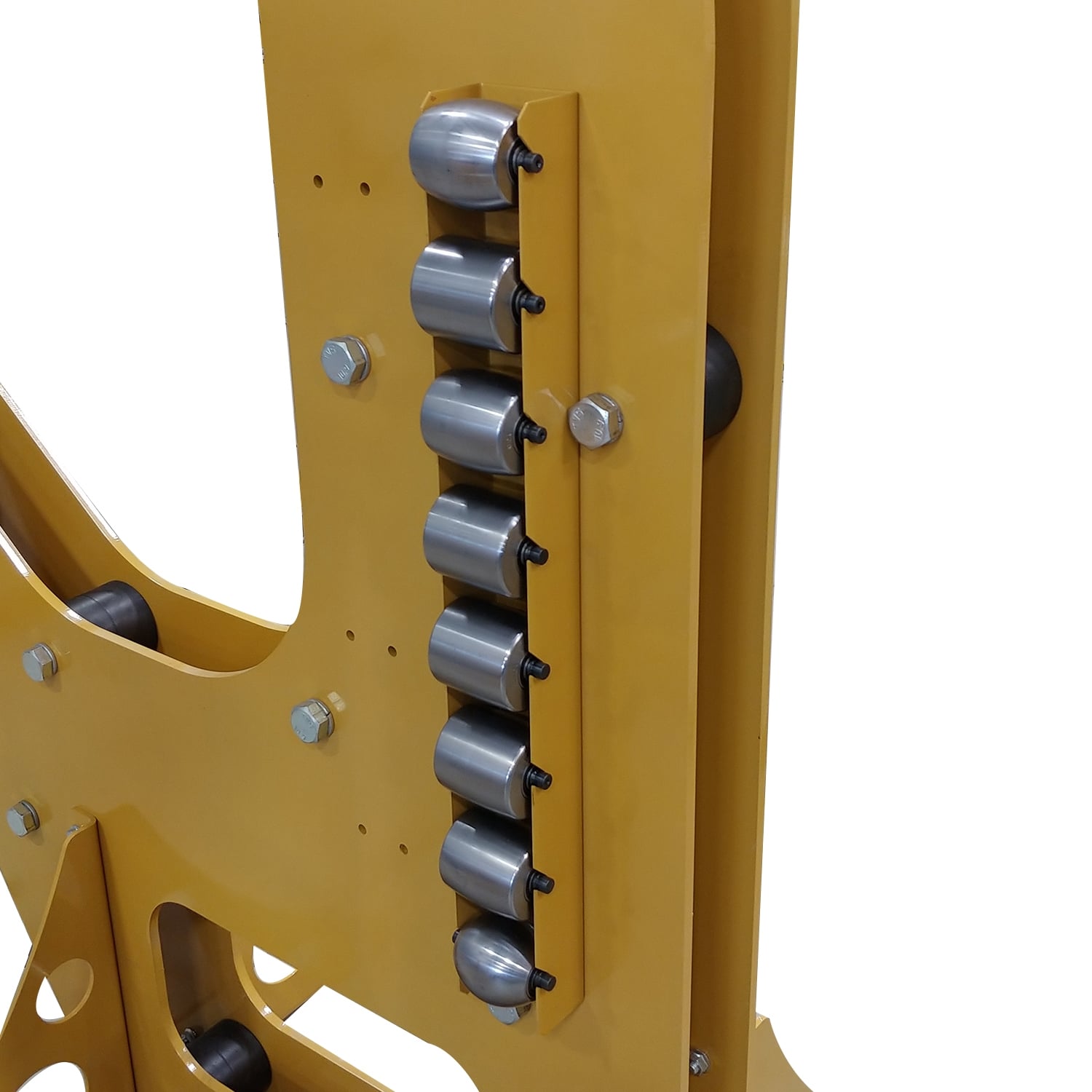

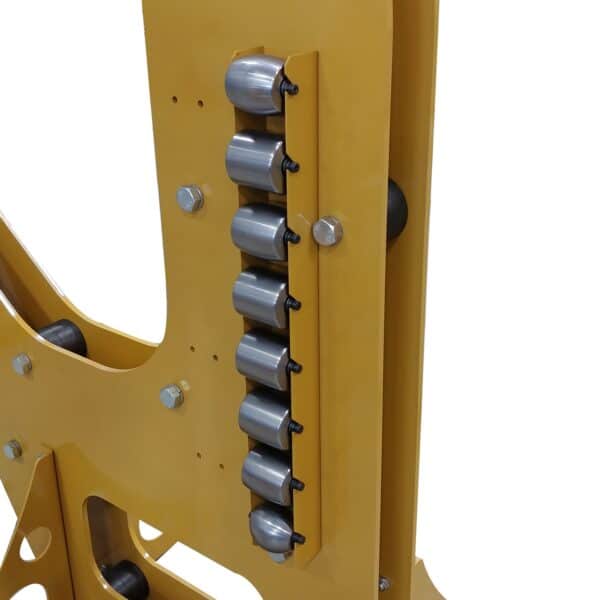

Everything on this wheel is adjustable, including the caster and camber of the bottom anvil. The EW-37HD comes with eight 3” wide bottom anvils in the following radii; flat, 36”, 24”, 12”, 8”, 6”, 4”, and 2”. The upper wheel is a robust 10” diameter x 3” wide. These sizes will handle almost any wheeling application you can think of. It also incorporates a quick release with internal locking cam for easy panel removal.

Specifications

Item Number EW-37HD
Mild Steel Capacity 16 ga.
Throat Depth 940mm
Aluminum Capacity 3mm Soft
Lower Die Radius 2″, 3″, 4″, 6″, 8″, 12″
Power Manual
Shipping Weight 725 kg.
Shipping Dimensions (Inches) 1220 x 1220 x 2135mm
Top Wheel Dimensions 254 x 76mm

* specifications subject to change without notice.
