Description

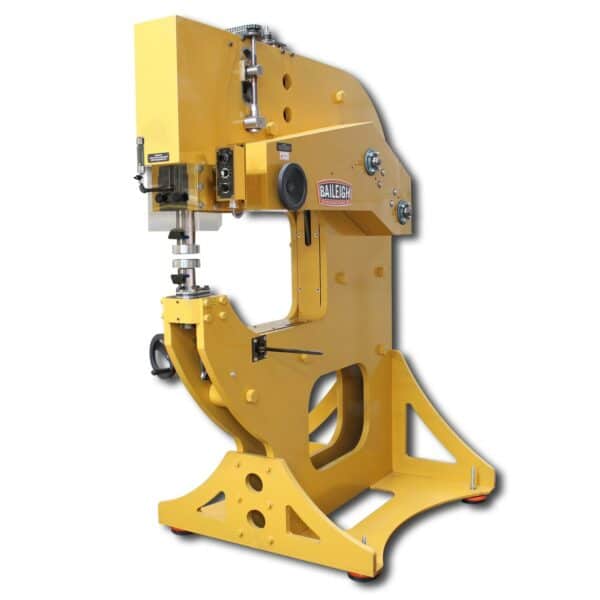

The MH-37HD power hammer from Baileigh Industrial takes metal shaping to new heights. This monster is truly a do it all machine. We have taken all the knowledge we have gathered from the MH-19 and uped the capacities. The MH in MH-37HD stands for multi-hammer because if does multiple things, but unlike other combination machines that you see, the MH-37HD does them better than all of the stand alone machines. There truly is nothing that this machine cant do. The MH-37HD power hammer is a 400 volt three phase machine has the ability to transform itself from a rigid style like a Pullmax® style machine, to a spring slapping style like a Yoder® style machine.
When operating in the rigid mode, there is no “give” between the die heads. Used for short stroke shaping, flanging. Tooling designs and profiles are endless, but some of the options are mechanical shrinking, stretching dies, flanging dies, and louvers.

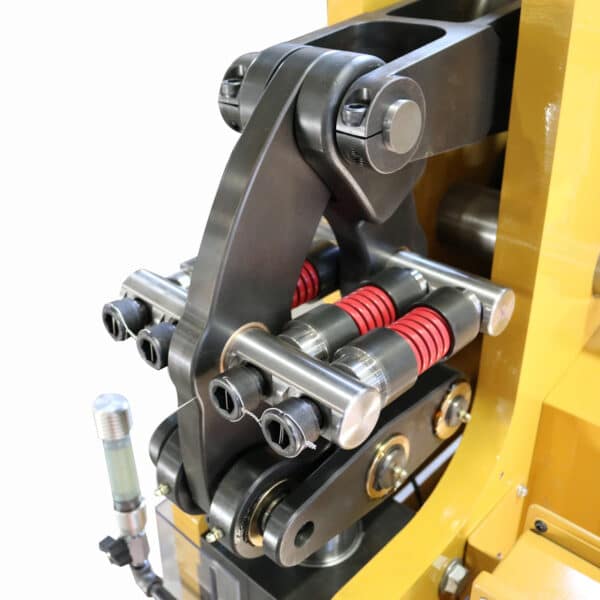

The spring setup with “Throw the die” causing a dead blow hammering effect. When in this mode the total amount of pressure applied when the dies hit the metal is increase exponentially. This mode would be used for aggressive shrinking and planishing, many different tooling profiles can be used.

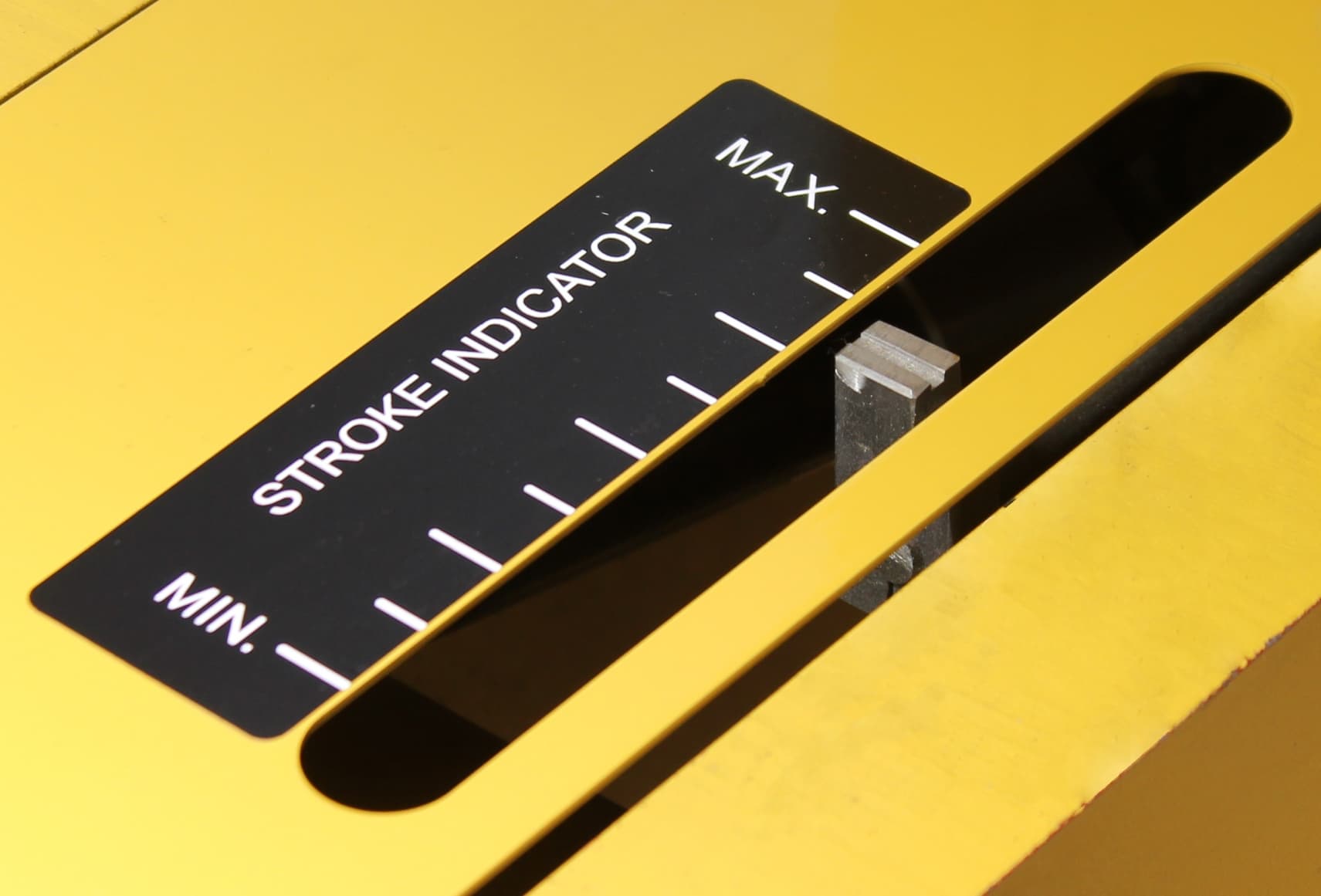

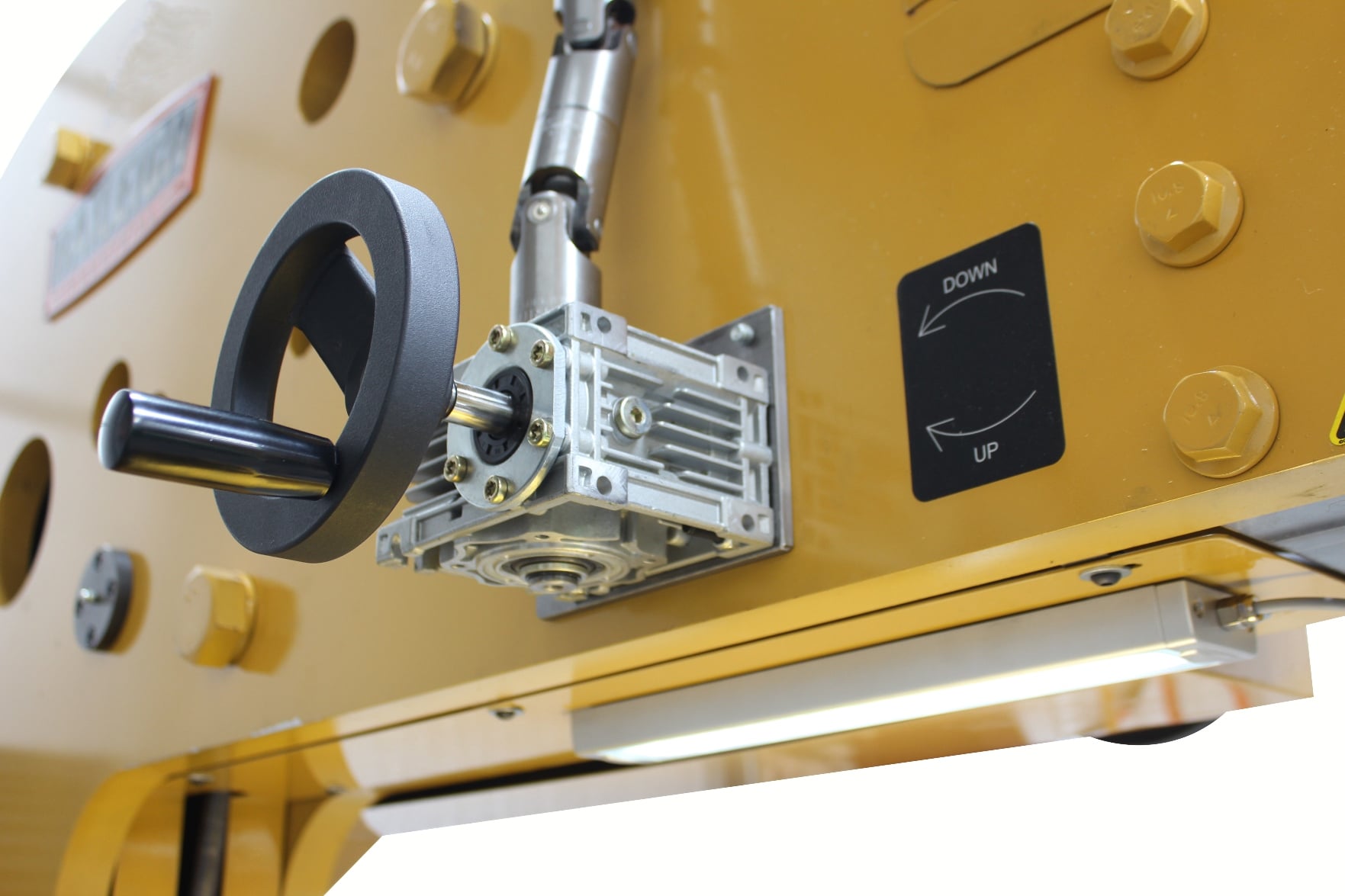

The MH-37HD uses an inverter to obtain various speeds for operation. Speeds range from 0 to 1500 beats per minute, speed is adjusted one of two ways; either with the operator controlled foot pedal or on the operator panel where he/she can lock in their speed. Another key feature of the MH-37HD power hammer is on the fly stroke adjustments. These stroke adjustments range from 0.1 to .750. Contact a Baileigh Industrial representative for more information.
FEATURES

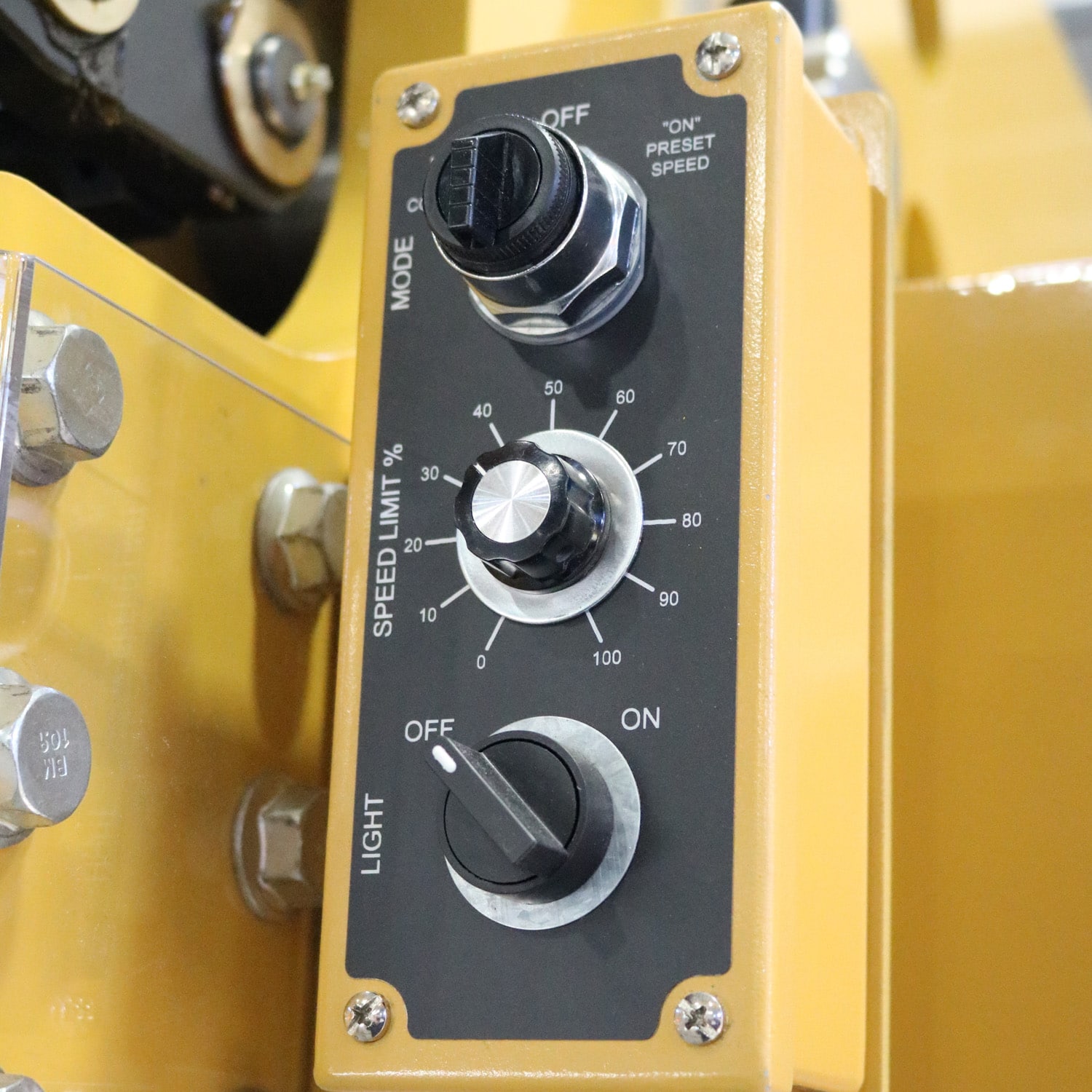

VARIABLE FOOT SPEED CONTROL WITH ADJUSTABLE LIMIT
CAPACITY (RATED BY SHRINKING ABILITY) 1/8 STEEL / 1/4″ SOFT ALUM.

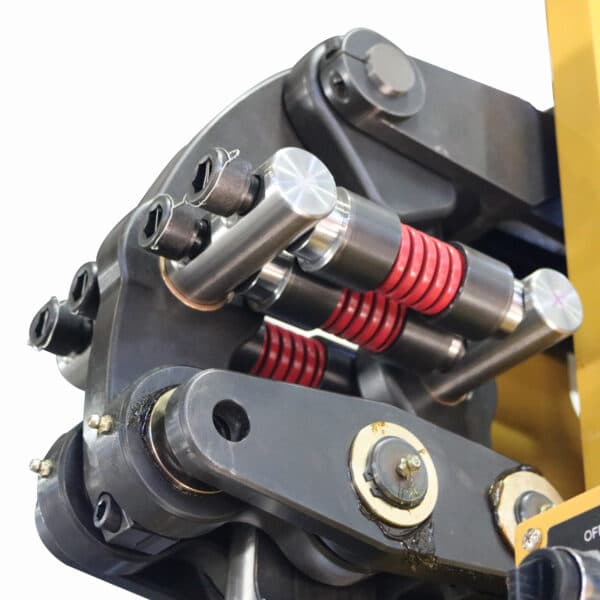

REPLACEABLE MAIN HAMMERING SPRINGS
POWER HAMMER MODE AND RIGID MODE VIA SHEAR PIN QUICK RELEASE DIE CHANGES

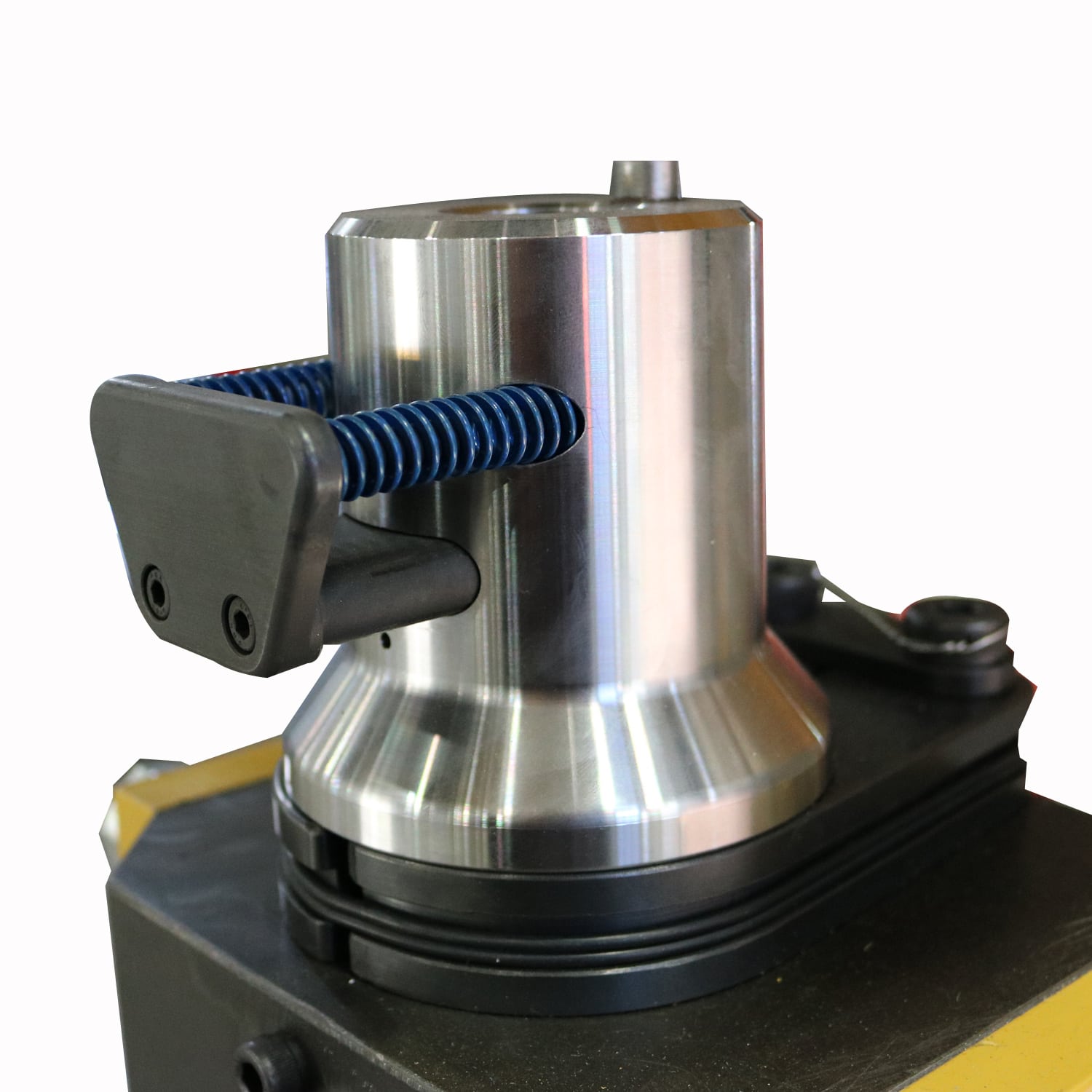

QUICK RELEASE LOWER DIE ANVIL
WORK LIGHT
INCLUDED TOOLING
LARGE SHRINK DIE SET FLAT TOP MASTER DIE
1.0 X 6.0 PLANNISH DIE
36.0R DIE
24.0R DIE
12.0R DIE
LINEAR STRETCH DIE
