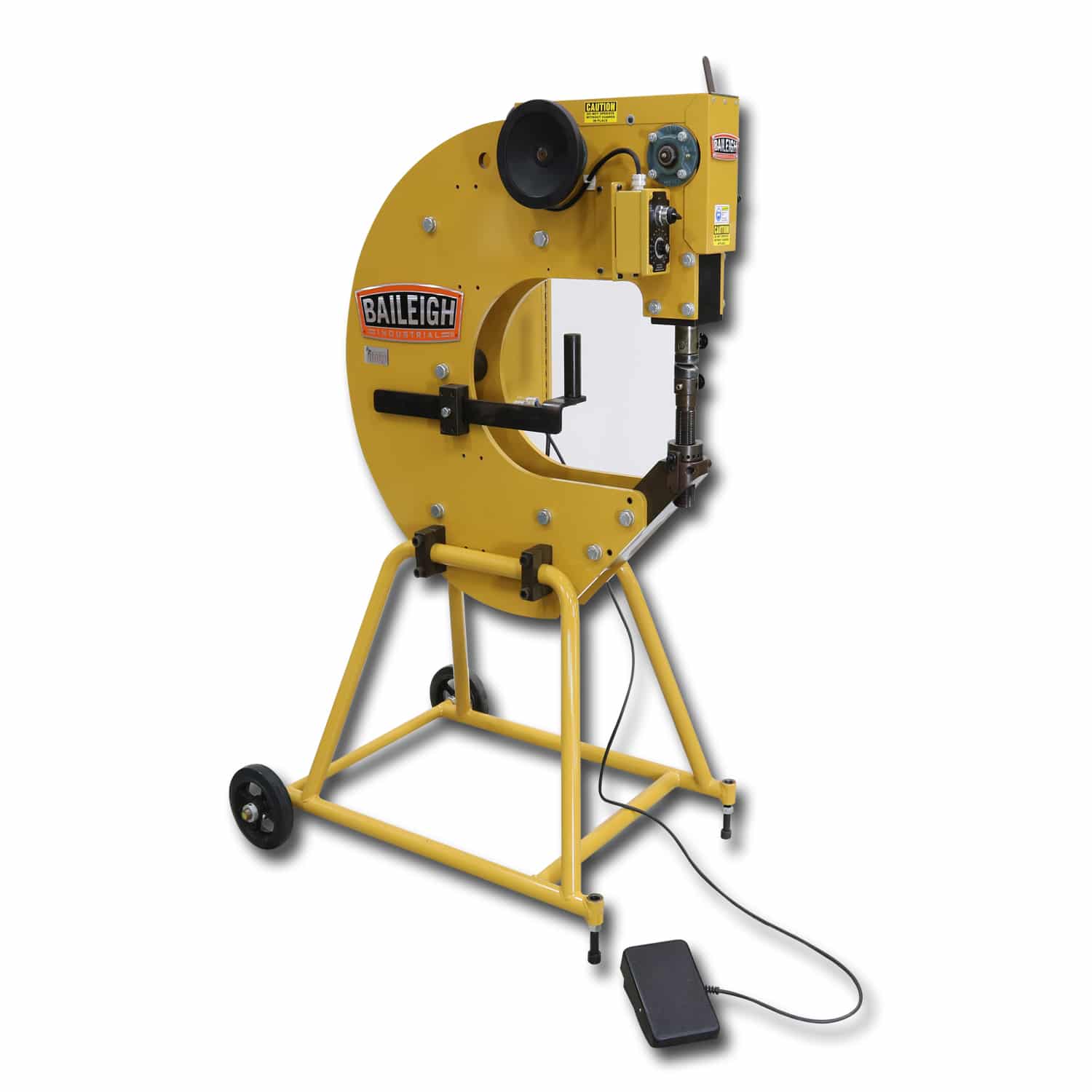

Baileigh PH-19VS Reciprocating Hammer Variable Speed

  • 1.6mm mild steel capacity
  • 2.8mm aluminium capacity
  • 1700 beats per minute
  • 483mm throat depth

SKU 2000889 Category Tag Brand:

Description

The PH-19VS takes over where the PH-19 reciprocating power hammer leaves off. By adding an inverter drive to an already potent machine, Baileigh Industrial raised the bar again. When precise speed control is needed for those delicate jobs, the PH-19VS shines. Powered by 220 volts, the PH-19VS allows the operator to control the beats per minute from 0 to 1700. The beats are controlled by either a foot pedal or a control box on the side of the machine, it is your choice.

The PH-19VS was designed from the MH-19, to give a more economical way to shape metal fast. Baileigh Industrial believes the PH-19VS is the best reciprocating power hammer on the market, bar none. It has the ability to shrink, stretch, dome, edge turn, bead, and offset with the readily available tooling.

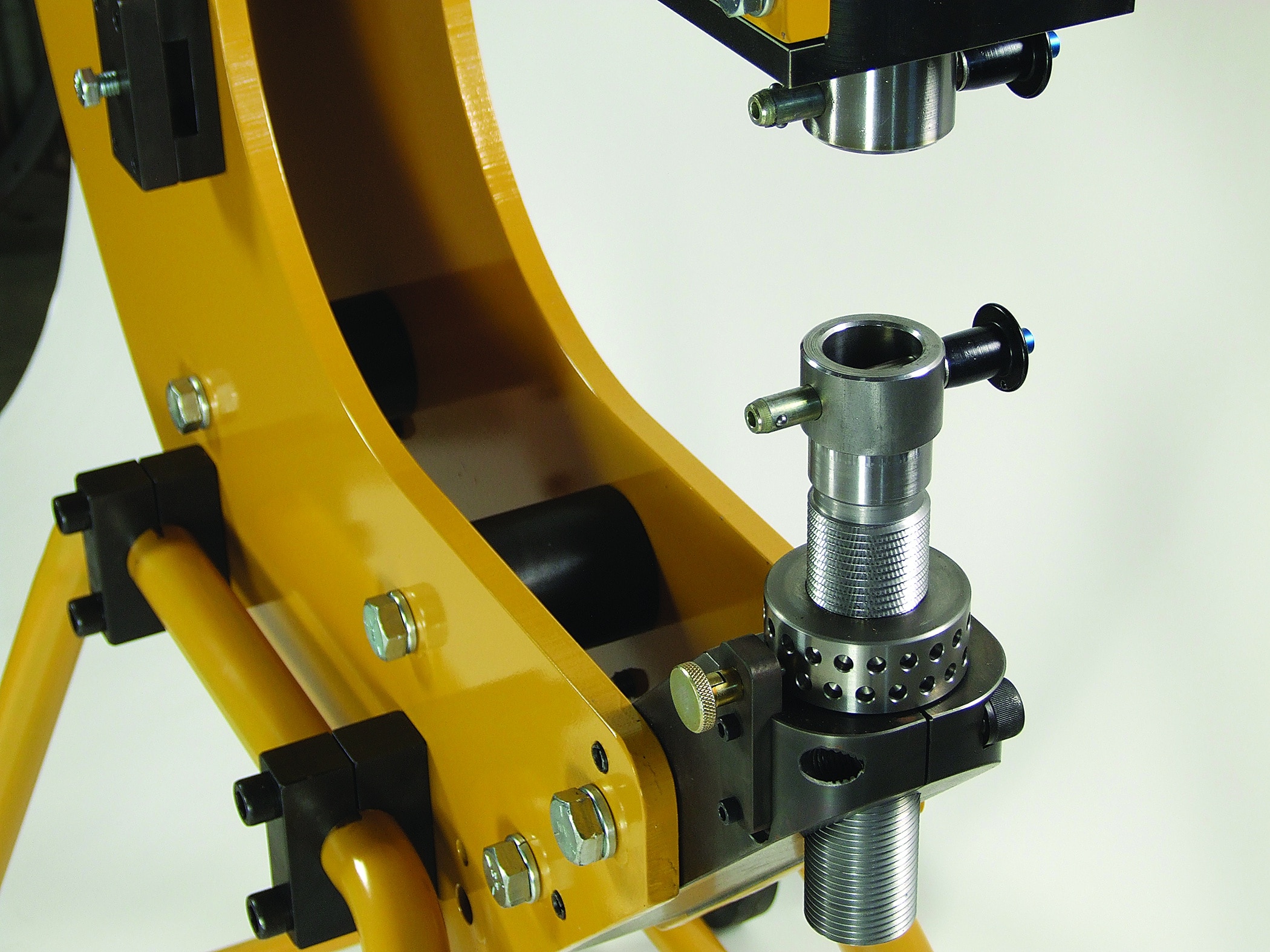

It also has a large 19” deep throat and a tooling quick release handle which allows the operator to start working in the middle of the panel while keeping the working pressure constant. A quick release bottom tooling holder makes life on the operator easy by making tooling changes a breeze.

Specifications

Item Number PH-19VS
Country of Manufacture United States
Speed 0 – 1700 beats / minute
Tooling Height Adjustment 127 mm
Throat Depth 483 mm
Capacity (Mild Steel) 1.6 mm
Aluminum Capacity 2.8 mm
Power 220V, 50Hz, 1 Phase
Shipping Weight 455 kgs.
Shipping Dimensions (Inches) 1524 x 1219 x 2134 mm

* specifications subject to change without notice.
