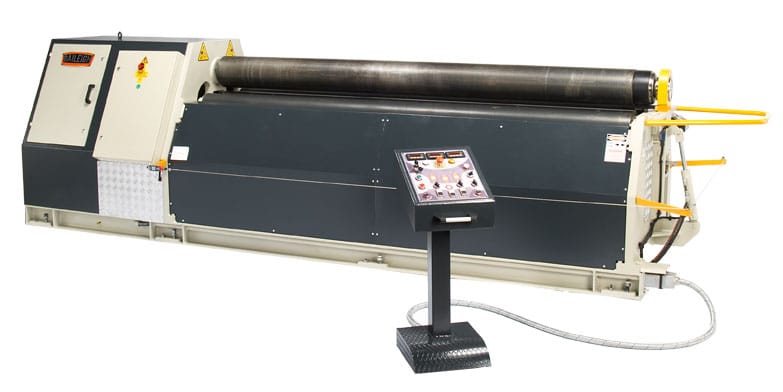

Baileigh PR-1003-4 Plate Rolls

  • 3050mm forming width
  • 6.5mm mild steel capacity
  • 2 driven rolls
  • DRO for roll positions

£31,455.00Excl. VAT + Delivery

Description

Built to last in even demanding shops, this hydraulic 4-roll plate roll draws strength from a hydraulic motor, a planetary gearboxes, linear piston movement, and a heavy steel frame.

Rolls up to ¼” mild steel in 10-foot lengths.
Robust 7 hp motor runs on 400-volt 3-phase power.
Planetary gearbox, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute.
Direct linear piston movement for the lateral and forming rolls delivers even more power.
Industrial 2 hp hydraulic motor moves the lateral rolls.
3 digital readouts give an accurate roll location for easy repeatability.
Operator control pedestal lets you conveniently manage all movements of the machine.
Fully integrated plate steel frame keeps the machine rigid and accurate over many years of constant use.
Safety features, such as a machine tether and emergency stop switch, come standard.
Covered by a 1-year parts warranty.
Includes lifetime technical support<.strong> by phone from our team of in-house machine experts.

Specifications

Item Number PR-1003-4
Forming Width 120″
Driven Rolls 2
Roll Speed 16 fpm. (5 mpm)
Upper Roll Dia. 8.662″
Roll Adjustment Back Hydraulic
Side Roll Dia 7″
Minimum Forming Dia 13″
Motor 7 hp
Power 400V / 3-phase
Shipping Weight 13200lbs
Shipping Dimensions (Inches) 197x60x60

* specifications subject to change without notice.
