Baileigh PR-101000-4

  • Four rolls
  • 3100mm forming width
  • 25.4mm mild capacity
  • Two driven rolls

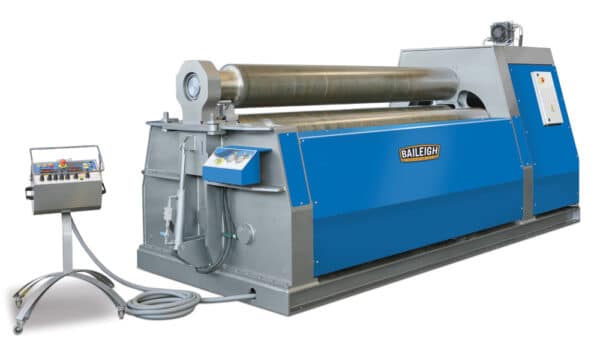

When you need to bend 1” thick steel plate to a perfect cylinder, then look no further than the PR-101000-4 plate forming roll from Baileigh Industrial. This industrial production machine is built using only the best components and is designed to last years in any environment. The beat is powered by a 20hp hydraulic motor that runs on 480 volt three phase power.

Four roll plate rolls like the PR-101000-4 have many advantages over the conventional three roll machines when doing precision work. This is large part due to its ability to pinch the plate between the 2 central driven rolls, pre-bend the leading edge, and rolling the body of the part along with the trailing edge all in one direction and in one pass. There is no chance to lose the position of the plate due to being pinched at all times during the rolling cycle.

1″ mild steel capacity
120″ length 4 forming rolls
2 driven rolls
Hydraulically driven
Moveable console with DRO
Hydraulic system for helping to remove material
Epicycloidal gear boxes
Hardened and polished rolls
Conical bending system
Torsion bars for perfect parallelism
Planetary movement of side rolls


Item Number PR-101000-4
Rolling Cap. (Mild Steel) 1″
Forming Width 122″
Number of Rolls 4
Driven Rolls 2
Top Roll Dia. 14.5″
Bottom Roll Dia. 13.7″
Slide Roll Dia. 10.6″
Roll Adjustment Hydraulic
Programming Manual
Motor 20 hp.
Power 480V / 3-phase
Shipping Weight 37,400 lbs.
Shipping Dimensions (Inches) 188″ x 76″ x 56″

* specifications subject to change without notice.
