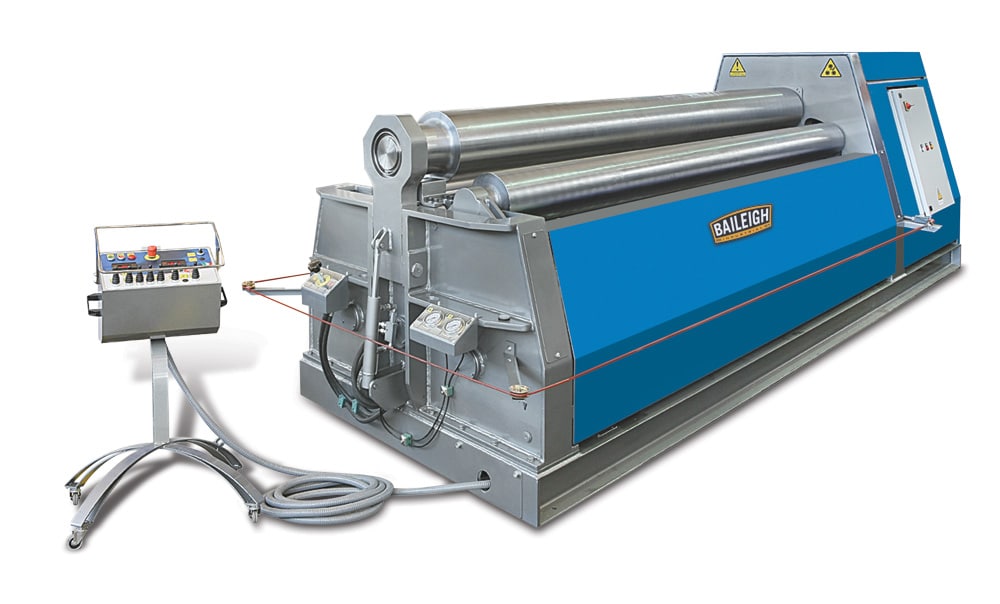

Baileigh PR-10500-4 Plate Roll

  • Four rolls
  • 3100mm forming width
  • 12.4mm mild capacity
  • Two driven rolls

Description

The PR-10500-4 four roll plate bending machine has been refined over the years through extensive research and development and is considered one of the finest plate rolling machines available in the market. A 4 roll machine is the easiest, quickest, rolling machine to operate thanks to its ability to pinch the plate between the 2 central driven rolls, pre-bend the leading edge, and rolling the body of the part along with the trailing edge all in one direction and in one pass. There is no chance to lose the position of the plate due to being pinched at all times during the rolling cycle.

The 2 central driven rolls on the PR-10500-4 are rotated by hydraulic motors and high efficiency planetary gearboxes coupled directly to the rolls. This hydraulic gearbox is driven by a large 10hp motor that operates on 400 volt three phase power.

1/2″ mild steel capacity
120″ length
4 forming rolls
2 driven rolls
Hydraulically driven
Moveable console with DRO
Hydraulic system for helping to remove material
Epicycloidal gear boxes
Hardened and polished rolls
Conical bending system
Torsion bars for perfect parallelism
Planetary movement of side rolls

Specifications

Item Number PR-10500-4
Rolling Cap. (Mild Steel) .55″
Forming Width 122″
Number of Rolls 4
Driven Rolls 2
Top Roll Dia. 11.4″
Bottom Roll Dia. 10.6″
Slide Roll Dia. 8.2″
Roll Adjustment Hydraulic
Programming Manual
Roll Speed 16 fpm. (5 mpm)
Upper Roll Dia. 8.662″
Roll Adjustment Back Hydraulic
Side Roll Dia 7″
Minimum Forming Dia 13″
Motor 10 hp.
Power 480V / 3-phase
Shipping Weight 17,600 lbs.
Shipping Dimensions (Inches) 176″ x 58″ x 39″

* specifications subject to change without notice.
