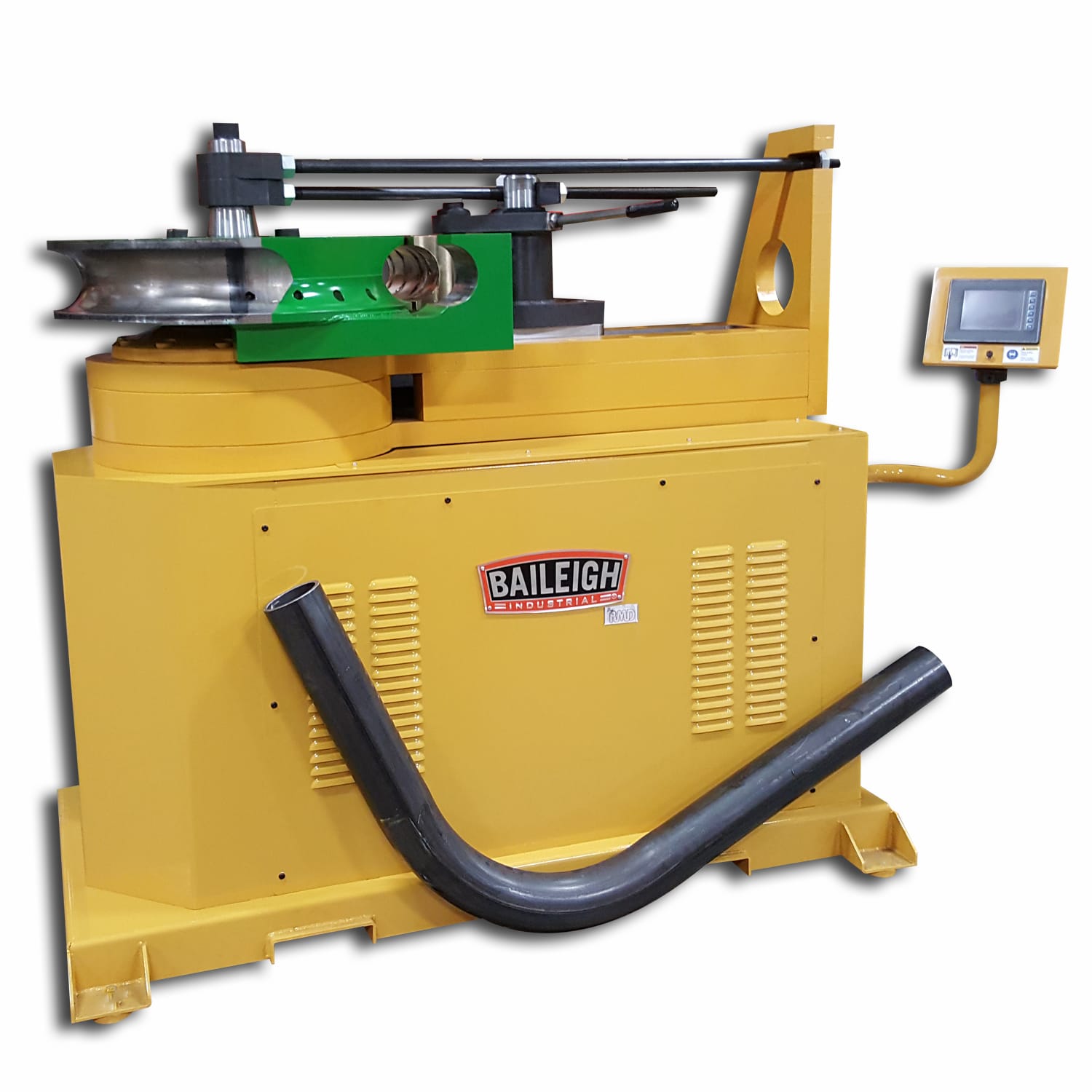

Baileigh RDB-480 Baileigh Pipe Bender

  • 415V 3-phase power
  • 4” schedule 80 pipe capacity
  • 711mm max. CLR
  • Stores 170 bend programs

SKU 2038227 Category Tag Brand:

Description

This programmable pipe bender shapes material at blistering speeds with professional accuracy. Made in the USA, the RDB-480 will revolutionize the efficiency of your fabrication shop.

Runs on 415 volt three-phase power.
Tackles heavy-duty materials, bending up to 127mm tubing and 4” schedule 80 pipe.
Rotary draw bender smoothly executes 180° bends in just 25 seconds and can complete up to 360° bends.
Stores up to 170 programs of 10 bends each in its internal memory and accepts limitless external memory.

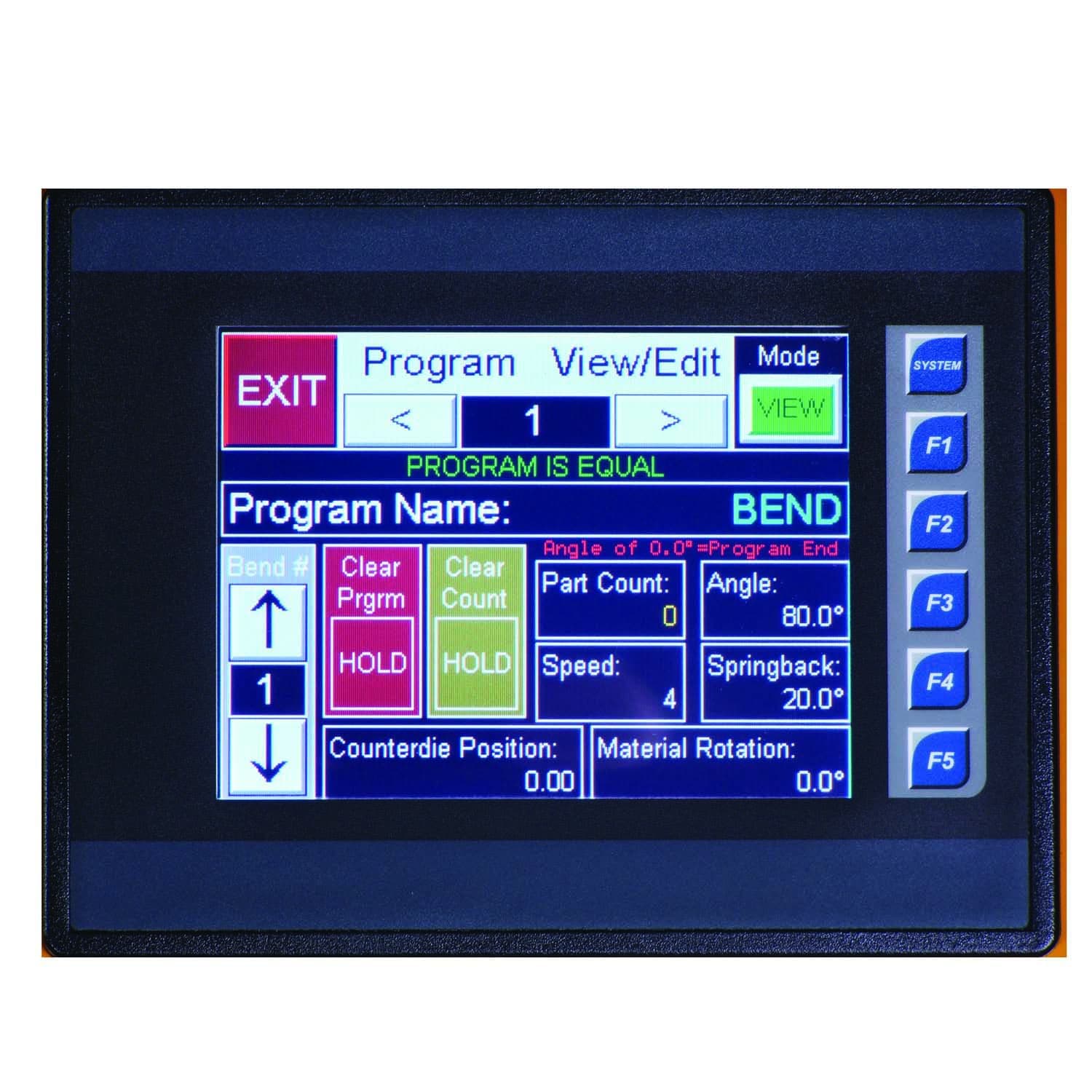

Easy-to-use touchscreen or handy foot pedal can both operate the bender, when not in manual mode.
2-piece die mount loosens to release bent tubing without a hassle.
Covered by a 1-year parts warranty and lifetime technical support.

Why choose Baileigh’s RDB-480 Tube Bender over competing machines?

Cuts down on time and effort for repeat projects by storing complex bend specifications as programs.
Reduces delays with extremely fast automatic bending.
You can rely on after-sale support and project advice from Baileigh’s experienced team—just a phone call away—for as long as you’re using the RDB-480.
Accommodates a wide range of tooling, available from Baileigh, to suit almost any application.

Specifications

Item Number RDB-480
Country of Manufacture United States
Motor Hp 10hp
Degree of Bend (Max) 17212
Minimum CLR 6″
Minimum OD 2.5″
Maximum Speed To 180° 25 Sec.
Mild Steel Pipe Schedule 80 4″
Mild Steel Round Tube Wall 5″ x .083″
Bend Direction Clockwise
Max. Clr 28″
Power 220 Volt Three Phase
Shipping Weight 7000lbs
Shipping Dimensions (Inches) 60″ x 44″ x 68″

* specifications subject to change without notice.
