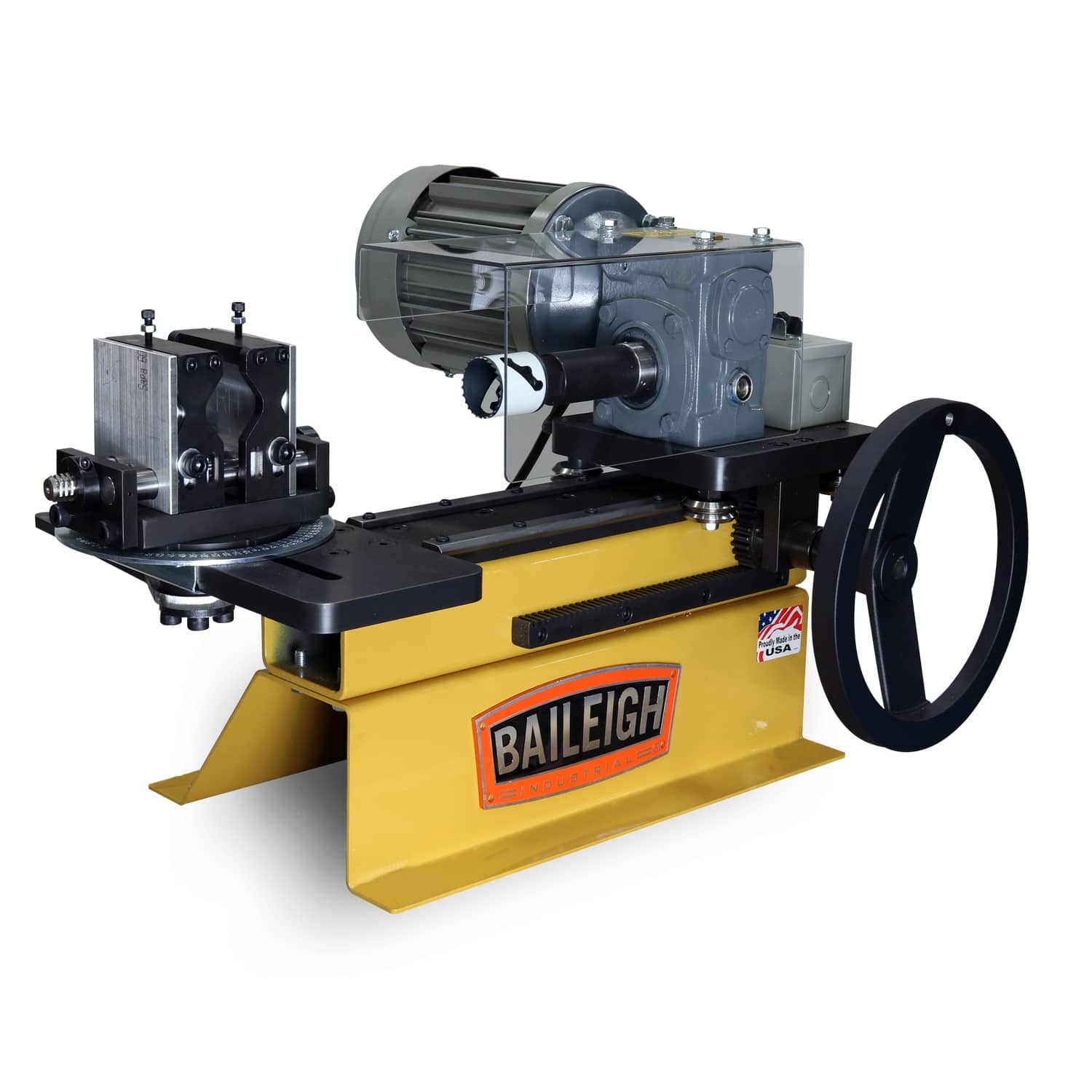

Baileigh TN-300 Tube Notcher

  • Motored operation
  • 15.9mm to 76mm Ø tube capacity
  • 220° adjustment

£3,537.00Excl. VAT + Delivery

SKU 2004675 Category Tag Brand:

Description

The TN-300 tube and pipe notcher from Baileigh Industrial is the best production hole saw notcher on the market today.

This 220 volt, 50hz, single phase notcher is built using only the best components. The idea of the TN-300 was to get rid of the hand drill of the TN-250 and make a better tool for the fabricators. By building a rigid base and tying all the components together, we were able to reduce vibration created from the holesaw itself as it went through the material.

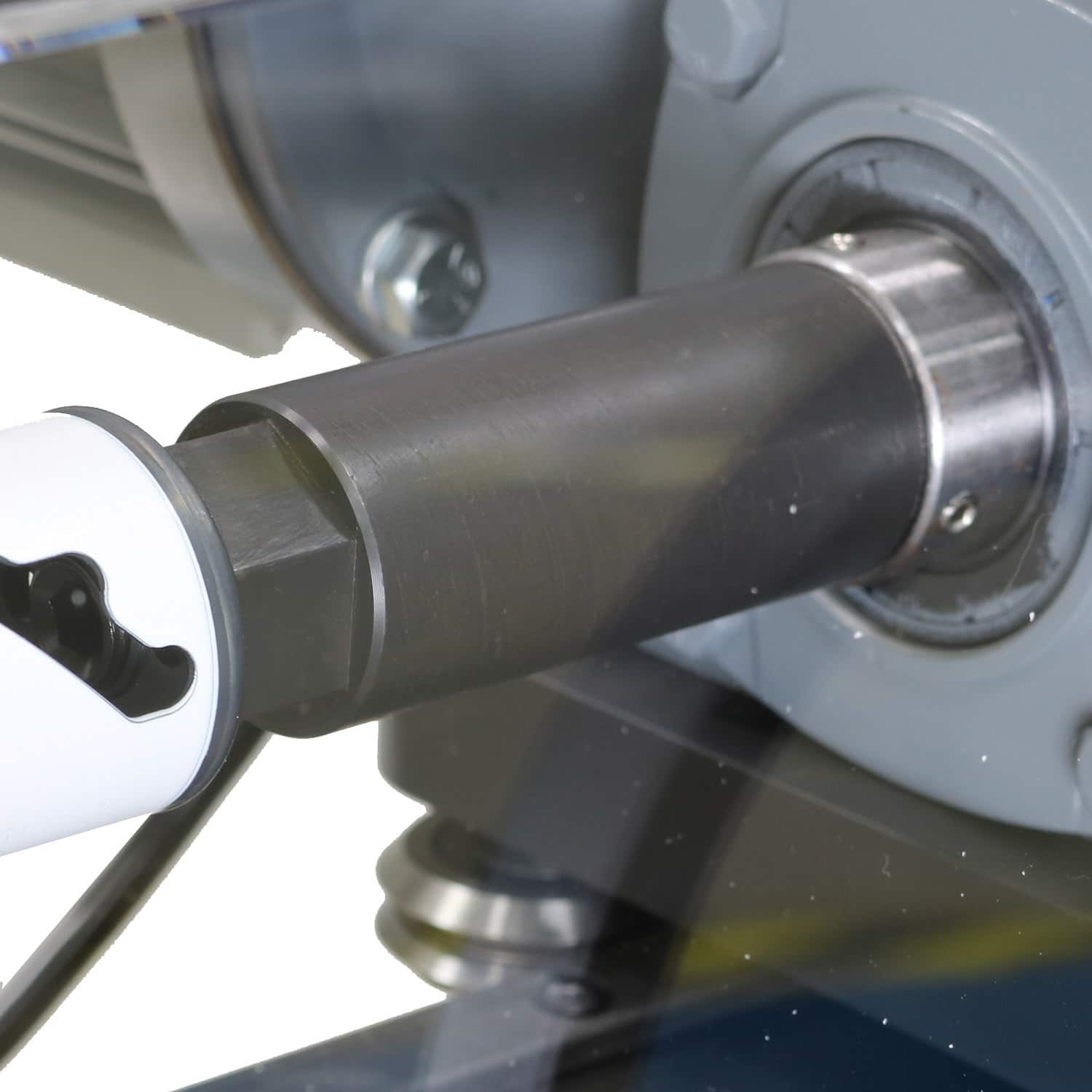

Next we changed the RPM of the holesaw bit to 233rpm. This speed seemed to give the best combination of saw life and speed of cut.

Both of these changes helped make a more accurate cut and increase the life of the saws, saving time and money.

The TN-300 can notch from 1/2″ to 3″ (13mm to 76mm) tube.

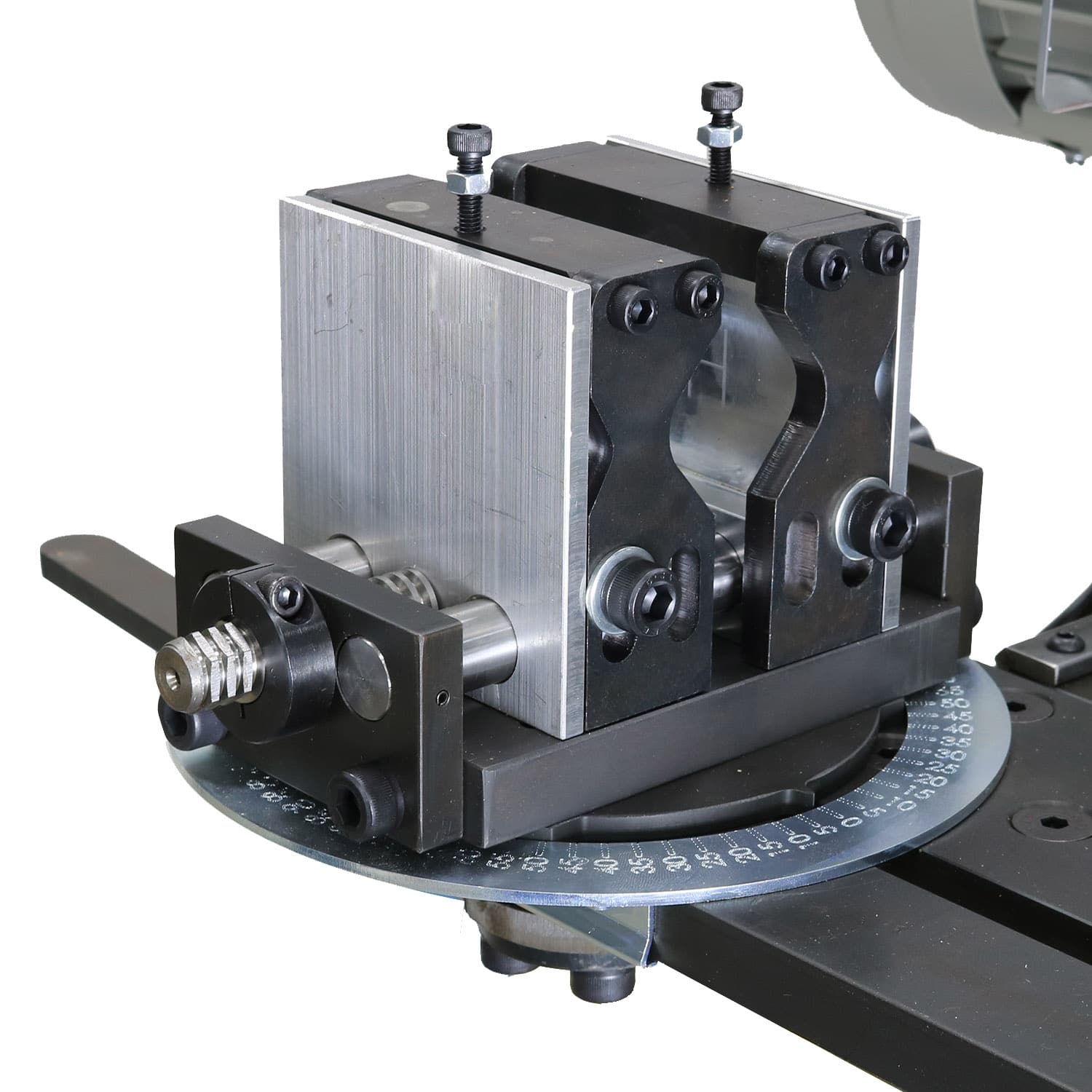

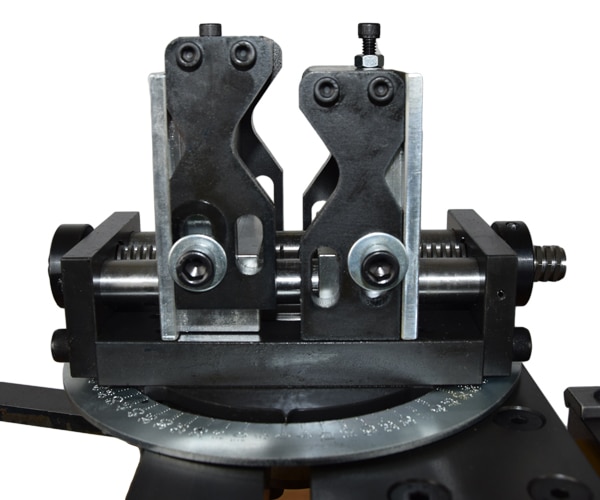

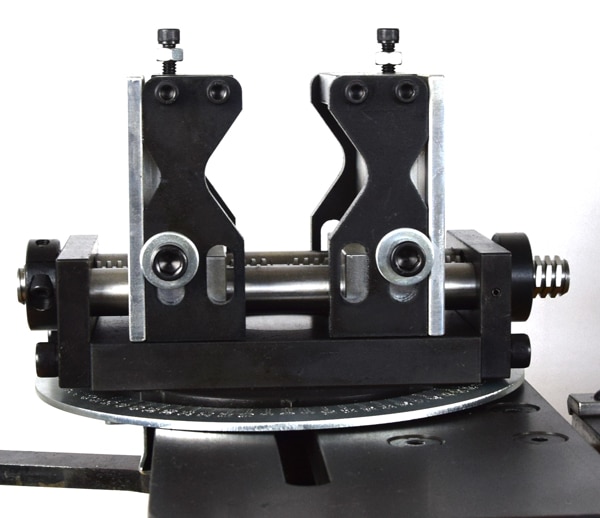

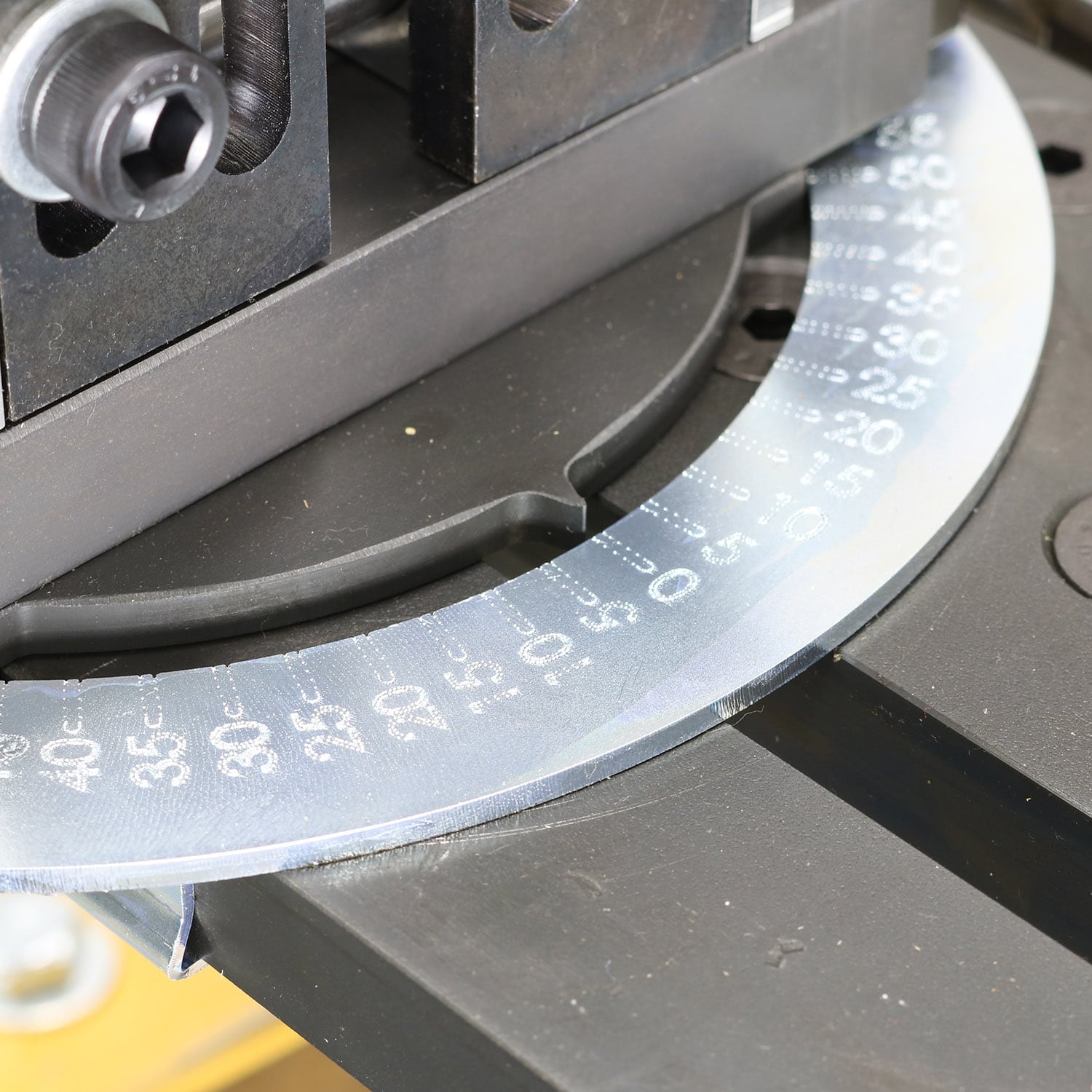

The vice has a quick release feature so different notch angles can be set up in a second or two and locked-in with a solid taper lock. A large degree wheel for indexing the vice is also included.

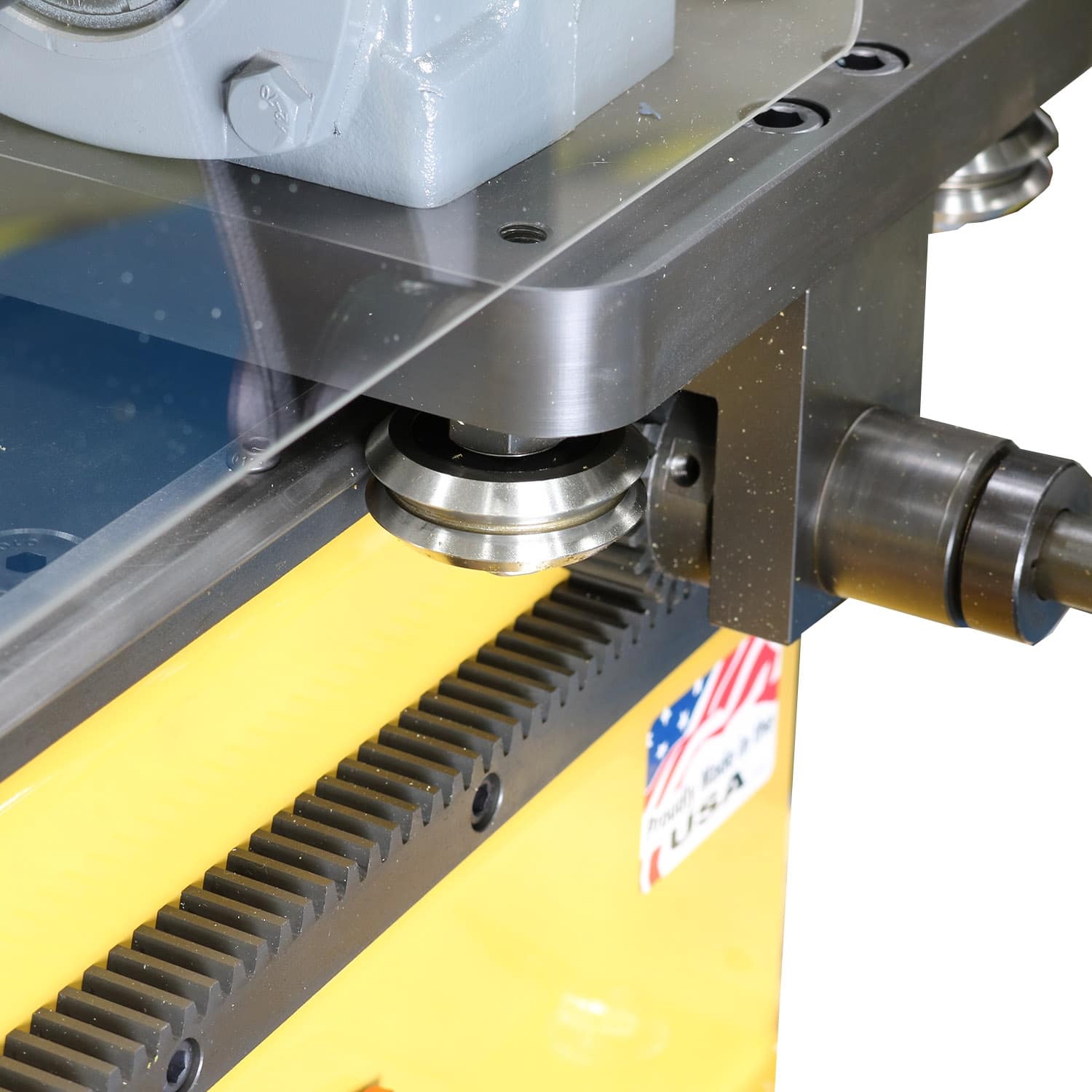

Operation of the TN-300 is easy. Turn it on, grab the hand wheel and rotate it toward the material. The carriage rides on a solid V-block roller assembly that pushes the holesaw into the material with limited vibration. This simple unique design on this tube notcher makes notching tube and pipe easy.

Specifications

Item Number TN-300
Country of Manufacture United States
Notching Capacity 25 – 76mm
Cutting Speed 177rpm
Motor High torque 0.4w / 0.5hp
Mill Speed 233 rpm
Angle Adjustment 0 – 220°
Power 220V, 50Hz, 1-Phase
Shipping Weight 87kgs
Weight (lbs) 68kgs
Shipping Dimensions (Inches) 800 x 600 x 500mm

* specifications subject to change without notice.
