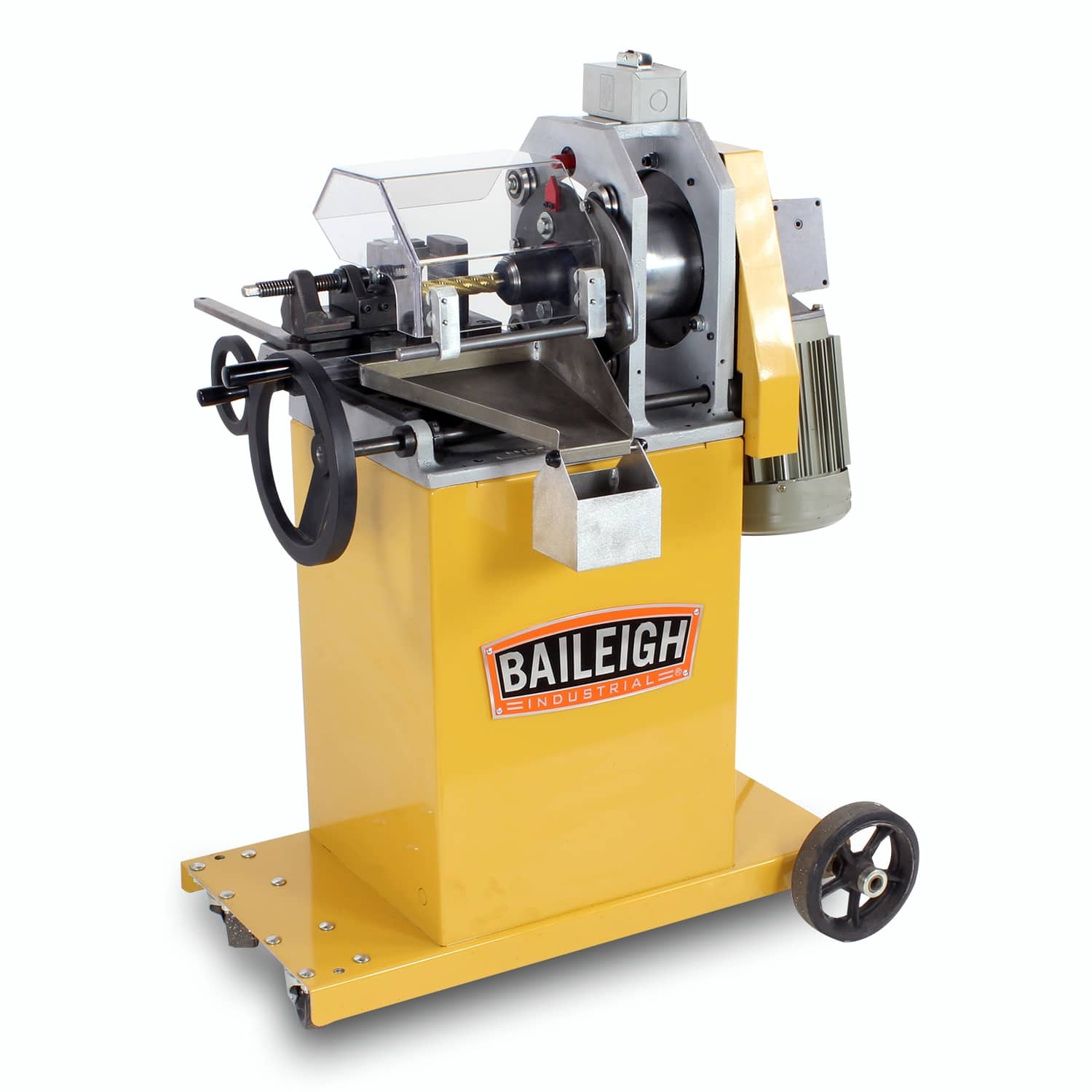

Baileigh TN-800 Eccentric End-Mill Type Tube Notcher

  • Motorised eccentric end-mill operation
  • One tool cuts 12.7 to 76.2mm tube

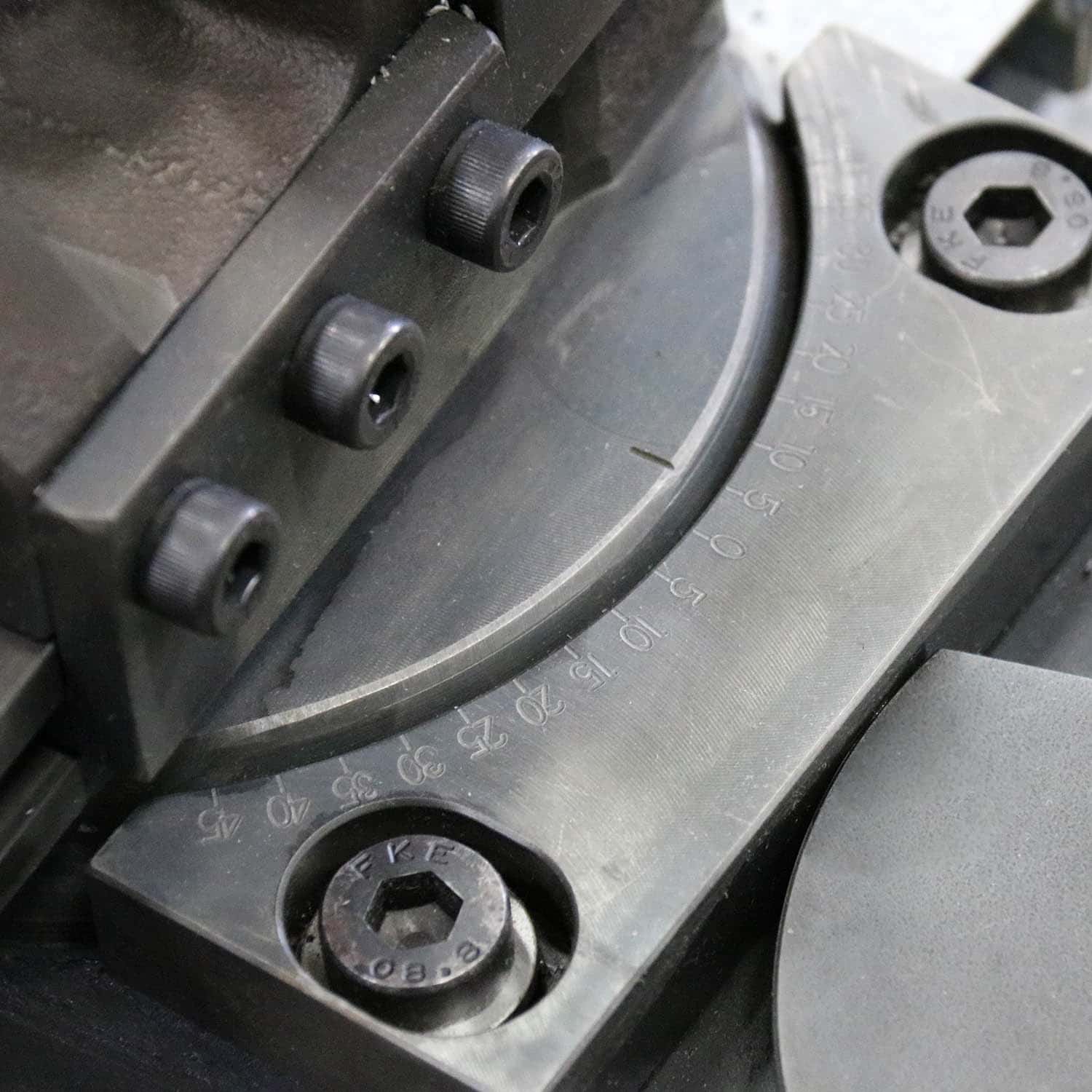

  • 0° to 60° adjustment
  • Patented

£13,706.00Excl. VAT + Delivery

SKU 2004710 Category Tag Brand:

Description

If you are a shop that wants the best in tube and pipe equipment, then you have to look at the TN-800 tube and pipe notcher from Baileigh industrial.

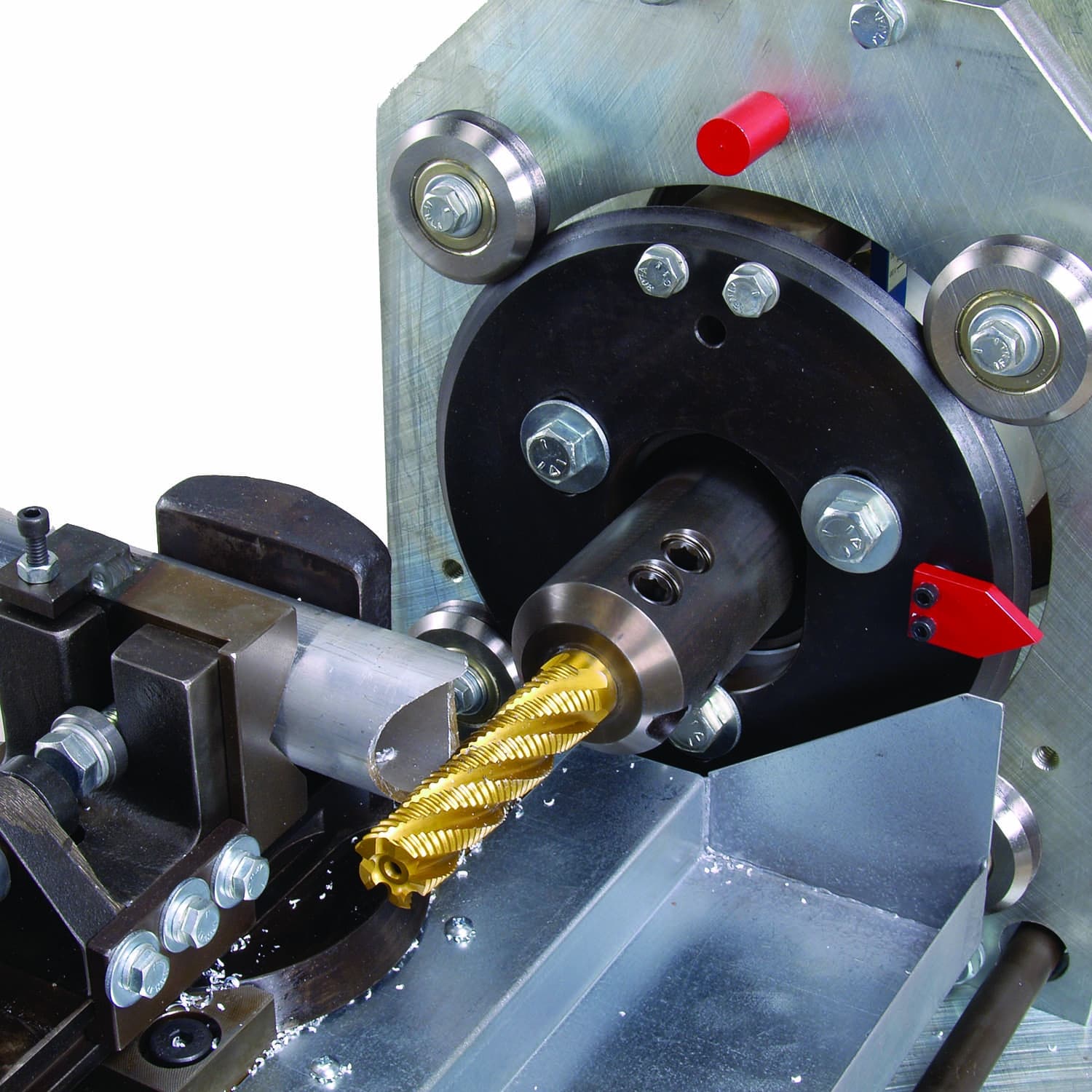

This patented design (patent No: 6,435,783) does what no other notcher on the market can do; notch tube from 25mm to 76mm OD without having to change tooling, holesaws or mandrels. The secret is in the eccentric path that the cutter takes as it notches the tube.

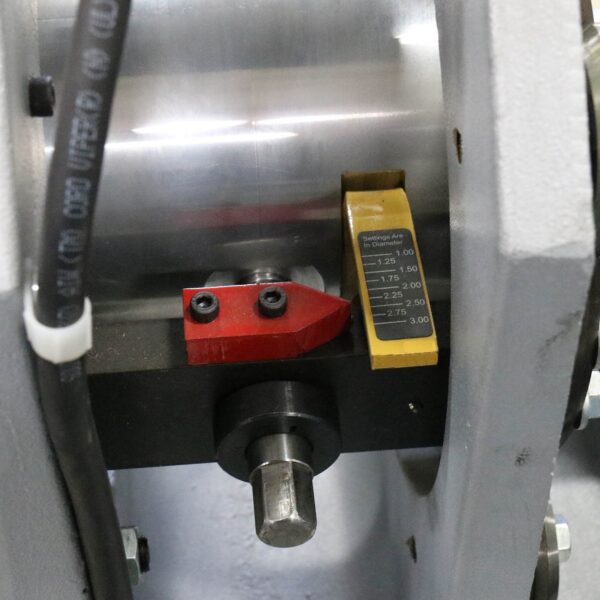

This end-mill-style notcher uses a very unique design where the operator dials in the OD that they wish to notch to and the tube notcher will change its eccentric path and produce a perfect notch.

This patented feature saves the fabricator thousands of dollars every year in tooling costs. No other end mill notcher has this profitable feature.

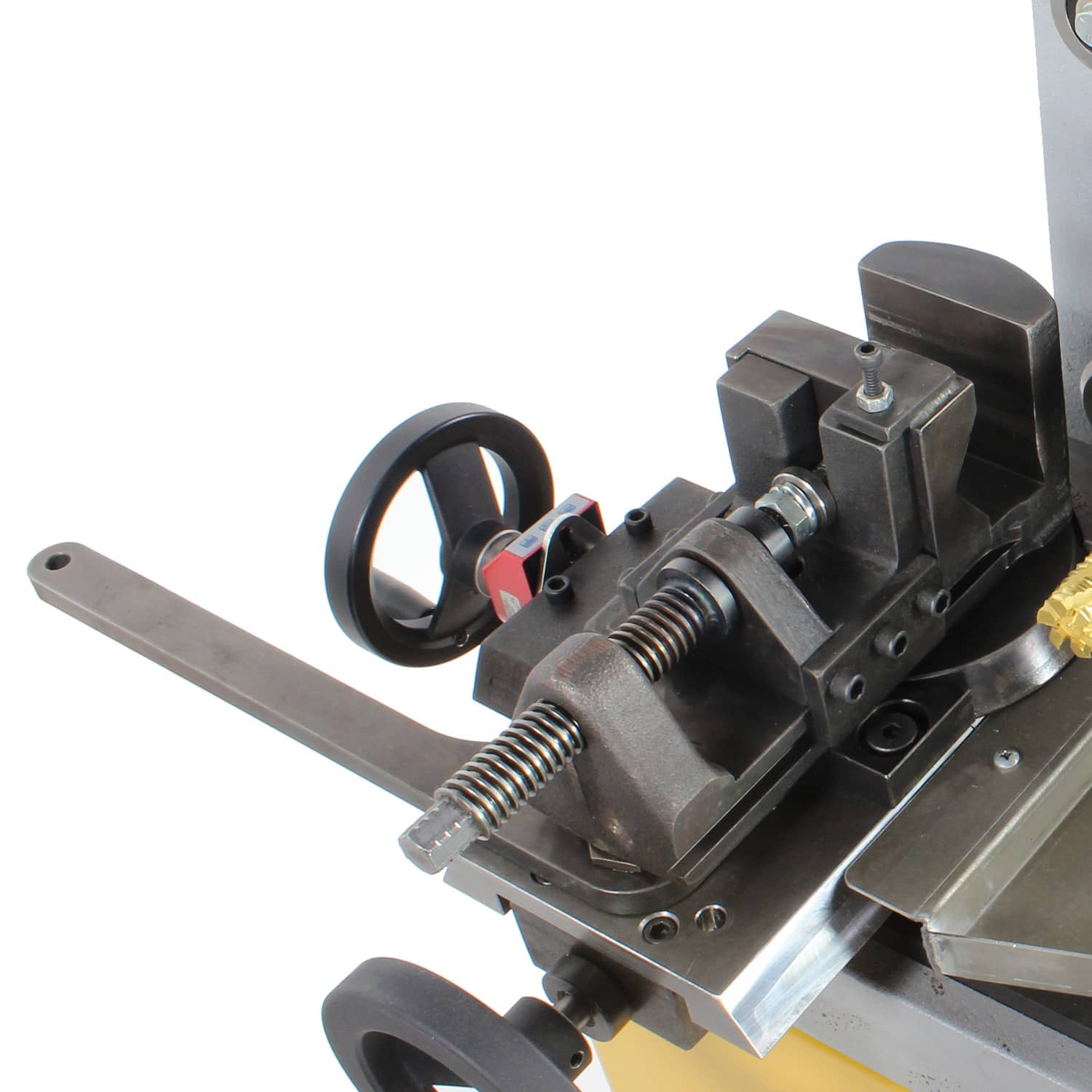

The TN-800 is also built to last. Built in the USA using heavy duty cast iron for the main framework. This design reduces vibration and gives better results. The vice on the TN-800 is also as unique as the machine itself. It is adjustable in just about every way possible and features X and Y axis to ensure good cutting position.

The TN-800 tube and pipe notcher operates on 220 volt power so it can be run almost anywhere. The TN-800 also has a portable cart that has wheels so that when it is not in use it can be rolled out of the way.

Specifications

Item Number TN-800
Country of Manufacture United States

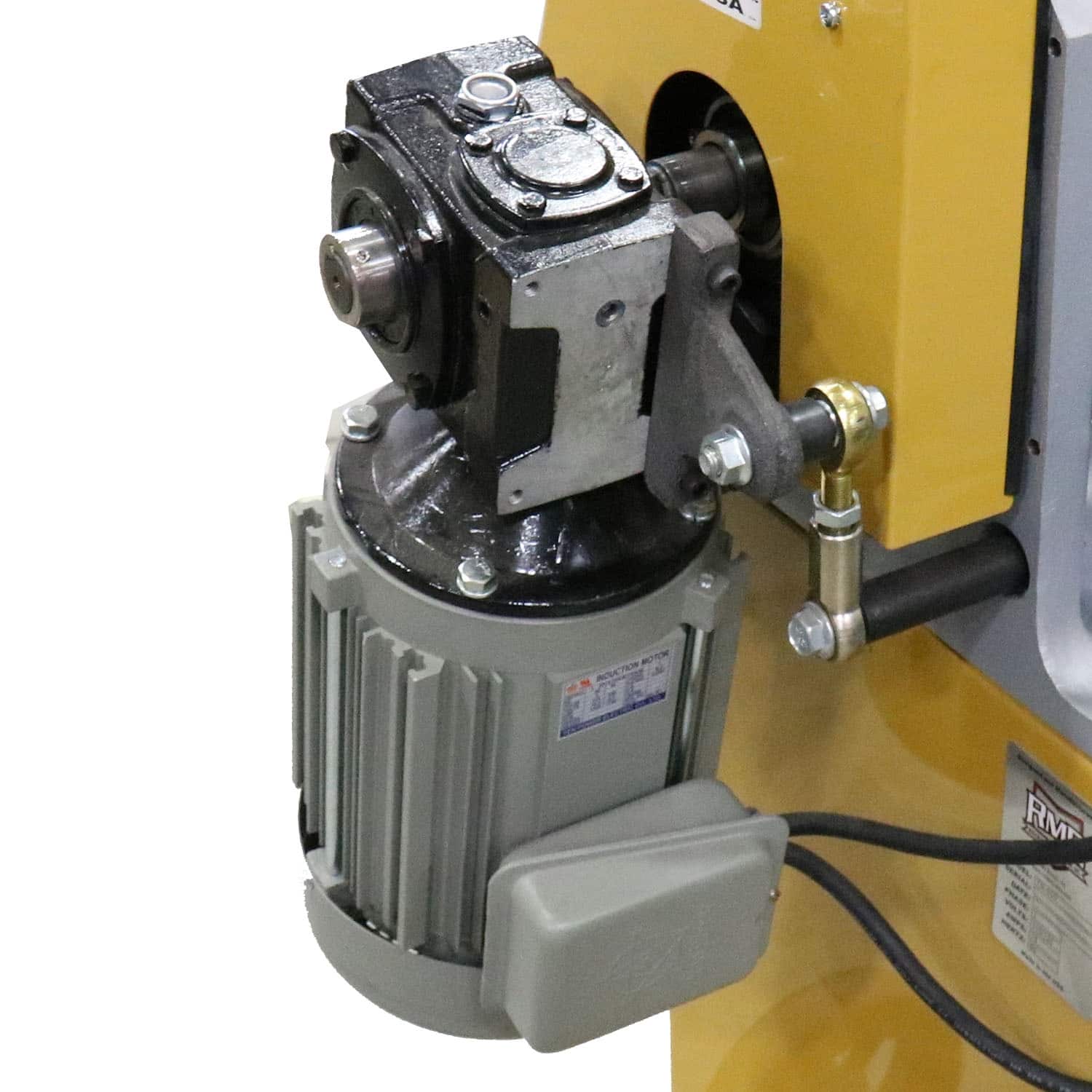

Motor Hp 1 HP
Mill Speed 177 rpm
Notching Capacity (OD) 12.7 mm – 76.2 mm
Angle Adjustment 0 – 60°
End Mill Size 1″ Standard / 1/2″ Optional
Power 240V
Shipping Weight 278 kgs.
Shipping Dimensions (Inches) 1676 mm x 1118 mm x 1524 mm
Machine Dimensions (L x W x H) 1000 x 600 x 1350 mm

* specifications subject to change without notice.
