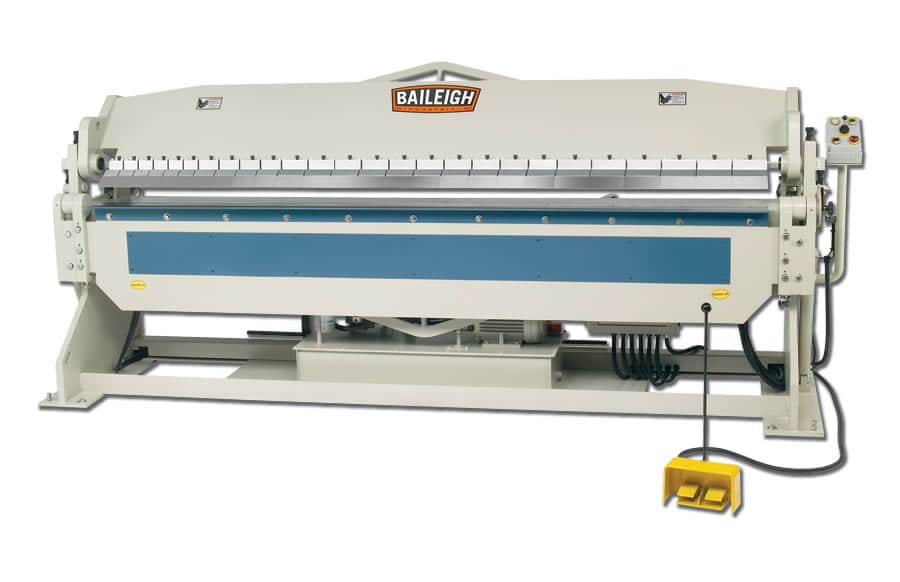

BB-12010H Heavy Duty Hydraulic Box & Pan Folder

  • 3.6mm mild capacity
  • 2.8mm stainless capacity
  • 3048mm folder length
  • 0° – 135° bend angle

£33,503.00Excl. VAT + Delivery

Description

The BB-12010H hydraulic box and pan brake is a very powerful machine that can bend up to 10 gauge mild steel and 12 gauge stainless steel across its entire length.

The machine has a rigid electro welded steel frame with massive truss rods for additional support to minimise any deformation with bending at full capacity.

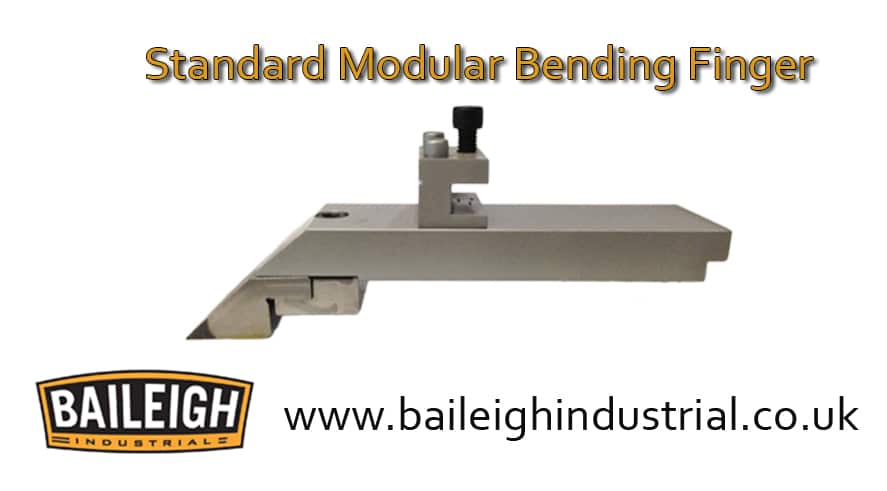

This box and pan brake has 26-6″ fingers assorted in different sizes so the fabricator can adjust them for different box and pan applications.

This hydraulic sheet metal brake allows the operator to dial in a programmed bend when the machine is used in the manual or semi-automatic mode. Operation of the machine can be done at the operator console by toggle or by using the foot pedal controls.

The base of this model has an extra rigid design to support the weight of heavier materials. The powerful industrial-grade hydraulics clamp the material at the beam, lifts the leaf to the pre-programmed bend, and finally opens the beam when the bend is complete.

This is the perfect hydraulic bending brake for those production oriented fabrication shops. Heavily built to offer years of service and profit to any production shop.

Sheet Metal Bending Brake Features

Hydraulically driven bend plate.
Easy degree adjustment auto-stop.
Semi-automatic bending mode with foot pedal control for increased productivity.
Heavy-duty construction.
Easy material thickness adjustment.
Variable bending speed.
Easy clamping pressure adjustment.
Greasable joints and filtered hydraulic system for longevity.
Top of the line electrical components.

Additional information

Weight 3500 kg

Specifications

Item Number BB-12010H
Country of Manufacture Taiwan
Motor 5 hp
Min Reverse Bend 25 mm
Thickness (SS) 10 ga. (12 ga.)
Box Depth 152 mm
Beam Adjustment 25.4 mm
Bend Angle 0 – 135°
Finger Sizes 3″ – 4″ – 5″ – 6″
Power 440V – 3 phase
Shipping Weight 3500 kgs.
Shipping Dimensions (Inches) 3886 x 1168 x 1803 mm

* specifications subject to change without notice.
