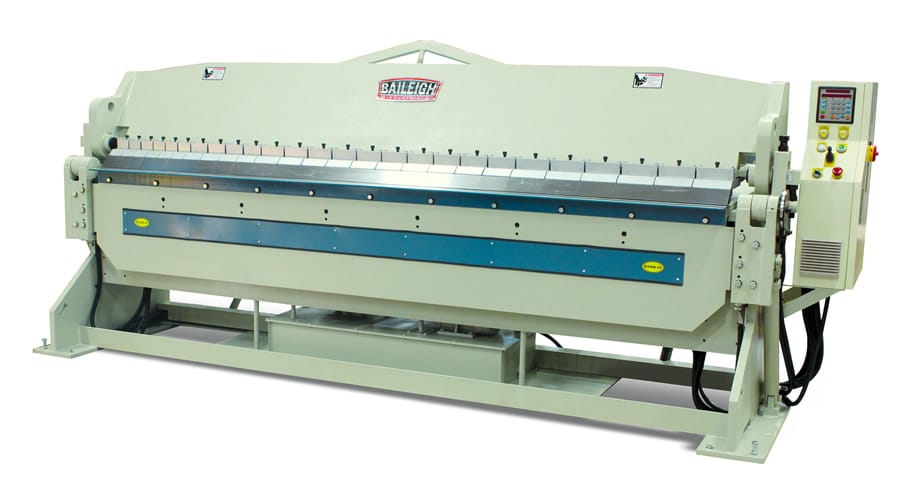

BB-12010H-NC Heavy Duty Hydraulic Box & Pan Folder

  • 3.6mm mild capacity
  • 2.8mm stainless capacity
  • 3048mm folder length
  • 0° – 135° bend angle

£49,350.00

Description

The BB-12010H-NC 2-axis NC hydraulic box and pan brake is a powerful machine that can bend up to 10 gauge mild steel and 12 gauge stainless steel.

ThIS sheet metal brake machine has a rigid welded steel frame with massive truss rods for additional support to minimise any deformation with bending at full capacity.

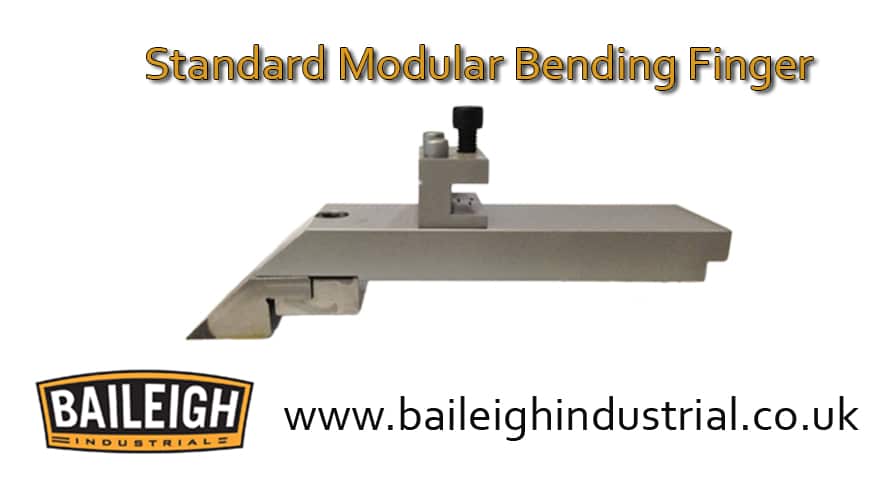

This box and pan brake has 26-6″ fingers assorted in different sizes so the fabricator can adjust them for different applications.

It allows the operator to dial in a programmed bend when the machine is used in manual or semi-automatic mode. Operation of the machine can be done at the operator console by toggle or by using the foot pedal controls.

The base of this model has an extra rigid design to support the weight of heavier materials. The powerful BB-12010H-NC clamps the material at the beam, lifts the leaf to the pre-programmed bend, and finally opens the beam when the bend is complete.

Also included in this version of the BB-12010H-NC is a numerically controlled back gauge that allows the operator to control the distance between bends and allows for more efficiency and less error.

Sheet metal bending brake features

2-axis NC back gauge.
Hydraulically driven bend plate.
Easy degree adjustment auto-stop.
Semi-automatic bending mode with foot pedal control for increased productivity.
Heavy-duty construction.
Easy material thickness adjustment.
Variable bending speed.
Easy clamping pressure adjustment.
Greasable joints and filtered hydraulic system for longevity.
Top of the line electrical components.

Specifications

Item Number BB-12010H-NC
Country of Manufacture Taiwan
Shipping Weight 7,700 lbs.
Shipping Dimensions (Inches) 153″ x 46″ x 71″

* specifications subject to change without notice.
