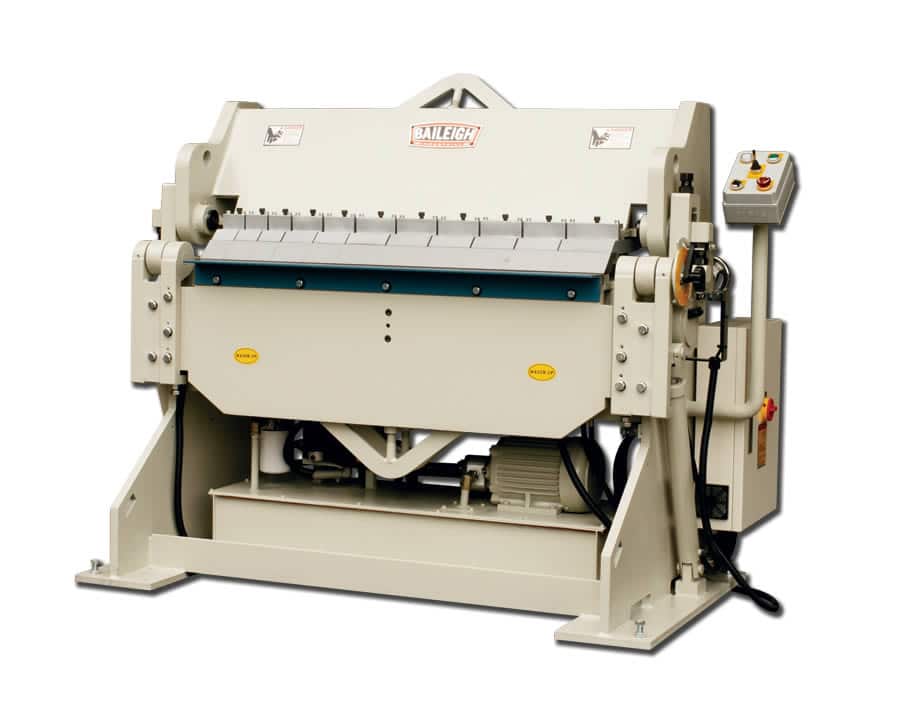

BB-4810H Heavy Duty Hydraulic Box & Pan Folder

  • 3.4mm mild capacity
  • 2.8mm stainless capacity
  • 1270mm folder length
  • 0° – 135° bend angle

£21,872.00Excl. VAT + Delivery

Description

Have thicker material to bend? Then look no further than the BB-4810H hydraulic box and pan brake from Baileigh Industrial.

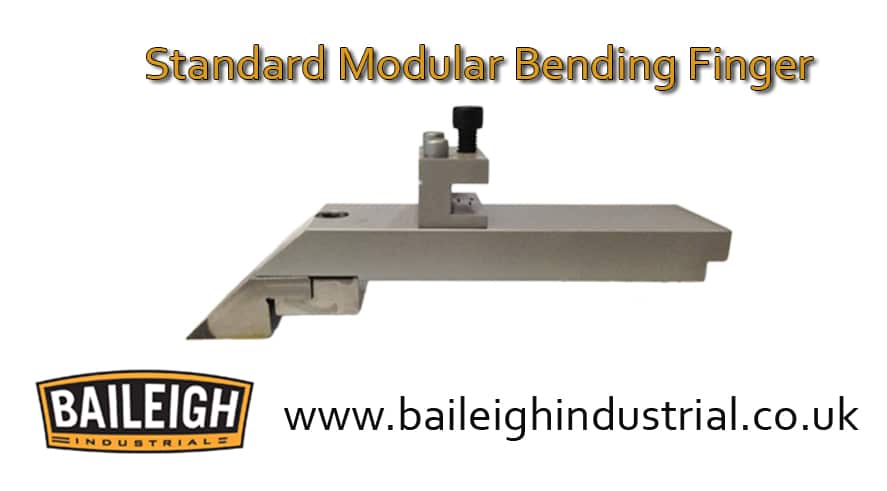

The BB-4810H finger brake will do a maximum of 10 gauge sheet metal at a full 48 inches. This semi-automatic sheet metal brake has 3-3″, 2-4″, 5-5″ and 1-6″ fingers that allows any sheet metal fabricator to adjust for different size boxes and pans they wish to make.

The BB-4810H box and pan brake is built with a fully welded beam, bending leaf and is further stabilised with truss rod supports that helps minimise any deflection when bending at full capacity.

The BB-4810H hydraulic sheet metal brake uses industrial-grade hydraulics to lift the leaf and can be operated in manual or semi-automatic mode. For even more holding power, when bending 10 gauge mild steel, the beam is lifted and clamped via an electric motor that turns a cam. The BB-4810H hydraulic finger brake has a programmable bend adjustment making reproducing bends easy.

Another nice feature of the BB-4810H, like all the Baileigh Industrial box and pan brakes, is that the bending apron is removable allowing the operator to get closer between bends. The BB-4810H has a 1” beam adjustment and is capable of bending to a maximum of 135°. Operating on 400V three phase power, the BB-4810H uses a powerful 3hp motor to control all the hydraulic functions.

Additional information

Weight 1750 kg

Specifications

Item Number BB-4810H
Country of Manufacture Taiwan
Motor 3 hp
Min Reverse Bend 25 mm
Thickness (SS) 10 ga. (12 ga.)
Box Depth 152 mm
Beam Adjustment 25.4 mm
Bend Angle 0 – 135°
Finger Sizes 3″ – 4″ – 5″ – 6″
Power 220V – 3-phase
Shipping Weight 1750 kgs.
Length 1219 mm
Shipping Dimensions 2108 x 1168 x 1753 mm

* specifications subject to change without notice.
