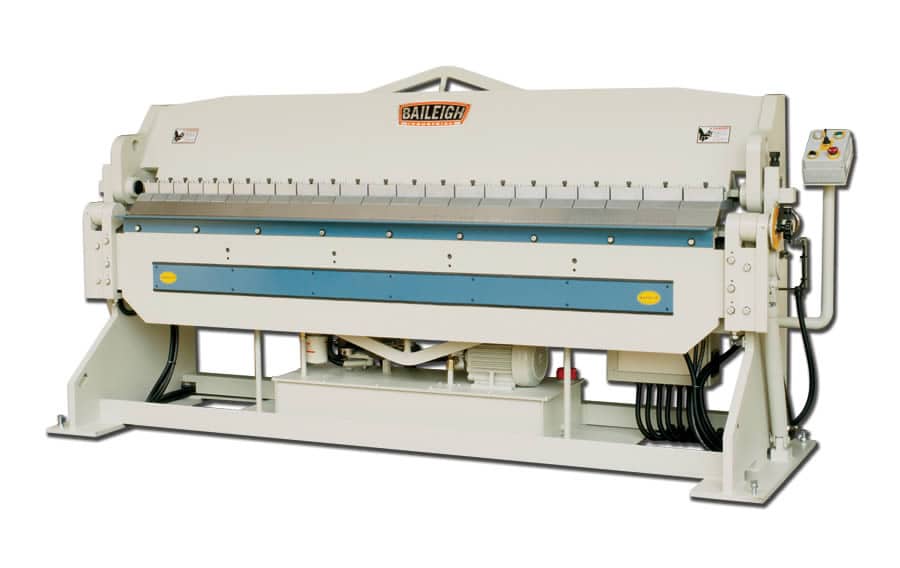

BB-9610H Heavy Duty Hydraulic Box & Pan Folder

  • 3.6mm mild capacity
  • 2.8mm stainless capacity
  • 2540mm folder length
  • 0° – 135° bend angle

£38,737.00Excl. VAT + Delivery

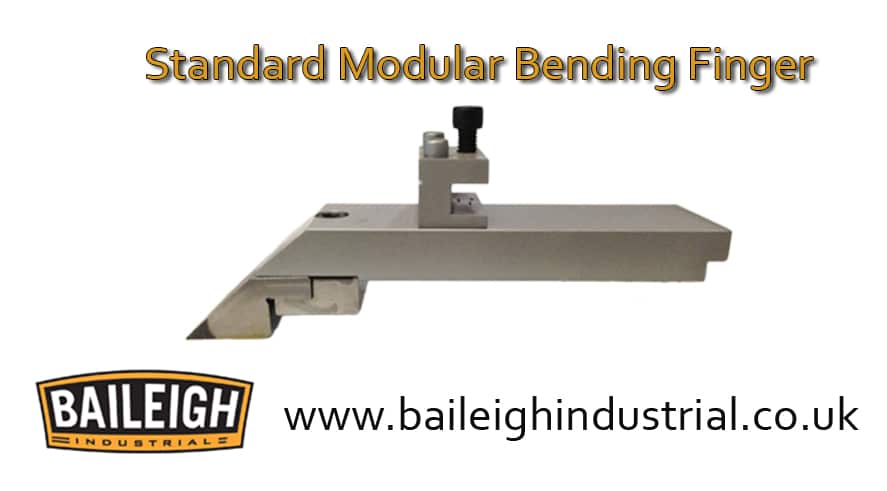

Need to bend 8 foot sheets of 10 gauge mild steel? The BB-9610H hydraulic finger brake from Baileigh Industrial is the right machine for you. The BB-9610H will do a maximum of 10 gauge mild steel sheet metal at a full 8 feet, but it is not just a brake for heavier gauge, it will just as easily handle lighter gauges because of its unique automatic crowning compensation feature that helps produce a uniform bend when bending at the full 10 gauge thickness and automatically adjust when doing lighter gauges. This finger brake has 6-3″, 4-4″, 10-5″ and 2-6″ hardened three piece fingers that will allow for many different size boxes up to a 6” box depth.

The BB-9610H box and pan brake’s frame is built with a fully welded beam and bending leaf, and is further stabilised with truss rod support that helps minimise any deflection when bending at full capacity, an important feature when bending 10 gauge mild steel.

The BB-9610H hydraulic finger brake uses industrial-grade hydraulics, powered by a powerful 5hp motor that operates on 400 volt, three phase power, to lift the bending leaf.

The BB-9610H can be operated in manual or semi-automatic mode with the use of a foot pedal and a toggle joystick. To handle the clamping pressure required to bend 10 gauge mild steel, the beam is lifted and clamped via an electric motor.

The BB-9610H has a 1” beam adjustment and is capable of bending to a maximum of 135° via a programmable stop bend adjustment making this a very good production machine.

Additional information

Weight 2560 kg


Item Number BB-9610H
Country of Manufacture Taiwan
Motor 5 hp
Min Reverse Bend 25 mm
Thickness (SS) 10 ga. (12 ga.)
Box Depth 152 mm
Beam Adjustment 25.4 mm
Bend Angle 0 – 135°
Finger Sizes 3″ – 4″ – 5″ – 6″
Power 220V – 3-phase
Shipping Weight 2700 kgs.
Length 1830 mm
Shipping Dimensions 3353 x 1168 x 1803 mm

* specifications subject to change without notice.
