BB-9612H Heavy Duty Hydraulic Box & Pan Folder

  • 2.8mm mild capacity
  • 1.6mm stainless capacity
  • 2540mm folder length
  • 0° – 135° bend angle

£22,015.00Excl. VAT + Delivery

Description

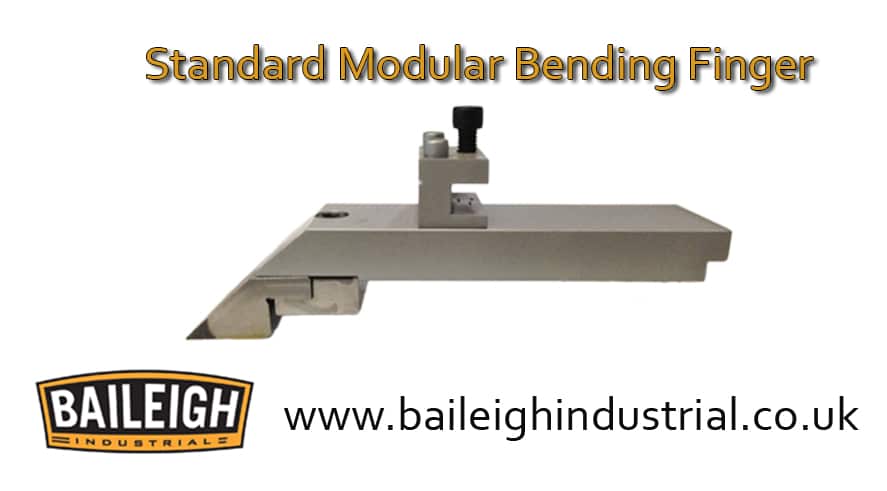

The BB-9612H hydraulic box and pan folder is a powerful machine capable of bending up to 12 gauge sheet metal at a width up to 8′ wide. This machine has 6-3″, 4-4″, 10-5″ and 2-6″ 6″ fingers that allows any fabricator to adjust for different size boxes and pans they wish to fabricate.

This machine is rigidly built with an electrowelded beam and leaf, further stabilised with truss rod supports, minimising any deflection when bending at full capacity.

The BB-9612H hydraulic box and pan folder uses powerful industrial-grade hydraulics to lift the leaf and can be run in a manual or semi-automatic mode via toggle or the foot pedal controls.

The beam is also lifted and clamped hydraulically. This machine has a programmable bend adjustment making this a very production oriented hydraulic sheet metal brake.

To get closer between bends the apron can be detached.

Like all other Baileigh Industrial fabricating equipment, this machine has been designed and built to the very highest standards, and offers years of profitable service to the fabricator.

Additional information

Weight 2360 kg

Specifications

Item Number BB-9612H
Country of Manufacture Taiwan
Motor 3 hp
Min Reverse Bend 16 mm
Thickness (SS) 12 ga. (16 ga.)
Box Depth 152 mm
Beam Adjustment 25.4 mm
Bend Angle 0 – 135°
Finger Sizes 3″ – 4″ – 5″ – 6″
Power 220V – 3-phase
Shipping Weight 2360 kgs.
Length 1220 mm
Shipping Dimensions (Inches) 3353 x 1168 x 1702 mm

* specifications subject to change without notice.
