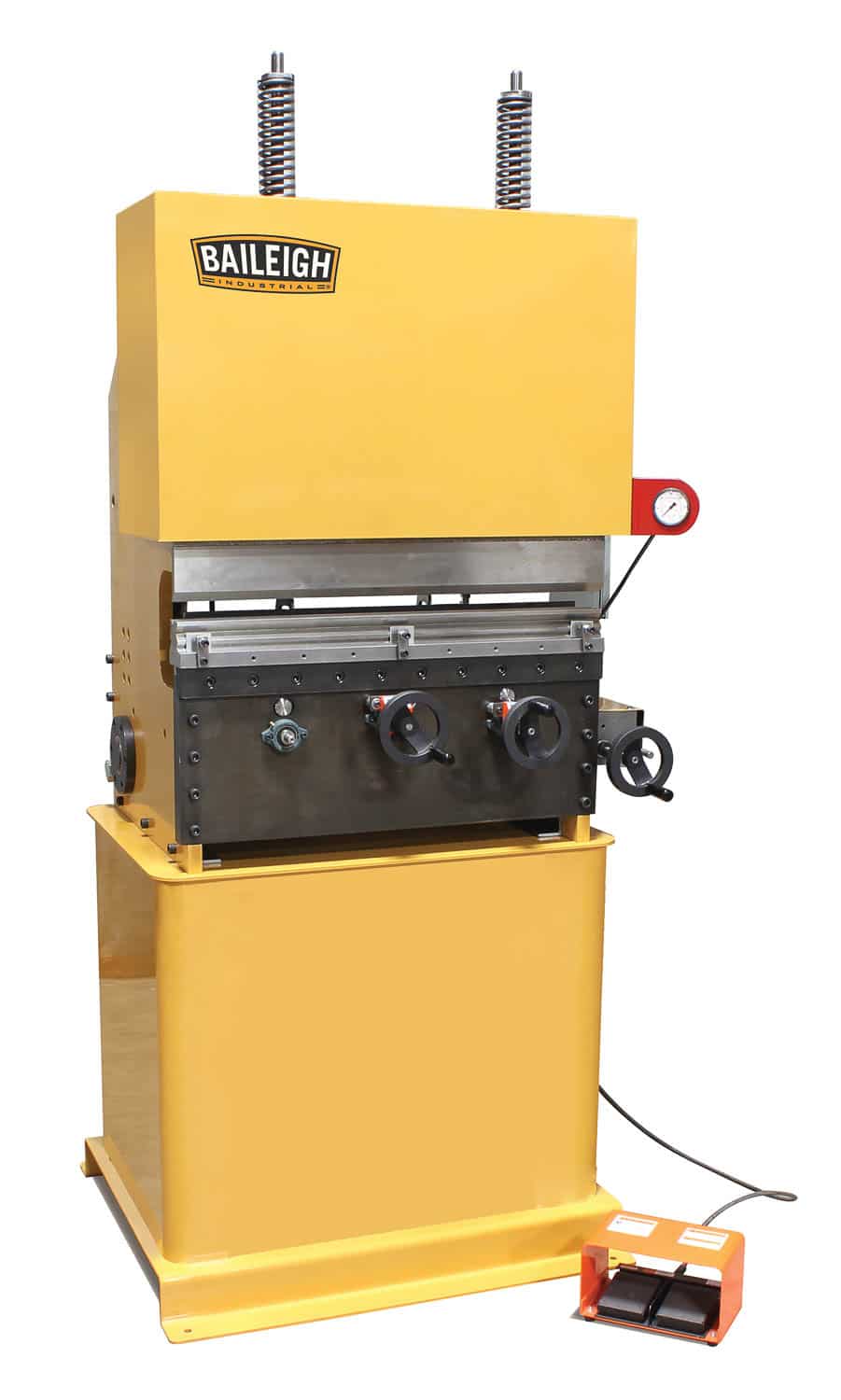

BP-3142NC Hydraulic Press Brake

  • Hydraulic operation
  • 37.5 metric tons of pressure
  • Foot pedal operation

£20,895.00Excl. VAT + Delivery

SKU 2006429 Categories , Tag Brand:

Description

The BP-3142NC from Baileigh Industrial is the perfect press brake for those shops that have a lot of small items to bend. Designed and built in the USA, this awesome little brake press was developed to handle the rigors of 1/4″ steel plate. One of the coolest features of the BP-3142NC is that it runs on only 220 Volt power making it great for any shop, even when power is limited. Call and get your hands on one today.

31” Width
1/4″ Mild Steel Capacity

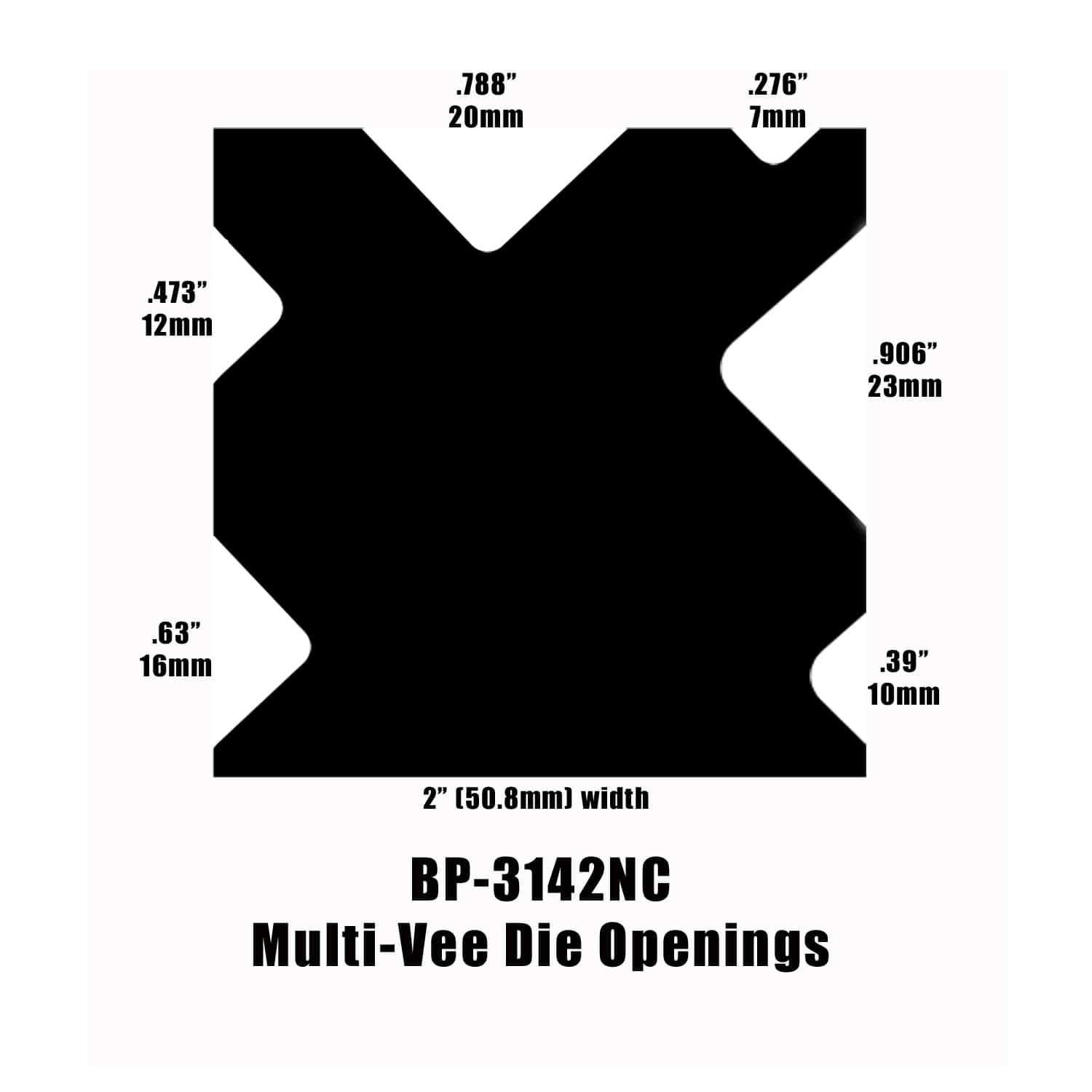

Multi Vee Bottom Die

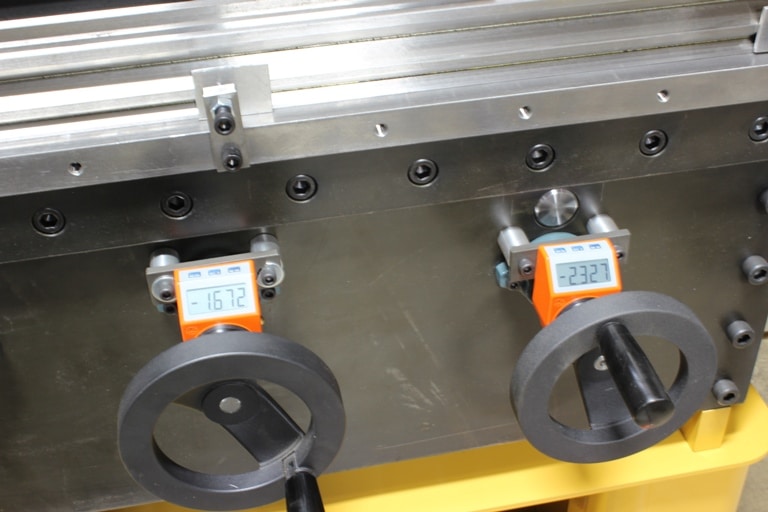

DRO for Back gauge and down position

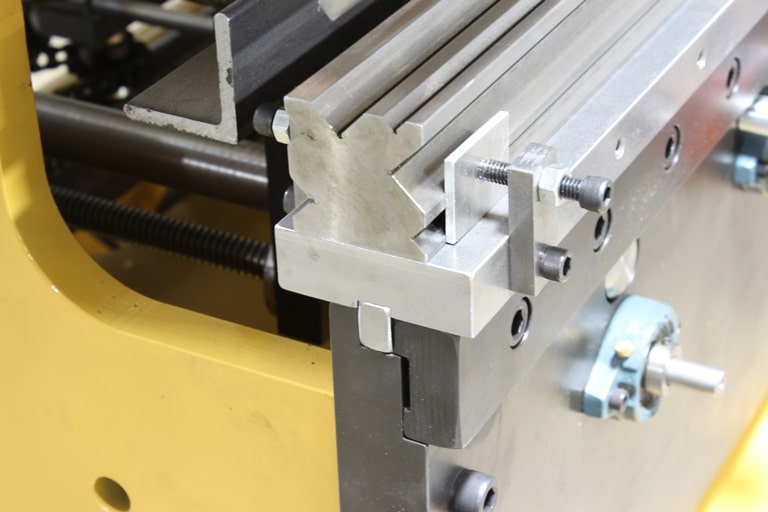

Universal tooling holder
Foot pedal operated
220 volt

Additional information

Weight 910 kg

Specifications

Item Number BP-3142NC
Country of Manufacture United States
Motor Hp 2
Table Length 31″
Back Gauge Length 17194
Return Speed 1.1″ / sec
Stroke Distance 2″
Approach Speed 0.9″ / sec.
Bending Speed 0.4″ / sec
Distance Between Housings 29″
Distance From Table To Ram 7.75″
Power 220V
Shipping Weight 2000 Lbs.
Shipping Dimensions (Inches) 48″ x 48″ x 72″

* specifications subject to change without notice.
