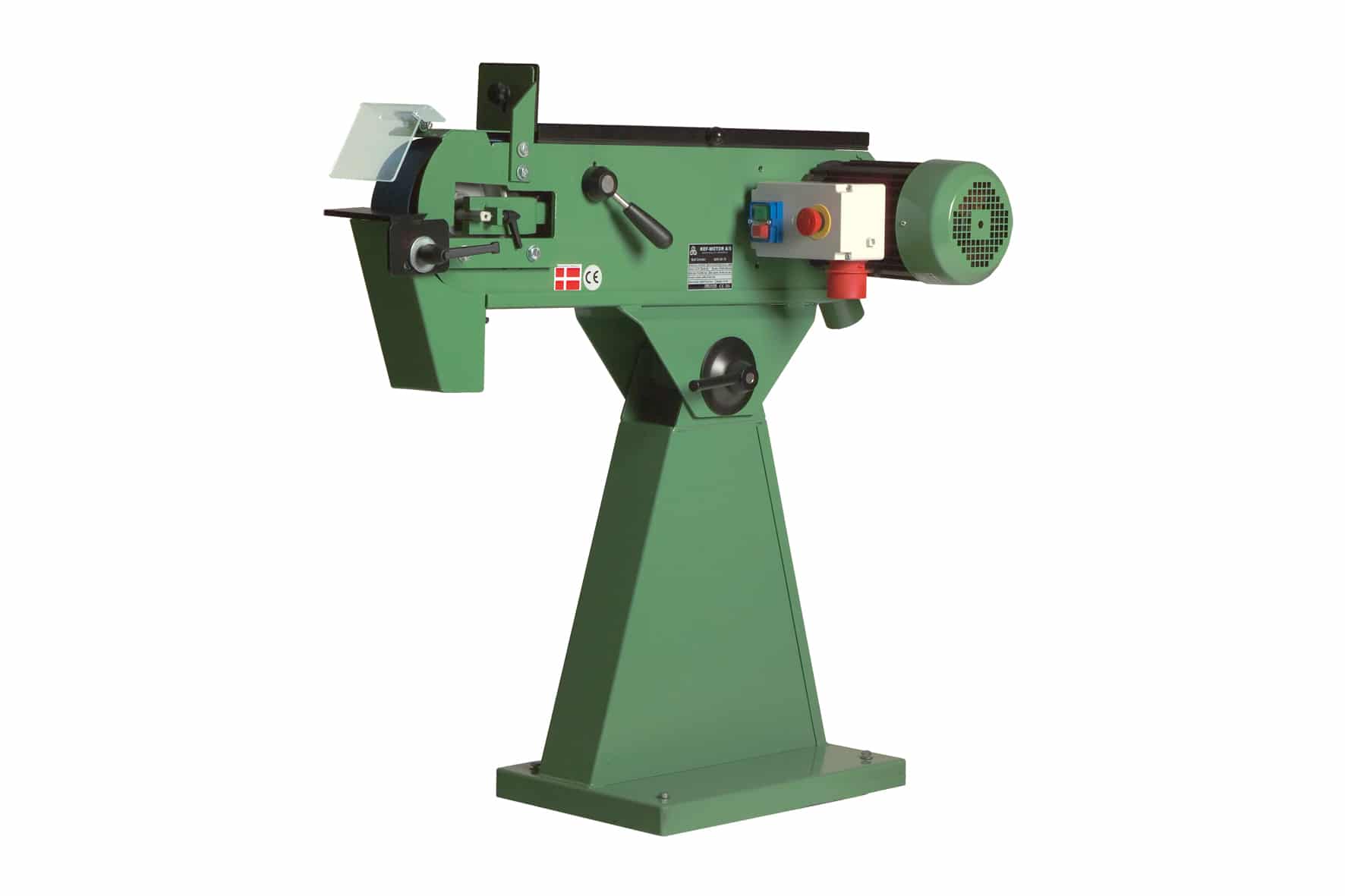

BSH-20-75 3" (75mm) Belt Grinder 400v 4.1kW 3 Phase

  • Motor brake – standard
  • Simple and convenient operation
  • Easy to adjust
  • 60mm Suction outlet
  • 5 Year motor warranty

£1,435.00Excl. VAT + Delivery

SKU 2002365 Categories , Tag Brands: ,

Description

This Industrial Grade belt grinder will be a reliable work hourse in any industrial setting where grinding is part of the daily routine. It has three inches of useful width and is perfect for grinding castings clean, or any metal surface that needs burrs removed. The BSH-20-75 has a 400V 4.1kW three phase power. The abrasive belt is a 75 x 2000 mm long and runs at a speed of 2800 mpm. Because of the three phase power it will not dog under full load making it more efficient then other grinders on the market and is offered with a 5 year warranty.

Like most of our quality abrasive belt grinders this one is made from heavy steel that is folded and fully welded for rigidity and vibration reduction. The top guard opens up allowing for a large flat grinding surface, perfect for castings. A triangular steel base allows this abrasive belt grinder to pivot to the desired angle for best operation.

This abrasive belt grinder are quality built for decades of use and are typically in stock for quick shipments.

Specifications

  • Item Number BSH-20-75
  • Motor 4.1kW
  • Belt Speed 2220 mpm
  • Contact Wheel Dia x Width 200 mm x 75 mm
  • Top surface grinder 605mm x 75mm
  • Max. Belt Size 2000 mm x 75 mm
  • High Danish quality
  • Separate emergency stop
  • Motor brake – standard
  • Simple and convenient operation
  • Easy to adjust
  • Quick belt replacement
  • Delivered with its base
  • Tilting arm (forward/backward)
  • Has a suction outlet (hose not included)
  • Dust Collection Yes
  • Shipping Weight 76 kgs.
  • Shipping Dimensions 1035 x 550 x 1100 mm

* specifications subject to change without notice.

Options

Sanding belt (pack of 5)
– Ref. 9829 60 grit
– Ref. 9830 80 grit
– Ref. 9831 100 grit
– Ref. 9832 120 grit
– Ref. 9833 150 grit
