CM-50DS Double Sided Beveling Machine

  • 15° to 60°
  • 0mm to 62mm bevelling

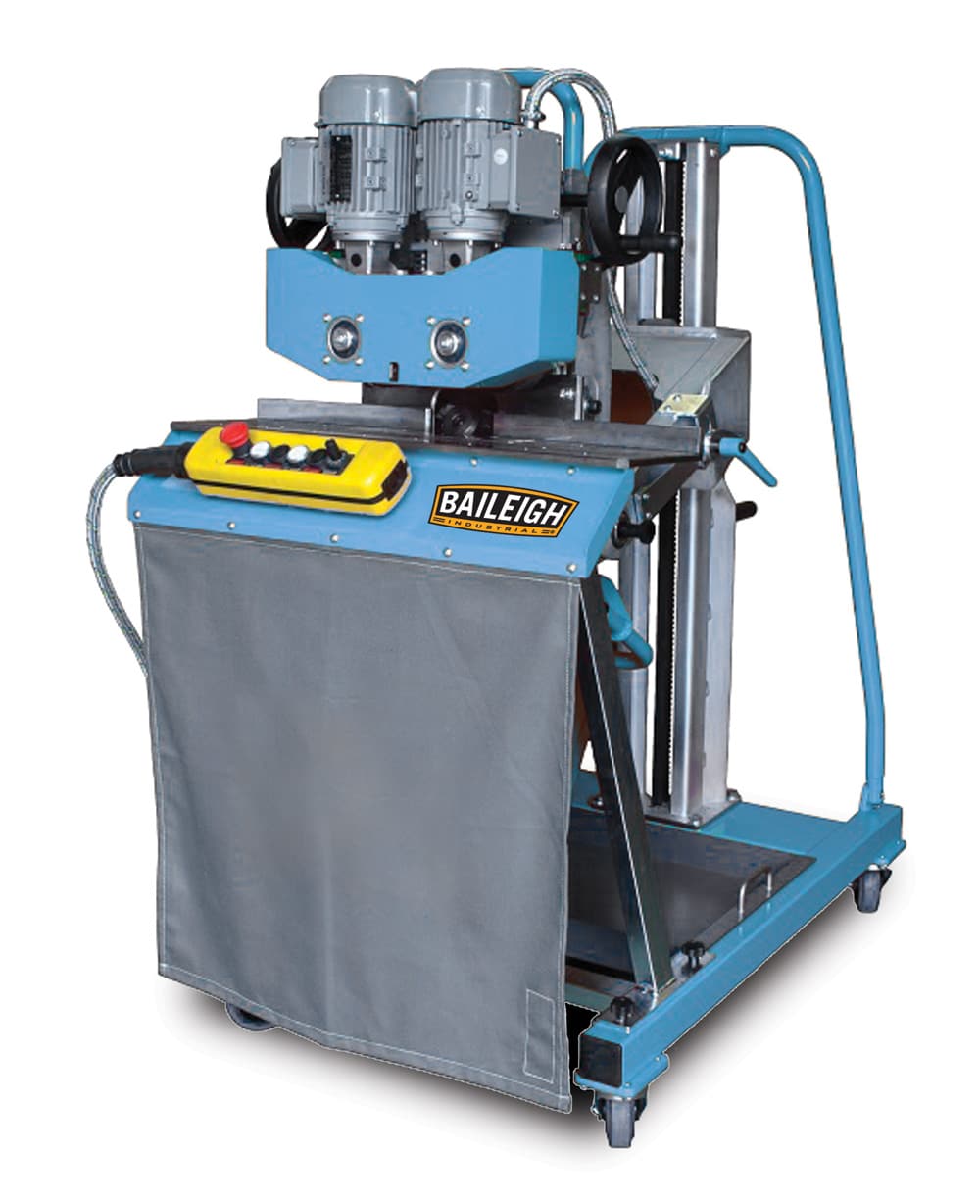

  • Shown with optional stand

£15,868.00Excl. VAT + Delivery

SKU 2006681 Categories , Tag Brand:

Description

The CM-50DS is a unique double sided beveling machine for steel, stainless steel, aluminum, or any other shearable material. This great metal chamfering machine is very versatile and acts like many machines built into one.

Heavy Duty Plate Beveler

Automatic feeding – automatic feed speed adjustment with inverter
High speed milling head with very tough inserts

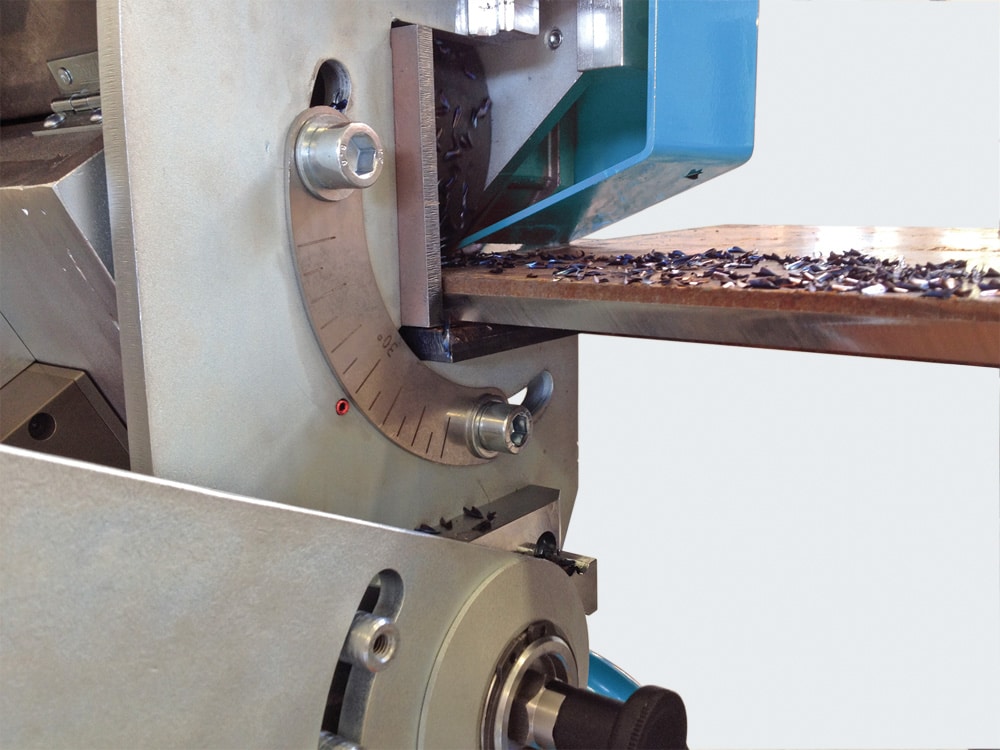

15-60° infinitely variable angle, without replacing any parts
Material thickness .275” – 2.75” or 7 – 70 mm
The electrical circuits are enclosed in a dust proof box, equipped with all the safety devices necessary.
Conforms to CE regulations

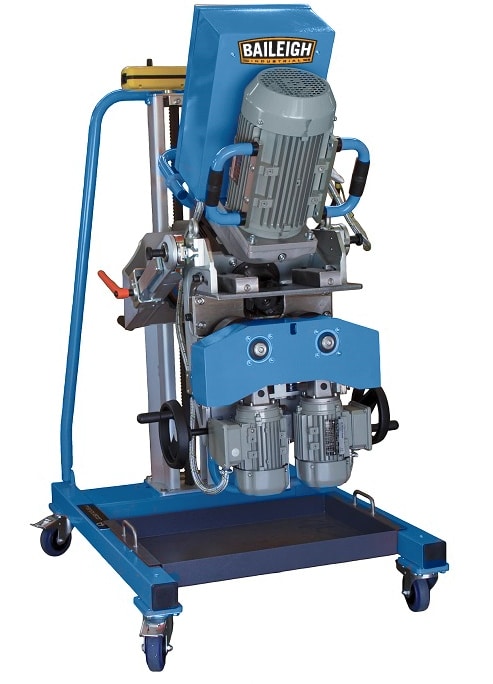

Included manipulator stand for the CM-50DS provides a simple quick 180° rotation to create double sided bevels.

The unique clamping system allows the CM-50DS to be assembled and disassembled within a few seconds, without using any tools
The operator does not need a crane to rotate the material. There is a significant saving of work time.
The stand for the CM-50DS is “floating” and can compensate for the unevenness of the floor, or the deformations of the steel plate.
Stand allows the easy manipulation of the beveller
The required height of the machine can be set up by an easy to use lift handle
Movement of the machine is provided by massive wheels mounted on the carriage

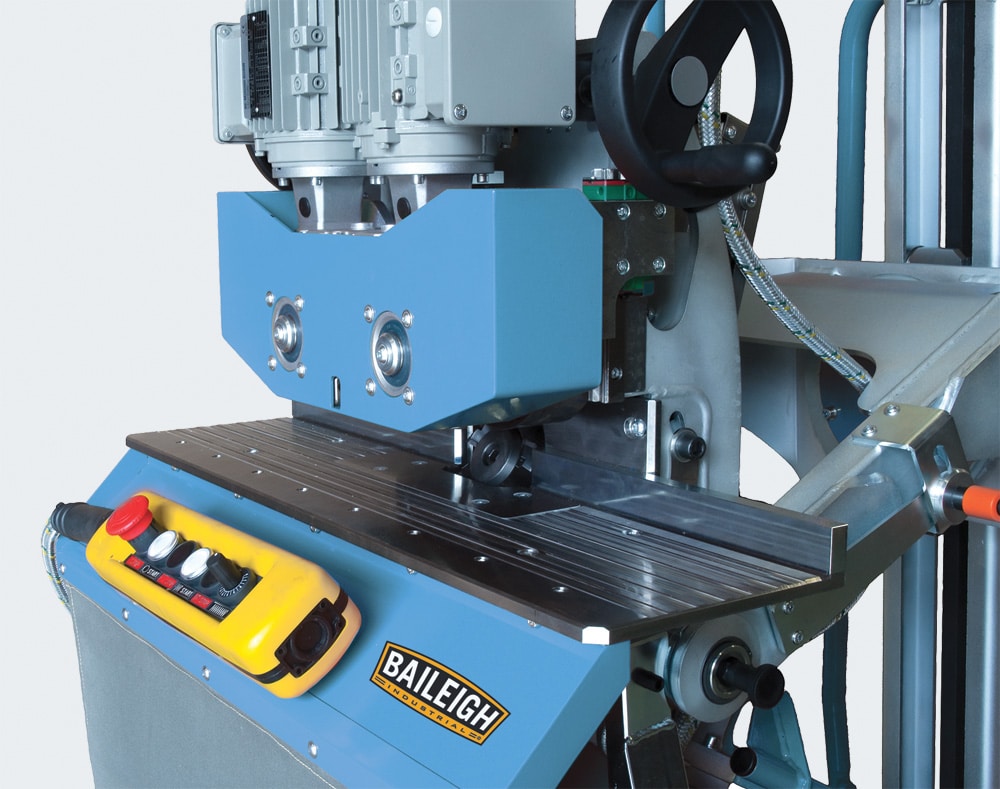

The CM-50DS also includes a table for smaller material processing without sacrificing the bevel capacity. To find out more about the CM-50DS plate

Additional information

Weight 291 kg

Specifications

Item Number CM-50DS
Max. Bevel Width (15°) 2.44″
Max. Bevel Width (45°) 2″
Bevel Angle 15° to 60° Variable
Material Thickness .275″ to 2.75″
Min. Material Dim. 7.8″ x 3.93″ x 2.75″
Max. Material Thickness Unlimited
Cutting Speed 0-3.9F/min.
Cutting Motor 5.25 hp
Feeding Motor 1/8 hp
Milling Head 3.34″ with 5 Inserts
Motor 5.25hp
Chamfer Size 0 ? .236″
Chamfer Angle 15 ? 45°
Shipping Weight 640 lbs.
Shipping Dimensions (Inches) 33″ x 49″ x 62″

* specifications subject to change without notice.
