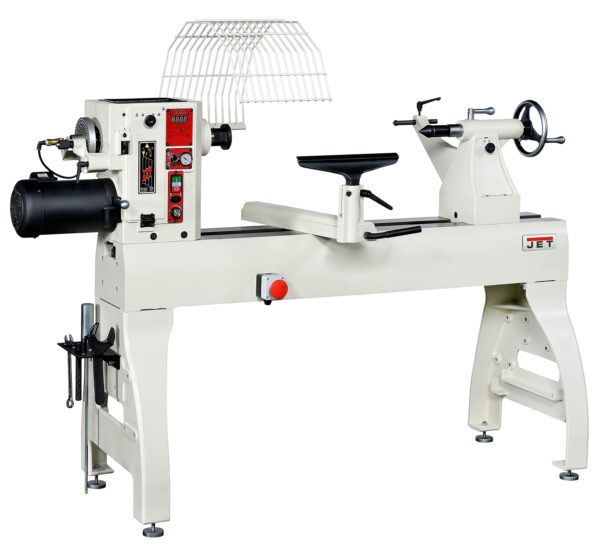

JWL-2442-M JET Variable Speed Lathe

  • Variable Speed Lathe 230v
  • Swing over bed 610mm
  • Swing over toolrest base 490mm – Centre distance 1067mm

£7,129.00Excl. VAT + Delivery

SKU 5ebd5a886cd7 Categories , , Tag Brand:

Specifications

  • Swing over bed 610mm
  • Swing over toolrest base 490mm
  • Centre distance 1067mm
  • Number of mechanical speeds 3
  • Spindle speed range L 0-910 rpm
  • Spindle speed range M 0-2000 rpm
  • Spindle speed range H 0-3500 rpm
  • Spindle nose M33 x 3.5 DIN 800
  • Headstock spindle taper. MT2
  • Spindle index lock 14 x 25.7°, 36×10°,48×7.5°
  • Spindle hole diameter 15.8mm
  • Tailstock spindle taper MT2
  • Tailstock hole diameter 9.5mm
  • Tailstock ram travel 115mm
  • Centre above floor 1120mm
  • Overall for (LxWxH) 2260 x 710 x 1651mm
  • Leg footprint (LxW) 1600 x 610mm
  • Net weight 395kg
  • Mains 1~230V, PE, 50Hz
  • Output power2.2kW (3HP) S1
  • Reference current 12A
  • Extension cord (H07RN-F):3×1.5mm
  • Installation fuse protection 16A
  • Isolation class I
  • Compressed air supply 6.5bar (90psi)
