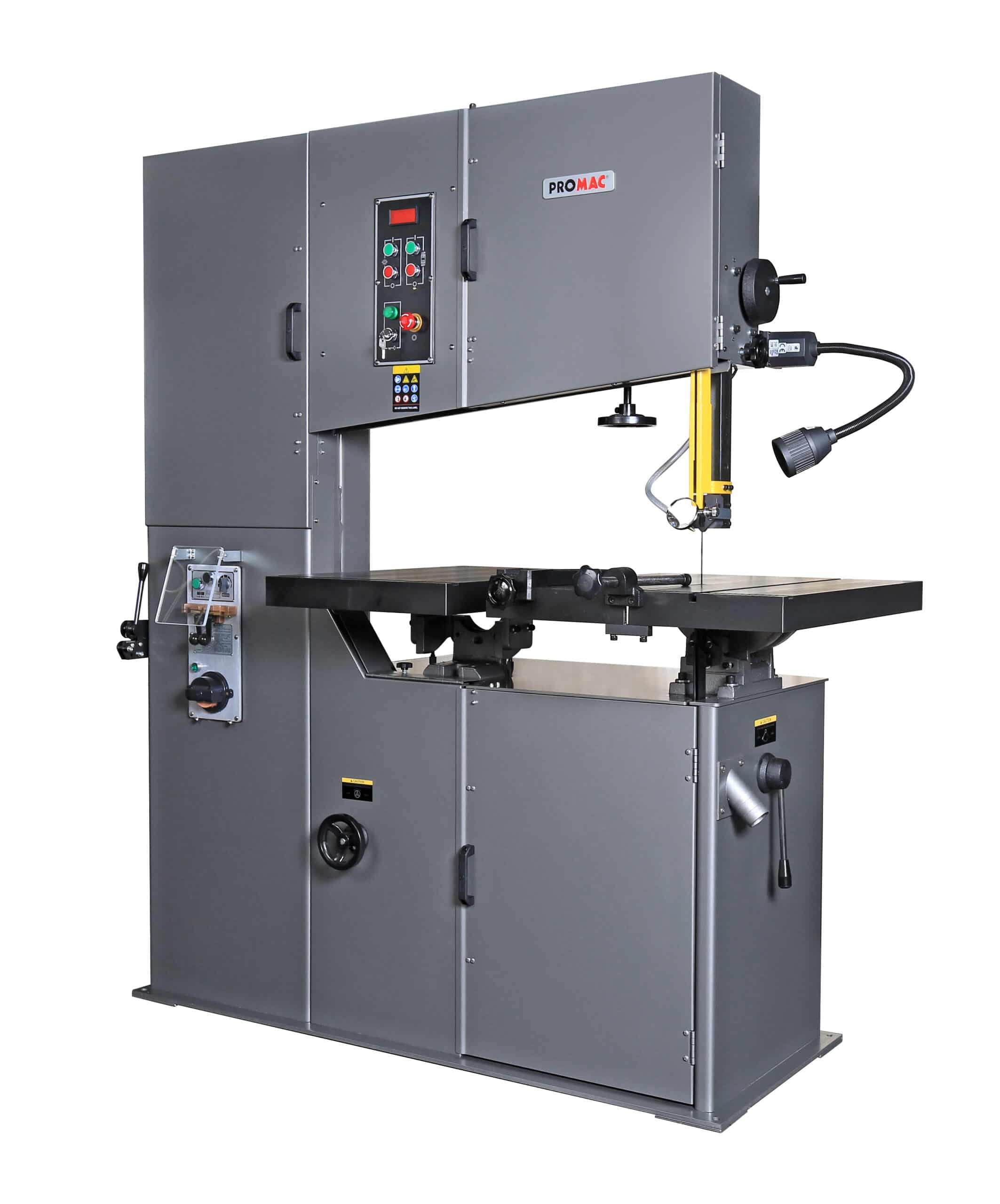

Promac VBS-3612 Vertical Bandsaw

  • 400v 3 phase 2,2kW motor
  • Variable speed control
  • Capacities Height: 300mm, Throat: 920mm
  • Fitted with blade shear and welder

£12,393.00Excl. VAT + Delivery

SKU 88ec997e31a8 Categories , , Tag Brand:

Description

VBS-3612: Motor power: 400V / 2.2kW, Ribbon dimension: 5035-6 to 27mm, Tilt table G / D: 10 ° / 45 °, Weight: 800kg View Manuals

Specifications

  • Blade Speeds – Low: 14-130MPM, High: 174-1600MPM
  • Height Capacity, Maximum – 300mm
  • Throat Capacity, Maximum – 920mm
  • Table Size, Main (L x W) – 600x700mm
  • Table Size, Auxiliary (L x W) – 450x700mm
  • Table Height at 90° – 1016mm
  • Table Tilt (deg.) – 10° L, 45° R
  • Welder (KVA) – 4.2
  • Blade Length, approx. – 5035mm
  • Blade Width – 3mm min., 25mm max.
  • Motor – TEFC, 3HP, 3Ph, 400V , 50Hz
  • Floor Space Required (LxWxH) – 1752x 812mm x 2057mm
  • Net Weight – 800kg
  • Shipping – 960Kg
