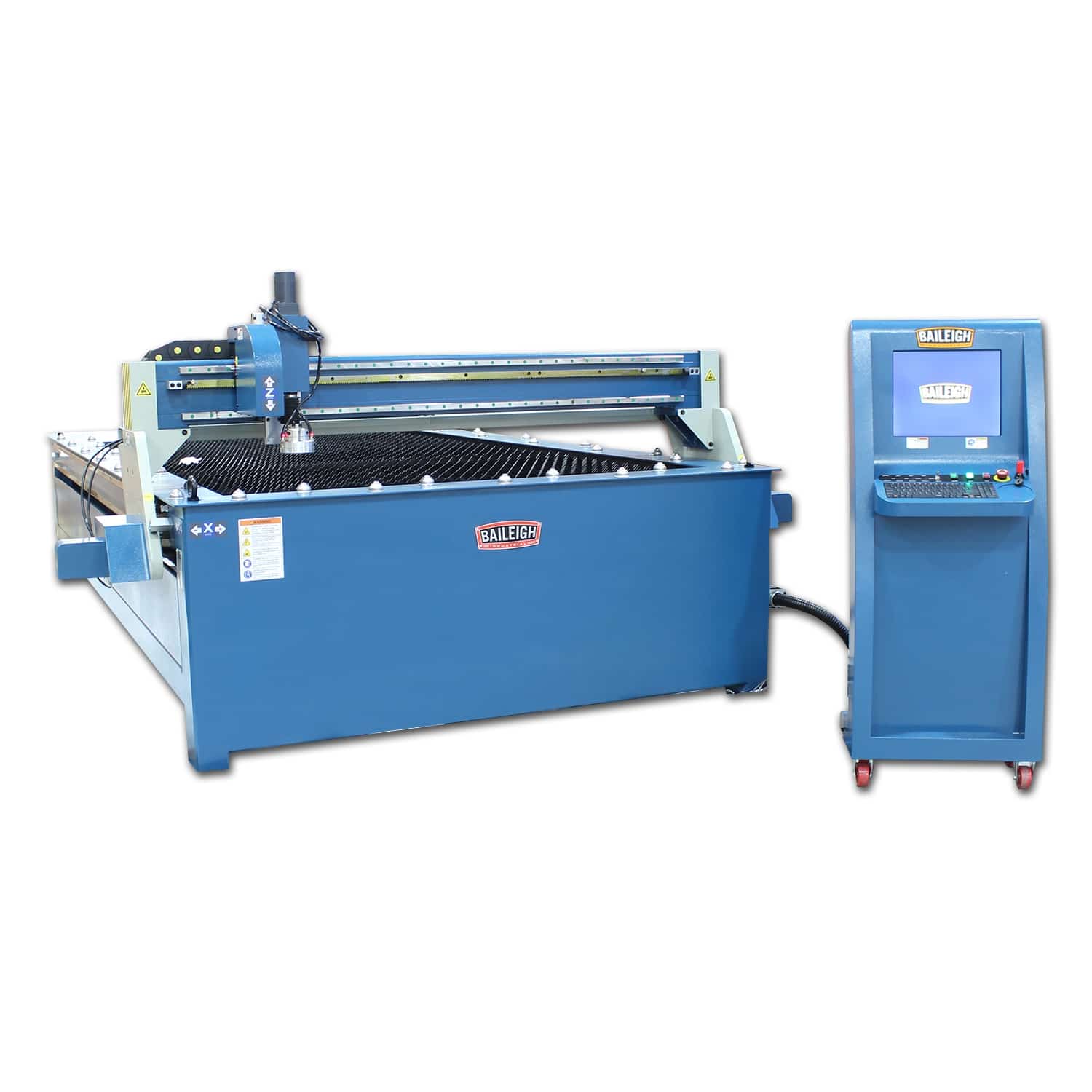

PT-105HD – CNC PLAMSA TABLE

  • CNC Plasma Cutting Table
  • Incl Panasonic Servo Motor Control
  • Automatic Height Detection
  • Complete Software Package

SKU 2038804 Categories , Tag Brand:

Description

The PT-510HD CNC plasma table is the perfect choice for any shop looking to cut 5’ X 10’ plates of steel. Constructed from square and rectangle boxed tubing the fully welded, prebuilt box frame, can easily handle the weights of loading the machine at maximum capacity of 1” thick 5’ x 10’ steel plate. The machine weighs in at an impressive 3520 pounds. Like all Baileigh CNC plasma tables it comes pre-built. All that is required is to run your torch and connect the wires, that is it.

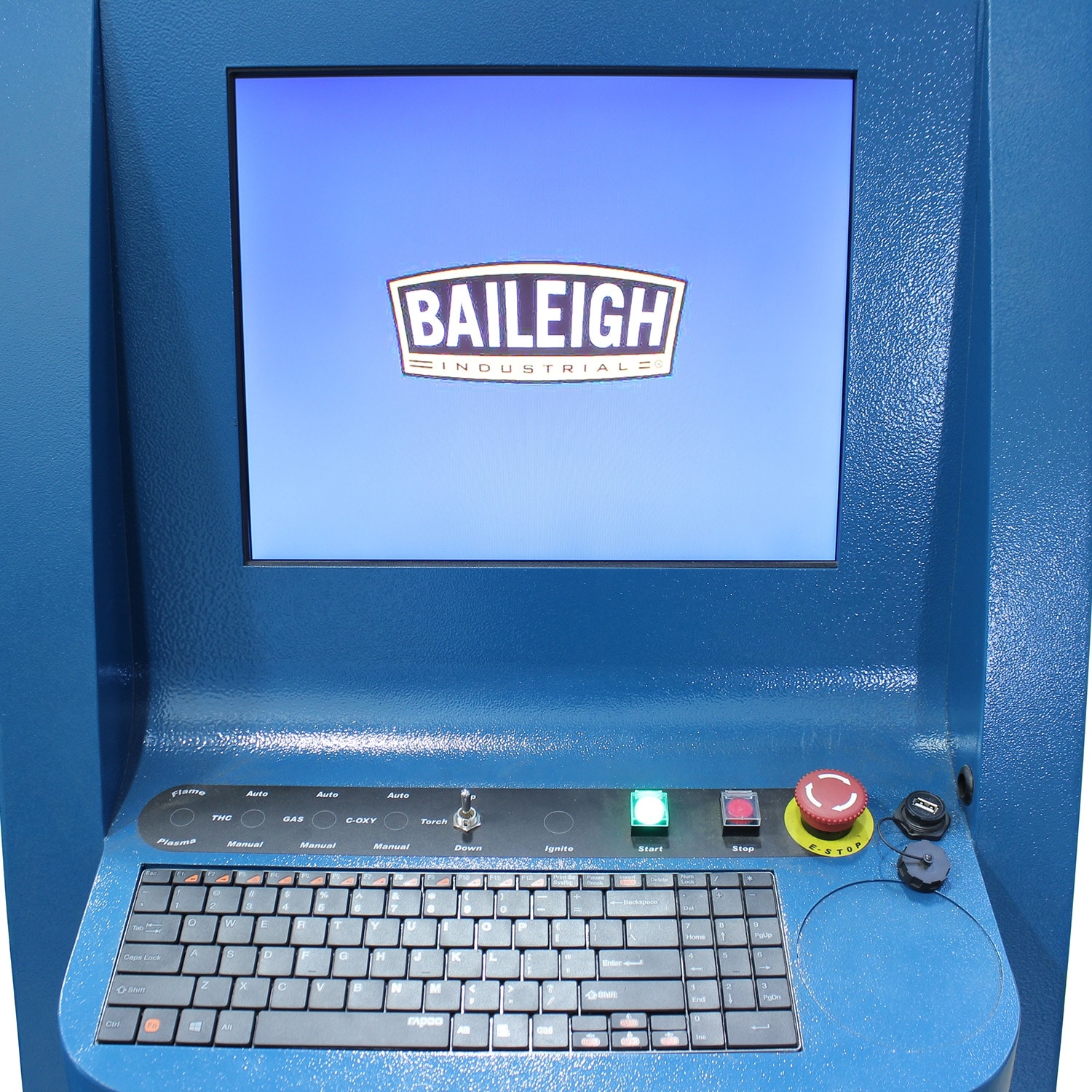

This CNC plasma cutting table comes standard with our easy to use design software that can be loaded into any basic PC and downloaded via an included communication wire or remotely by USB stick. A sturdy operation control station includes large operator control console screen with key pad controls. This CNC plasma machine can run any program designed by the software and controls the X, Y & Z axes. The Z axis has automatic height detection allowing for perfect arc distance at all times even on uneven materials, making each cut perfect, every time.

The PT-510HD CNC plasma table has an industrial grade gantry travel system for the X, Y & Z axis made form extremely rigid extruded aluminum. All axis ride on heavy duty ground and polished square shafts that use wiper dies to keep the welding dust out of the slide for a smooth transfer without any chatter. The gantry is driven by Panasonic® brushless servo motors that are controlled by Panasonic® servo motion controllers.

Like all Baileigh CNC plasma tables the PT-510HD is an industrial grade plasma table that will provide the fabrication shop with decades of profitable use. For further information, please call your local Baileigh Industrial representative.

Specifications

Item Number PT-105HD
Travel Speed 315 Inches Per Minute
Table Dimensions 60″ x 140″
Table Load Capacity 1″ Mild Steel
Capacity Depends on Plasma System Chosen
Drive Servo Motor

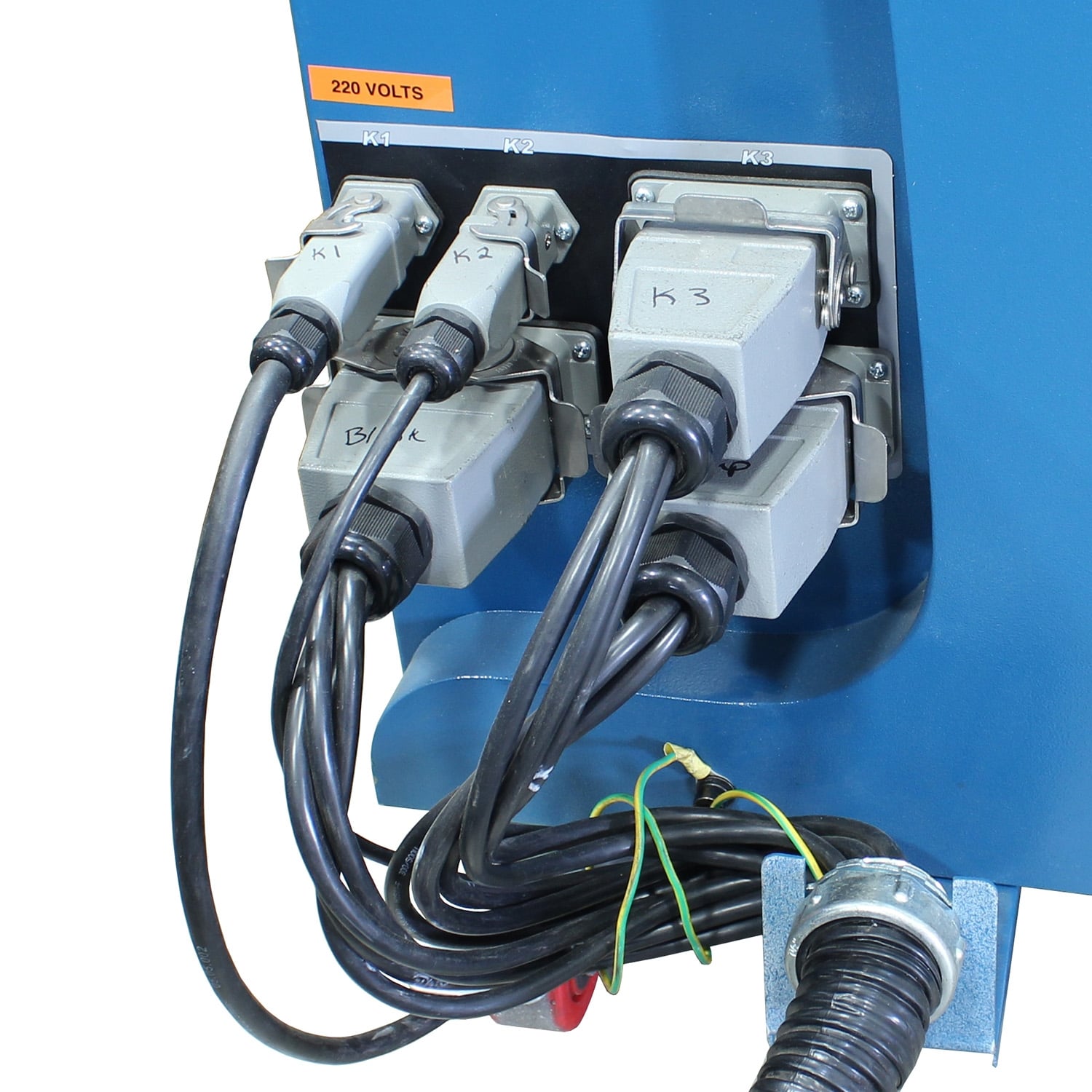

Power 220V / 1-phase
Shipping Weight 3380 lbs.
Shipping Dimensions (Inches) 160″ x 102″ x 68″

* specifications subject to change without notice.
