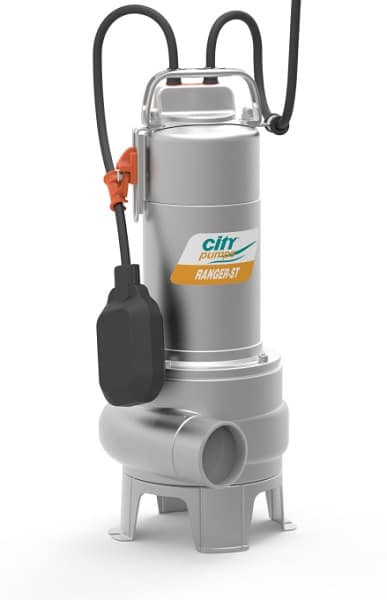

RANGER-8-35M-ST-CH Dirty Water Pump

  • Dirty water pump 230 volts, flow rate 21,000 l / h, chrome steel housing

£350.00Excl. VAT + Delivery

SKU 99a81c2afd2d Category Brand:

Description

  • Suitable for chemically non-aggressive waste water
  • Use: waste water, pits, ponds with solid particles in industrial and domestic areas
  • For liquids in the temperature range up to + 40 ° C – briefly up to 60 °
  • A minimum water level of 290mm is required for continuous operation
  • Level regulation by means of a float switch
  • Motor housing, pump body and impeller made of chrome steel
  • Stainless steel motor shaft
  • Double sealing ceramic – silicon carbide and oil chamber
  • With thermal motor protection

Specifications

  • Delivery rate max. 21,000 lt./h
  • Delivery head max. 9.5 m
  • Immersion depth max. 5 m
  • Extraction level min. 28 mm
  • Grain size max. 40 mm
  • Pressure hose connection 1 1/2 “F
  • Motor voltage 230 volts
  • Engine power P2 0.55 / P1 0.72 kW
  • Insulation class F
  • Protection class IP68
  • Rotational speed 2,900 rpm
  • Power cord 10 m
  • Power plug type TE12
  • Use at pH 6 – 8
  • Dimensions WxDxH 235 x 406 mm
  • Weight 10.3 kg

Manuals / Techincal

View Manuals
