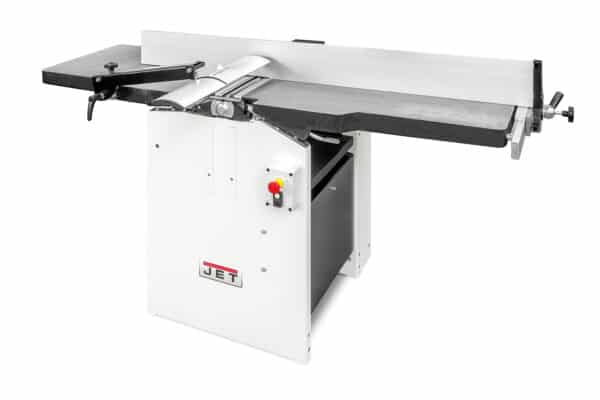

RDJ-410HH-M JET Helical Planer Thicknesser

  • 230v Single phase 2,2kW motor
  • Cutterhead rotation 5,500 rpm
  • Number of cutters – 3 spirals of 17 carbide tips
  • Manufactured in Europe

£4,861.60Excl. VAT + Delivery

Description

Integrated spiral planing shaft fitted with 17 × 4 -fold carbide cutting inserts (68 in total). Optimal surface finish through drawn cut, tear-free even with an unfavourable grain structure. The volume of chips is significantly reduced (approx. 50%). Extremely quiet. The fine-grain carbide cutting inserts are robust and wear proof (5×HSS), simply continue turning by 90° to the next cutting edge where required. A machine investment that will pay off. View Manuals View Manuals

Specifications

  • Motor (V/kW) 230v /2,2
  • Thicknesser height max – 230mm
  • Thicknesser depth of cut max. – 4mm
  • Thicknesser table dimensions – 600 x 410mm
  • Planer depth of cut max. – 4mm
  • Planer table dimensions 1,800 x 410mm
  • Number of revolutions (rpm) – 5,500
  • Cylinder diameter – 70mm
  • Number of cutting inserts – 3 x 17
  • Dimensions 1,961 x 830 x 1010mm
  • Weight – 320kg
