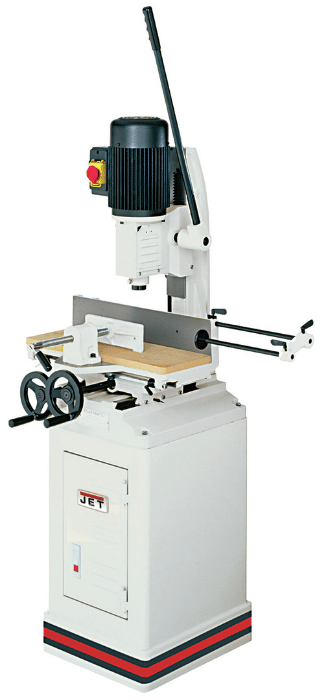

719AS-M JET Morticer

  • Motor power: 230V / 1.3kW
  • Max capacity of drill chuck: 25mm
  • Chuck capacity: 13mm
  • Weight: 125kg

£1,686.00Excl. VAT + Delivery

SKU 0a21417d28f3 Categories , , Tag Brand:

Description

Toothed rack height adjuster together with accurate dovetail guide and gas pressure balancer cylinder. Powerful motor. Head can be turned by 180° for drilling a door lock. Large-sized handwheels for easy adjustment of the jig table. End stops for precision batch productions. Workpiece clamp with quick adjustment. Enclosed base cabinet with storage compartment. Table tilt angle (719-AS-M) up to 35°.

Specifications

  • Motor (V / kW) 230 / 1.3
  • Spindle speeds (rpm)1’450
  • Maximum cutter size (hard / soft) 19 x 19 / 25 x 25
  • Max. bore size diameter (mm)13
  • Max. workpiece height (mm) 195
  • Max. chisel stroke (mm) 200
  • Table travel along axes (longitudinal / transverse, mm) 400 / 100
  • Table tilt 0-35°
  • Table size (mm) 520 x 180
  • Dimensions of the workpiece stop (mm) 520 x 90
  • Centre of chisel to back fence (mm) 100
  • Dimensions (mm) 650 x 500 x 1’760
  • Weight (kg) 110
