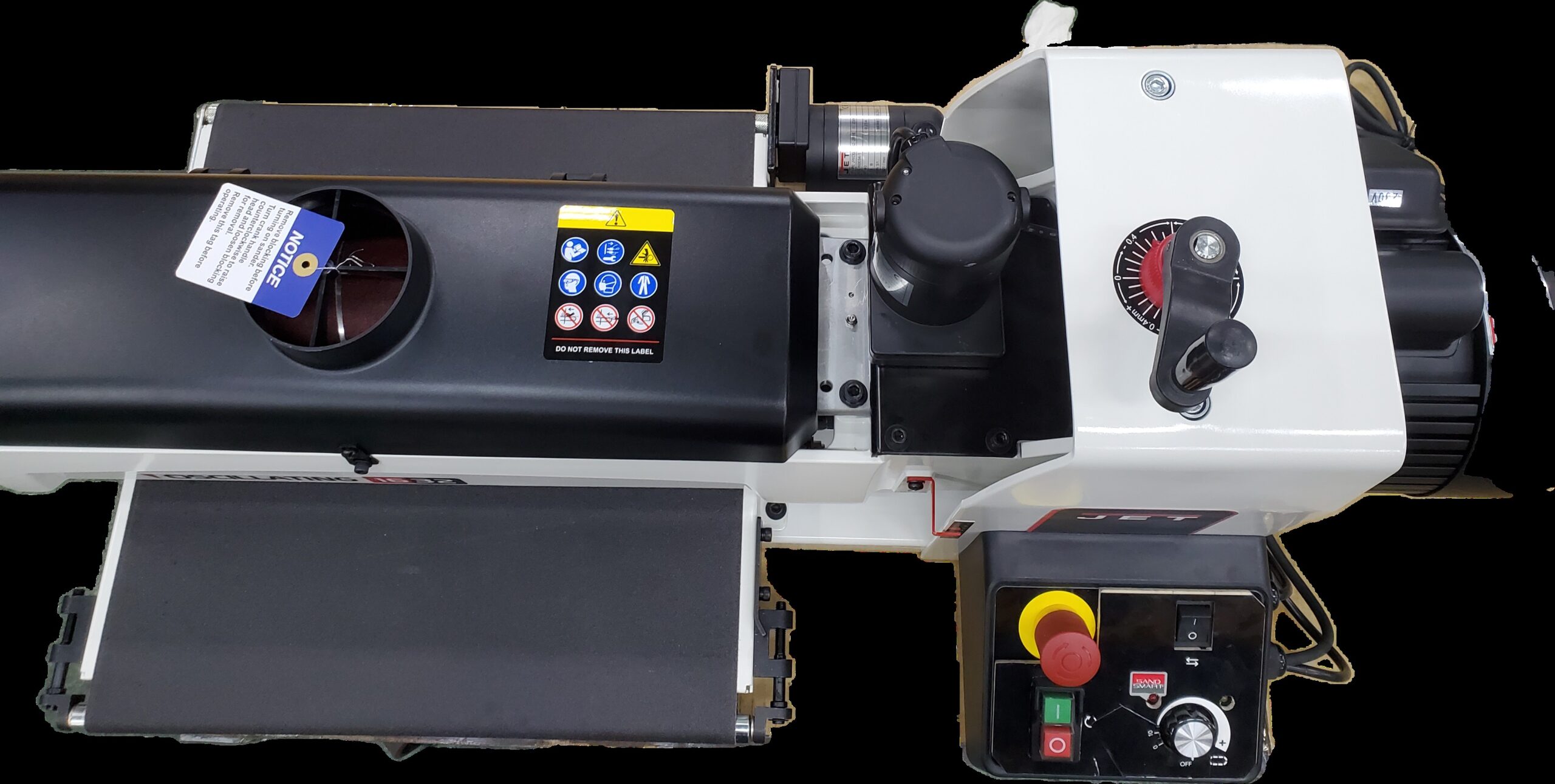

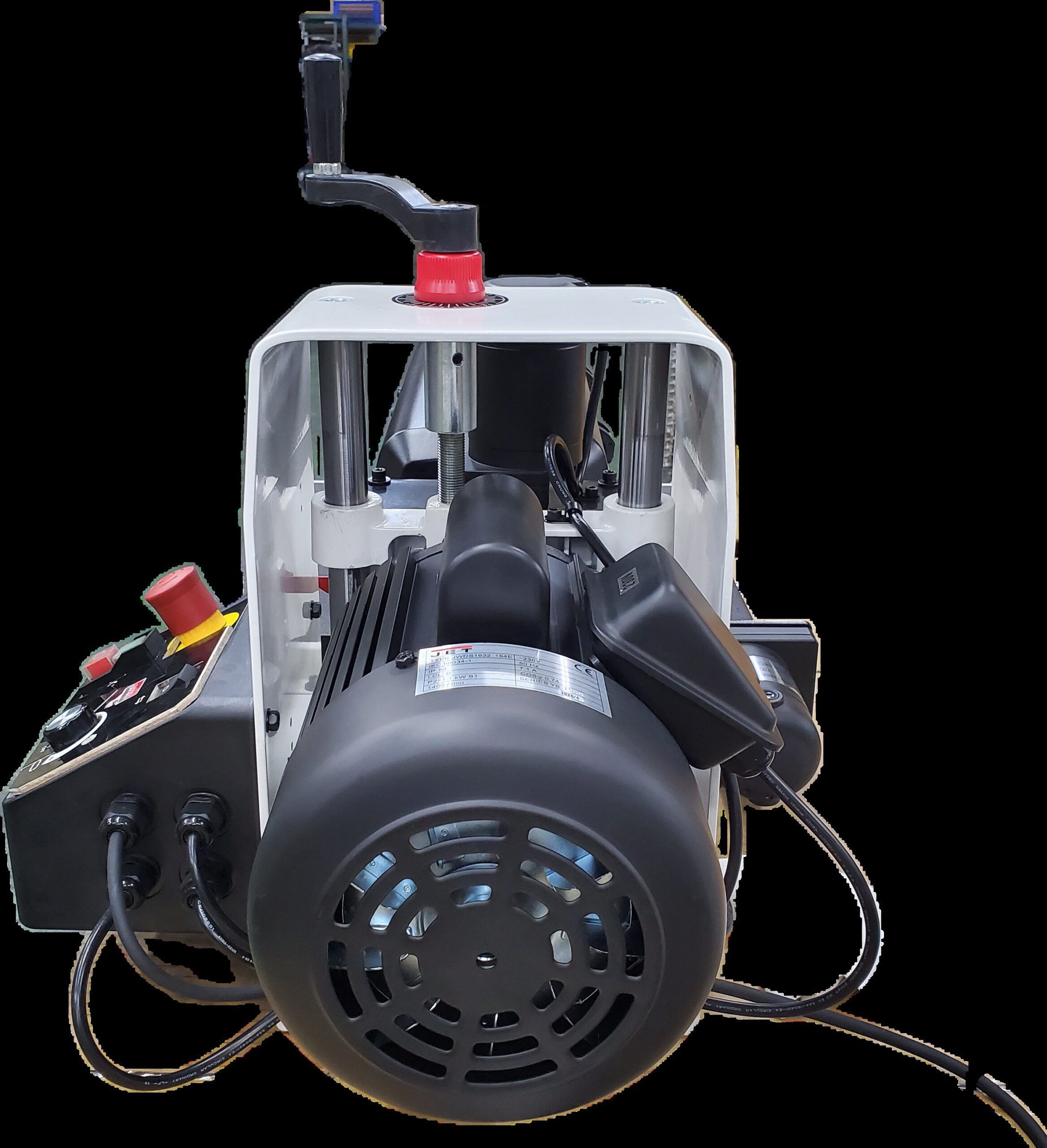

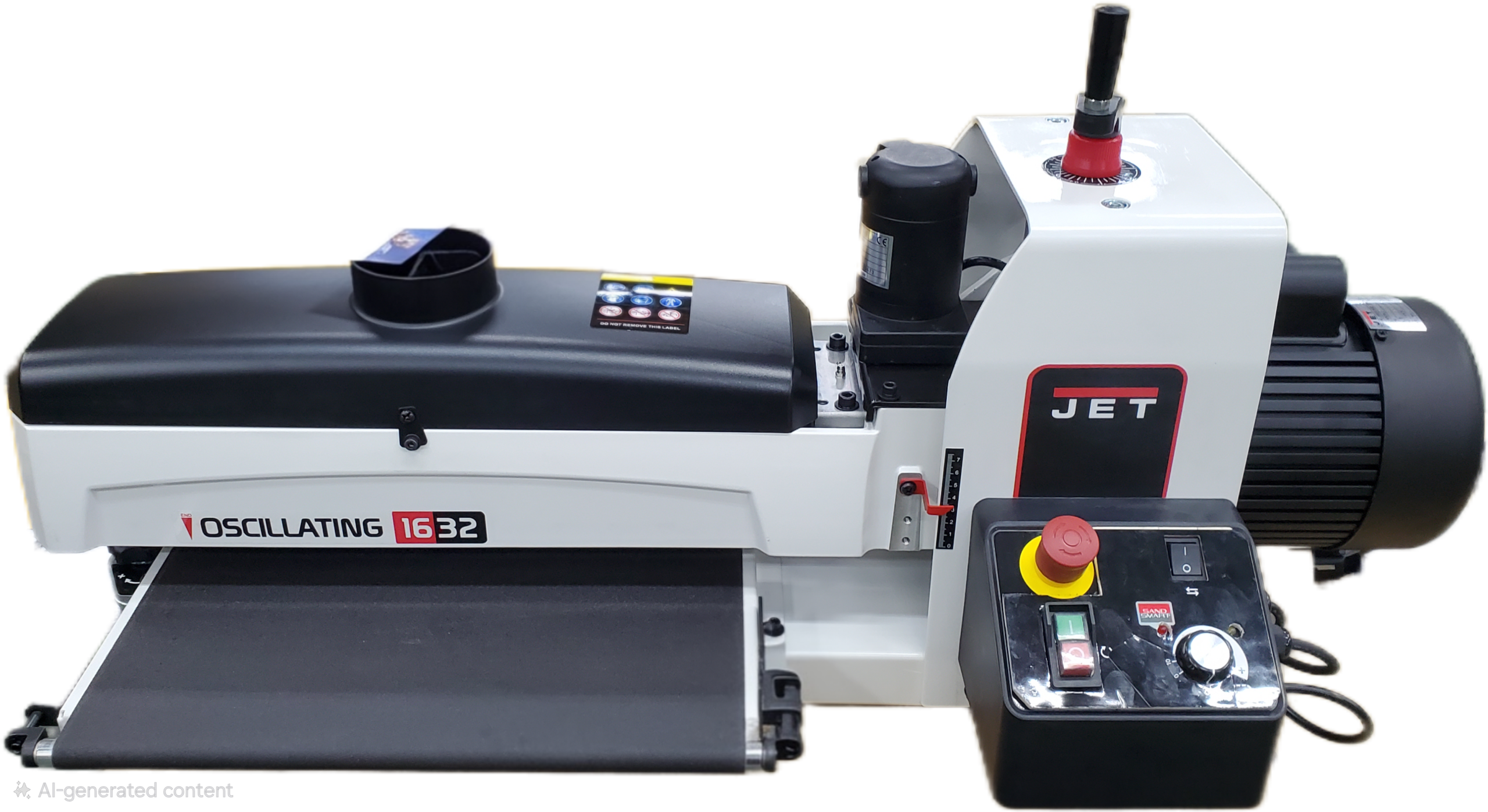

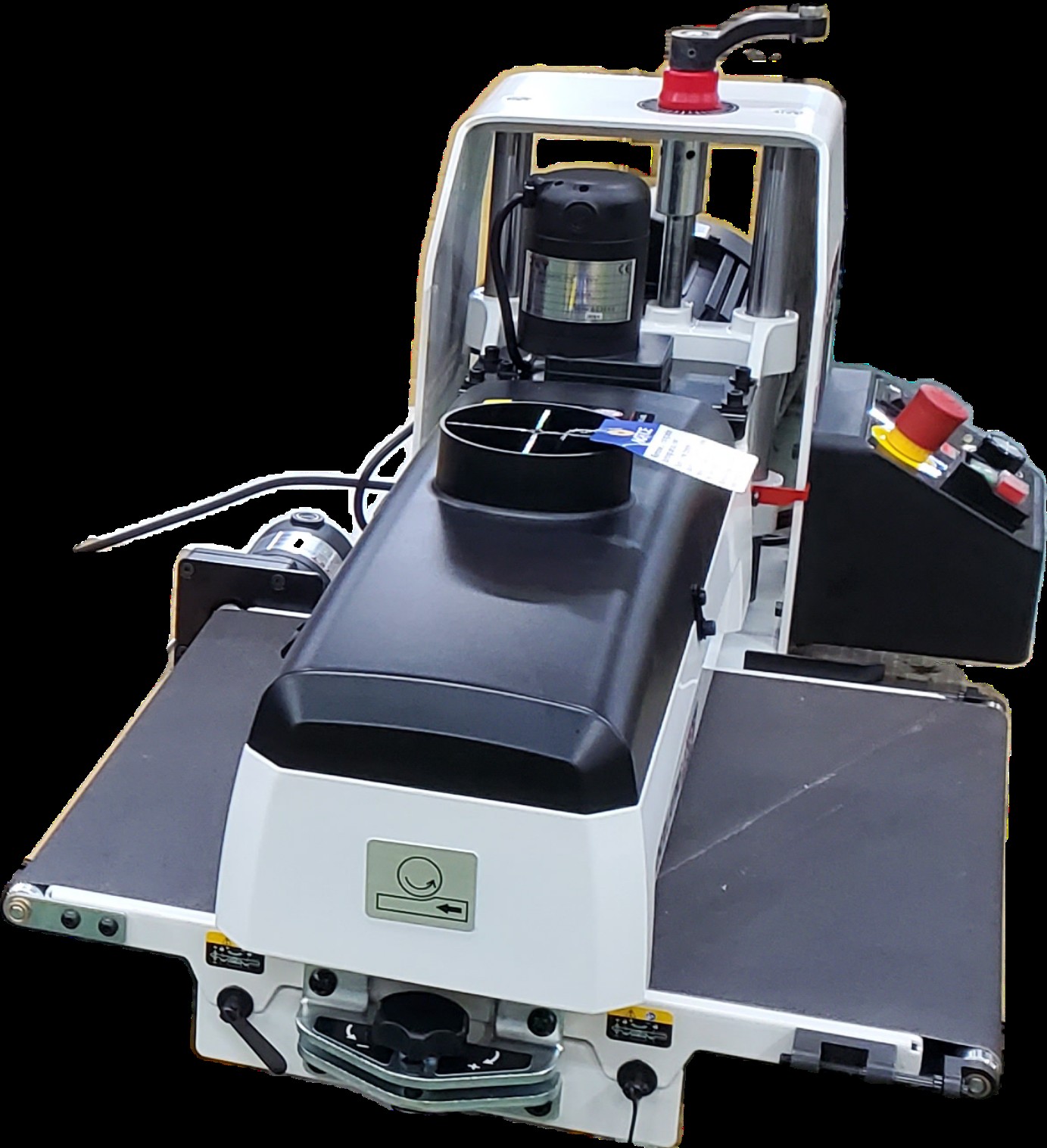

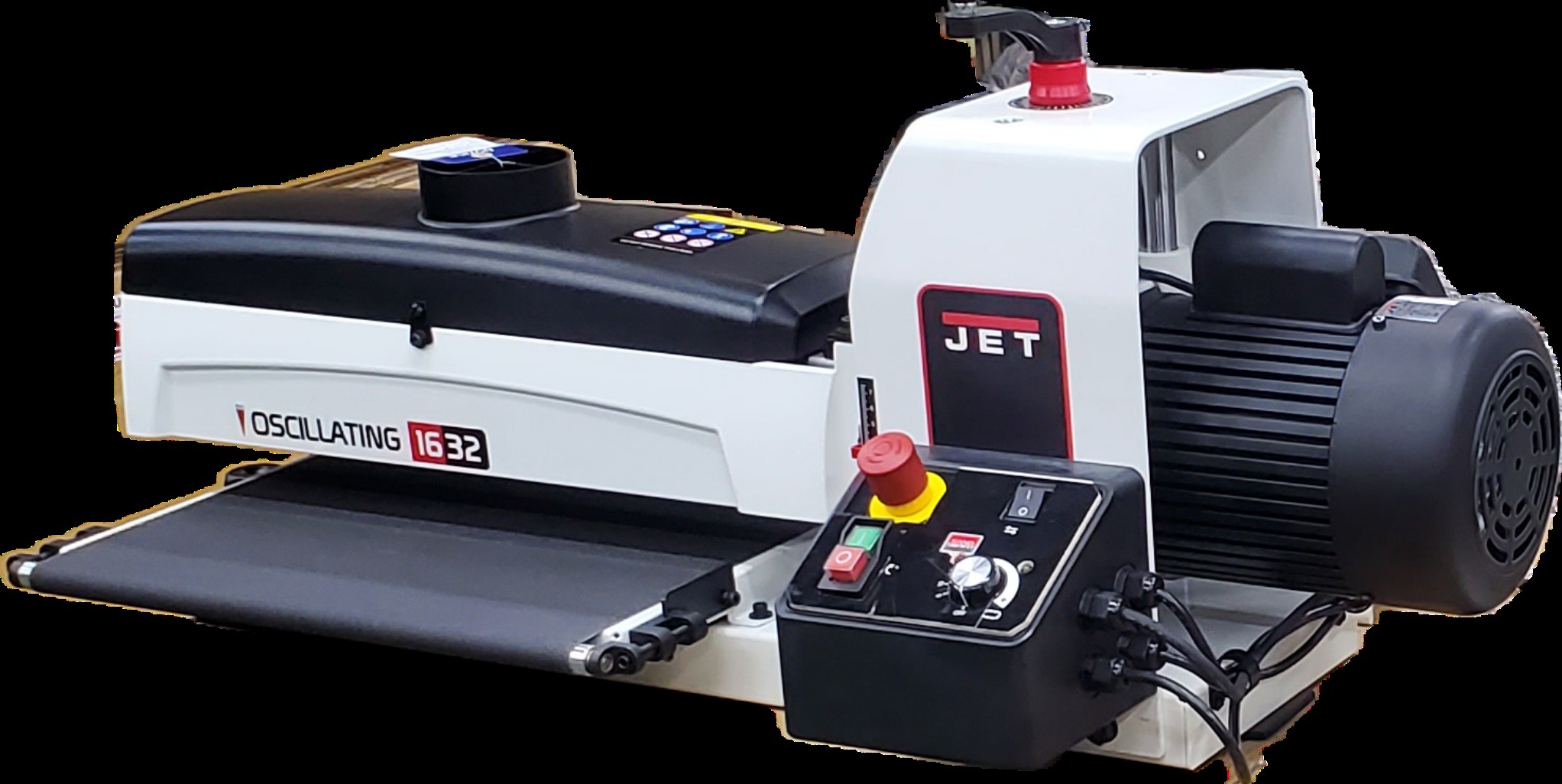

JWDS-1632OSC-M JET Oscillating Drum Sander

Key Benefits of JET JWDS-1632OSC-M:

– Oscillating drum to improve the quality of the finish.

– Possibility to turn oscillations off or on.

– Working width of 406 mm in one pass.

– Grinding of components up to 812 mm in two passes.

– Aluminium drum with dimensions of 127 × 406 mm.

– Drum speed 1400 rpm.

– Infinitely variable feed adjustment from 0 to 3 m/min.

– SandSmart™ system that controls the load on the motor.

– Material thickness range from 0.8 to 75 mm.

– Minimum workpiece length of 60 mm.

– Tool-free abrasive change.

– Adjusting the parallelism of the table to the drum.

£2,546.00Excl. VAT (Delivery charges may apply)

SKU 0c85bc3aac391a Categories , , Tag Brand:

Description

JET JWDS-1632OSC-M is designed for thickness leveling and surface finishing of boards, moldings, countertops, furniture fronts, glued boards and other flat joinery elements.

The machine allows you to obtain an even surface across the entire width of the material without the need for a manual grinder. The automatic feed ensures a constant pass rate, which reduces the risk of spot grinding, dentation and uneven finishes.

The JET JWDS-1632OSC-M is suitable for both the initial removal of planing and gluing marks and the thorough preparation of wood before varnishing, oiling, waxing or staining.

Standard equipment:

– Oscillating drum grinder JET JWDS-1632OSC-M.

– Table with automatic feed belt.

– Aluminium grinding drum 127 × 406 mm.

– 80 grit abrasive belt mounted on the drum.

– Drum height adjustment crank.

– Open steel base.

– Bottom shelf of the base.

– Four adjustable feet.

– Mounting elements.

– User manual.

Optional equipment:

– JET 723521 feed-and-receive tables.

– A set of four locking travel wheels JET 98-0130.

– Rolls of abrasive 75-76 mm wide and 25 m long.

– Abrasives in granulations suitable for roughing, intermediate and finishing machining.

Specifications

The machine can be used for:

– leveling the thickness of boards and slats,

– grinding of countertops and glued wooden boards,

– preparation of fronts and furniture elements,

– removing traces left by planing knives,

– cleaning the surface after gluing,

– grinding of frame elements and cassette doors,

– processing of wood with a decorative or irregular arrangement of fibers,

– surface preparation before applying finishing materials,

– making repeatable elements of equal thickness,

– thorough grinding of materials whose processing on a thickness machine could cause the fibers to be pulled out.

Power supply: 230 V, 50 Hz, PE protection wire
Drum Motor Power: 1.1KW / 1.5HP
Feed motor: 40W
Feed motor speed: 54rpm
Oscillation Motor: 40W
Oscillation motor speed: 120rpm
Drum Diameter: 127mm
Drum length: 406 mm
Drum speed: 1400rpm
