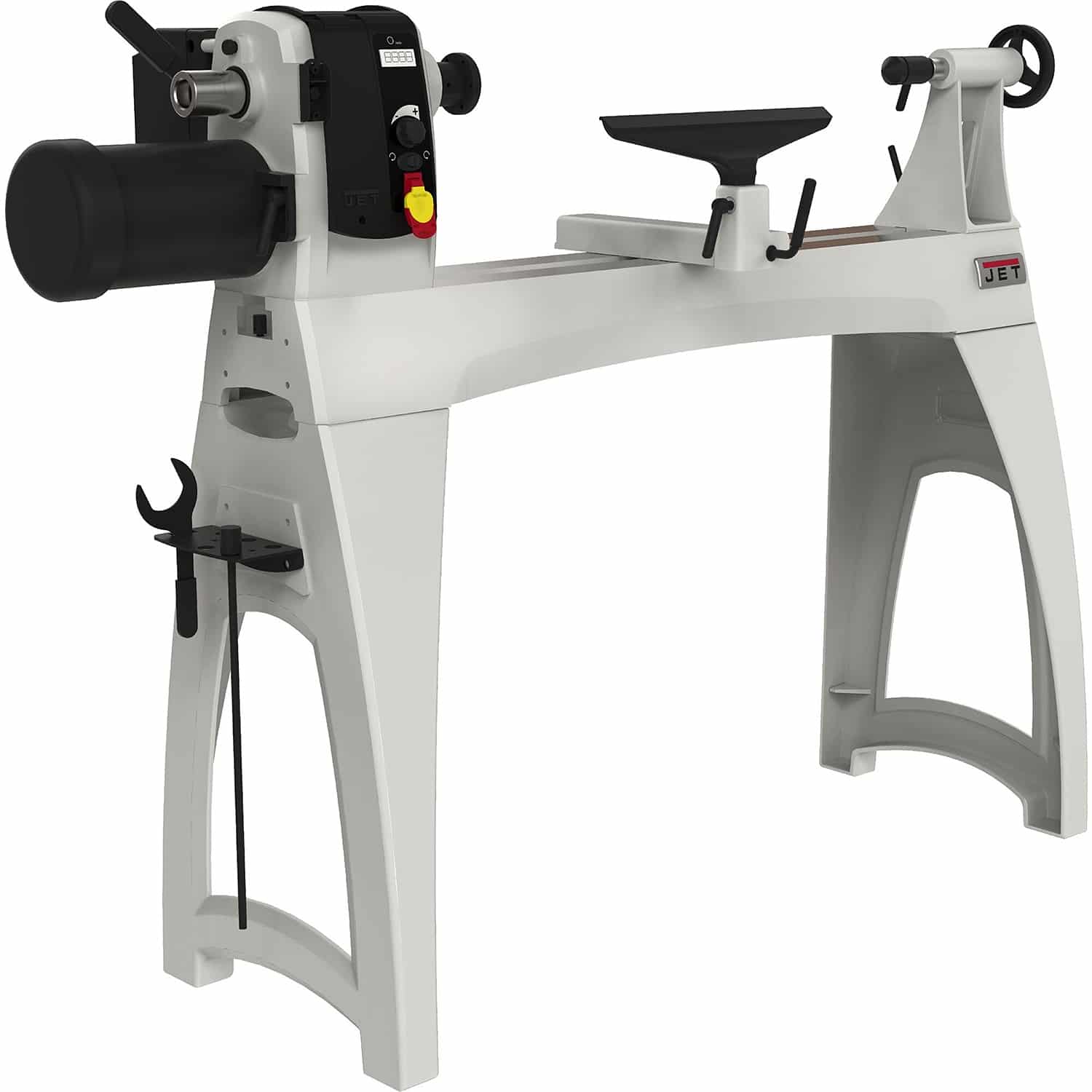

JWL-1640EVS-M JET Variable Speed Lathe

  • Variable Speed Lathe 230v
  • Swing over bed 418mm
  • Swing over tool rest base 325mm
  • Centre distance 940mm

£3,001.00Excl. VAT + Delivery

SKU baa9bdfa6c78 Categories , , Tag Brand:

Description

Features

The headstock moves across the whole machine bed and pivots by 360° for maximum versatility
The main spindle is supported on three bearings for greater rigidity and load-bearing capacity
Infinitely variable, adjustable speeds using a frequency converter, from 40–3’200 rpm with 2 belt speeds
Tailstock with heavy-duty Acme thread, quill with anti-rotation key, with mm scale
Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
Spindle lock for two-handed changing of the faceplate and turning chuck
Integrated spindle indexing device 36—10° for hole patterns and decorative work

Specifications

  • Motor (V/kW) 230/1.8
  • Swing over bed (mm) 418
  • Swing over tool rest base (mm) 325
  • Centre distance (mm) 940 (990 with short trading grains)
  • Spindle speeds (rpm) 40 – 3’200, variable
  • Spindle nose(mm) M33 x 3.5
  • Spindle index lock 36 x 10°
  • Headstock spindle taper MT2
  • Tailstock spindle taper MT2
  • Tailstock hole diameter (mm) 9
  • Tailstock ram travel (mm) 108
  • Steel support (mm) 350/25.4
  • Dimensions (mm) 1’854 x 508 x 1’334
  • Weight (kg) 170
