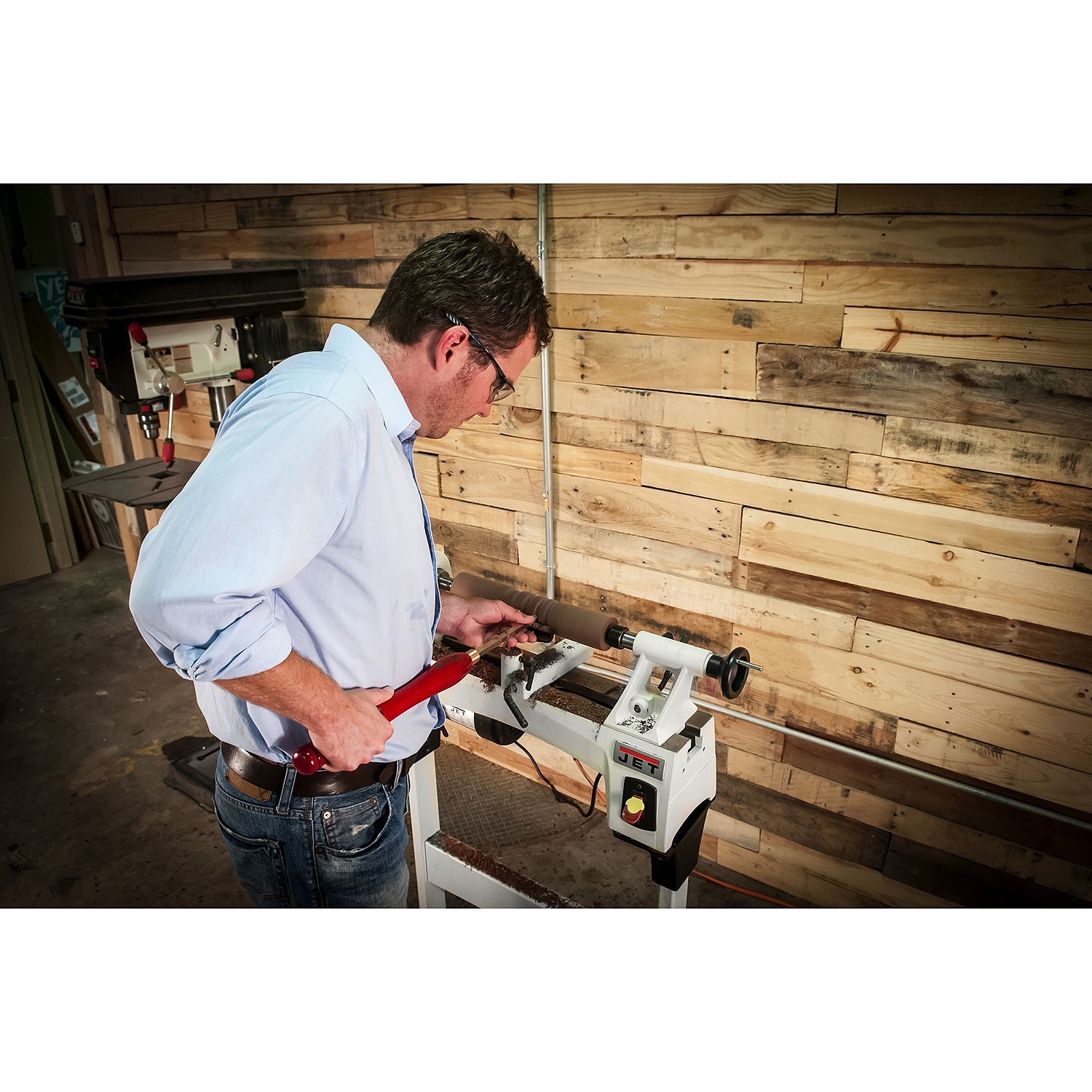

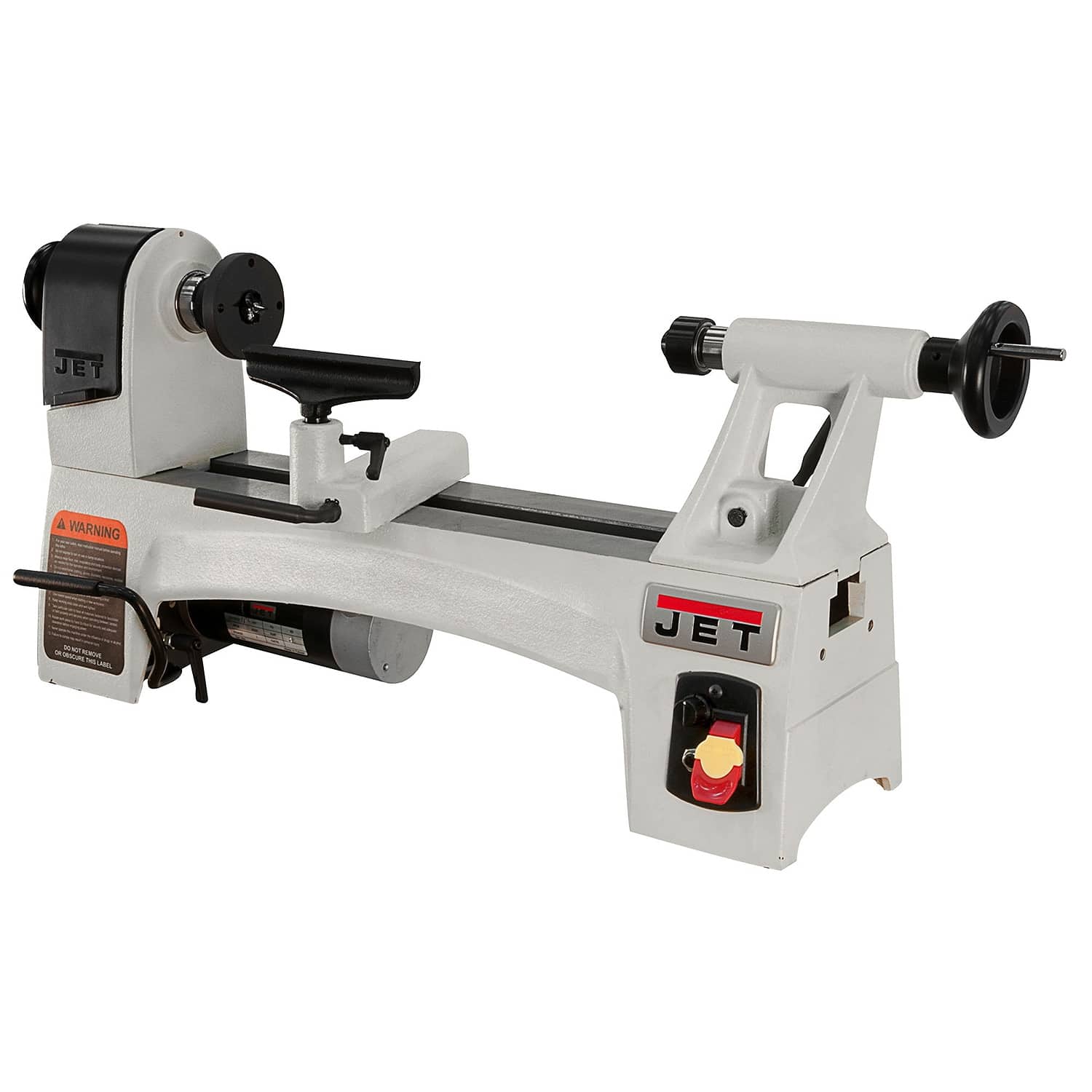

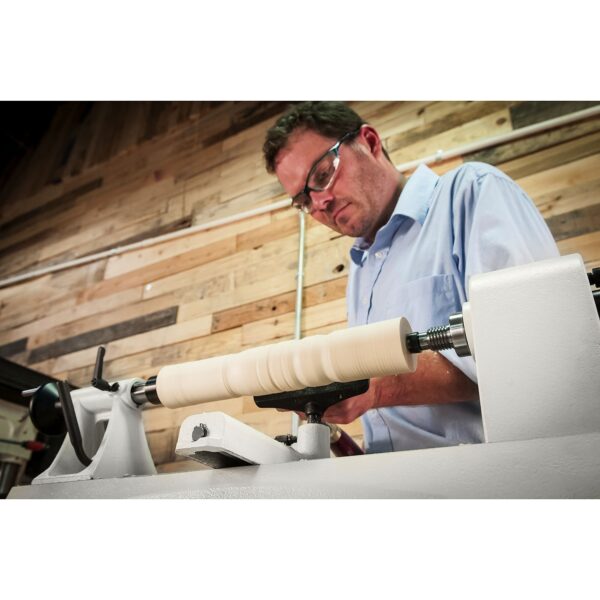

JWL_1015 JET Lathe

  • Swing over bed 254mm
  • Swing over tool rest base 186mm
  • Centre distance 368mm

£598.00Excl. VAT + Delivery

SKU d9a71db0169c Categories , , Tag Brand:

Description

Features

Heavy, extra-wide cast iron machine bed (GG-20) for the ultimate in smooth operation and stability when working on unbalanced pieces
Six spindle speeds: 400, 700, 1’000, 1’500, 2’200 and 3’300rpm (JWL-1015-M)
Infinitely variable speed control with 3 belt speeds, from 200 to 3’600 rpm (JWL-1015VS-M)
The Smart Control electronic control system ensures maximum torque, beneficial for turning large pieces (JWL-1015VS-M)
Easy belt access from the front, simple belt tensioning system
Poly-v belt drive, quiet and suitable for continuous operation
Integrated spindle indexing device 24—15°
Tailstock quill with 9mm hole allows material to be drilled through
Quick-release lever for simple and accurate positioning of tool rest and tailstock

Specifications

  • Motor (V/kW) 230/0.6
  • Swing over bed (mm) 254
  • Swing over tool rest base (mm) 186
  • Centre distance (mm) 368
  • Spindle speeds (rpm) 200 – 3’600, variable
  • Spindle nose M33 x 3.5
  • Spindle index lock 24 x 15°
  • Headstock spindle taper MT2
  • Tailstock spindle taper MT2
  • Tailstock hole diameter (mm) 9
  • Tailstock ram travel (mm) 50
  • Steel support (mm) 150/15.9
  • Dimensions (mm) 775 x 300 x 445
  • Weight (kg) 35
