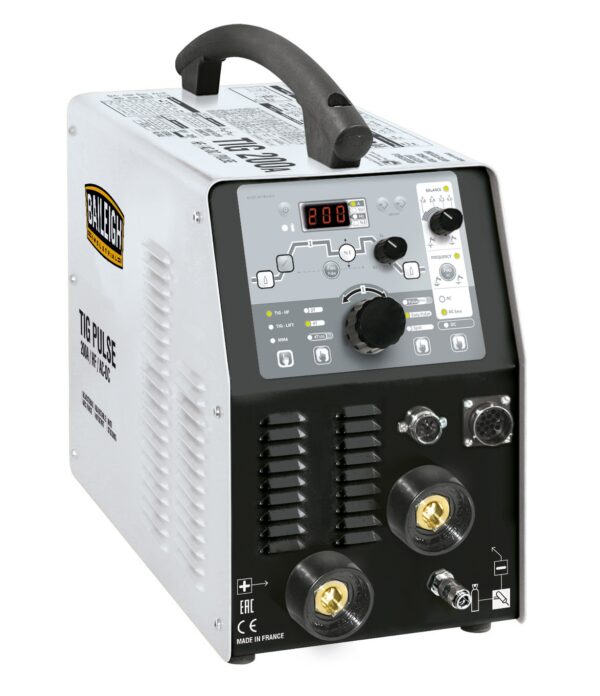

Baileigh BW-200T-200A TIG Welder

  • 200 AC/DC HF Welder
  • Standard tig mode
  • AC mode
  • 2 year warranty as standard

£1,499.20Excl. VAT + Delivery

SKU 2040815 Categories , , Tag Brand:

Description

Standard Tig Mode – Constant DC current. AC mode – specific for welding Aluminium. Balance – setting of the cleaning and penetration based on tungsten size. Easy Pulse – preset pulse frequency dependent on the current. Pulsed Tig Mode :- Ideal for thin gauge materials. Trigger modes – 2T and 4T ( hold or latched trigger ). Pre Gas – gas flow before you begin to weld ( in seconds). Up slope – control the increasing current from the start of the weld. Pulse Frequency – set the frequency of the pulses per second. Down Slope – control of the reducing current at the end of the weld. Post gas – flow of gas at the end of the weld to reduce cracking. Memory function – Store 5 preset jobs within the machine. MMA mode – stick electrode welding. SR26 4mtr Tig torch. 2 metre Electrode holder. 2 metre Earth cable. Consumables starter kit.

Specifications

BW-200T-200A TIG 200 AC/DC HF WELDERSupply Voltage240VFuse Protection16AElectrode Capacity1.6 – 5.0mmOCV Operating Circuit Voltage70Amperage10 – 200 ADimensions20” x 18.5” x 12.5”520 x 470 x 320mmWeight41lbs.18.5kgs.Generator Compatible7.5KVA
