Baileigh CS-350EU Manual Coldsaw

  • 120mm round capacity
  • 90mm solid capacity
  • 0°-90° mitre l, 0°-60° mitre r

£4,679.00Excl. VAT + Delivery

SKU 2003654 Categories , , Tag Brand:

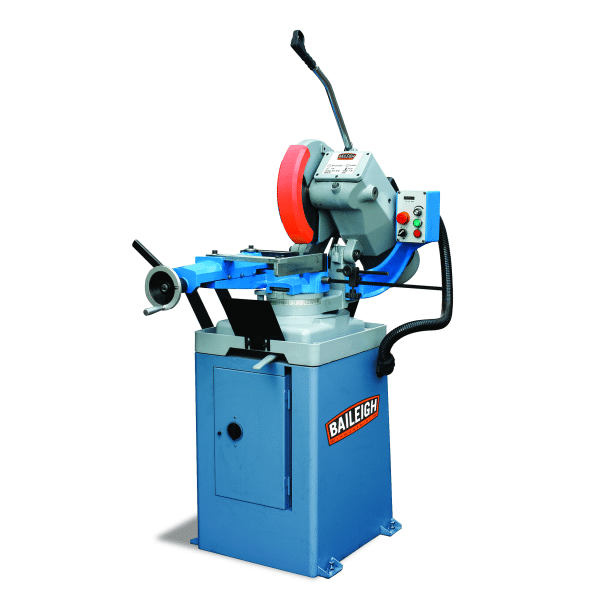

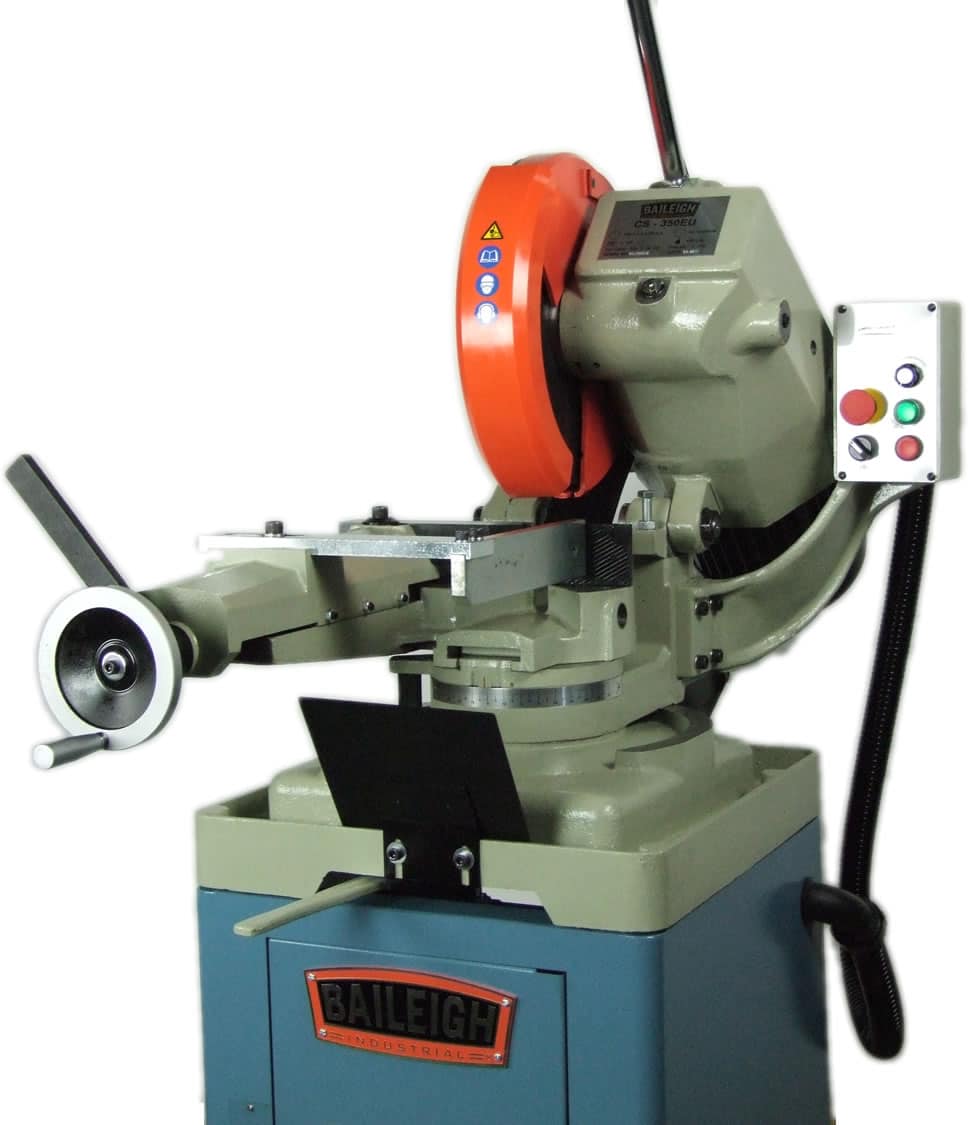

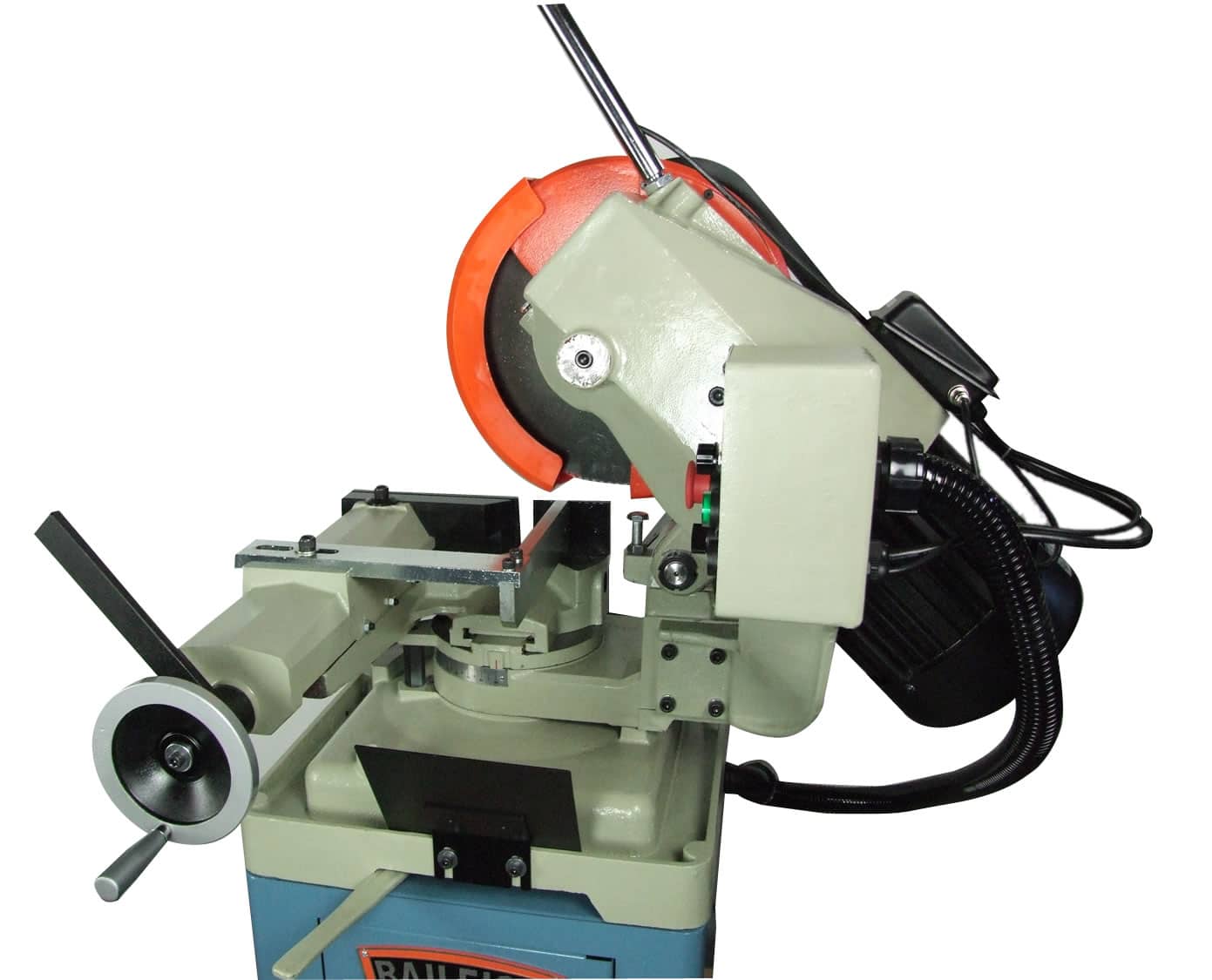

Baileigh Industrial’s revolutionary CS-350EU coldsaw will change the way you think about coldsaws. The CS-350EU is a unique 350mm circular coldsaw which features a true inverter that drives the motor. This inverter allows the blade speed to be adjusted from 24rpm to 120rpm. This range of RPM covers most of the cutting applications that this coldsaw will encounter.

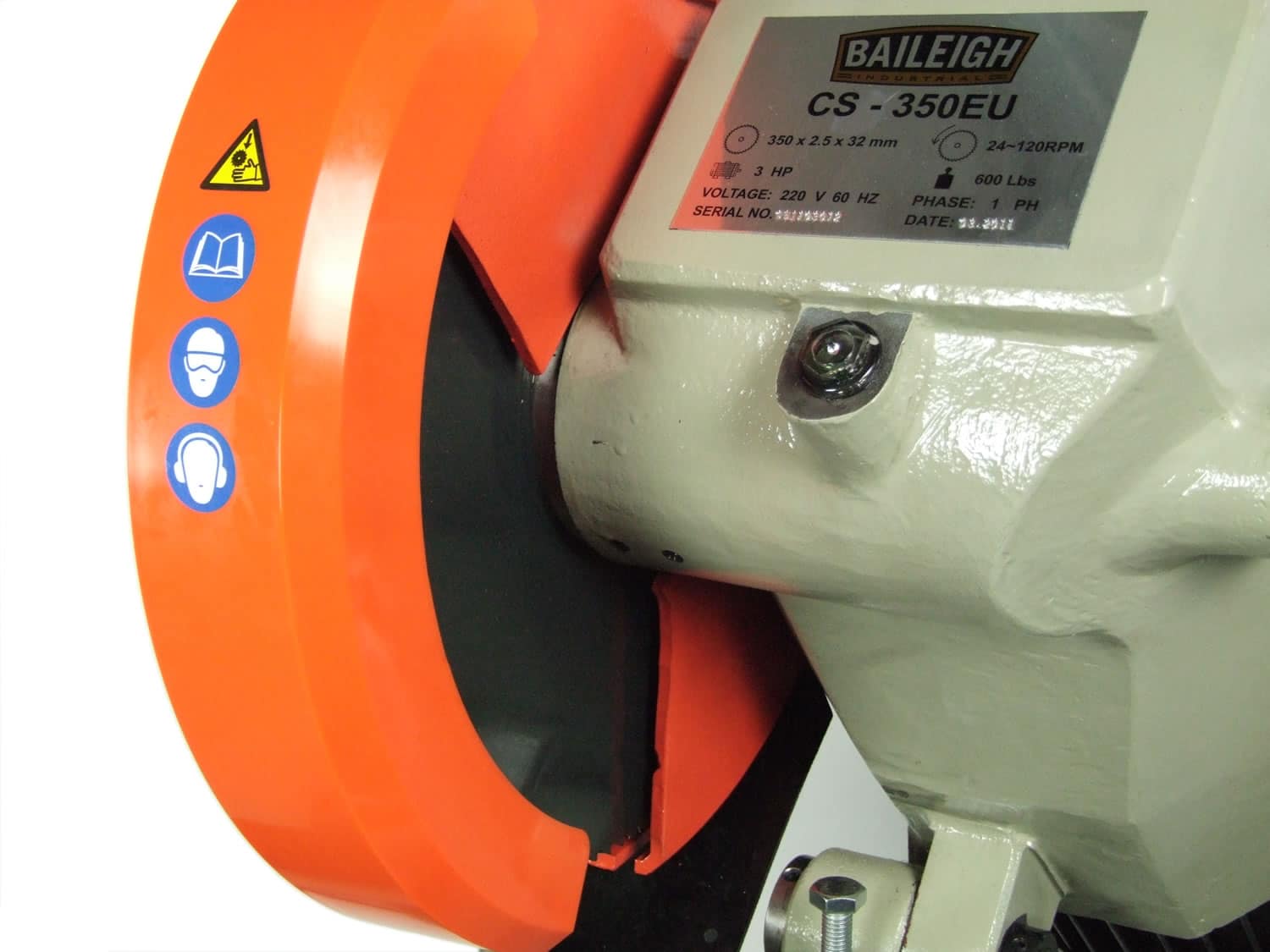

The CS-350EU coldsaw is a powerful machine that can cut through solids, tubing, or pipe. The head has a strong motor, coupled to a direct-drive gearbox, that allows the blade to cut through the material chatter free, increasing blade life. The CS-350EU coldsaw has a thick cast iron base, mounted on a steel stand, making it very rigid.

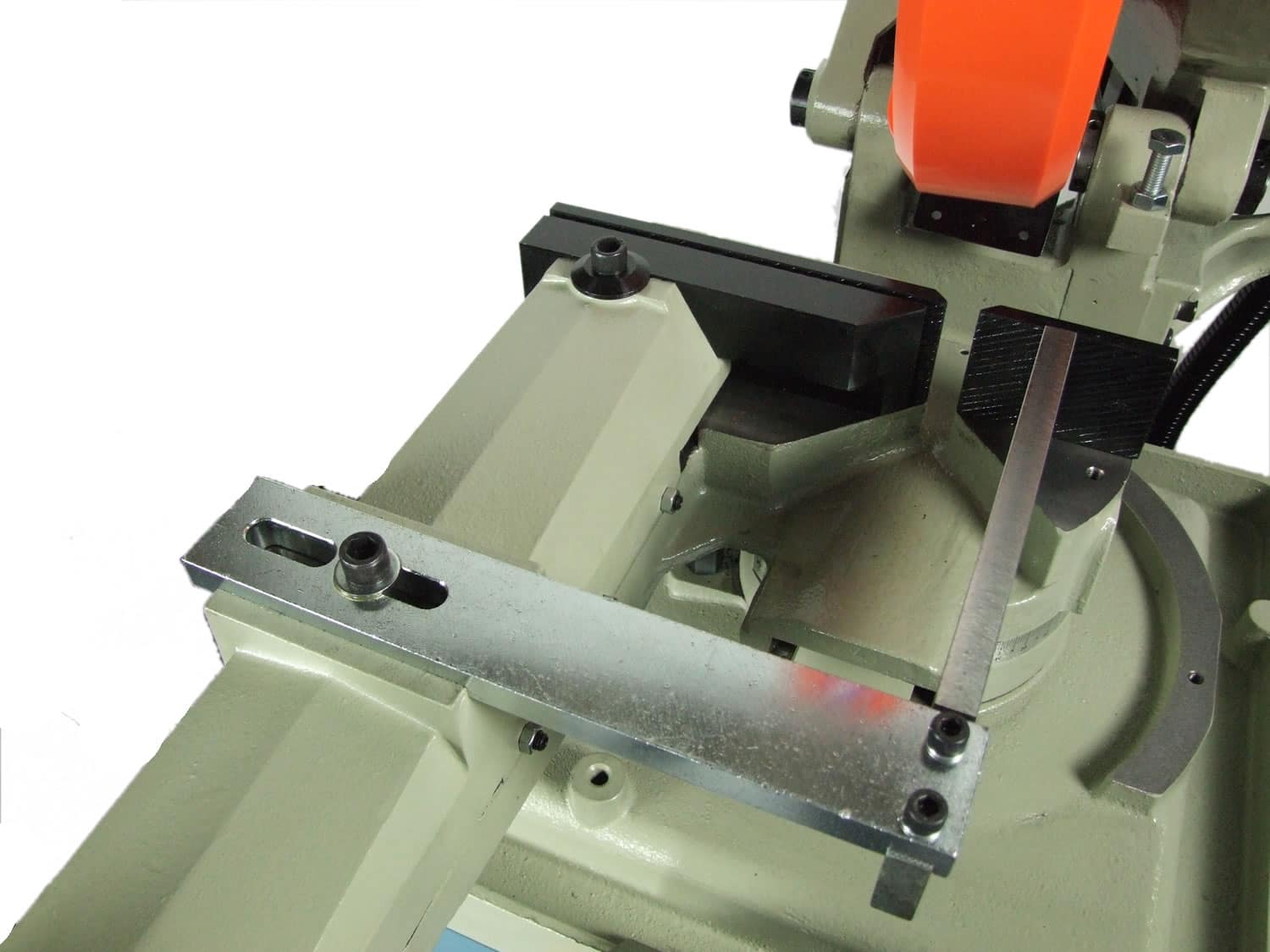

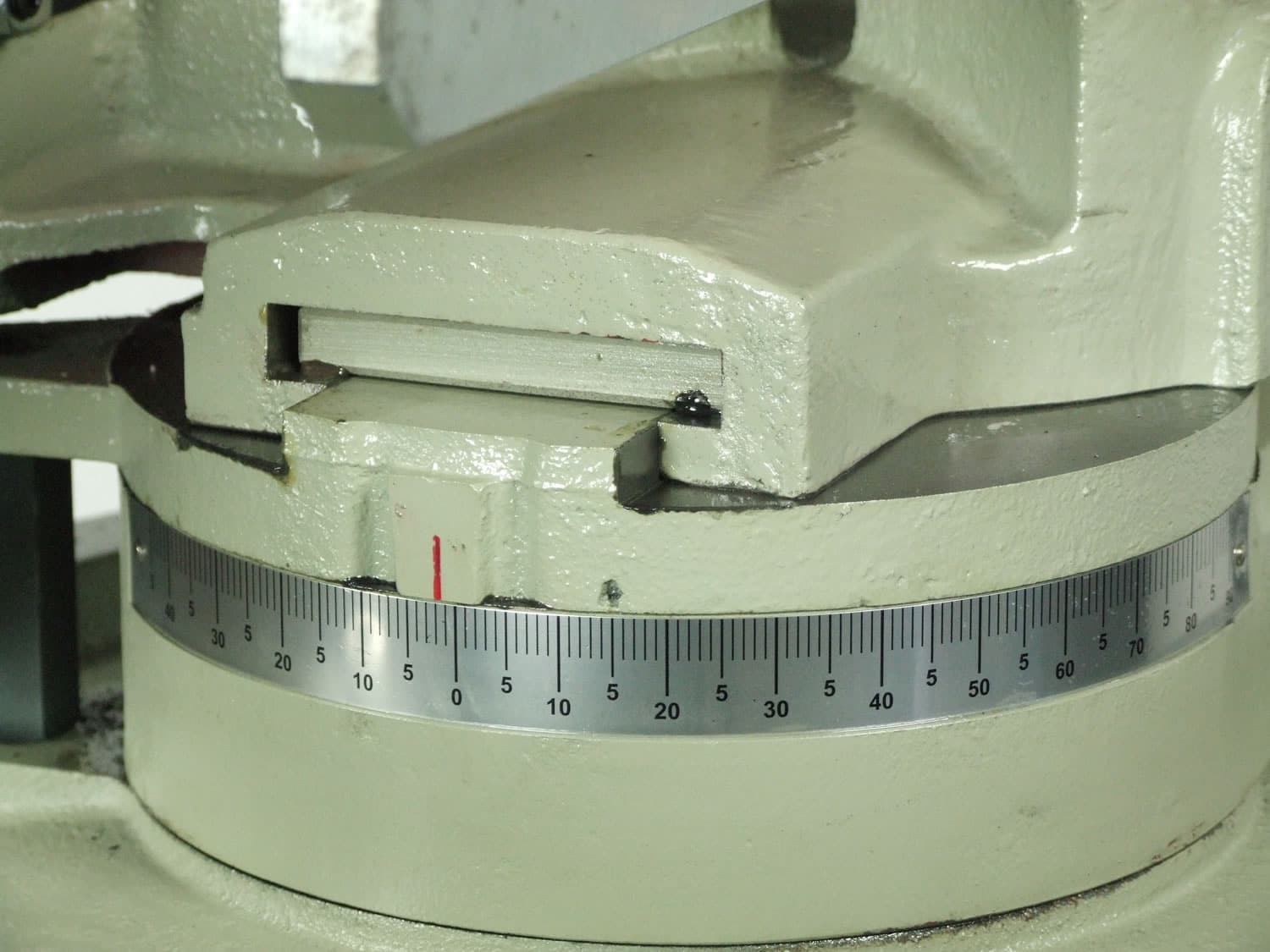

The Baileigh Industrial CS-350EU circular coldsaw can mitre 45° to the left and 45° to the right. The vice has a taper lock system that helps increase production when a lot of cutting is required. The vice clamps on both sides of the cut increasing blade life. The vice jaws are serrated for maximum hold.

Like all other Baileigh circular coldsaws, the CS-350EU comes with a powerful coolant pump that cools the blade and washes chips away. This is the perfect machine for any fabrication shop and better yet it requires just 220 volt, single phase, 50hz power. This machine offers great value for a small price.


Item Number CS-350EU
Country of Manufacture Taiwan
Max. Blade Diameter 350 mm
Operation Manual
Head Miter 17206
Round Solid at 45° 75 mm
Square Tube at 45° 85 x 85mm
Round Tube at 45° 100 mm
Rectangle Tube at 45° 85 mm x 70 mm
Round Solid at 90° 75 mm
Rectangle Tube at 90° 160 mm x 90 mm
Square Tube at 90° 105 x 105mm
Round Tube at 90° 120 mm
Coolant System 17202
Vice Style Single Action with Cam Lock
Max. Vice Opening 120 mm
Head Style 17204
Arbor Size 17166
Motor 3 hp
Blade Speed 24 – 120 (rpm)
Power 220V / 1-phase
Shipping Weight 250 kgs.
Shipping Dimensions (Inches) 1524 x 1118 x 1219 mm

* specifications subject to change without notice.
