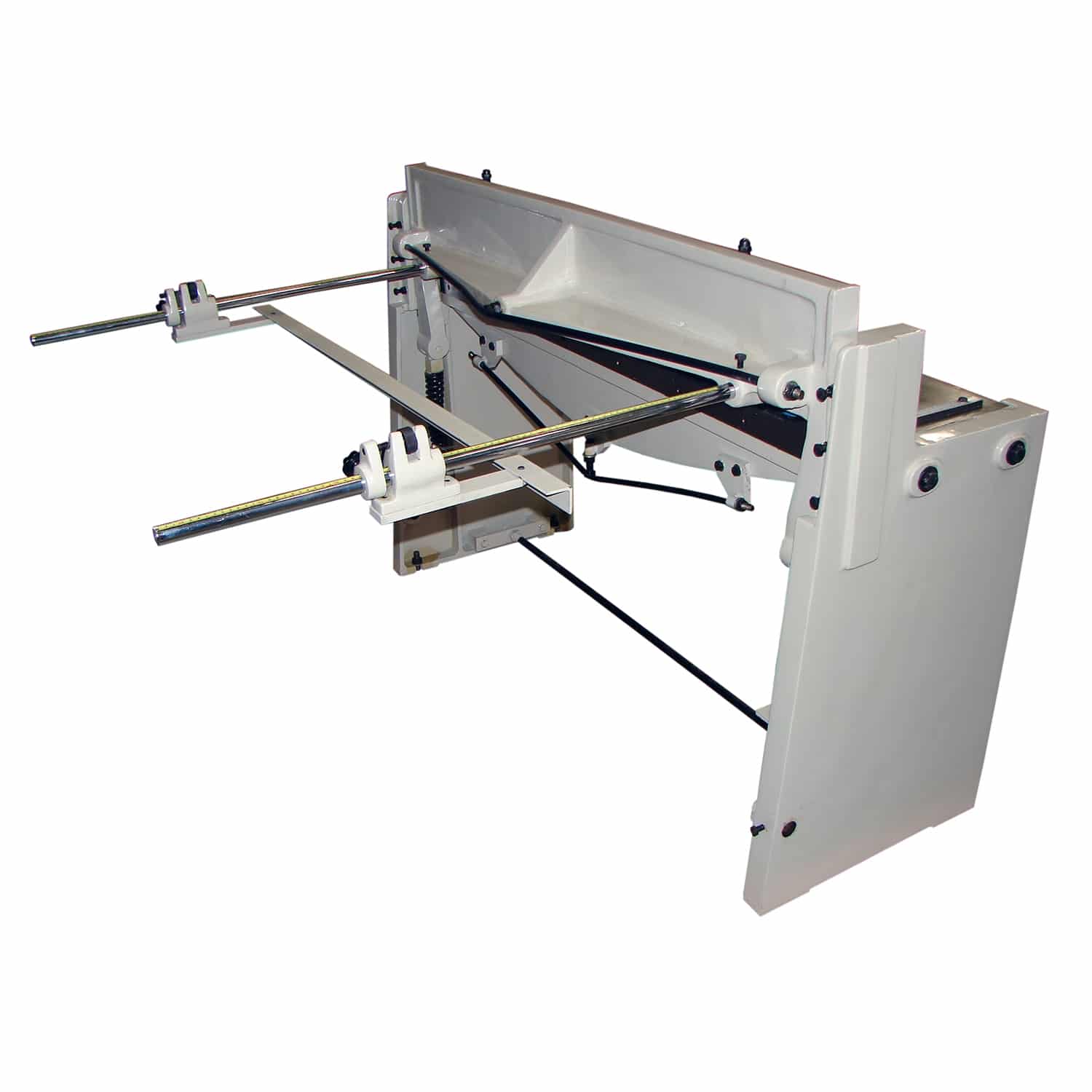

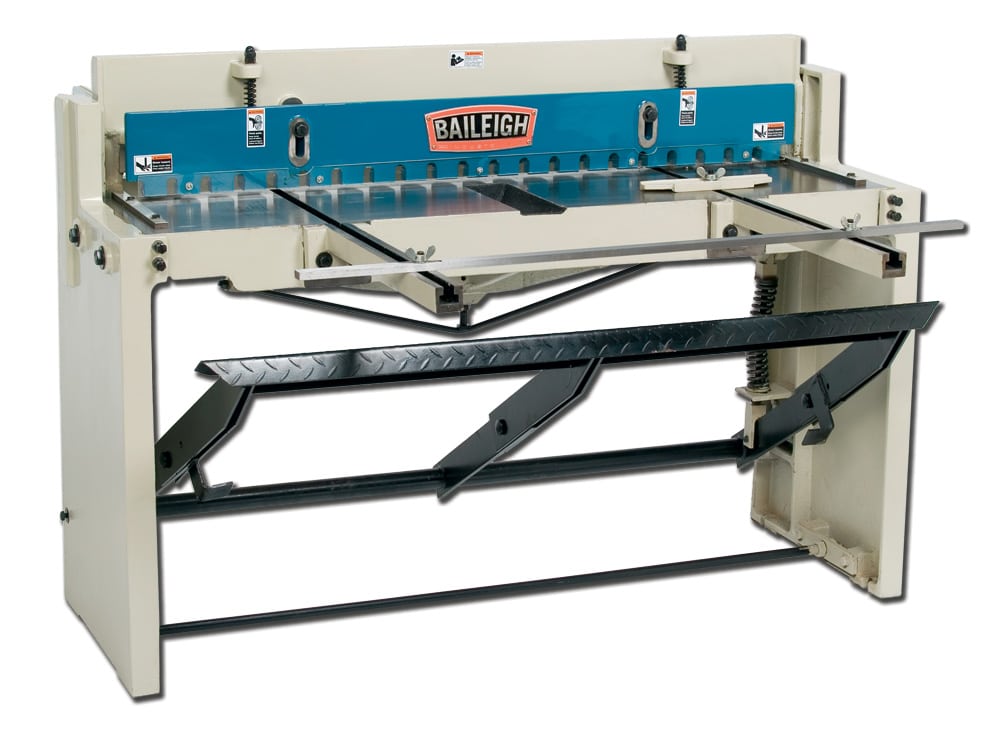

Baileigh SF-5216E Manual Foot/Treadle Guillotine

  • Manual operation
  • 1.65mm shear capacity (mild)
  • 1321mm shear length

£2,179.00Excl. VAT + Delivery

SKU 2004217 Categories , Tag Brand:


When looking for a high-quality, economical foot shear for your shop, look no further than the SF-5216E foot shear from Baileigh Industrial. The SF-5216E foot shear is great for those small to medium shops or educational institutions that are on a budget.

However, the best thing is that the SF-5216E is still is built to the same standards as all Baileigh Industrial equipment.

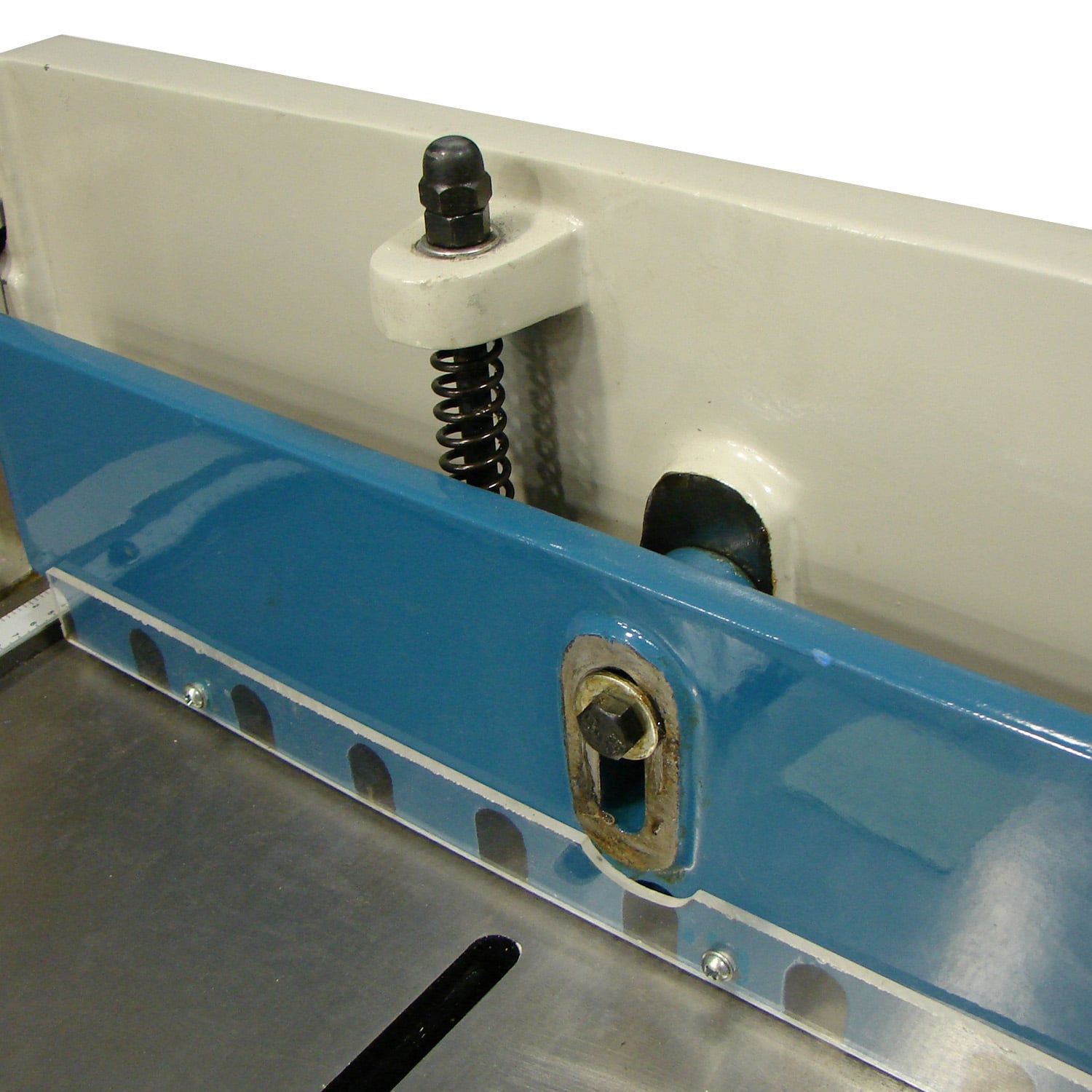

The SF-5216E foot shear is able to shear 52” of 16 gauge mild steel. High-chromium blades offer long life and have the ability to be resharpened. Front supports help the operator with alignment and an integrated back stop allows for repeatability of cut. A ridged cast frame completes the list of impressive features on the SF-5216E.


Item Number SF-5216E
Minimum Height 14.1″
Back Gauge Length 17160
Shear Length 1321 mm
Thickness (SS) 16 ga. (20 ga.)
Capacity 1.6mm
Front Gauge Length 508 mm
Blade Angle 1°
Power Manual
Shipping Weight 545 kgs.
Shipping Dimensions (Inches) 1676 x 762 x 1168 mm

* specifications subject to change without notice.
