Baileigh SH-5210 Hydraulic Guillotine

  • 3.4mm shear capacity (mild)
  • 1321mm shear length
  • 28 strokes per minute
  • 5hp motor

£13,414.00Excl. VAT + Delivery

SKU 2004234 Categories , Tag Brand:

Description

Baileigh Industrial has long been a leading supplier of metal fabricating machines as well as metal cutting machinery and one of the machines that got us started was the SH-5210 hydraulic sheet metal shear. This high quality shear has a maximum capacity of 10 gauge mild steel at its full 52” cutting width. The best part about the SH-5210 is that is operates on 220 volt single phase power, making it perfect for just about any shop.

The SH-5210 hydraulic sheet metal shear has a fully welded rigid frame allowing it to shear metal at full capacity and produces no deflection in the frame or shearing areas, meaning perfect shears every time. The SH-5210 also comes standard with high carbon chromium blades that can be flipped and resharpeded periodically saving the fabricator a lot of money over the life of the machine.

The SH-5210 is a simple design that allows for ease of operation, the operator has the controls to jog the upper carriage, produce one cut with one foot pedal push, or remain in an auto mode by holding the foot pedal down. Hold downs clamp the material to the infeed table so the material doesn’t lift when being sheared.

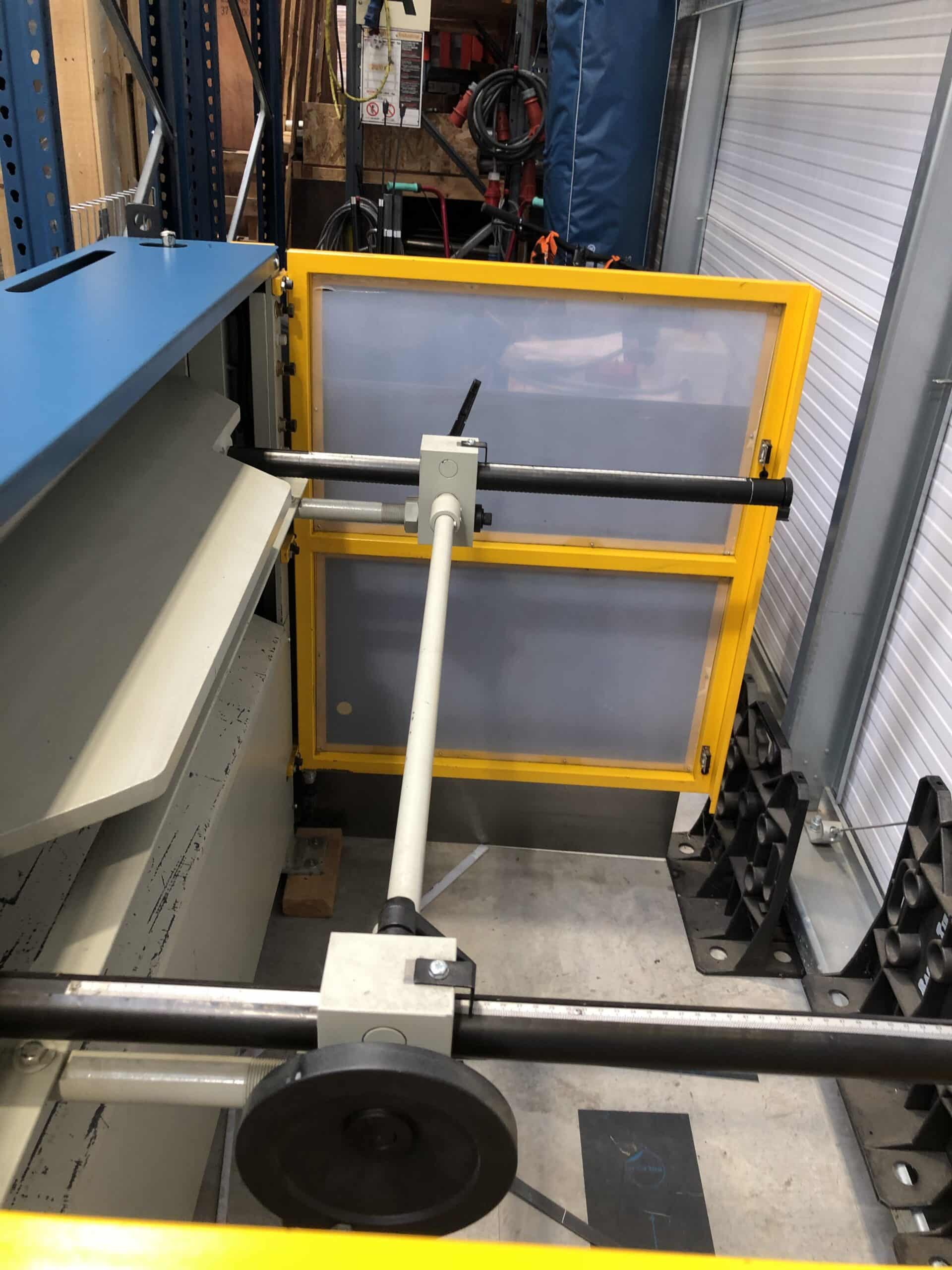

An adjustable back gauge, front table gauges and front arm extensions are also standard on the SH-5210.

Specifications

Item Number SH-5210
Country of Manufacture Taiwan
Back Gauge Length 17159
Shear Length 1321 mm
Motor 5 hp
Thickness (SS) 10 ga. (13 ga.)
Strokes Per Minute 28
Capacity 3.4mm
Front Gauge Length 609 mm
Blade Angle 1°
Power 220V 1-Phase
Shipping Weight 1364 kgs
Shipping Dimensions (Inches) 1905 x 914 x 1346 mm

* specifications subject to change without notice.
