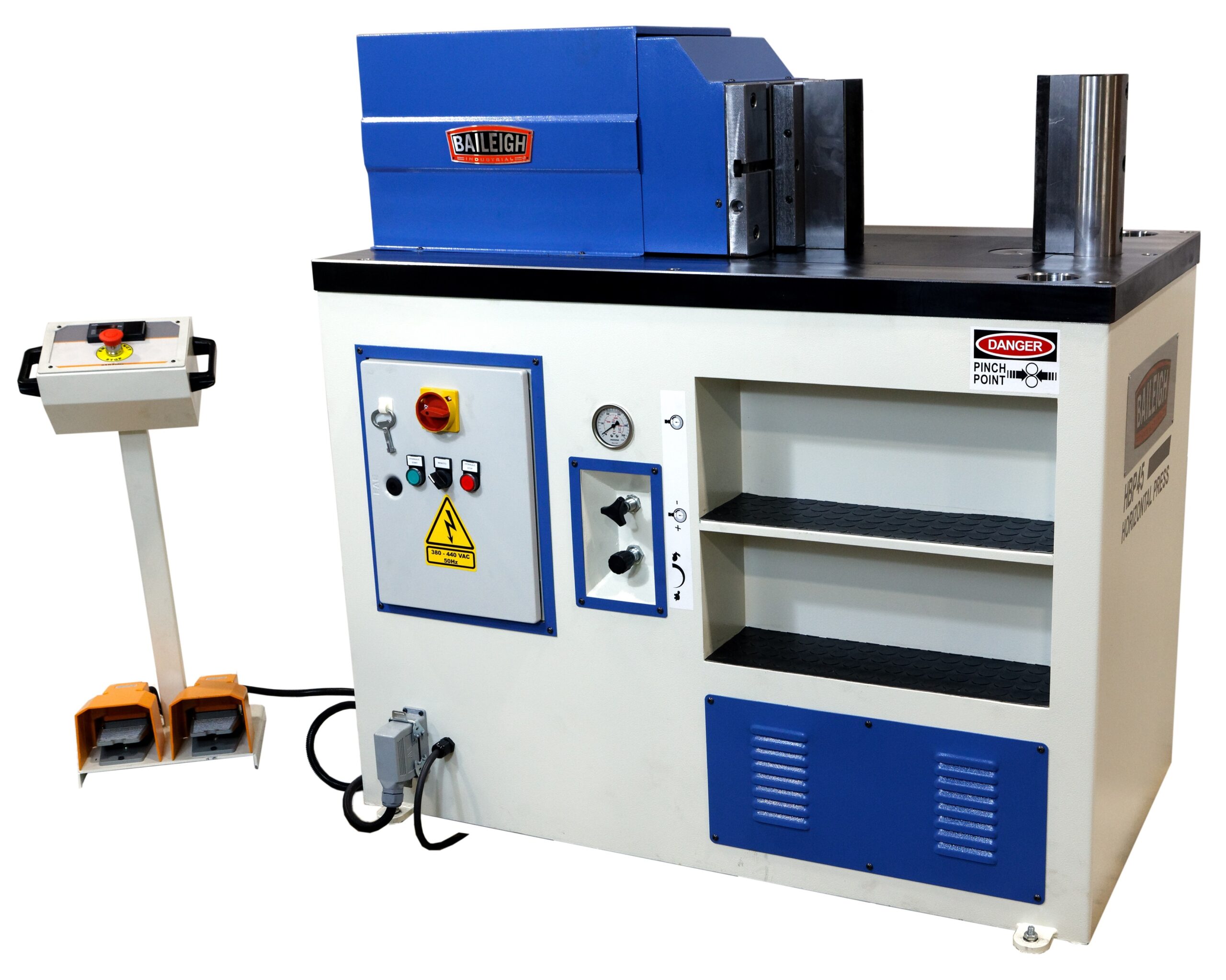

HPB-20E Horizontal Press Brake

  • Hydraulic operation
  • 20 metric tons of pressure
  • Foot pedal operation
  • Optional touchscreen

£9,254.00Excl. VAT + Delivery

SKU 2040606 Categories , Tag Brand:

Description

20 ton pressure capacity
12 litre oil capacity
200mm x 12mm flat
48mm x 4mm round tube capacity
185mm maximum stroke
200mm standard tooling height
10mm/sec moving speed
10mm/sec return speed
2.2kw motor
480 x 1060mm table dimensions
930mm table height
Optional touchscreen

Additional information

Weight 252 kg

Specifications

Item Number HPB-20E
Dimensions L x W x H 930mm x 1150mm x 480mm

* specifications subject to change without notice.
