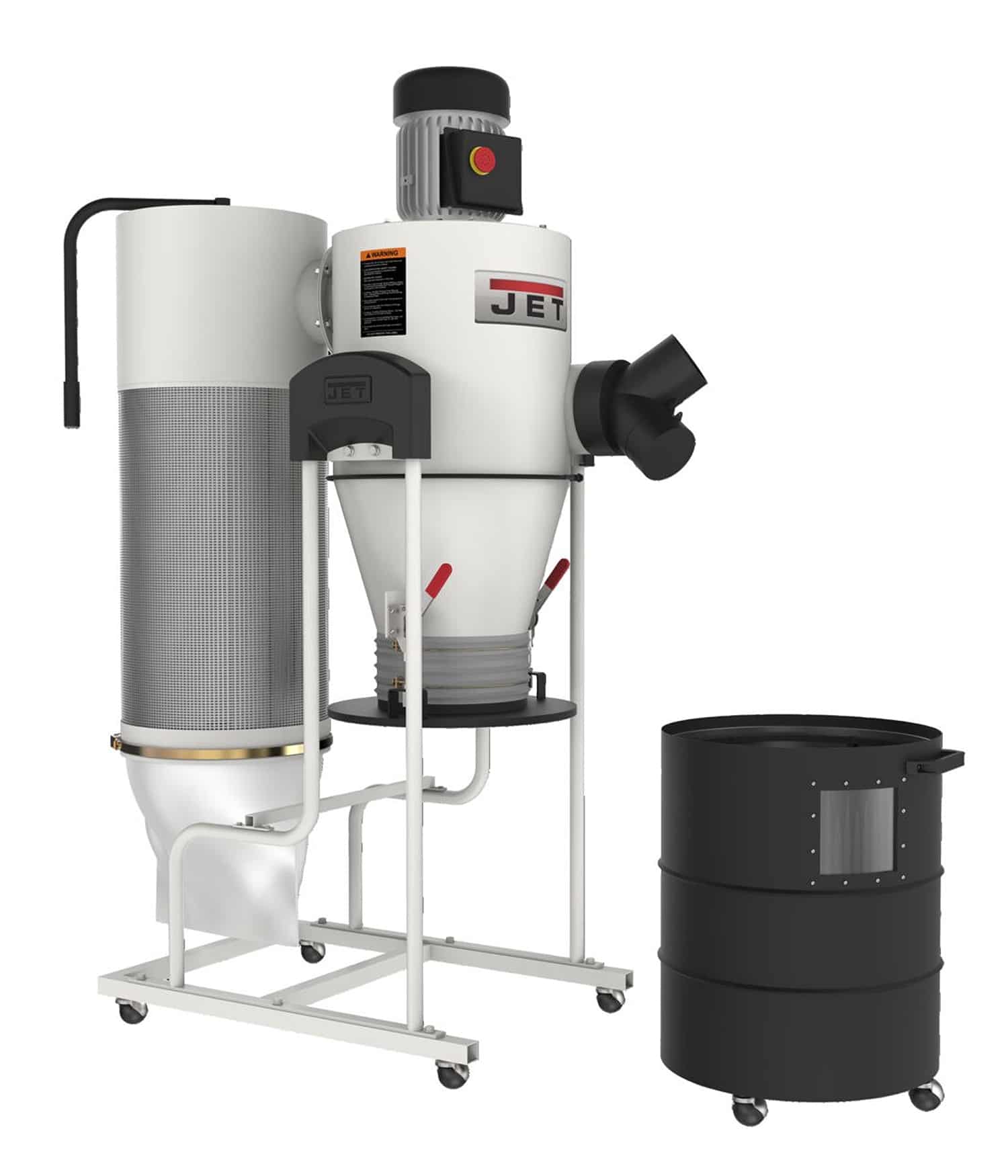

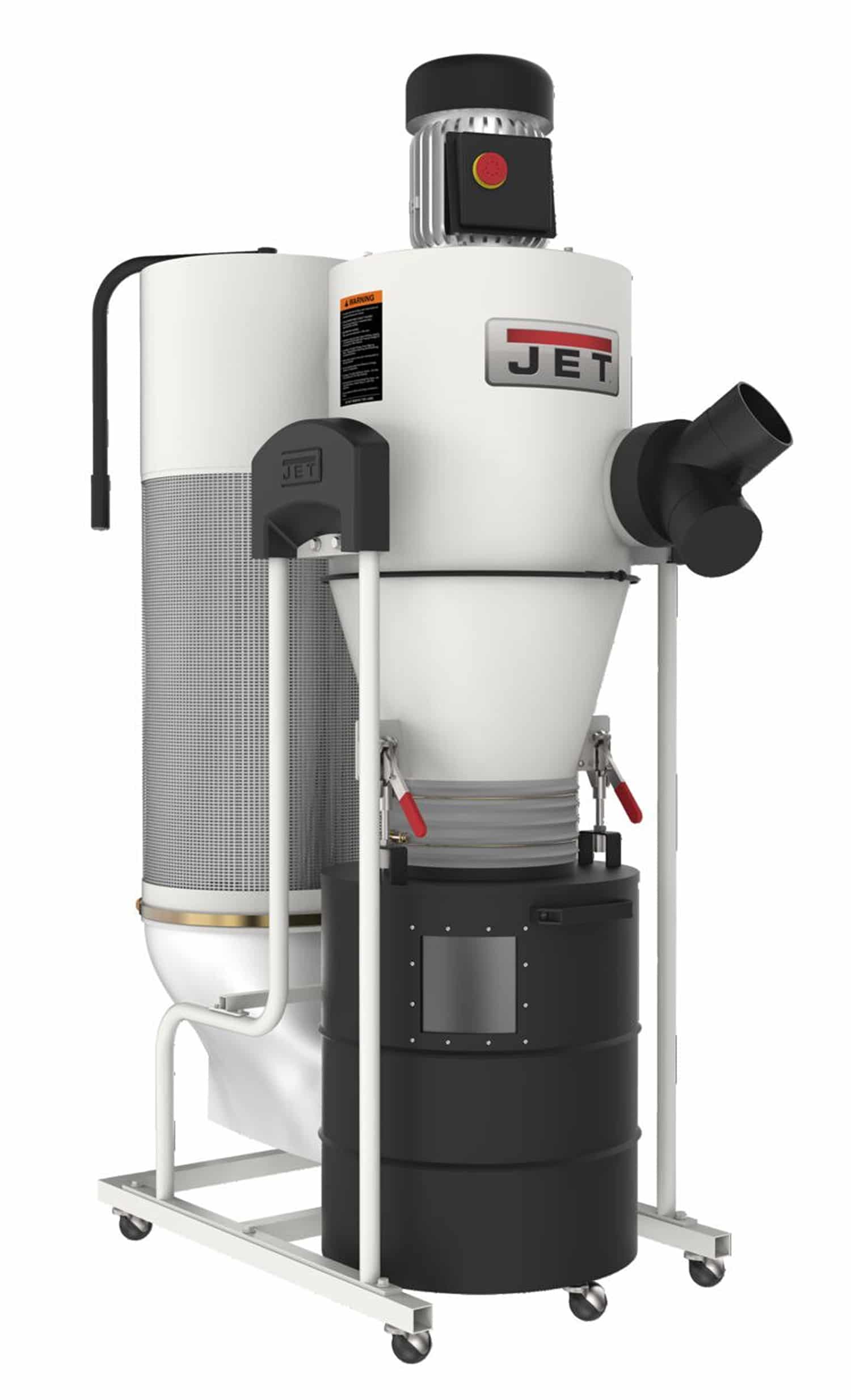

JCDC-15-M JET Cyclone Dust Collector

  • Air flow rate 1,530 m3/h
  • Vaccum pressure 1,350 pA
  • Dust inlet diameter 152mm
  • Hose diameter 2×100mm

£1,954.00Excl. VAT + Delivery

SKU 4.98599E+11 Categories , , Tag Brand:

Description

Features

More suction power using the same motor output, quiet operation.
Two-level air filtration makes the device more effective and efficient.

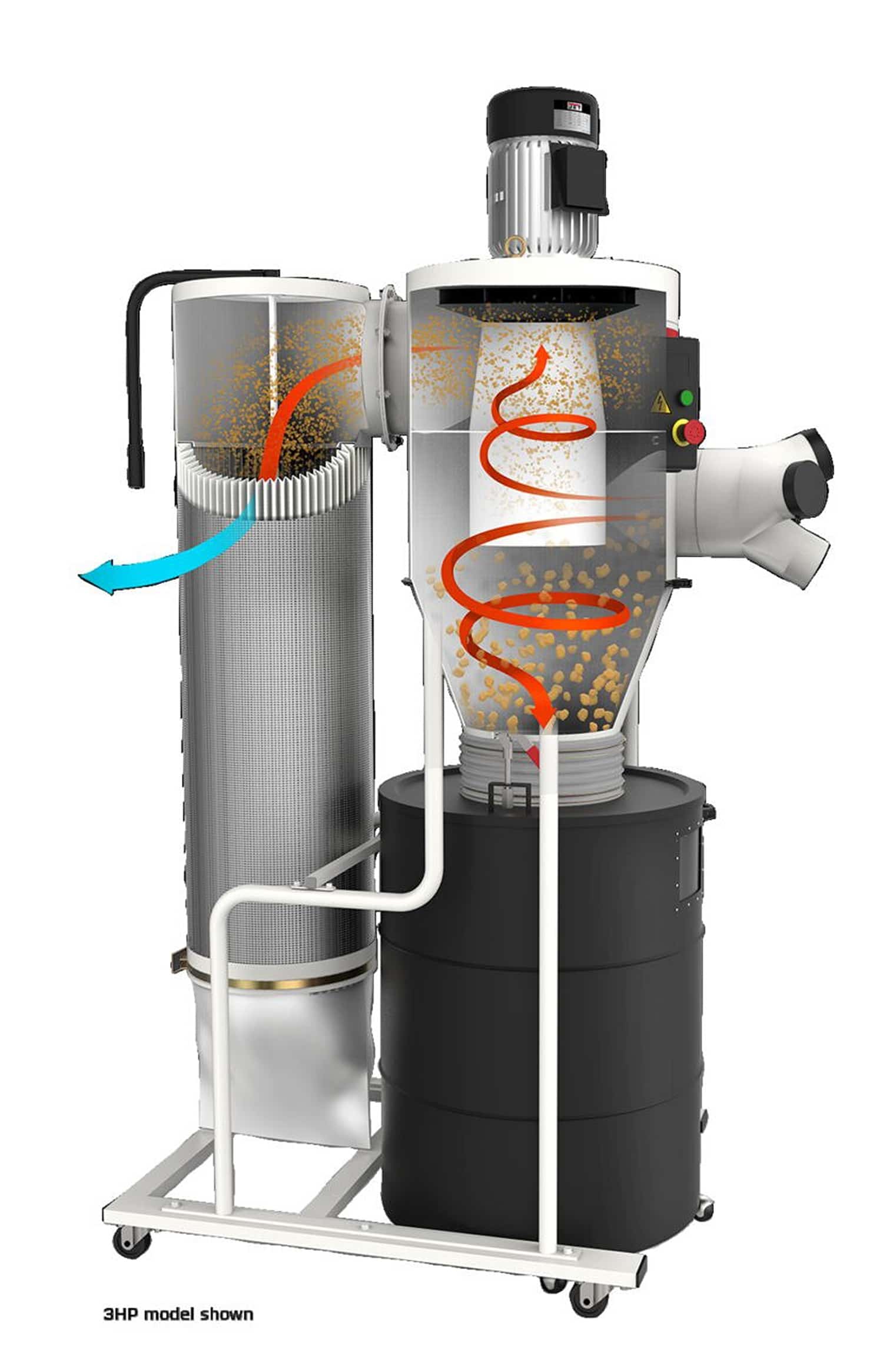

Powerful cyclone function, separates chips from dust to relieve pressure on the fine mesh filter.
Filter efficiency level of 99% for particles ≥ 2 microns.
Filter cartridge with quick-clean feature using the lever.
Debris and chips are collected in the 75-litre metal drum.
Quick emptying with the drum’s quick-release fasteners and separate castors.
Castors on the device allow it to be moved around the workshop.
We are also offering other products like AFS_500-M JET Air Filtration System</a

Specifications

  • Motor (V/kW) 230/1.5
  • Air flow rate (m3/h) 1’530
  • Vaccum pressure (pA) 1’350
  • Dust inlet diameter (mm) 152
  • Hose diameter (mm) 2 x 100
  • Filter efficiency with particle size 99% at 2 Micron
  • Collection drum capacity (lt.) 75
  • Noise level (LpA, dB) 76
  • Collector bag size (mm) 660 x 700
  • Dimensions (mm) 1’195 x 560 x 1’715
  • Weight (kg) 65
