JDP_17-T JET Drill Press

  • Number of spindle speeds 16
  • Spindle fixture MT2
  • Spindle travel 127mm
  • Distance spindle to column 215mm

£1,247.00Excl. VAT + Delivery

SKU 789c0fba6845 Categories , , , , Tag Brand:

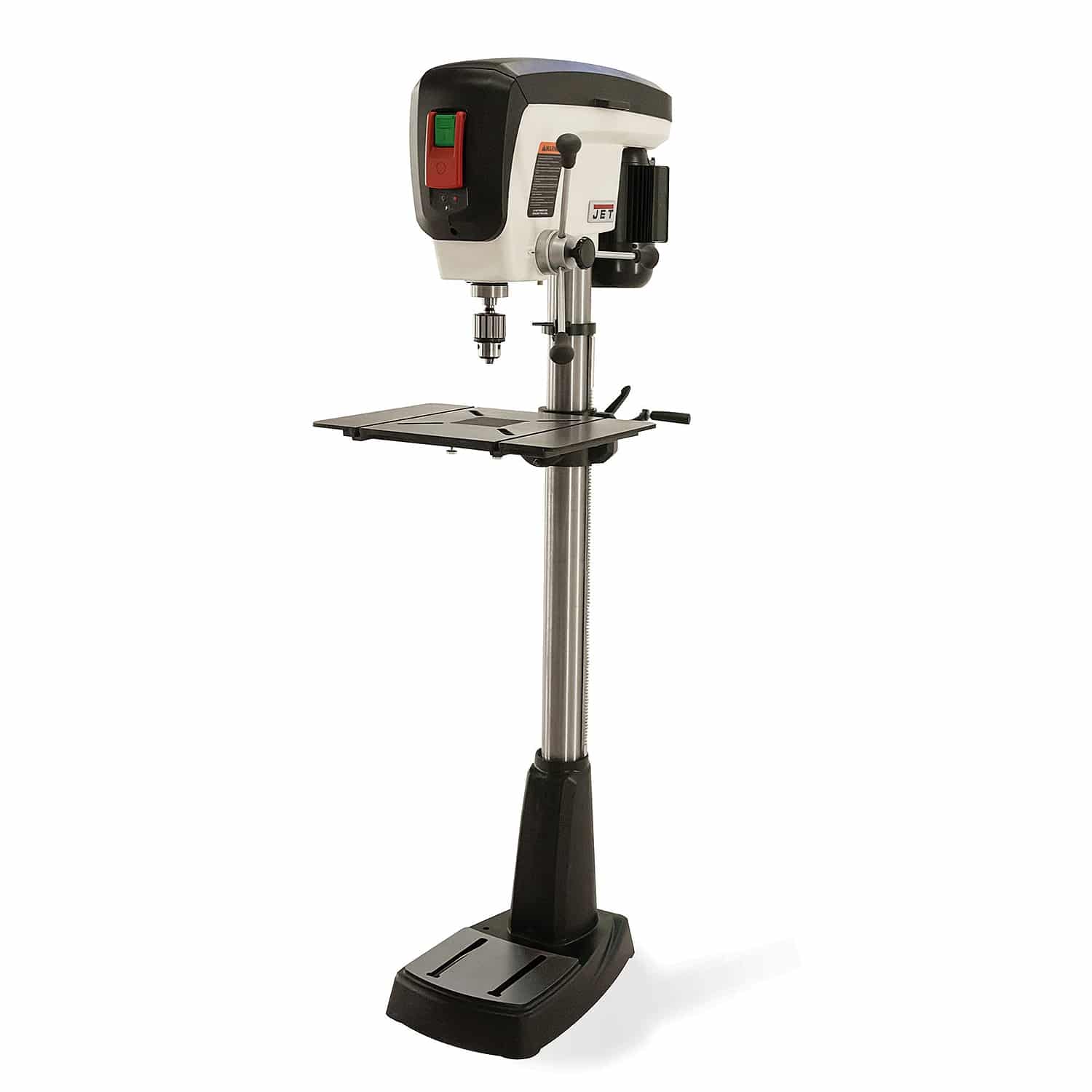

Heavy-duty drill press developed specifically for wood workshops
Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
Flat table edge designed for using clamps
Replaceable MDF table insert
127mm drill stroke with just one turn of the handwheel, for long drill holes
Integrated drill depth stop for precision batch tasks
Efficient 1.0kW induction motor and quiet poly-v belt drive
One-handed belt tensioning for fast speed changes
Xacta-X laser system easily identifies the drill center
Integrated long-life LED working lamp prevents shadows
Large cast iron base for high stability
Electric drill chuck protector, belt guard protection and emergency stop as standard
We are also offering other products like DC-1100CK-T JET Dust Collector


  • Motor (V/kW) 400/1.0
  • Spindle speed range (rpm) 180 – 2’900
  • Number of spindle speeds 16
  • Spindle fixture MT2
  • Spindle travel (mm) 127
  • Distance spindle to column (mm) 215
  • Spindle distance to table (max., mm) 763
  • Spindle distance to base (max., mm) 1’194
  • Table size (mm) 356 x 483
  • Table tilt 90° left / 90° right
  • Miter t-slot/distance (mm) 13/270
  • Column diameter (mm) 80
  • Dimensions (mm) 723 x 483 x 1’679
  • Weight (kg) 86
