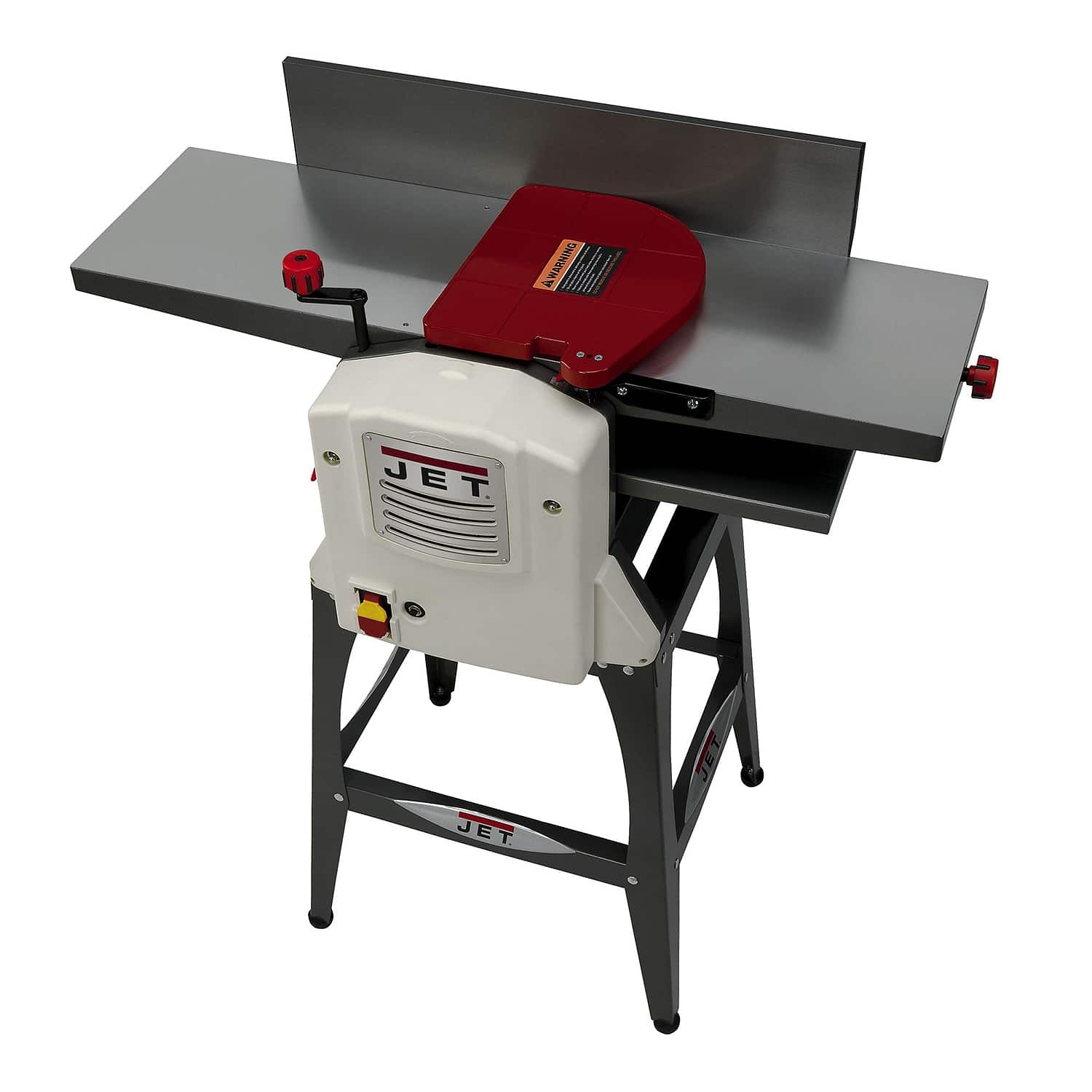

JPT-10B JET Planer Thicknesser

  • Cutterhead rotation 9,000rpm
  • Maximum planing width 254mm
  • Thicknessing height 120mm
  • Maximum depth of cut 3mm

£845.00Excl. VAT + Delivery

SKU ce136a3898bd Categories , Tag Brand:

Description

Features

Mobile or stationary, robust dressing planer, for use on construction sites and in workshops
Powerful 1.5kW induction motor
18’000rpm ensure top planing results
HSS cutter blocks can be re-sharpened
High-quality thicknessing table and planer for low friction and wear
4-post guide ensures stability and accuracy
We are also offering other products like JWDS-2244-M JET Drum Sander

Specifications

  • Motor (V/kW) 230/1.5
  • Cutterhead rotation (rpm) 9’000
  • Feed speed (m/min) 6
  • Maximum planing width (mm) 254
  • Thicknessing height (mm) 120
  • Maximum depth of cut (mm) 3
  • Maximum thicknessing depth of cut (mm) 2
  • Number of knives 2
  • Planer blades (mm) 261 x 16.5 x 1.5
  • Length of the thicknessing table (with extension) (mm) 305 (500)
  • Planing table length (mm) 945 x 262
  • Dust port (mm) 100
  • Dimensions (mm) 1’120 x 470 x 980
  • Weight (kg) 34
