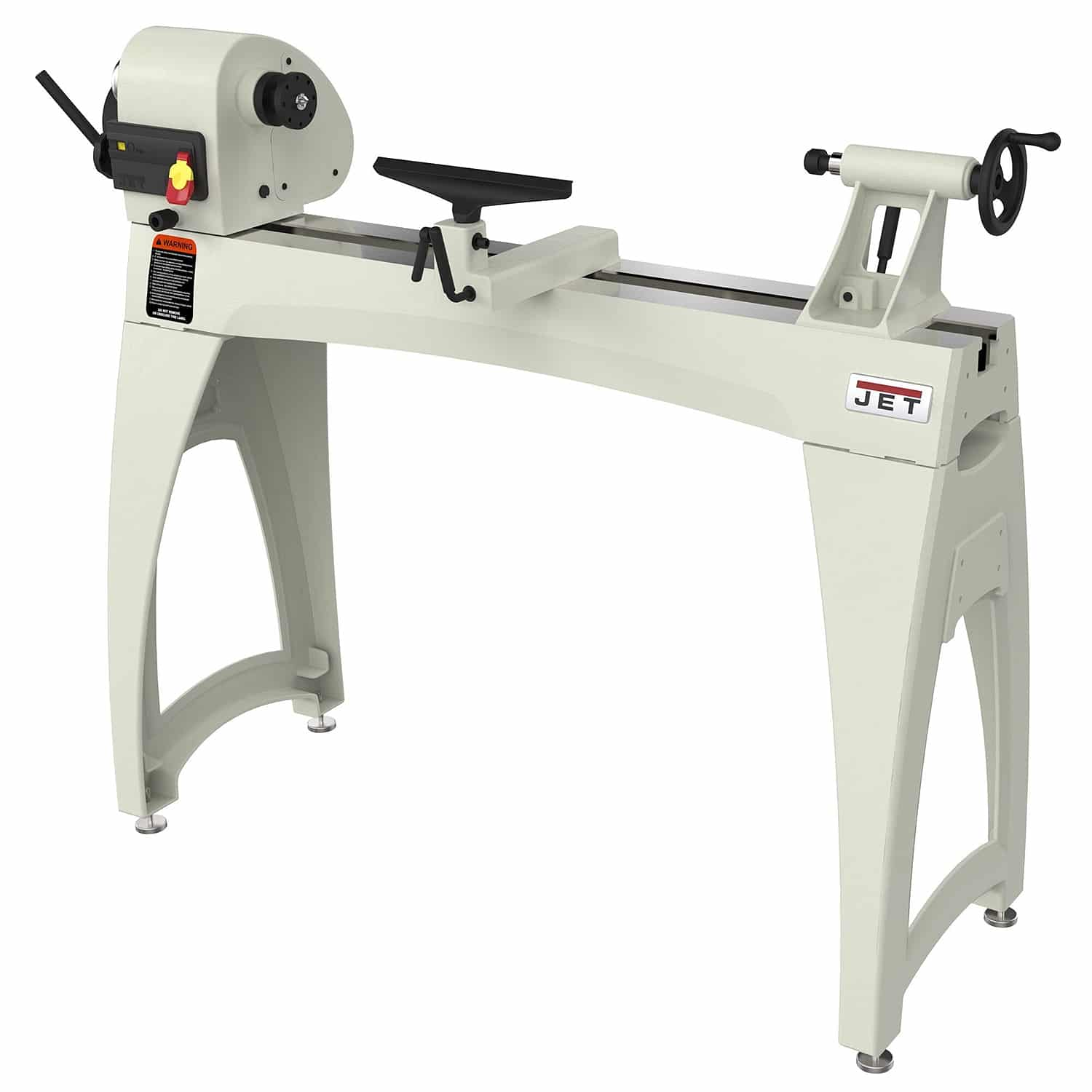

JWL-1440VS-M JET Variable Speed Lathe

  • Variable Speed Lathe 230v
  • Swing over bed 370mm
  • Swing over tool rest base 280mm
  • Centre distance 1,016mm

£1,875.00Excl. VAT + Delivery

SKU 02577b6ea1f6 Categories , , Tag Brand:

Description

Features

Heavy, extra-wide cast iron machine bed for the ultimate in smooth operation and stability when working on unbalanced pieces
Headstock moves across the entire machine bed, pivots by 360° with locking positions at 0° / 30° / 60° / 90° / 135° / 180° / 270°
Infinitely variable speed control with twist handle at the headstock end, infinitely adjustable from 280 to 2’500rpm
Spindle lock on the front of the headstock to easily change the faceplate and turning chuck
Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
Tailstock with heavy-duty Acme thread, 108mm quill stroke with scale, 9mm through-hole
Integrated spindle indexing device 36—10°

Specifications

  • Motor (V/kW) 230/1.3
  • Swing over bed (mm) 370
  • Swing over tool rest base (mm) 280
  • Centre distance (mm) 1’016
  • Spindle speeds (rpm) 280 – 2’500, variable
  • Spindle nose M33 x 3.5
  • Spindle index lock 36 x 10°
  • Headstock spindle taper MT2
  • Tailstock spindle taper MT2
  • Tailstock hole diameter (mm) 9
  • Tailstock ram travel (mm) 108
  • Steel support (mm) 300/25.4
  • Dimensions (mm) 1’850 x 535 x 1’250
  • Weight (kg) 165
