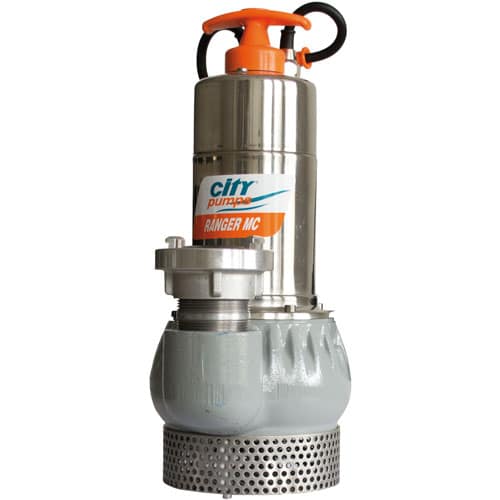

RANGER-MCT Dirty Water Pump

  • Dirty water pump 400V / 50Hz, flow rate 30,000 l / h, chrome steel + cast steel housing

£560.00Excl. VAT + Delivery

SKU ef9f077fe526 Category Brand:

Description

  • Suitable for chemically non-aggressive waste water
  • Use: dirty water also silted up, sewage, drainage
  • For liquids in the temperature range up to + 40 ° C – briefly up to 60 °
  • Motor housing and impeller made of chrome steel, pump housing made of cast steel
  • Stainless steel motor shaft
  • Double sealing ceramic – silicon carbide and oil chamber
  • With Storz coupling KA66
  • With thermal motor protection

Specifications

  • Delivery rate max. 30,000 lt./h
  • Delivery head max. 12.0 m
  • Immersion depth max. 5 m
  • Extraction level min. 55 mm
  • Grain size max. 3-5 mm
  • Pressure hose connection 2 “F + Storz KA66
  • Motor voltage 400 volts
  • Engine power P2 0.75 / P1 1.1 kW
  • Insulation class F
  • Protection class IP68
  • Rotational speed 2,900 rpm
  • Power cord 10 m
  • Power plug type TE12
  • Use at pH 6 – 8
  • Dimensions WxDxH 242 x 425 mm
  • Weight 9.8 kg
