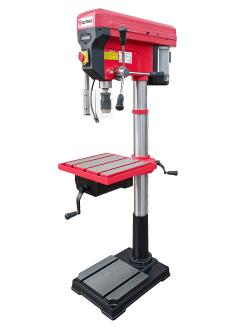

Tool France TFD-32TE Drill Press

  • 400v 3 phase motor 1,1kW
  • Max drilling 32mm in steel MT4
  • Digital speed and depth display
  • 12 speed / range 150 – 2450rpm
  • 3 Year warranty

£1,540.00Excl. VAT + Delivery

SKU 7d7c39fca667 Categories , , Tag Brand: ,

Description

32mm Drilling Capacity. 12-speeds. Swivel drilling table. 20-mm auto-clamping chuck, transparent guard and emergency stop button. Includes vise. Switch with start-interlock coil.

Specifications

  • Motor (V/kW) 400/1.1
  • Morse taper MT4
  • Cutting capacity for steel (ø-mm) 32
  • Spindle stroke (mm) 120
  • 12 Speeds belt drive
  • Speed range (min-1) 150 to 2’450
  • Column Diameter 92mm
  • Jaw width (mm) 203
  • Clamping capacity (mm) 0-162
  • Overall height 1720mm
  • Laser guide
  • LED light
  • Weight (kg) 136
  • Shipping dims 1430 x 660 x 320mm

Manual

TF-32TE MANUAL FR and EN 20220218
