Baileigh AP-5 Arbor Press

  • Manually operated
  • 5 metric tons of pressure

£705.00Excl. VAT + Delivery

SKU 2003874 Categories , , , Tag Brand:

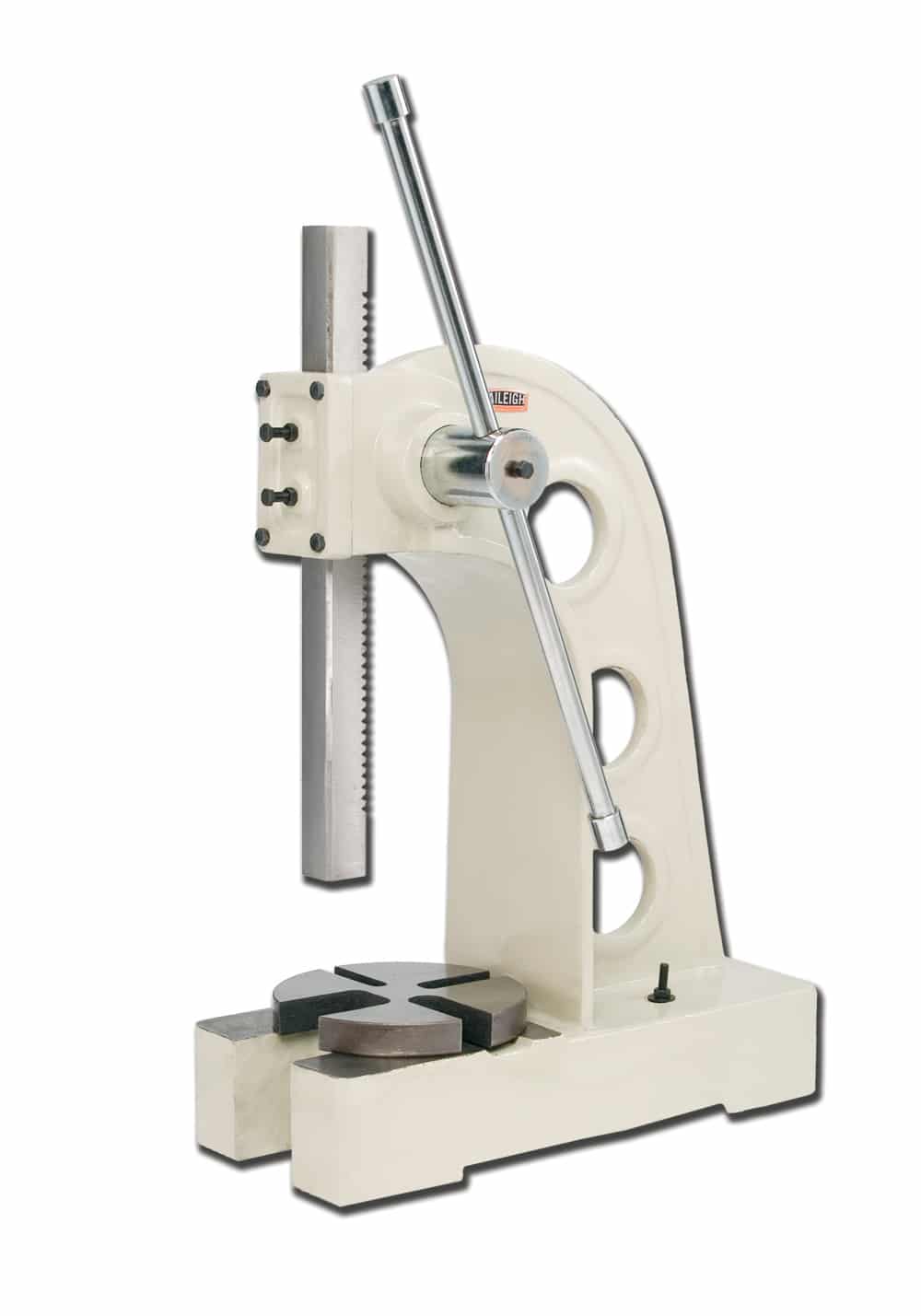

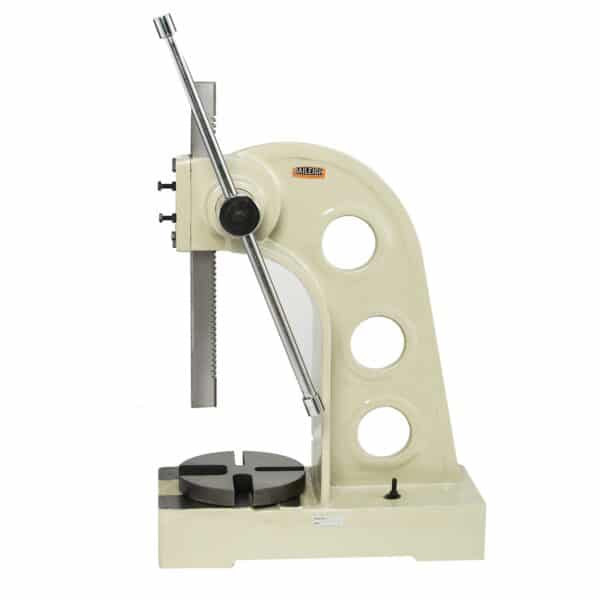

The AP-5 arbor press can produce up to 5.6 tons of force.

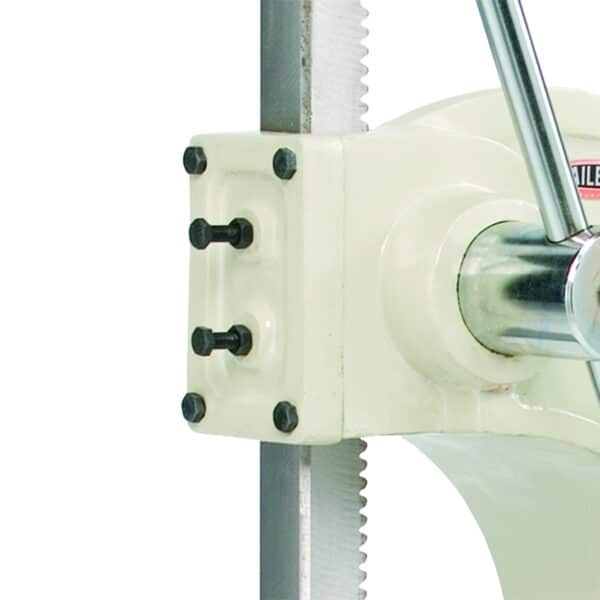

It has a heavy-duty cast iron framework that uses a thick 2″ X 2″ case hardened ram. This is the perfect tonnage for any fabrication or machine shop for pressing bearings, bushings, or broaching keyways into items as well.

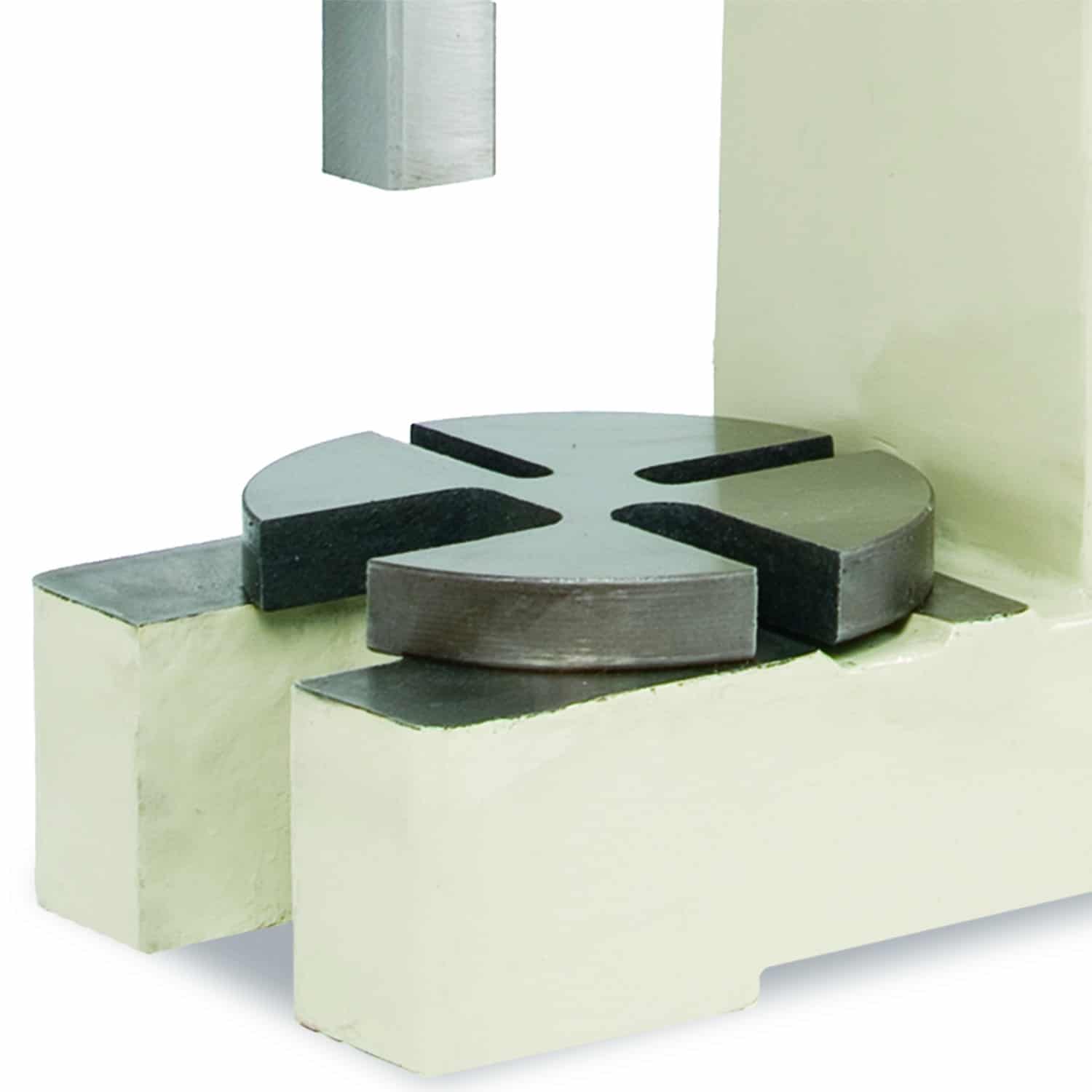

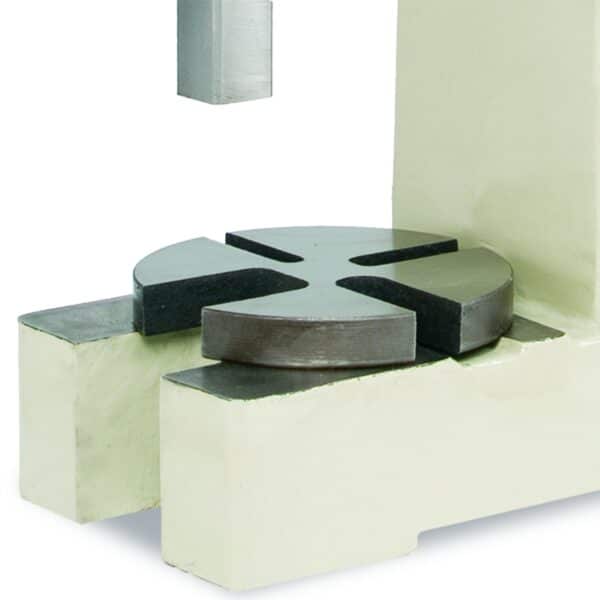

This 5.6 ton arbor press comes with a heavy-duty 4 position bottom plate that is perfect for various sizes of broaches. This plate can also be removed for pressing other items directly on the massive framework.

Like all Baileigh arbor presses, this one can be pedestal or bench mounted. Call for further details and to check on inventory levels which are typically at desirable levels for immediate satisfaction.

Baileigh arbor presses are built for decades of profitable use.

Additional information

Weight 166 kg


Item Number AP-5
Ram Size 50 mm x 50 mm
Throat Depth 226 mm
Maximum Material Height 400 mm
Capacity 5 ton
Maximum Arbor Height 70 mm
Power Manual
Shipping Weight 166 kgs.
Ram Travel Per Revolution 215mm
Shipping Dimensions (Inches) 762 x 381 x 953 mm

* specifications subject to change without notice.
