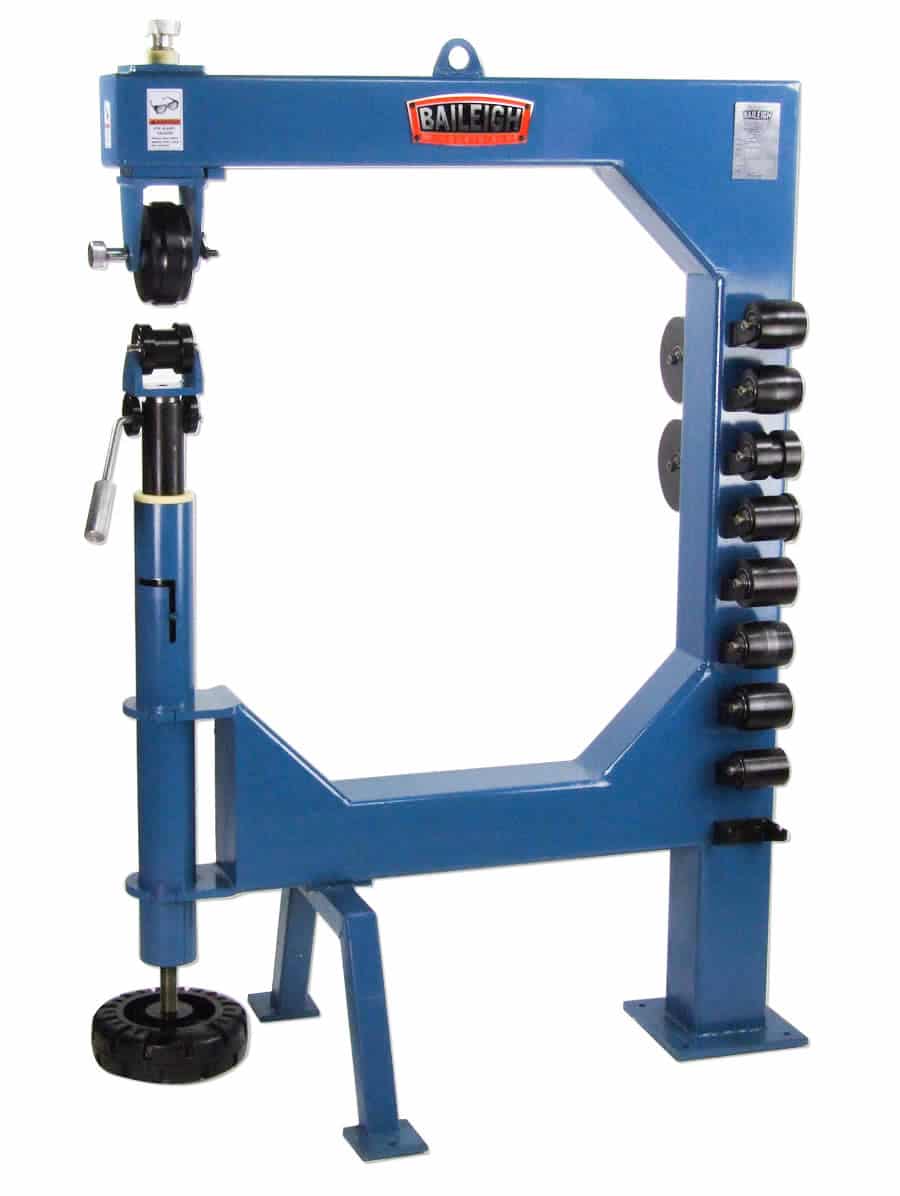

Baileigh EW-40 English Wheel

  • 1.25mm mild steel capacity
  • 2mm aluminium capacity
  • 850mm throat depth

£2,359.00Excl. VAT + Delivery

SKU 2001298 Category Tag Brand:


Every fabrication shop has to have a good quality english wheel to help in the correct forming of sheet metal. But not all wheels are made the same; strength, rigidity, and throat depth are the most important things when looking at an english wheel.
The EW-40 is as ridged as an english wheel with a throat depth of 850mm can be. It uses 127mm x 127mm x 6,4mm box tubing for the frame work. This frame is fully welded for even less flex when rolling at full capacity. The EW-40 is rated to form up to 1.25mm mild steel, giving the fabricating shop years of quality shaping and forming metal.


Item Number EW-40
Mild Steel Capacity 16 ga.
Throat Depth 37-3/4″
Aluminum Capacity 14 ga.

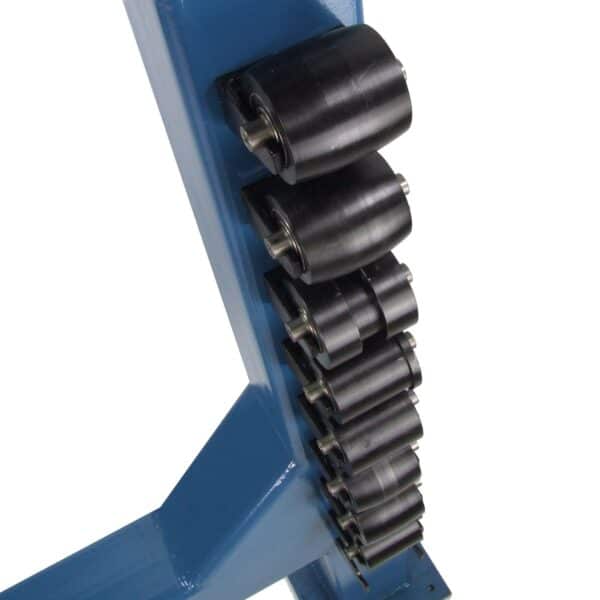

Lower Die Radius 1.85″, 2.165″, 4.85,40″
Power Manual
Shipping Weight 510lbs
Shipping Dimensions (Inches) 67x48x14

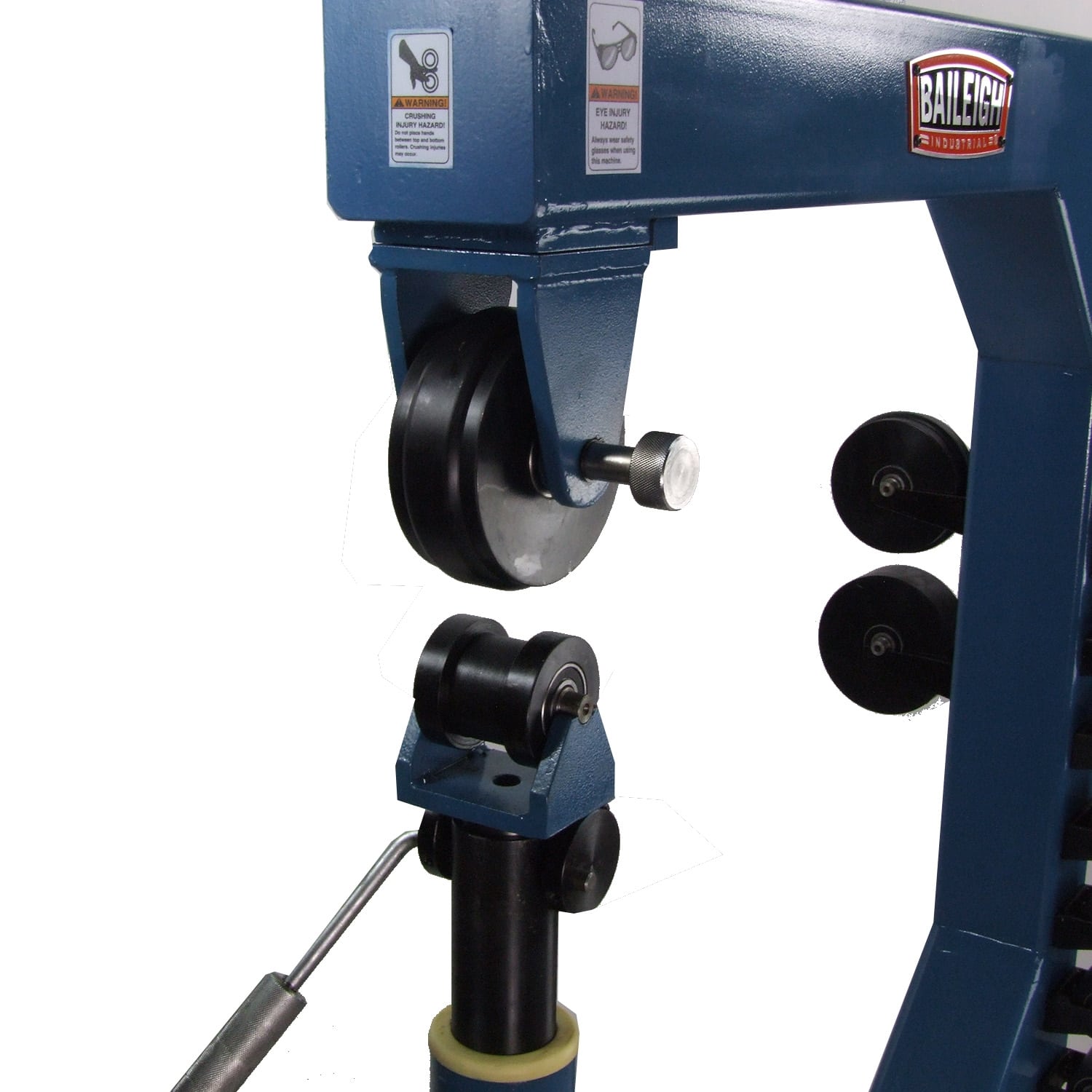

Top Wheel Dimensions 6” x 2 ¼”

* specifications subject to change without notice.
