Baileigh MPB-275 Universal Bender

  • 42 mm Ø tube capacity
  • 25mm Ø solid mild steel round capacity
  • 25 x 25mm solid square capacity
  • 13 x 50mm flat material capacity

SKU 2006518 Category Tag Brand:

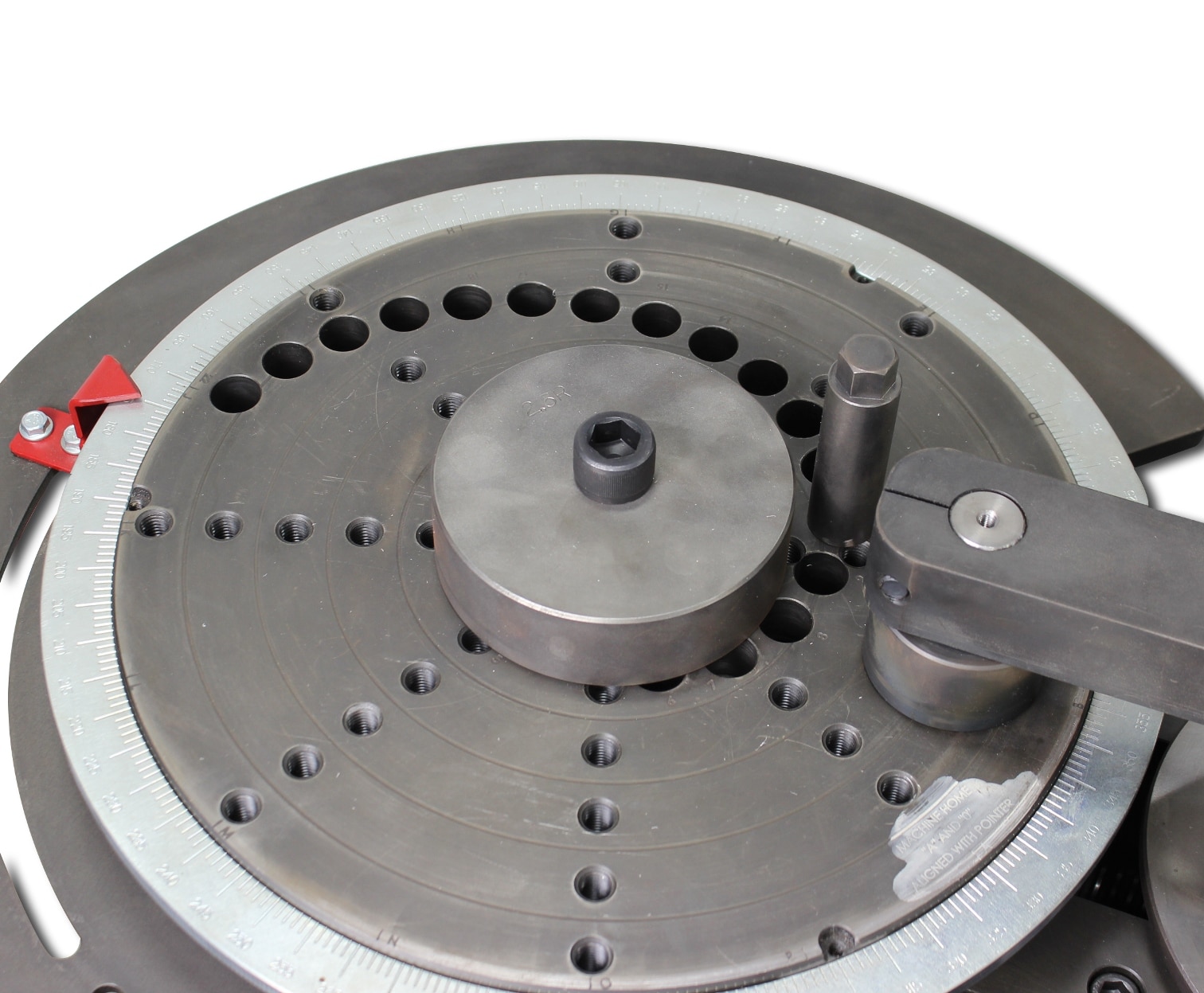

The MPB-275 high-speed universal bender is truly a do-it-all machine when is comes to draw bending metal. This multi-purpose machine has the ability to do tight hook bending, scrolling, and even some rotary draw bending up to 31.75mm schedule 40 pipe capacity.

Take a look at the impressive list of features

Max rotation 9999° bi-directional
5 second 180° bend speed
6 rpm max output
31.75mm SCH40 pipe capacity
12.7mm x 50.8mm easy way solid steel capacity
25.4mm x 25.4mm solid bar capacity
25.4mm steel bar capacity

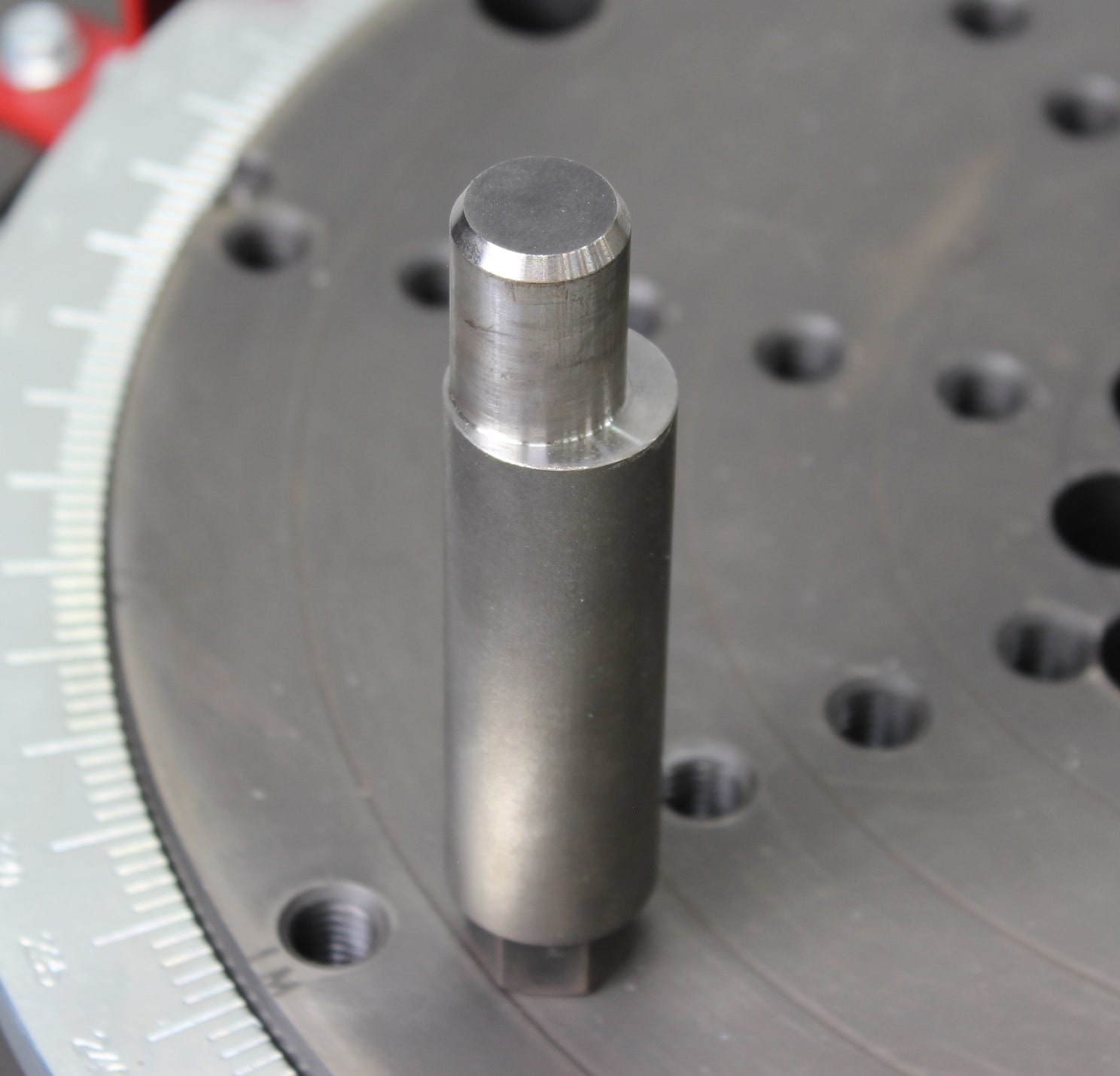

Includes bend pins (50.8mm tall) – 3.0 IR, 2.5 IR, 2.0 IR, 1.5 IR, 1.25, 1.0, 0.625 IR

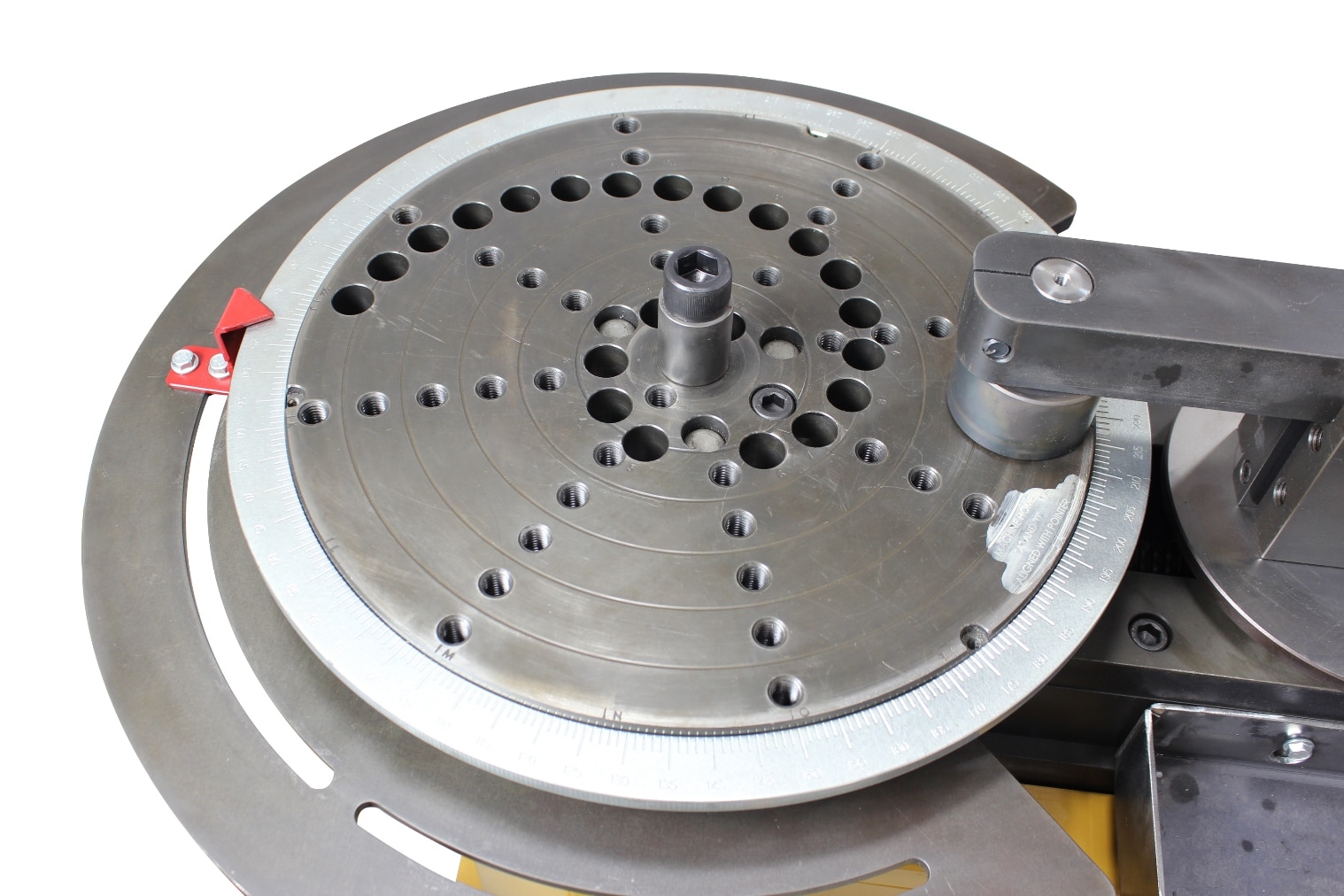

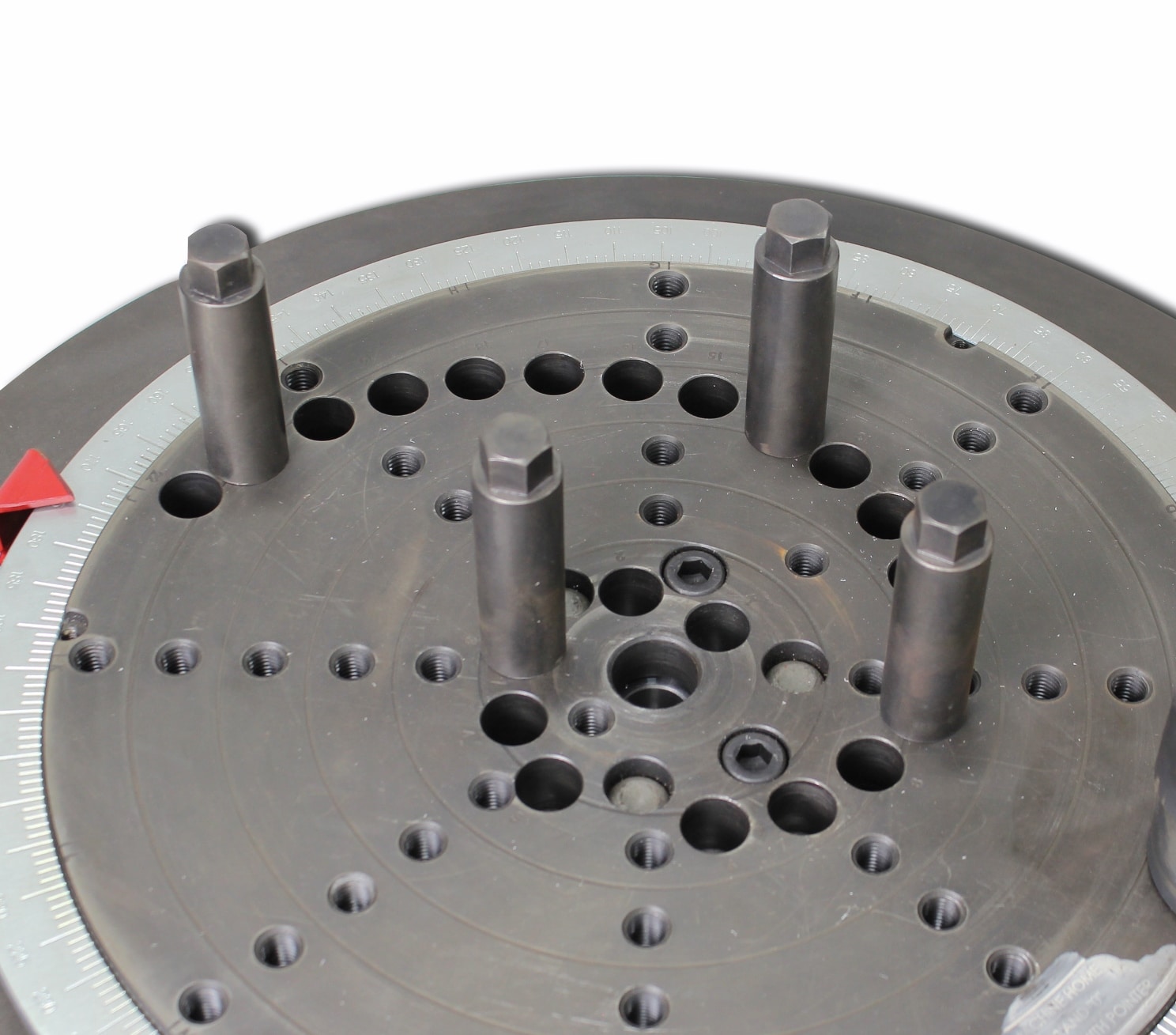

Includes Universal Bending Plate with 4 hardened lock pins
Includes nose bending tool
Includes roller bending tool

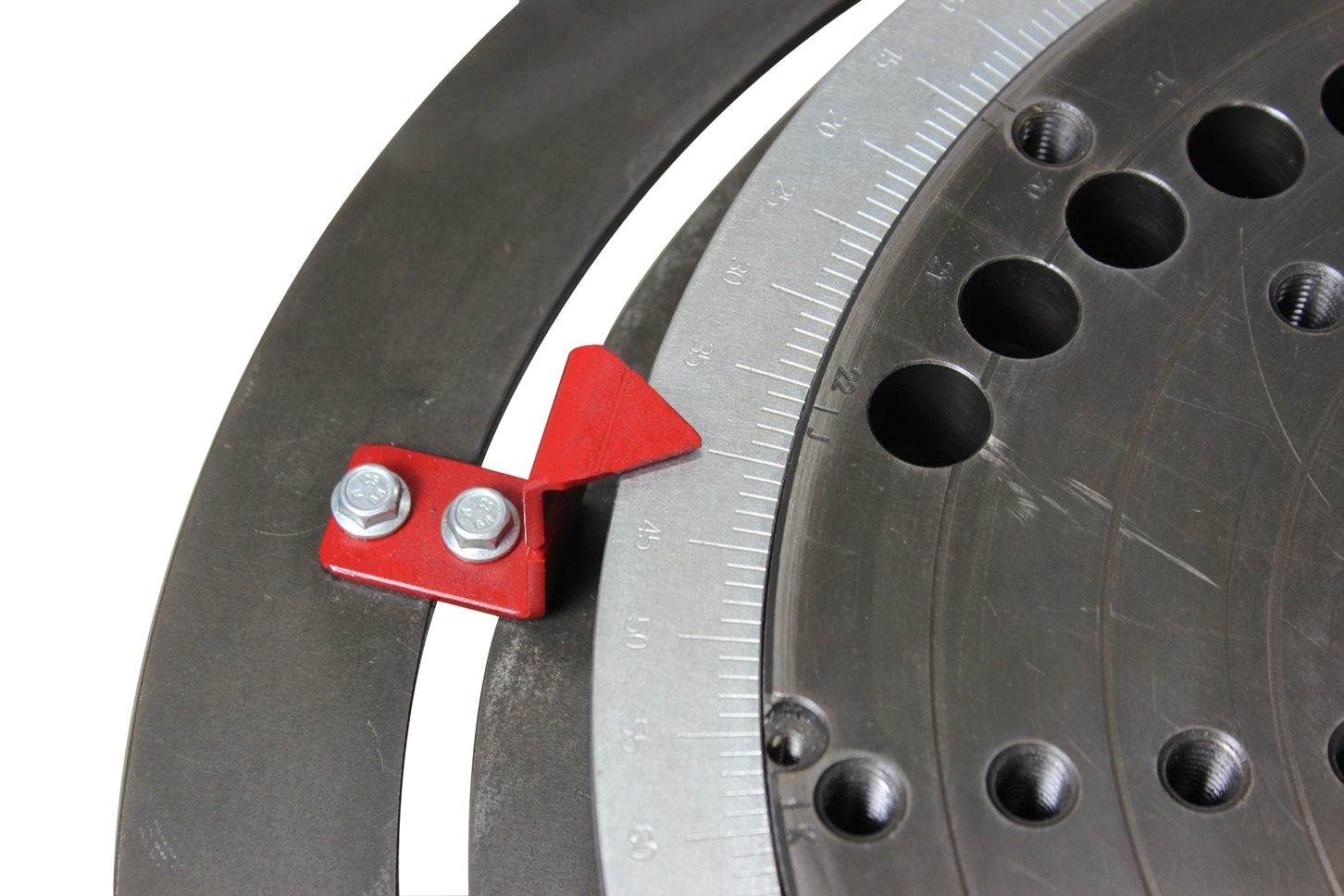

Includes one rotating stop Aand one fixed stop
Includes adapter to run standard tooling
Includes 4 shear pins


Item Number MPB-275
Solid Square Capacity 25.4mm x 25.4mm
Solid Round Capacity 25.4mm
Degree of Bend (Max) 17237
Mild Steel Solid Rod 12.7mm x 50.8mm Easy Way
Mild Steel Pipe Schedule 40 31.75mm
Bend Direction Bi-Directional
Max. Bend Speed 180 Degrees in 5 seconds
Power 220 Volt Single Phase
Shipping Weight 750 Lbs.
Max. RPM 6 RPM
Shipping Dimensions (Inches) 60″ x 44″ x 68″

* specifications subject to change without notice.
