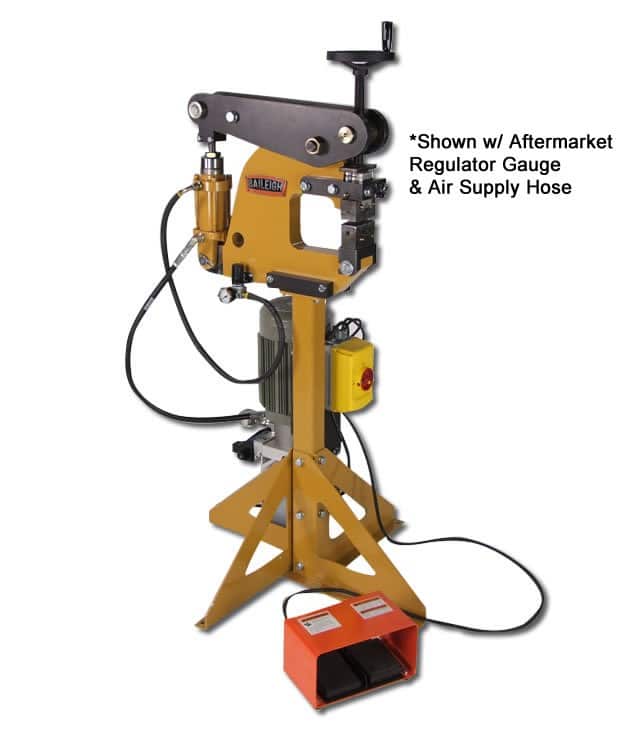

Baileigh MSS-14H Shrinker/Stretcher

  • 2mm mild steel capacity
  • 152mm throat depth
  • Pneumatic & hydraulic operation
  • Stand included

£7,078.00Excl. VAT + Delivery

SKU 2002645 Category Tag Brand:

Description

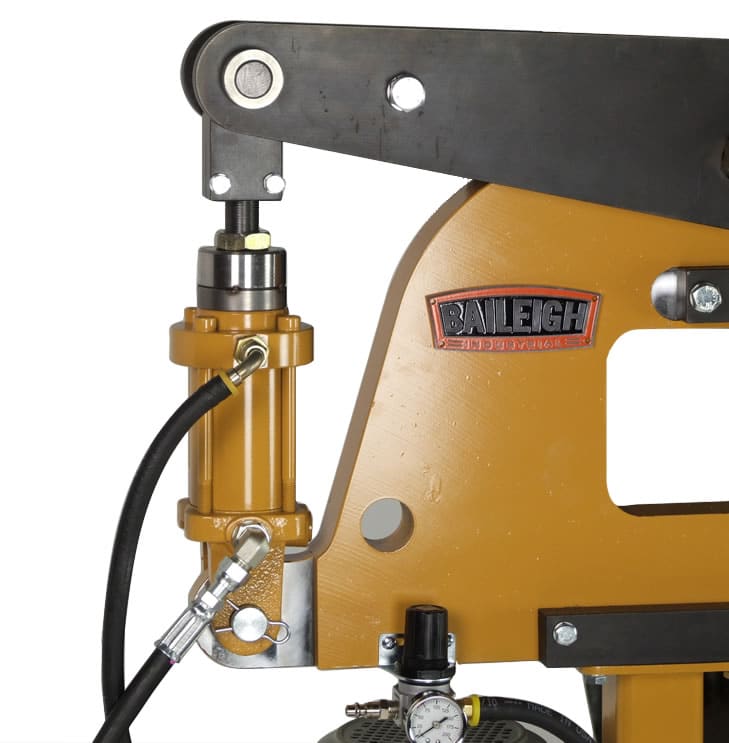

Have you ever had the thought of shrinking anything more than 16 gauge mild steel, but when you try it the machine and jaws just can’t quite cut it. The engineers at Baileigh Industrial had the same problem, this is when the concept for the MSS-14H hydraulic shrinker stretcher came from. The MSS-14H hydraulic shrinker stretcher is 100% made in the USA from solid plate steel and has a deep 7″ throat allowing even the deepest of metal working. But the MSS-14H is unlike anything on the market to date, the MSS-14H is actually hydraulically driven by a 110 volt hydraulic system on the down stroke for great power and air pressure assisted on the upstroke for faster movement. This system allows for between 30 and 40 stokes per minute.

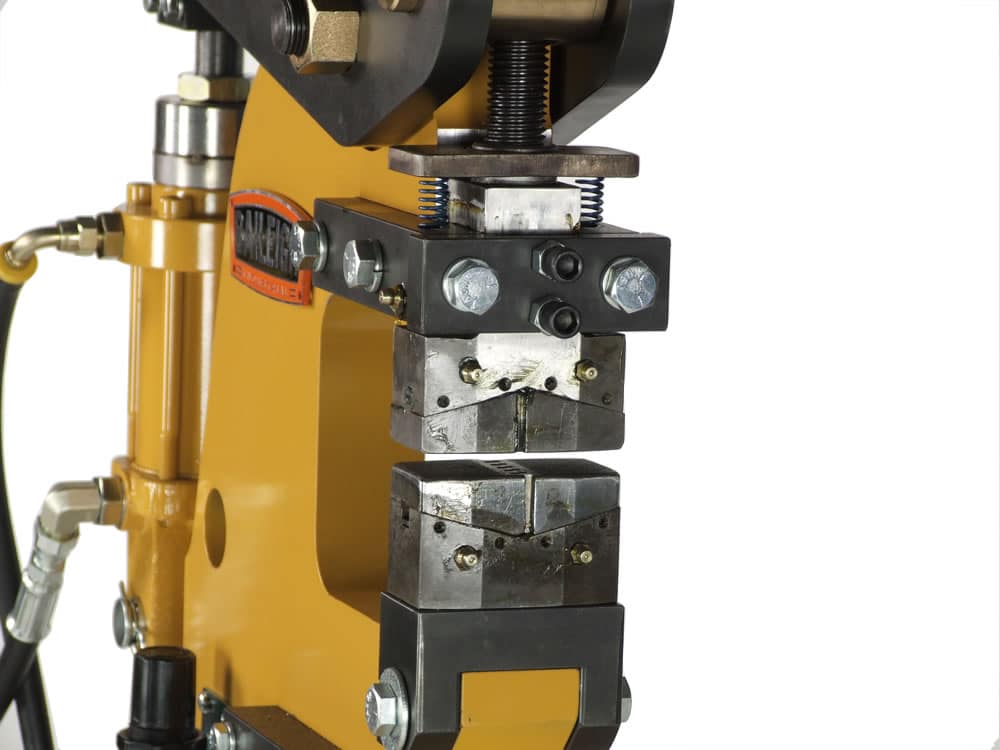

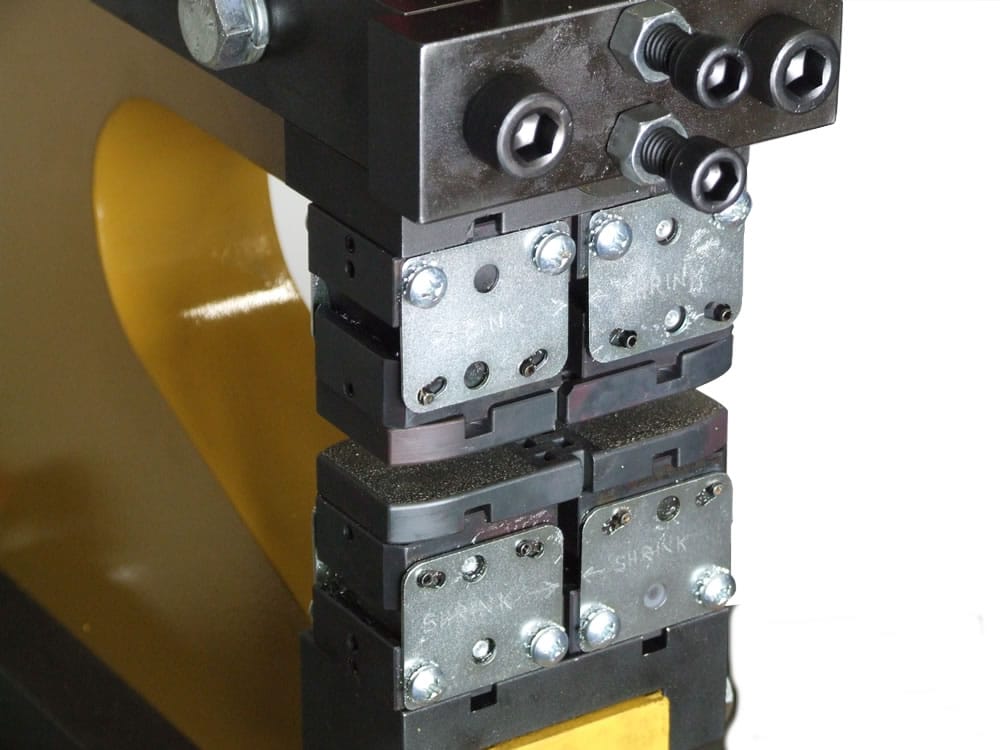

Another unique feature of the MSS-14H shrinker stretcher from Baileigh Industrial is the tooling. The MSS-14H comes standard with one set of four jaws; this set of jaws can do both shrinking and stretching simply by turning the jaws around and installing the correct “pads”. This is a hydraulic/pneumatic operated machine which is controlled by a foot pedal allowing for hands free operation. If that wasn’t enough the MSS-14H has a mild steel capacity of 14 gauge and an aluminum capacity of 12 gauge.

Specifications

Item Number MSS-14H
Country of Manufacture United States
Mild Steel Capacity 14 ga.
Movement Hydraulic Down / Pneumatic Up
Throat Depth 152 mm
Stand Included
Aluminum Capacity 12 ga.
Power 240V
Shipping Weight 136 kgs.
Shipping Dimensions (Inches) 1524 x1118 x1676mm

* specifications subject to change without notice.
