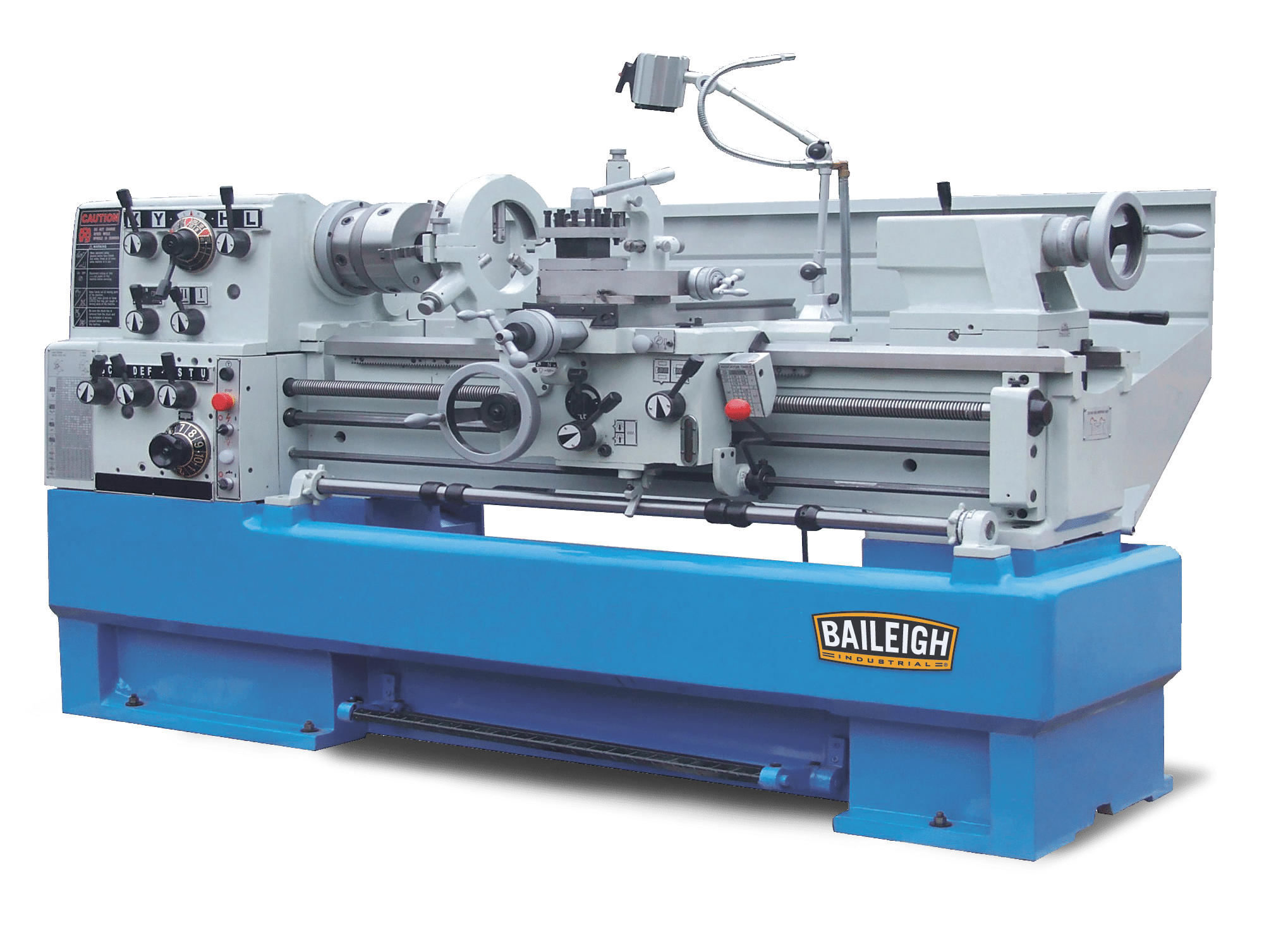

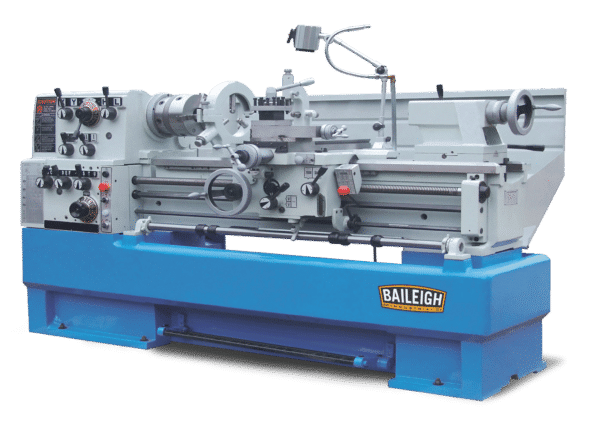

Baileigh PL-1860E Economical Precision Lathe

  • Distance between centres 1530mm
  • 14″ (460mm) swing over bed
  • Digital readout
  • 8″ three and 13″ four jaw chucks

£16,748.00Excl. VAT + Delivery

SKU 2000757 Categories , , Tag Brand:

Description

If you are looking for a large tool room lathe at a good price, take a look at the Baileigh Industrial PL-1860E metal lathe. The PL-1860E has a 18’ swing and 60” bed and operates on 220 volt three phase power. This is the perfect lathe for those small shops or schools that need large capacity but are on a budget. But just because it is sold at a lower price doesn’t mean that is without features.

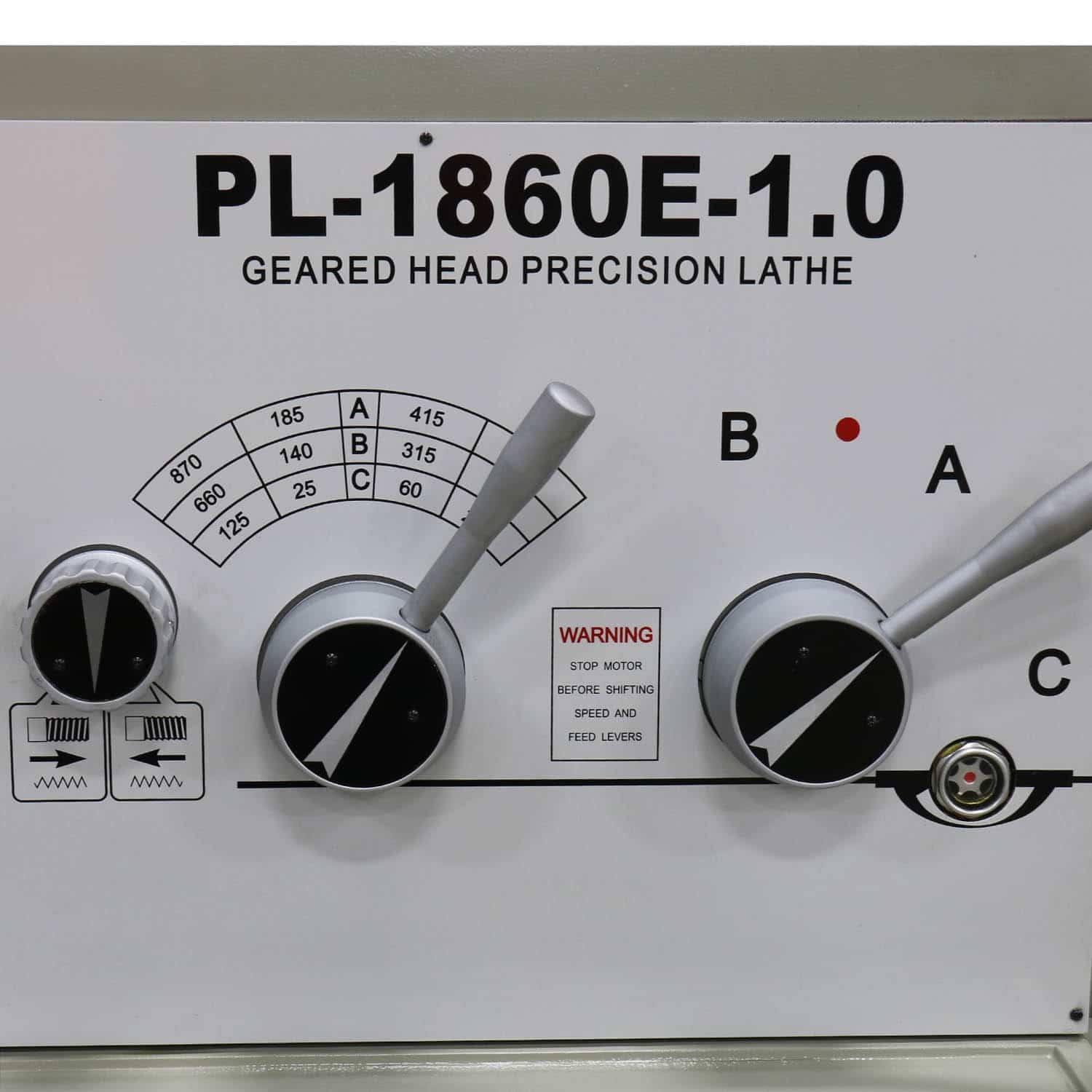

The PL-1860E is made just like all of our other metal lathes with only the best components. The massive fully cast base is built to stand up to years of use and gives great support to the main frame of the machine. All of the ways are precision ground, hardened, and then polished to ensure smooth movement. The bed is cross-ribbed for added strength and stability as well. And with 12 spindle speeds to chose from the PL-1860E has the perfect rpm for whatever you are cutting.

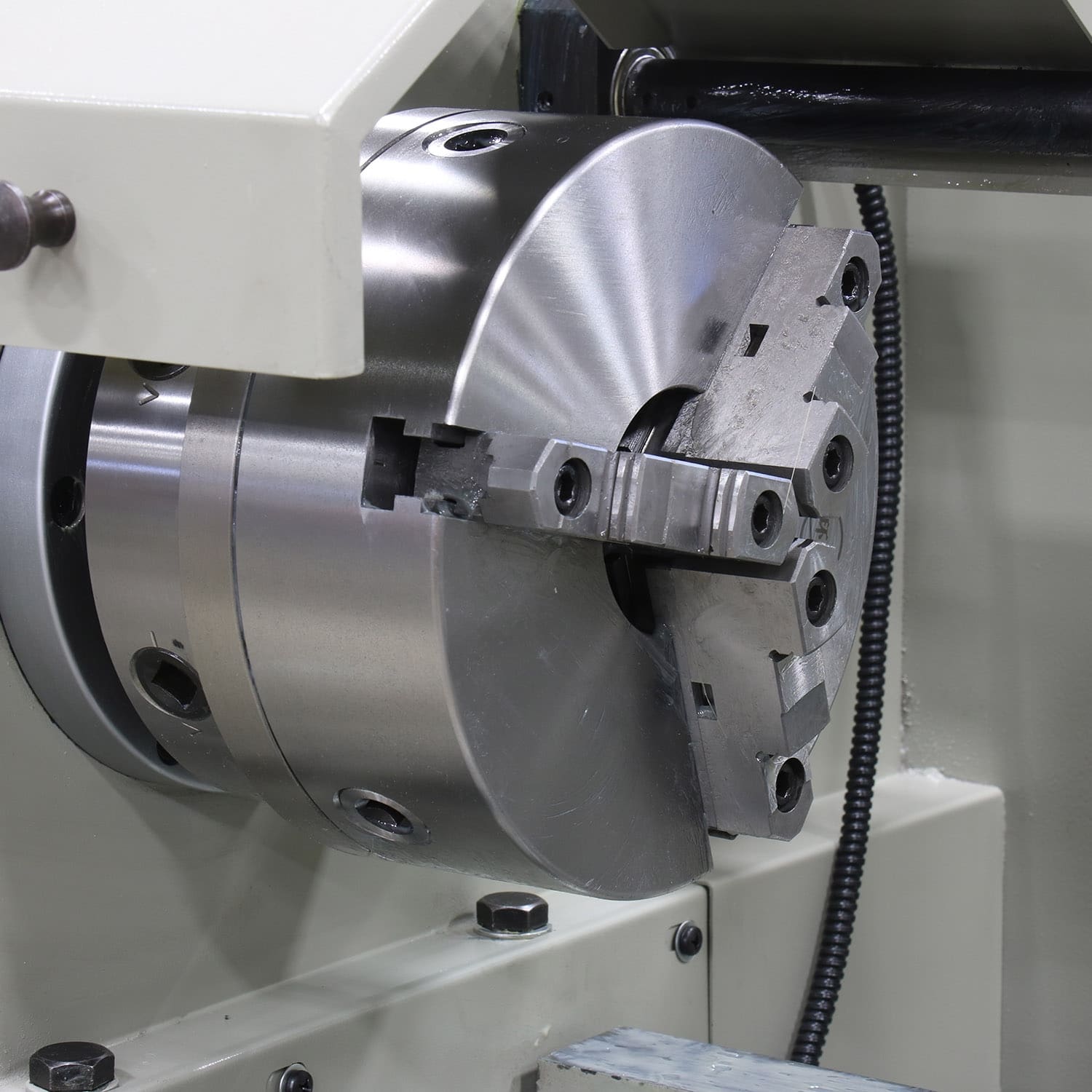

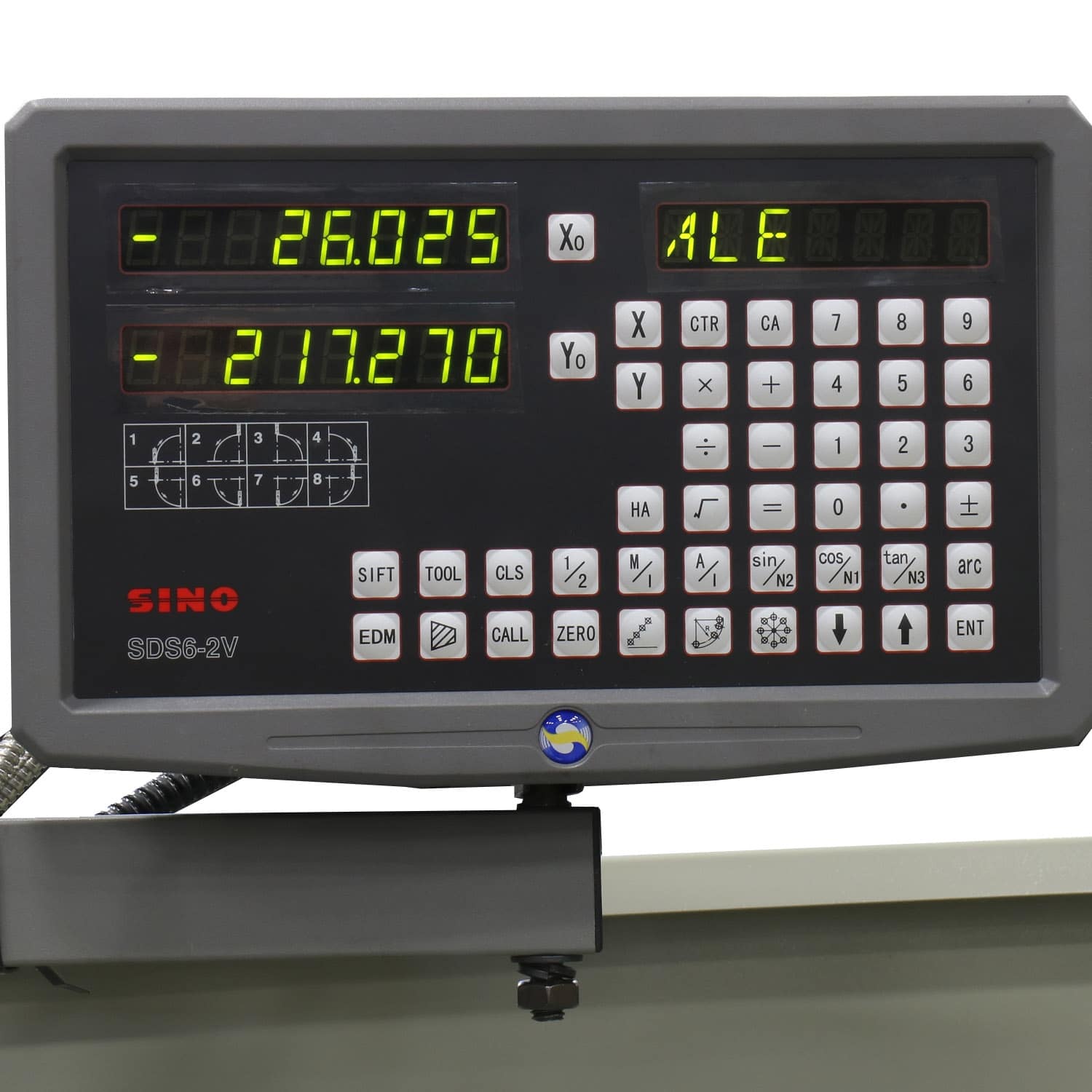

The PL-1860E metal working lathe includes many features not found on other machines in this price category. Things like the 2 Axis digital readout system, 8″ 3-jaw universal chuck, 13” four jaw chuck, 8″ back plate, coolant system, steady rest, follow rest, headstock chuck guard with micro switch, Rear Splash Guard, and halogen work light are all included.

Specifications

Item Number PL-1860E
Speed Range 25 – 2000 rpm
Cross Feed Metric (qty / type) 17220
Longitudinal Feed Metric (qty / type) 42 / .033-1.7 mm / rev.
Longitudinal Feed Imperial (qty / type) 42 / .0011″ – .0633″ / rev.
Speed Number 12
Spindle Bore 58 mm
Motor 7.5 hp
Spindle Nose D1-6″
Threads Diametrical Qty Type 50 / 4-112 D.P
Threads Imperial Qty Type 60 / 2-112 T.P.I
Threads Metric Qty Type 41 / .1-14 mm Pitch
Threads Module Qty Type 34 / .1-7 M.P
Spindle Taper Sleeve Morse #4
Spindle Taper Nose Morse #6
Tailstock Quill Dia 60 mm
Tailstock Quill Taper Morse #4
Tailstock Quill Travel 120 mm
Compound Rest Travel 120 mm
Center Length 1530 mm
Bed Width 300 mm
Main Motor 7.5 hp
Lead Screw Diameter 32 mm
Max. Swing In Gap Length 155 mm
Max. Swing Over Bed 460 mm
Max. Swing Over Cross Slide 274 mm
Max. Swing In Gap Dia 690 mm
Motor Coolant 1/8 hp
Cross Feeds Imperial Qty Speed 42 / .00033″-.01837″ / rev.
Cross Slide Travel 230 mm
Power 400 volt three phase
Shipping Weight 2385 kgs.
Shipping Dimensions (Inches) 2720 x 1040 x 1370 mm

* specifications subject to change without notice.
