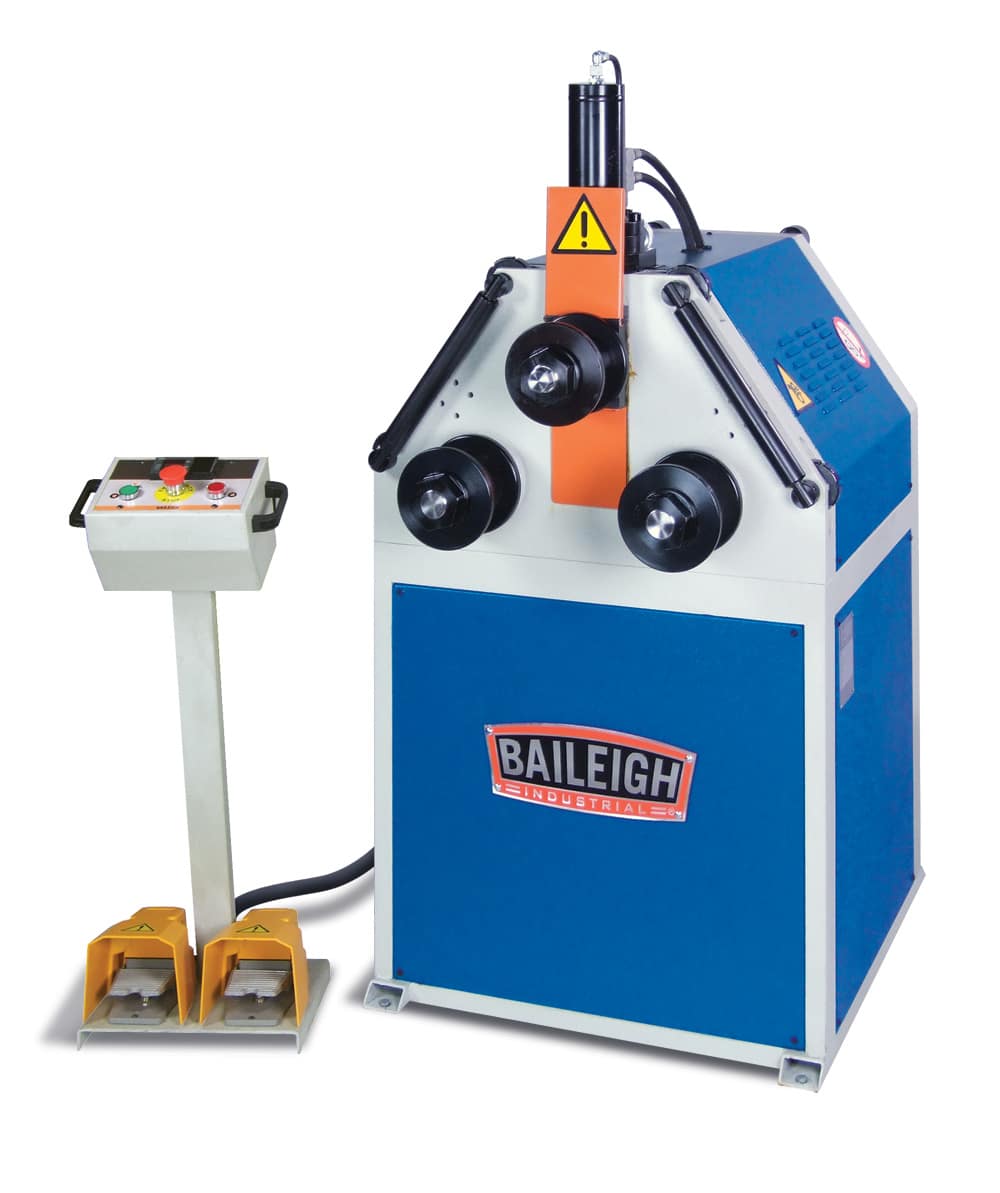

Baileigh R-M55H Manual Roll Bender

  • Foot pedal operation
  • 60mm Ø 2.1mm round tube capacity
  • Single pinch
  • Double driven rolls

£8,872.00Excl. VAT + Delivery

SKU 2003929 Categories , , Tag Brand:


The R-M55H profile bender’s design was developed from the R-M55. It has the same 2″ schedule 40 pipe capacity, but incorporates an industrial-grade hydraulic system to control the top forming roll. This takes less effort and time for the operator to achieve the same radii. In addition to the hydraulic movement, there is also a digital readout to let the operator know exactly where the top shaft is positioned. This is very important for repeating bends.

The R-M55H has a powerful, direct gearbox drive system that delivers full torque when bending at full capacity. The R-M55H uses an inverter that is overload protected, to control the rolling speed. Being variable speed allows the operator to fine tune the rolling speed for each material.

Running on just 220 volt, single phase power to operate, can bend while both in a vertical position, for small rolling projects, or horizontally, for larger rolling projects.

Operation of the R-M55H profile bender is done from a portable pedestal that has a digital readout, controls for the top roll positioning, and foot pedal controls for forward and reverse of the rollers.

This profile bender is designed to offers years of production at a very affordable price.


Item Number R-M55H
Country of Manufacture Portugal
Driven Rolls 2
Roll Adjustment Hydraulic
Pipe Capacity Size: 60 (4) mm / Min. Dia: 1,016 mm
Round Tube Capacity Size: 70 (2.1) mm / Min. Dia.: 1,524 mm
Square Tube Capacity Size: 50 (2.1) mm / Min. Dia.: 1,219 mm
Solid Round Capacity Size: 35 mm / Min. Dia.: 508 mm
Flat Bar Easy Way Size: 101 (12.7) mm / Min. Dia.: 508 mm
Flat Bar Hard Way Size: 128.5 (9.5) mm / Min. Dia.: 508 mm
Angle Iron Capacity Size: 50 (6.3) mm / Min. Dia.: 711 mm
Shaft Diameter 50 mm
Shaft Center Distance 13.12″
Upper Roll Dia. 148 mm
Lower Roll Dia. 148 mm
Motor 1.5 hp
Pinch Single
Power 220V / single-phase
Shipping Weight 453 kgs.
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.

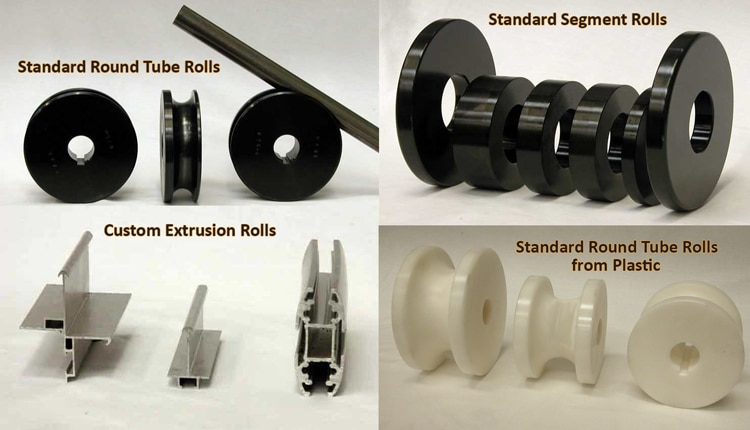

*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Speeds 5754
Shipping Dimensions (Inches) 1524 x 1118 x 1727 mm

* specifications subject to change without notice.
