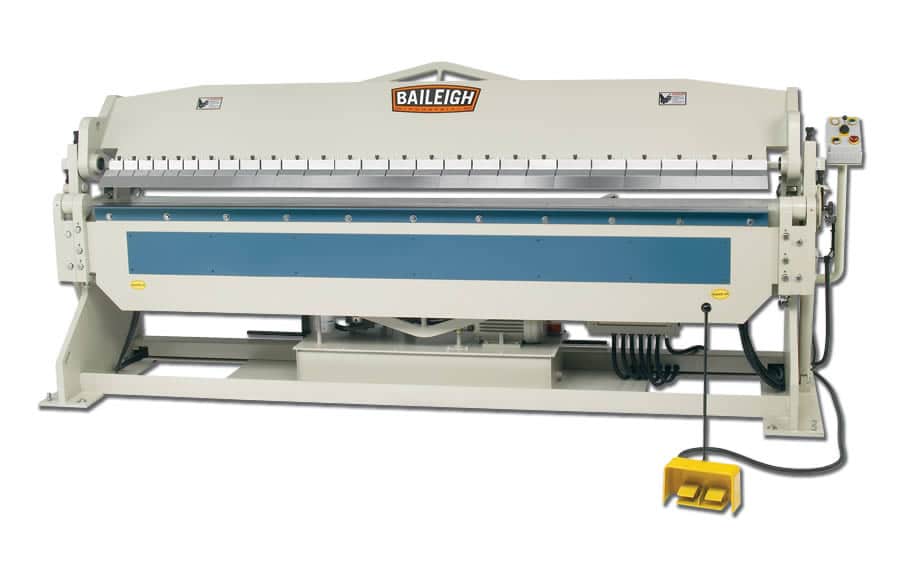

BB-12014H Heavy Duty Hydraulic Box & Pan Folder

  • 2mm mild capacity
  • 1.8mm stainless capacity
  • 3048mm folder length
  • 0° – 135° bend angle

£25,253.00Excl. VAT + Delivery

Description

All of us need a little extra help sometimes, and that is where the BB-12014H hydraulic box and pan brake from Baileigh Industrial can help.

The BB-12014H uses an industrial-grade hydraulic system to replace the manual functions of the BB-12014 manual sheet metal brake, making your shop more efficient, and saving money.

Operation of the BB-12014H hydraulic brake is very simple. To create the correct bend in your sheet metal, simply dial in the desired degree including spring back, load the machine, then begin the cycle by stepping on the foot pedal controls. The machine will clamp the material, and the leaf will lift to the desired angle and return. The upper beam then unclamps the material ready for the next bend. These operations can either be done on the control panel or with the foot pedal.

The BB-12014H runs on 400 volt, three phase power and has enough strength to bend 14 gauge mild steel or 18 gauge stainless steel sheet metal to a maximum of 135°.

The BB-12014H, like all Baileigh Industrial sheet metal brakes, is built to last, the fully welded frame and support rods add rigidity to the overall structure allowing for years of trouble free use.

Additional information

Weight 2650 kg

Specifications

Item Number BB-12014H
Country of Manufacture Taiwan
Motor 3 hp
Min Reverse Bend 12.7 mm
Thickness (SS) 14 ga. (18 ga.)
Box Depth 152 mm
Beam Adjustment 25.4 mm
Bend Angle 0 – 135°

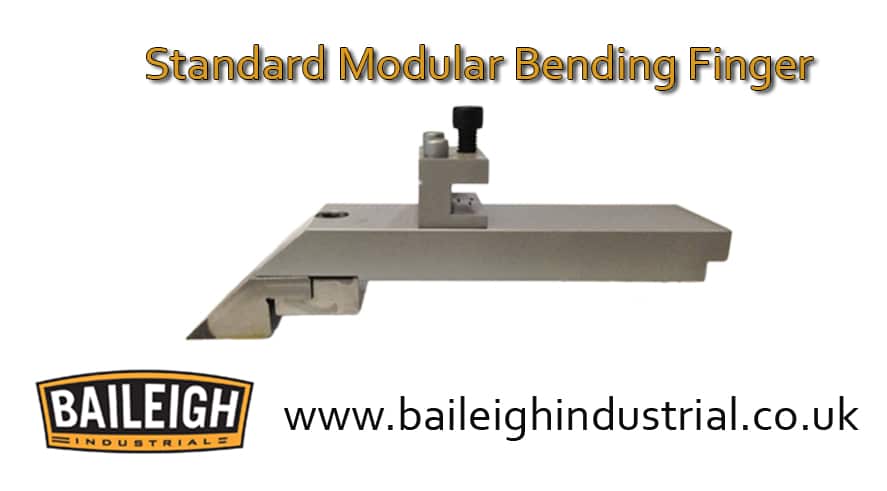

Finger Sizes 3″ – 4″ – 5″ – 6″
Power 220V – 3-phase
Shipping Weight 2650 kgs.
Shipping Dimensions 3886 x 1168 x 1702 mm

* specifications subject to change without notice.
