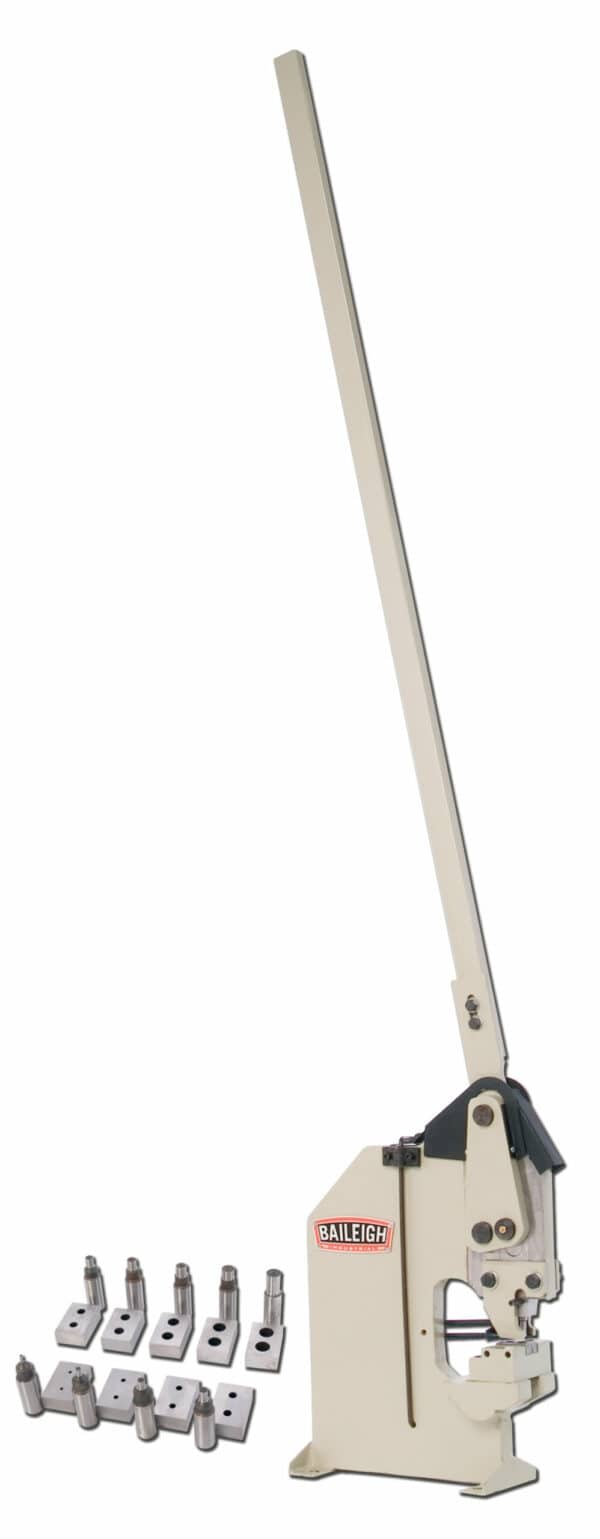

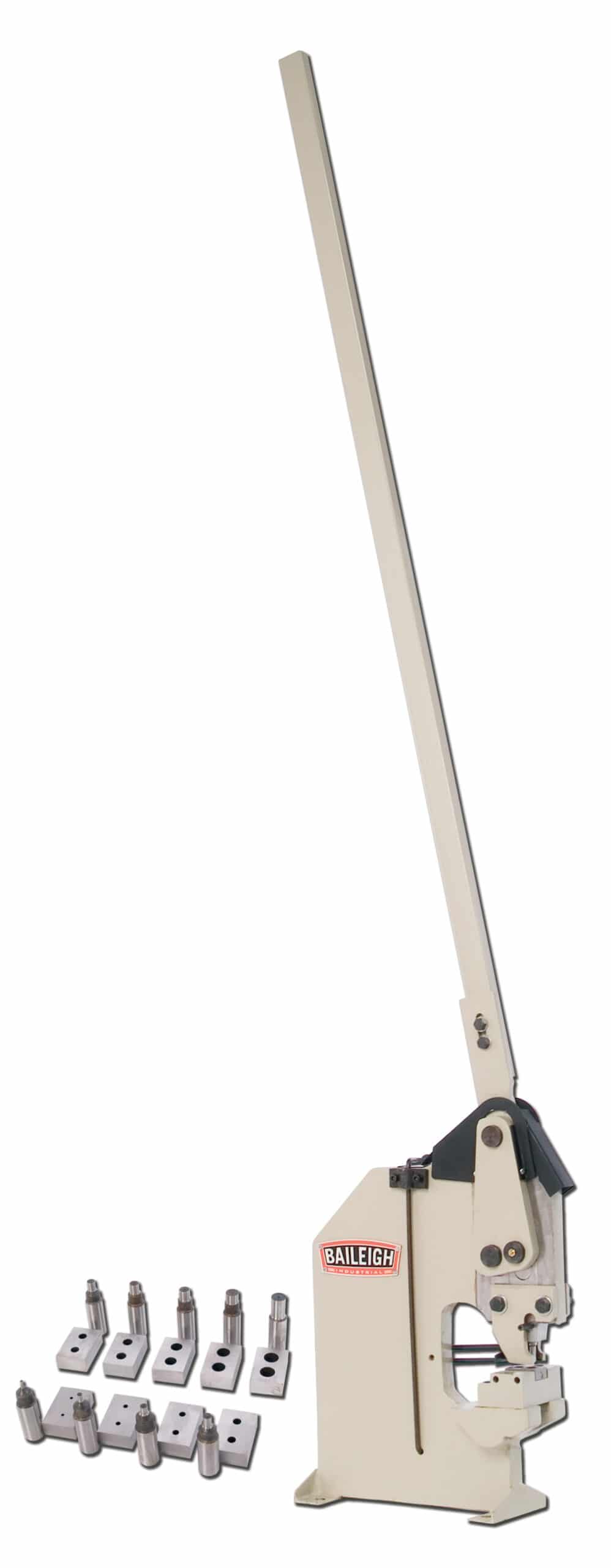

HP-160 Manual Punch

  • 3.56mm punching capacity
  • 159mm throat depth
  • Manually operated

£925.00Excl. VAT + Delivery

SKU 2002662 Categories , Tag Brand:

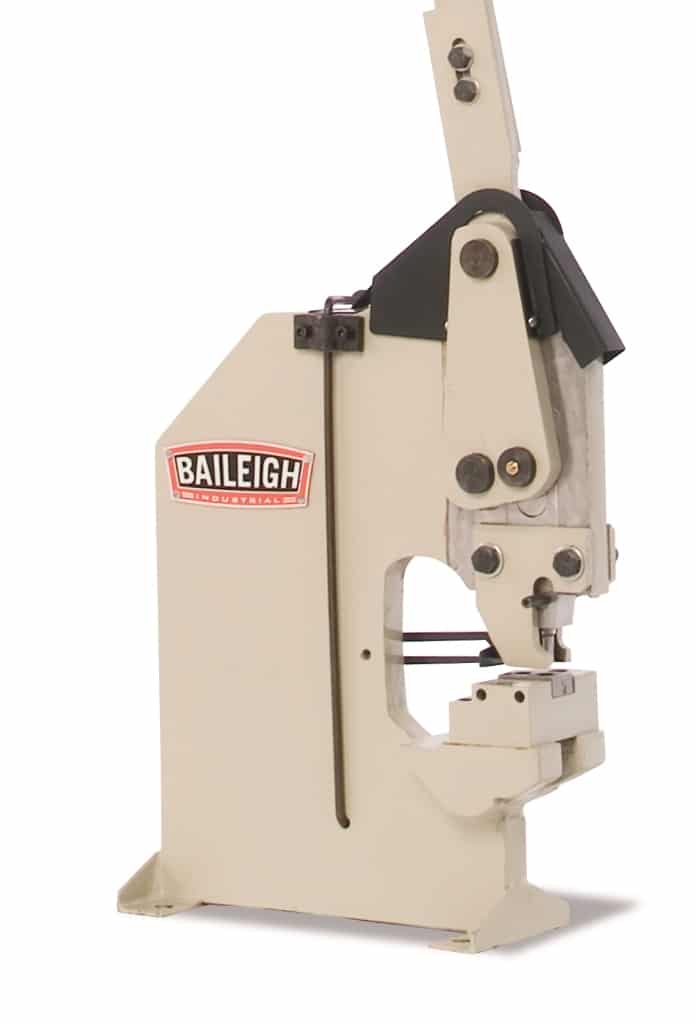

The HP-160 manual sheet metal punch from Baileigh Industrial is ruggedly built to withstand years of use in a garage or a full fledged fabrication shop. The body on the HP-160 is made from 1.5” steel plate and weighs in at an impressive 80kgs, making this one heavy-duty machine. The HP-160 hand punch will punch perfect holes over and over again faster and more efficiently than traditional ways such as drilling.

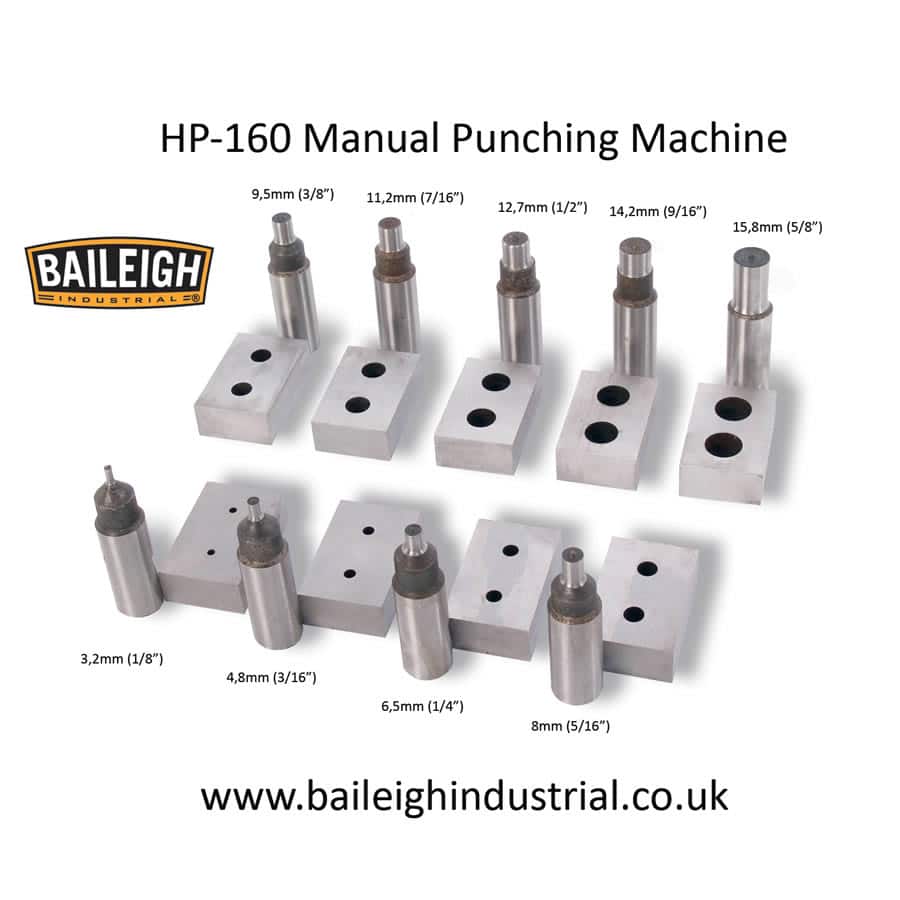

The HP-160 manually operated hand punch comes standard with 9 sets of punches and dies, ranging from 1/8” to 5/8” round. The HP-160 is made from heavy duty plate steel which allows it to have a large capacity of .314” mild steel. The 6.25” throat depth allows for punching on even the deepest parts. An adjustable material stop is also included.

Additional information

Weight 80 kg


Item Number HP-160
Throat Depth 159 mm
Max. Punching Capacity 4.775 mm
Power Manual
Shipping Weight 80 kgs.
Shipping Dimensions 521 mm x 229 mm x 927 mm

* specifications subject to change without notice.
