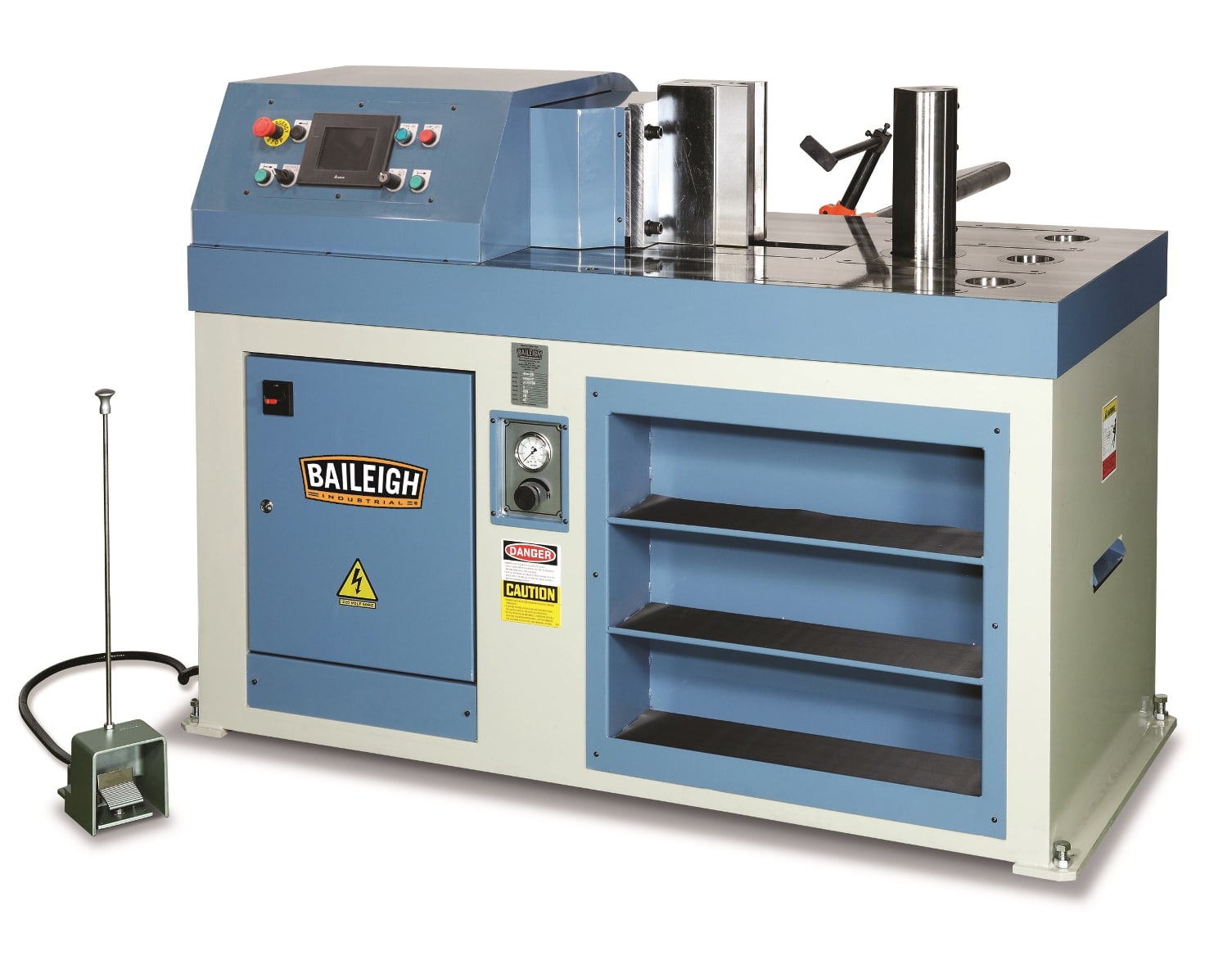

HPB-78-NC Horizontal Press Brake

  • Hydraulic operation
  • 70 metric tons of pressure
  • Foot pedal operation

£37,274.00Excl. VAT + Delivery

SKU 1004720 Categories , Tag Brand:

Description

Making smaller parts? This Baileigh horizontal press brake can save time and money, since material lies on the table and stays square. The HPB-78NC industrial hydraulic press brake can shear, bend, punch, and straighten.

7.5 hp motor produces up to 78 tons of pressure.
13.78” stroke length.
Runs on 400-volt 3-phase power.
Industrial-grade hydraulic system is located on top of the machine to reduce flex.
You can adjust the pressure of the the hydraulics for your material.
Designed for simple operation. In 15 minutes, anyone could learn to run it.
Numerical control (NC) programmer can store up to 99 programs with 10 bends per program.
Electronic encoders make this hydraulic press brake accurate to +/- .002”.
Product counter makes production runs more efficient.
Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material.
You can also run the machine in a manual mode for one-off projects as well as set-up.
Robust manual back gauge bolts to the machine and helps with repeatability.
Machined table, 37.4” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out.

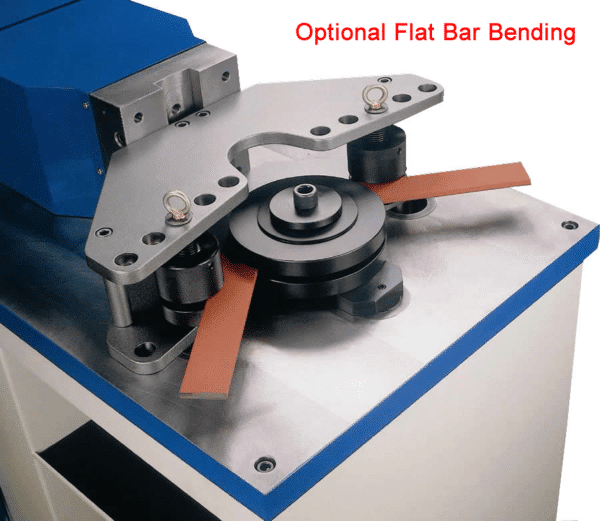

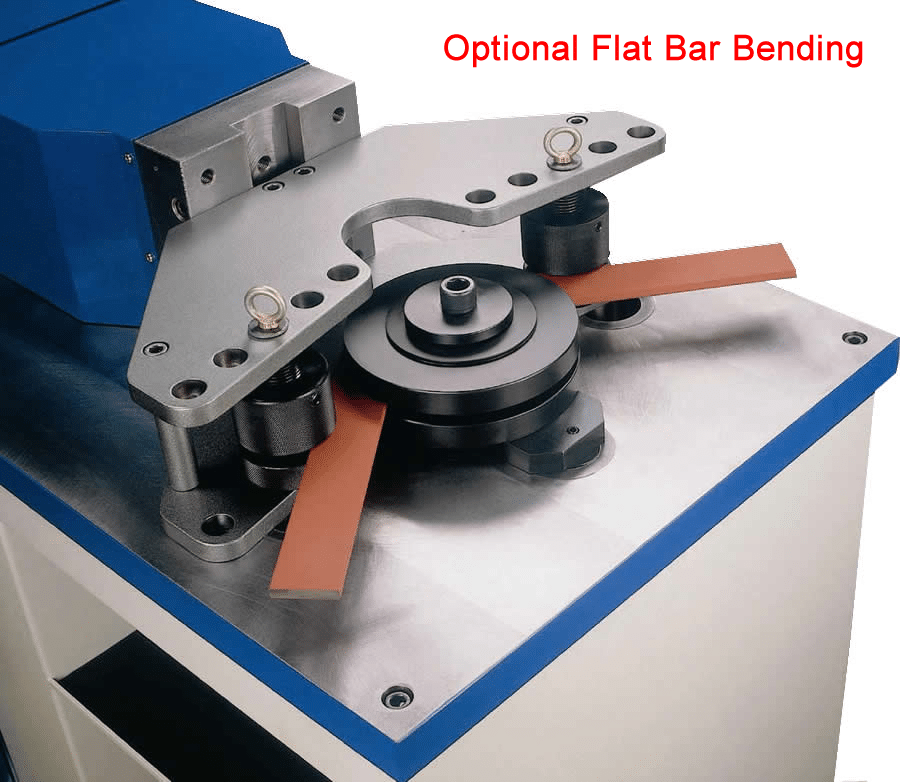

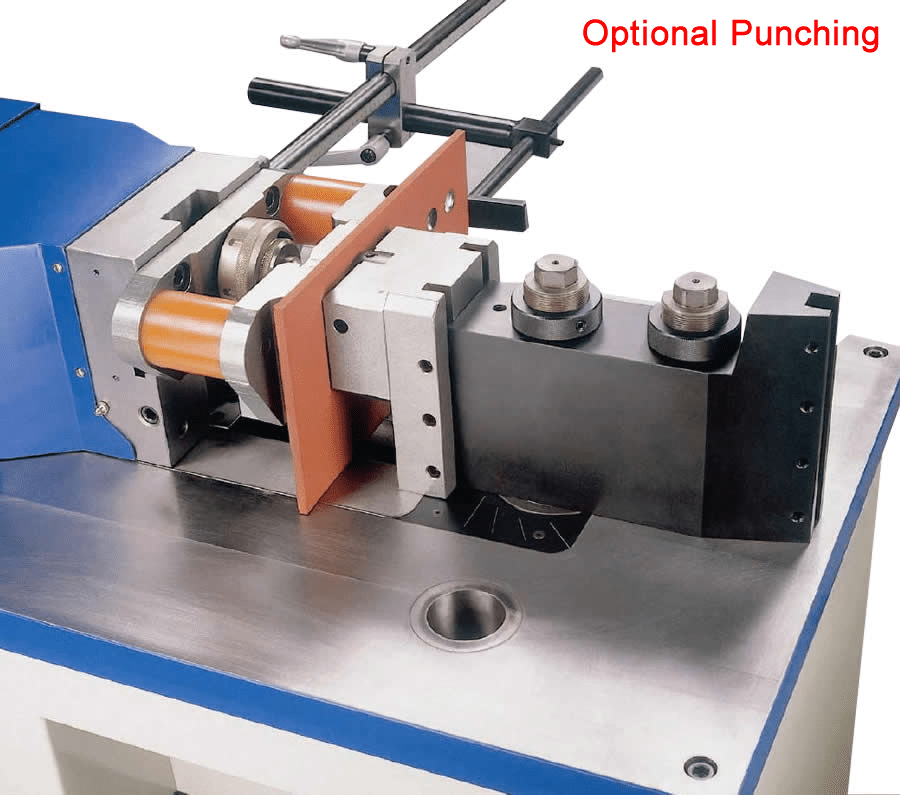

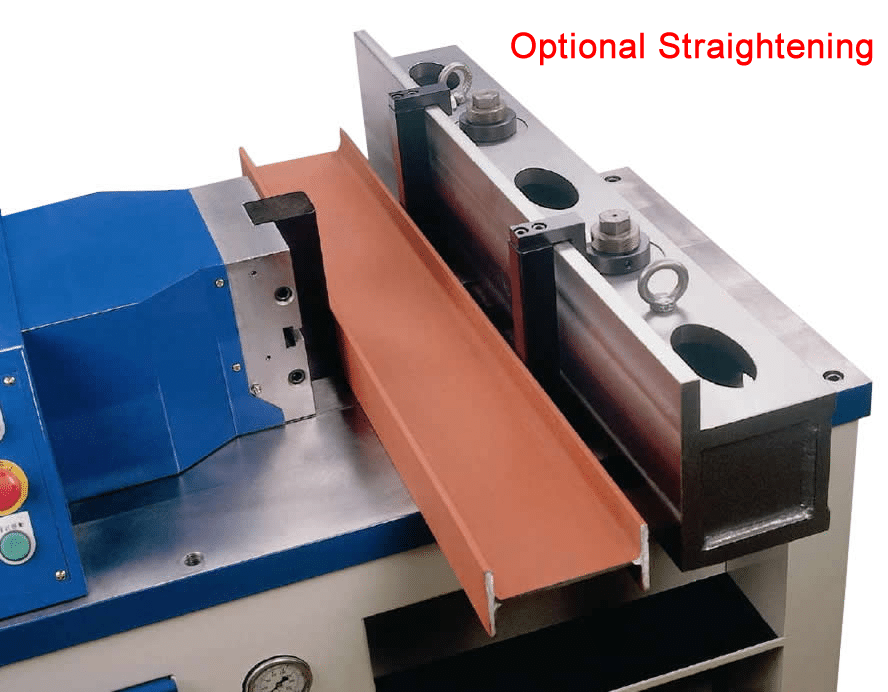

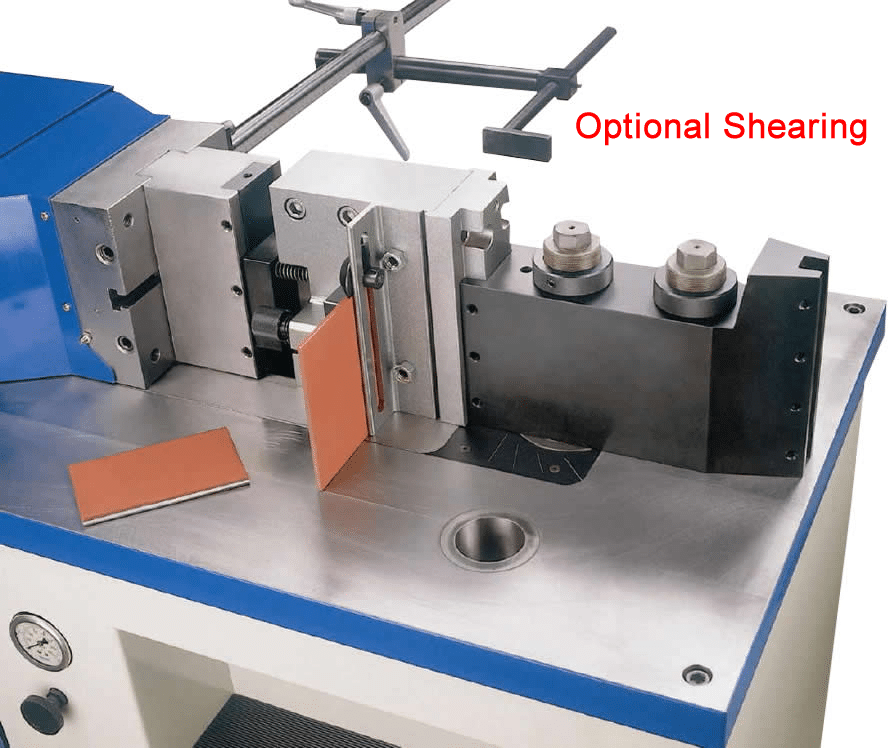

Accepts attachments for punching, straightening, shearing, and even pipe bending.

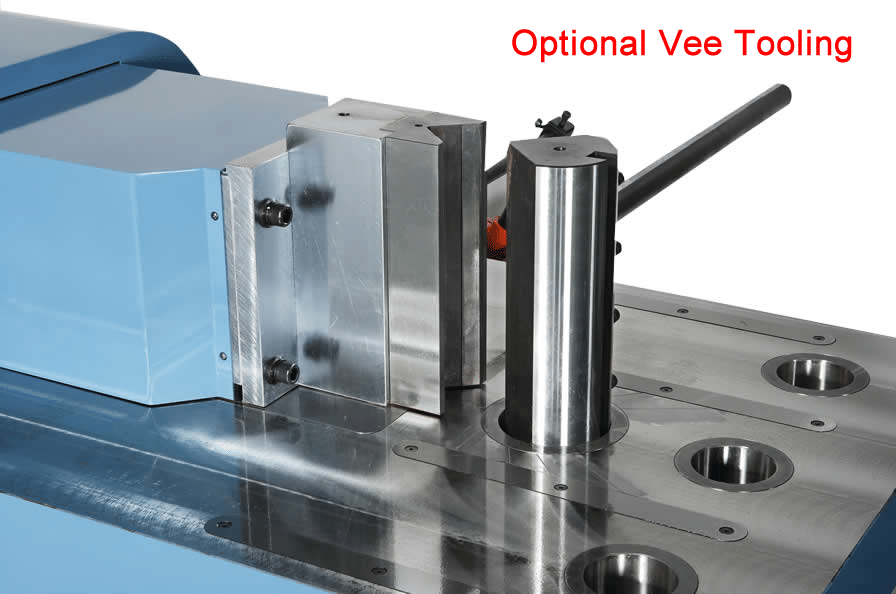

Includes a set of single-V tooling (V-opening die and V post).

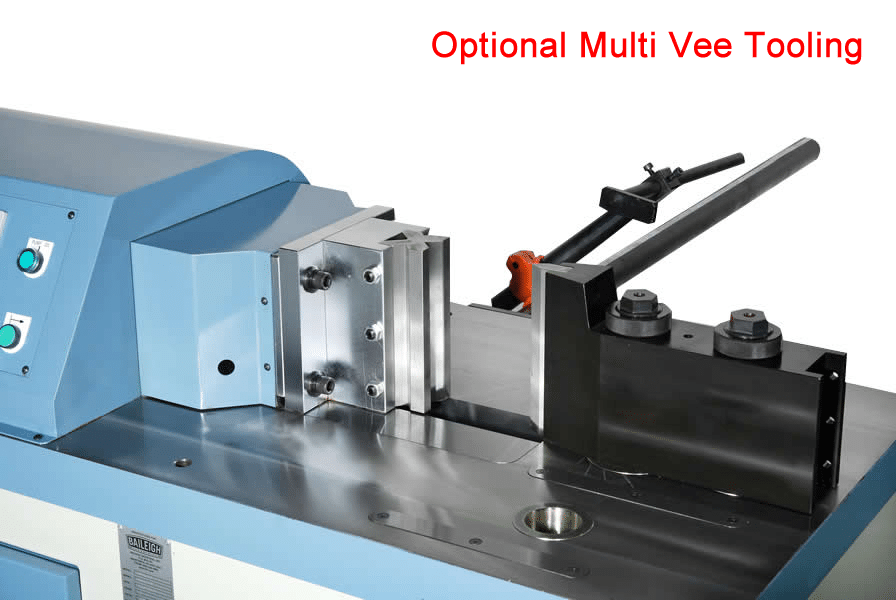

Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary.
4,580-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure.
Shelving in the front can hold tooling and items you might need on a daily basis.
We stock replacement parts, so we can ship them to you quickly.
Covered by a 2-year parts warranty.
Our team of service reps, all with hands-on machine experience, are here to provide lifetime technical support by phone.

Also available in a 45-ton horizontal press brake machine.

Additional information

Weight 2082 kg

Specifications

Item Number HPB-78NC
Return Speed .55″ / sec.
Motor 7.5 hp
Pressure 78 tons
Punch Height 11.81″
Working Speed .43″ / sec.
Stroke Accuracy +/– .002″
Stroke Length 13.78″
Table Height 37.4″
Approach Speed 1.69″ / sec.
Fixture Holes (1) @ 4.646″ dia. / (3) @ 3.268″ dia.
Power Manual
Shipping Weight 4580lbs
Shipping Dimensions (Inches) 81x38x61

* specifications subject to change without notice.
